2.5G PoE++ Surge Protector, 20KV/10KA

The SD series surge protectors effectively safeguard PoE switches, PoE PDs, and other IP devices from lightning and many types of electrical interference, including power surges and spikes sent through networking cables.  Two sub-models, the SD-101 and SD-201, are designated as hardened-grade surge protectors and are capable of functioning in extreme weather conditions ranging from -40°C to 85°C.

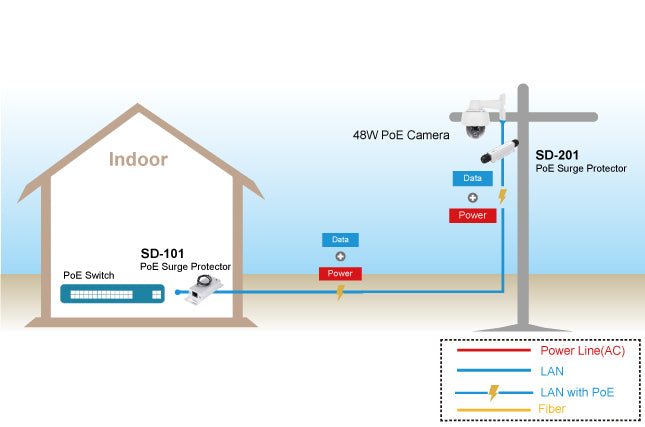

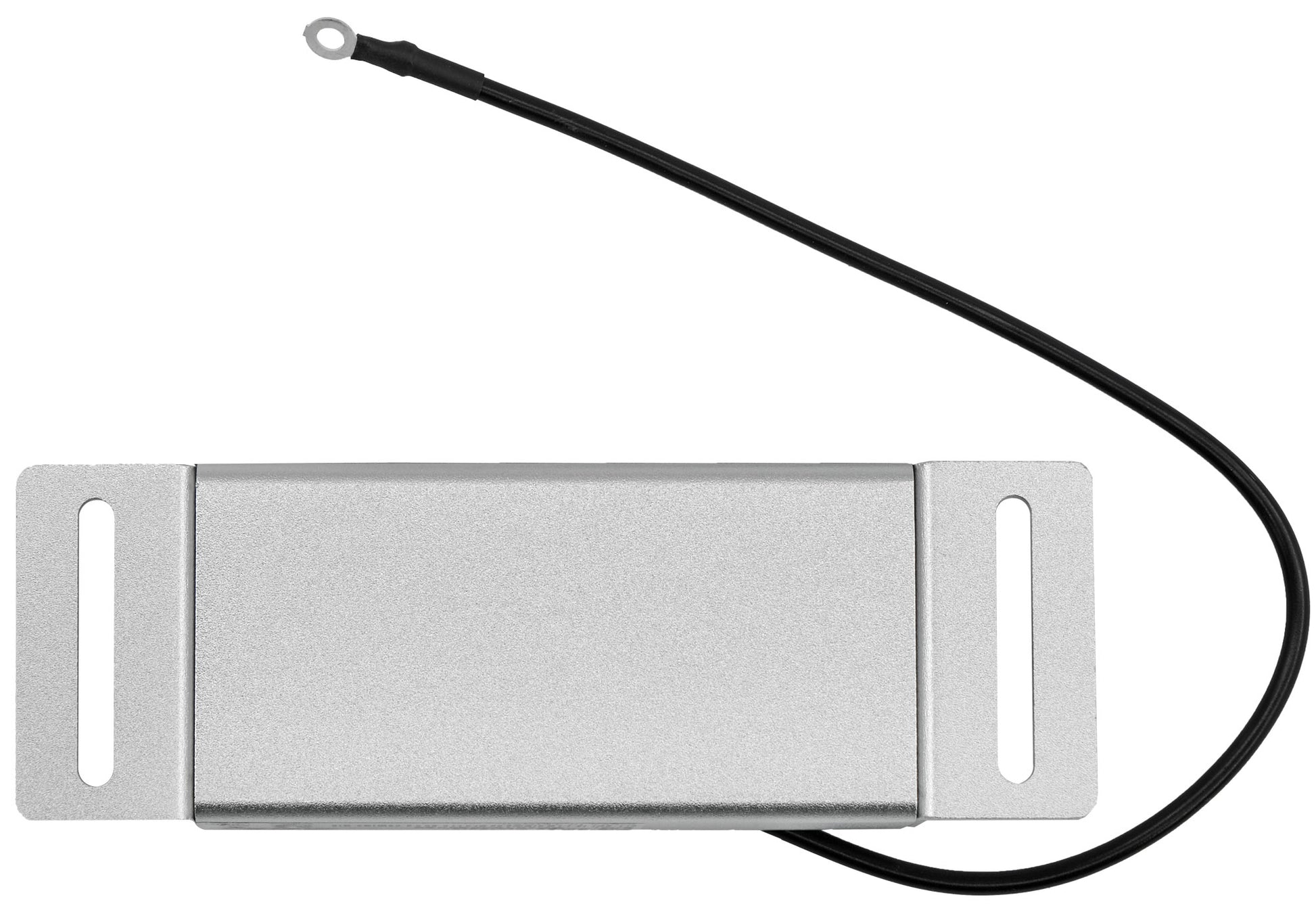

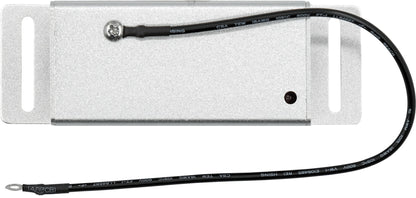

The SD-101 is designed to be deployed besides PoE switches, or inside junction or power boxes. With a robust operating temperature range, the SD-101 will prevent surges of up to 10KA and features plug-and-play installation.

• Supports 10M/100M/1G/2.5G bps Ethernet
• IEEE 802.3bt/at/af and UPoE compliant
• Protects up to 20KV/10KA surge
• Failure Indicator LED
• Operating temperature from -40°C to 85 °C
• Two-year manufacturer warranty

Standards and Certifications
• - 802.3af / 802.3at / 802.3bt
• - CE, FCC, VCCI, C-Tick
• - ITU-T K.21, IEC-61643-21, IEC-61000-4-5, TIA-968-A (FCC Part68)

General
• Number of Ports: 1

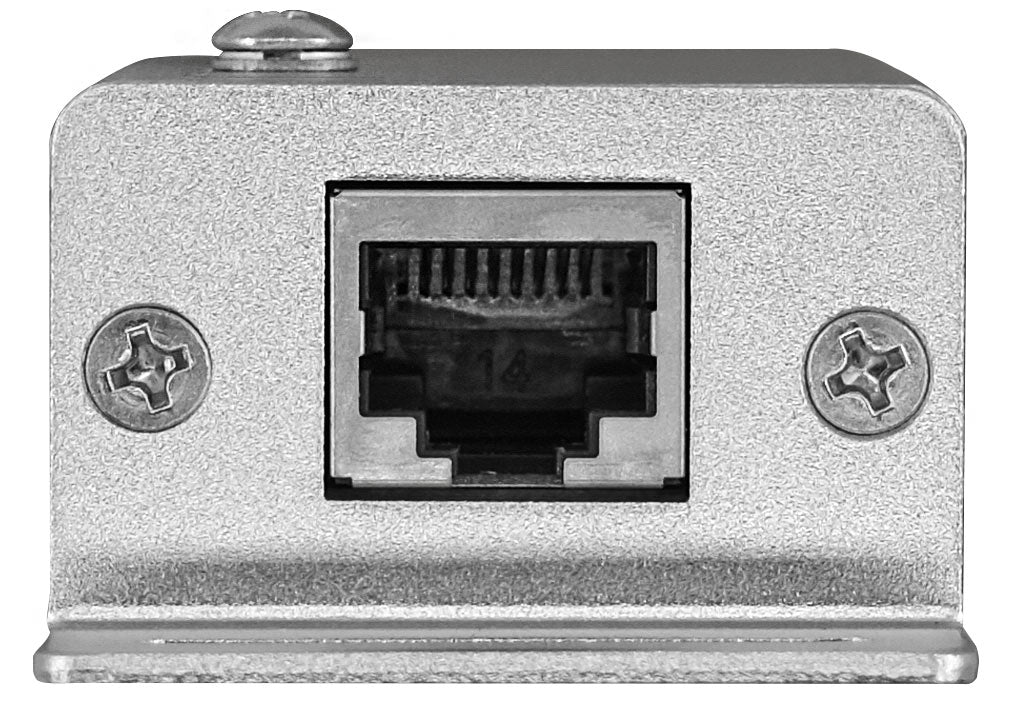

• Connectors: 2 x RJ45
• Data transfer rate: 10M/100M/1G/2.5G bps
• Max Discharge Current (8/20us): 10KA
• Maximum Operation DC Voltage: 60VDC
• Maximum Operation DC Current: 1A for 2 pair, 2A for 4 pair, 95W maximum
• Line to Ground Protection Level (10/700us): 20KV
• Line to Line Protection Level: (10/700us): 4KV
• Clamping Voltage (Line to GND):
• Line to Line Protection Level: 600V
• Clamping Voltage (Line to Line): 20V
• Insertion Loss @ 10MHz/100MHz: 1 dB
• Return Loss @ 10MHz/100MHz: -20db
• Response time: 1ns
• MTBF (Hours): 923,617
• Operating Altitude: 2,000 m (6,562 ft)

Mechanical & Environmental:
• Dimensions (L x W x H): 80 x 40 x 25 mm (3.15 x 1.57 x 0.98 inches)
• Weight: 0.4 lbs
• Operating Temperature: -40°C~ 85°C (-40°F~ 185°F)
• Storage Temperature: -40°C~ 85°C (-40°F~ 185°F)
• Operating Humidity: 5% ~ 95% non-condensing
