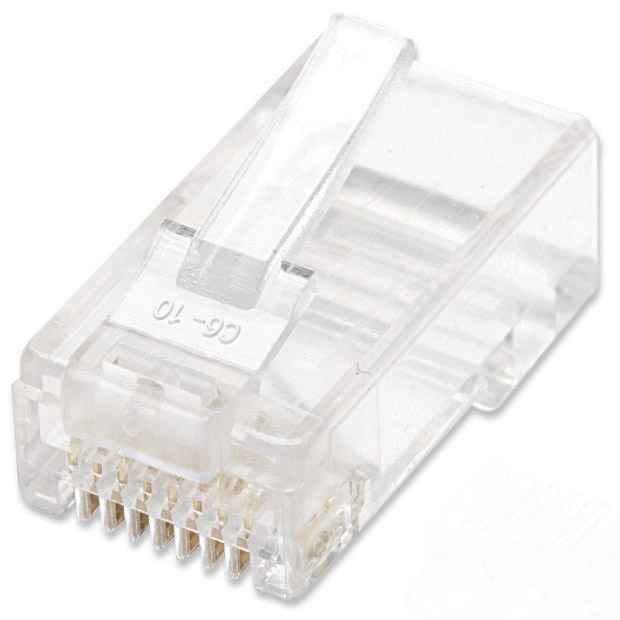

100-Pack Cat6 RJ45 Modular Plugs

Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide customers with options for Cat5e and Cat6 cables in unshielded and shielded varieties. We offer 15 micro-inch gold contacts for our standard plugs or a high-quality 50 micro-inch standard in our Premium and Pro lines.

• Cat6 RJ45 modular plug
• 15 micro-inch gold-plated contacts
• Two-prong terminal for stranded wire
• Supports 24 to 26 AWG
• Fits round cable
• For unshielded twisted pair applications
• Standard 8P8C design, compatible with all network RJ45 connections
• Fully compatible with Category 3, 4, 5, 5e and 6 applications
• Lifetime Warranty

Standards

• Category 5 (ANSI/TIA/EIA-568-A)

• Category 5e (TIA/EIA-568-B)

• Category 6 (ANSI/TIA-568-B.2-1)

  Material

• Insulator: polycarbonate rated UL 94V-2

• Contacts: phosphor bronze

  Contact Plating

• 15 micro-inch gold

  Package Contents

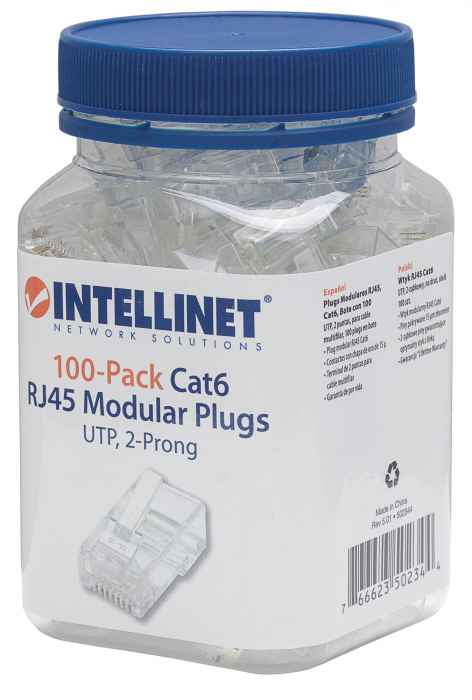

• 100 Cat6 RJ45 Modular Plugs in jar

Warning

This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Model#: IMP-C6-ST100
• EAN: 0766623502344
• UPC: 766623502344



• Physical Specifications

• Product net weight: 0 lbs
• Product gross weight: 0.42 kg

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download
