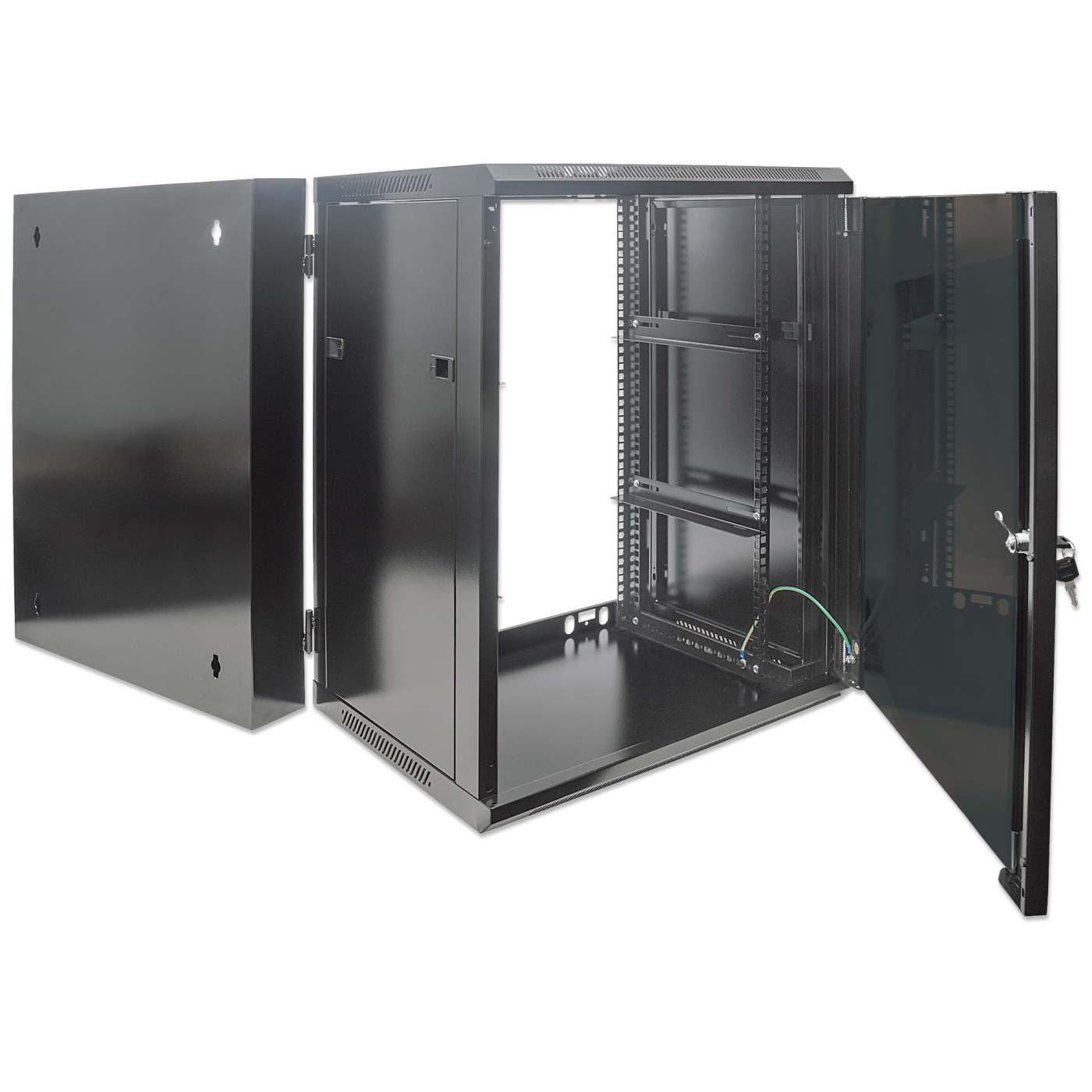

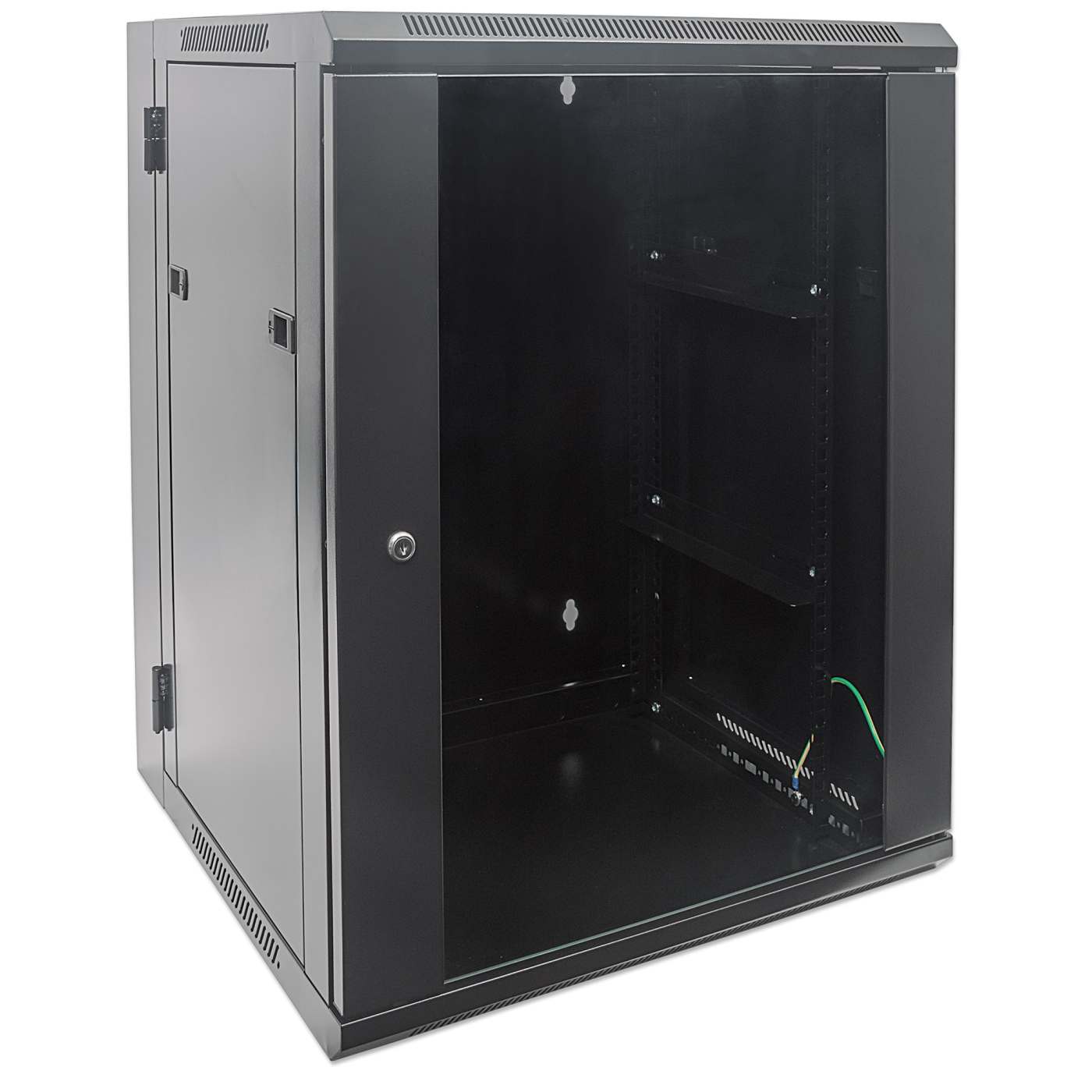

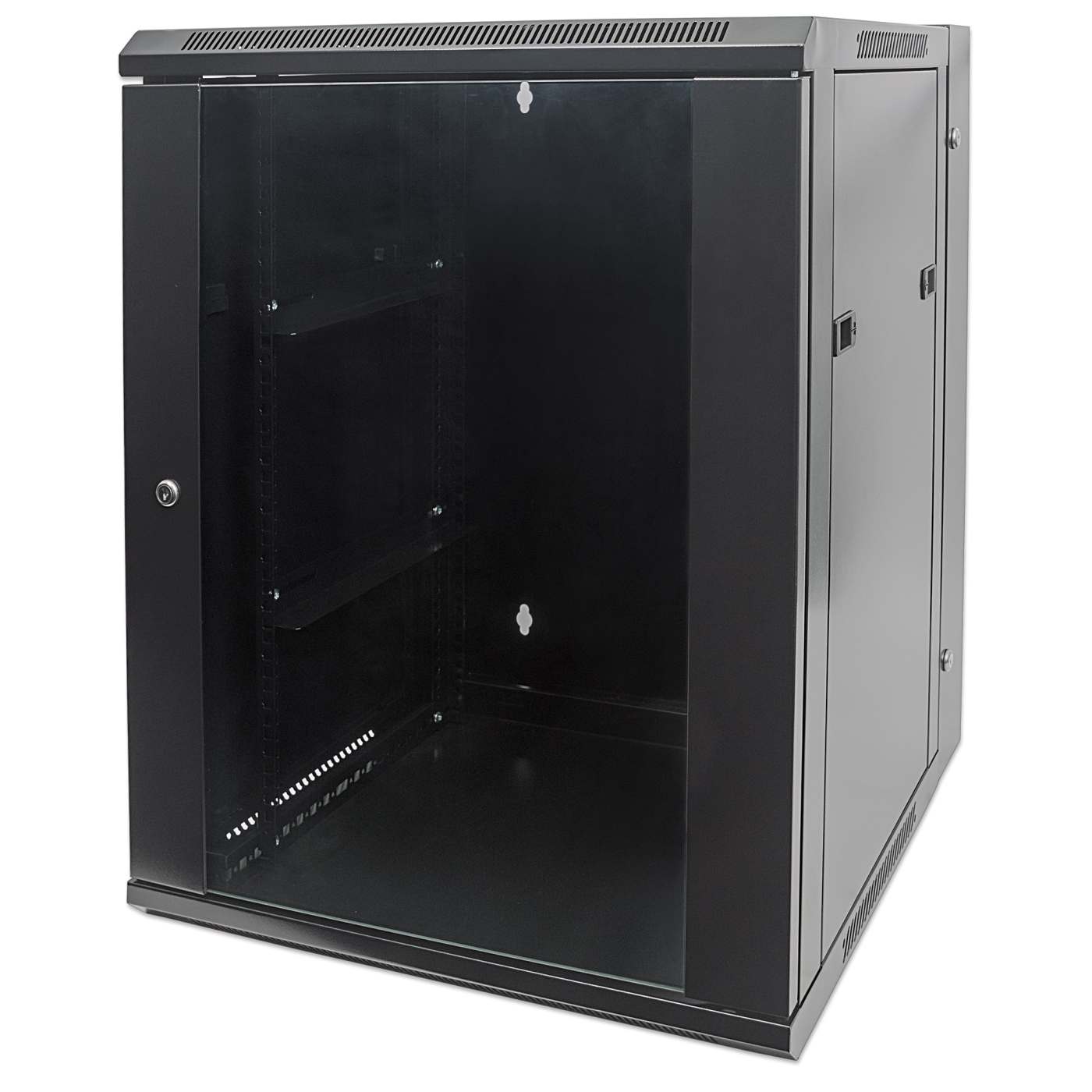

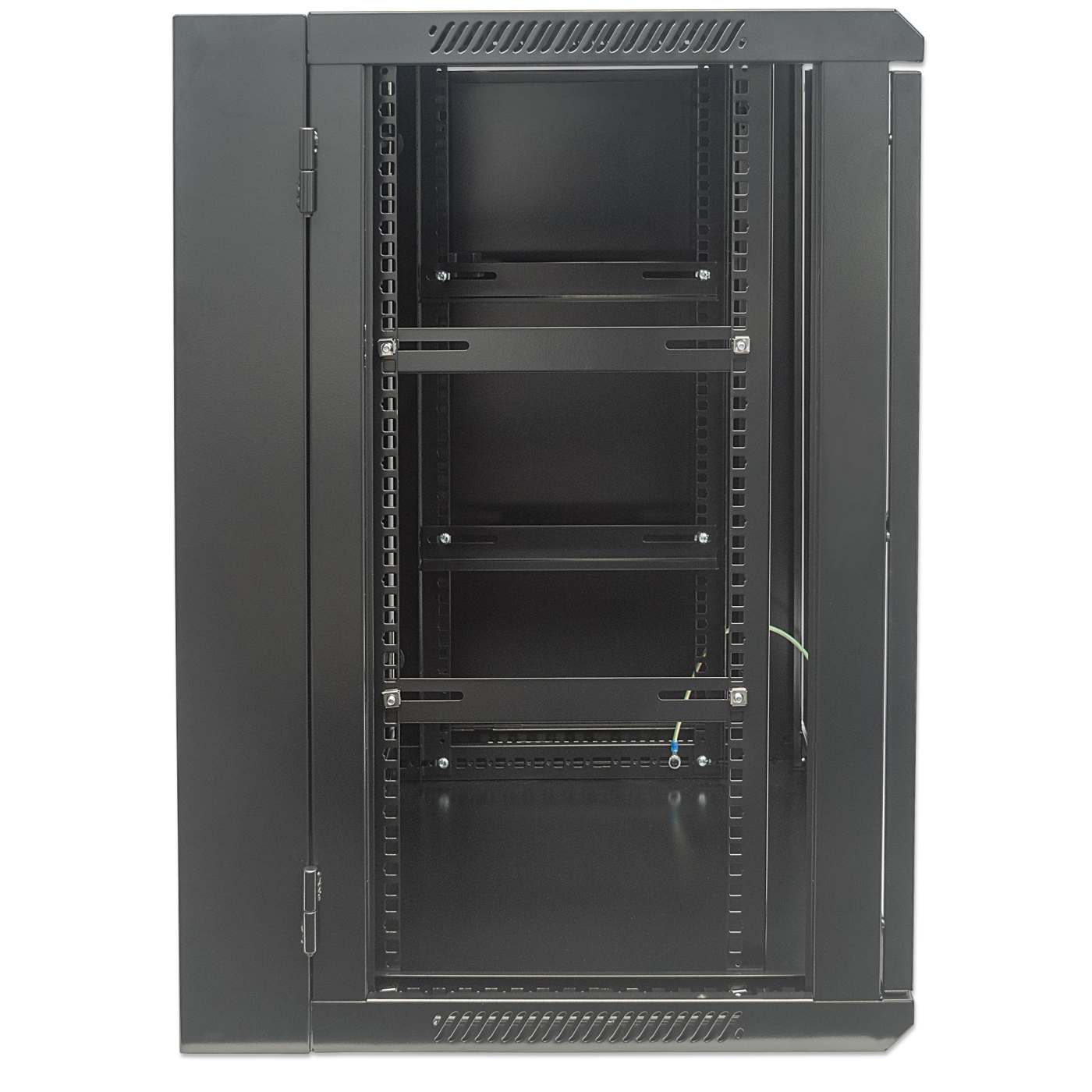

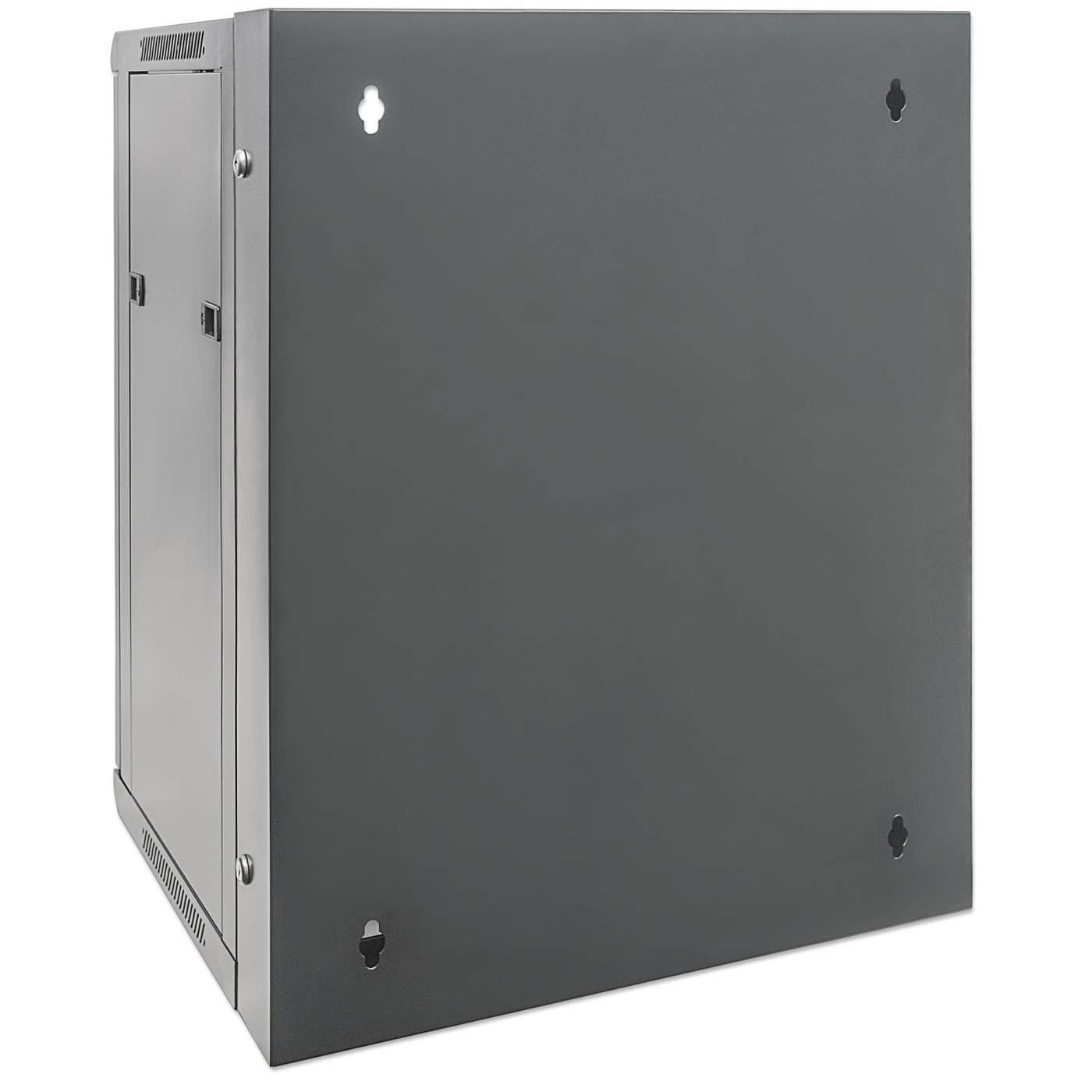

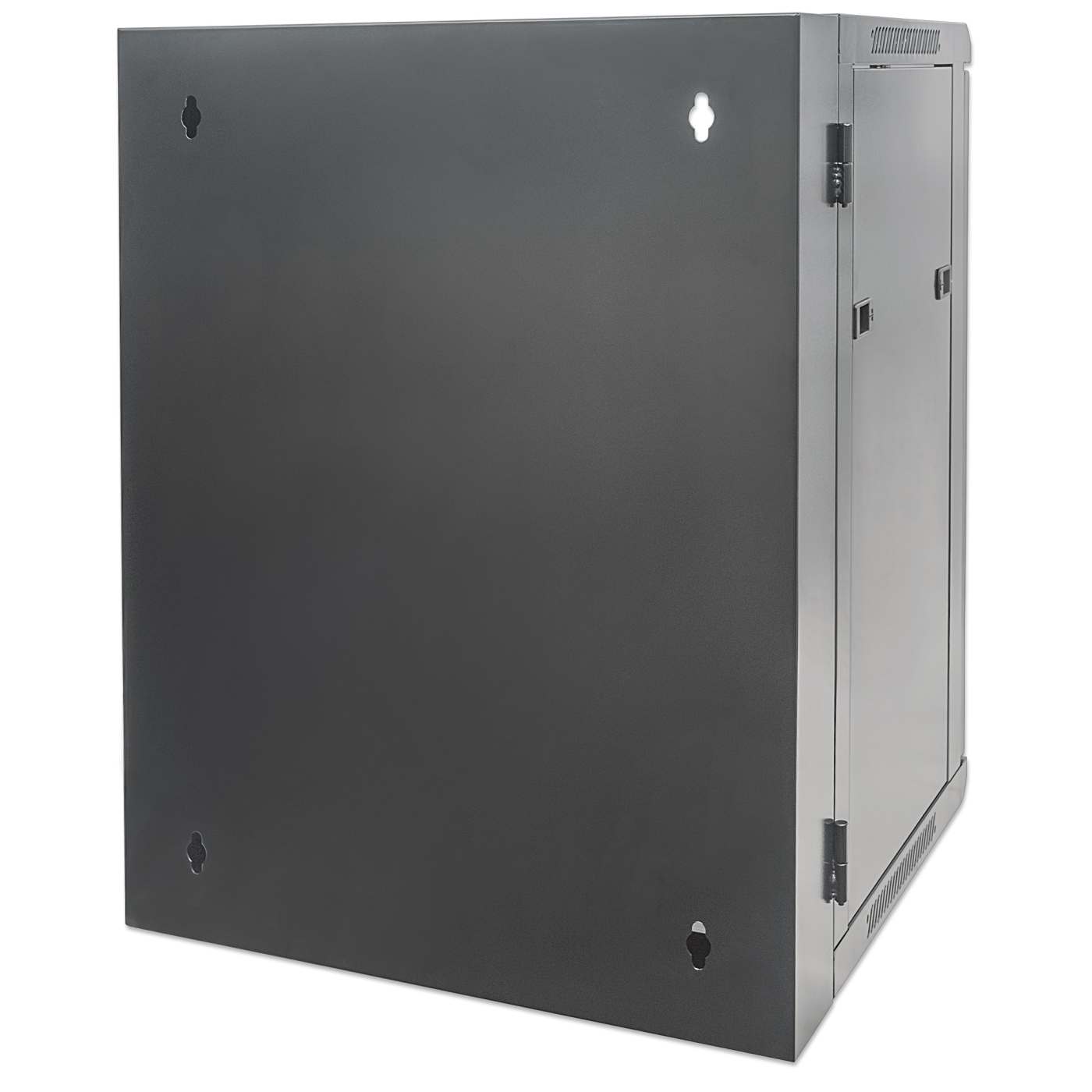

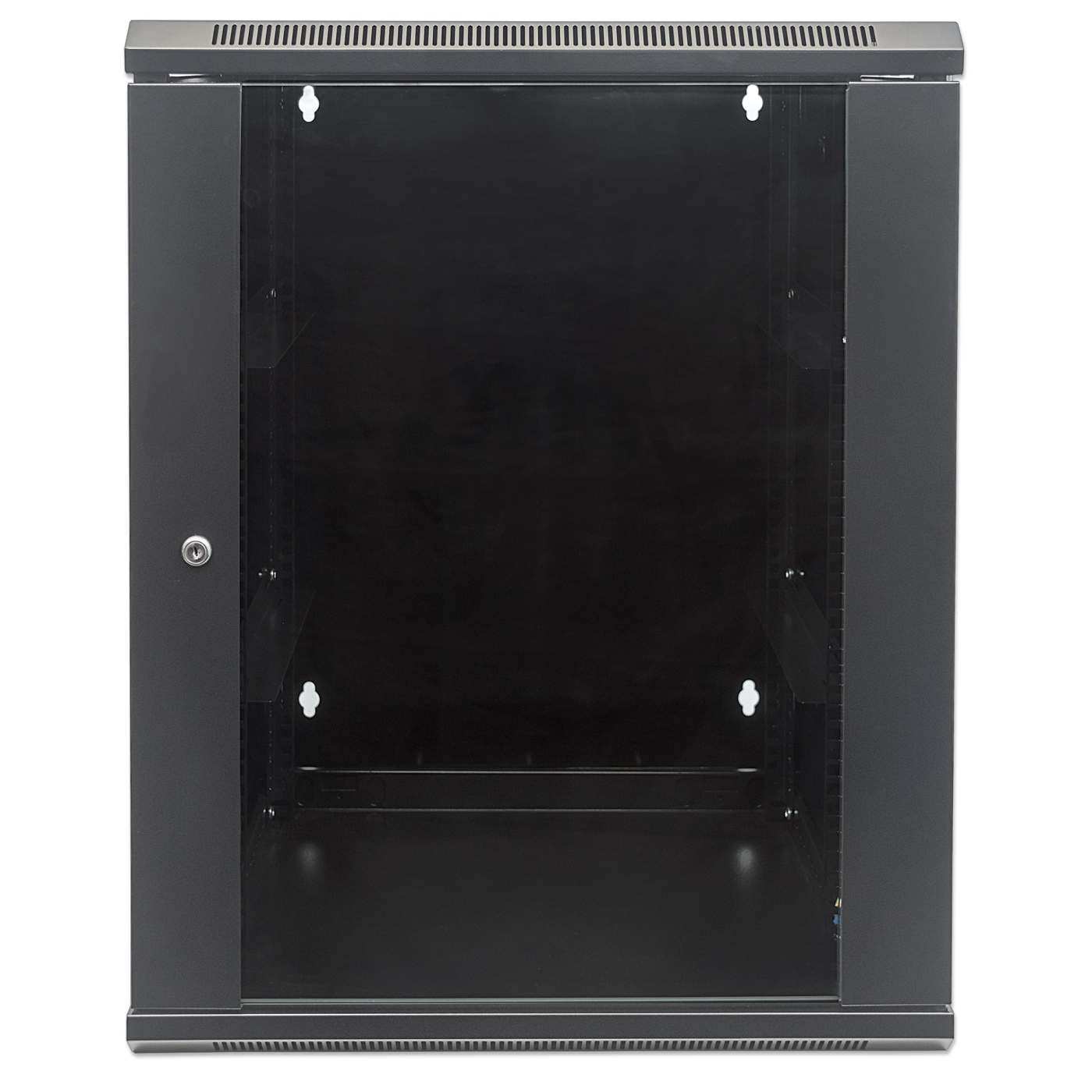

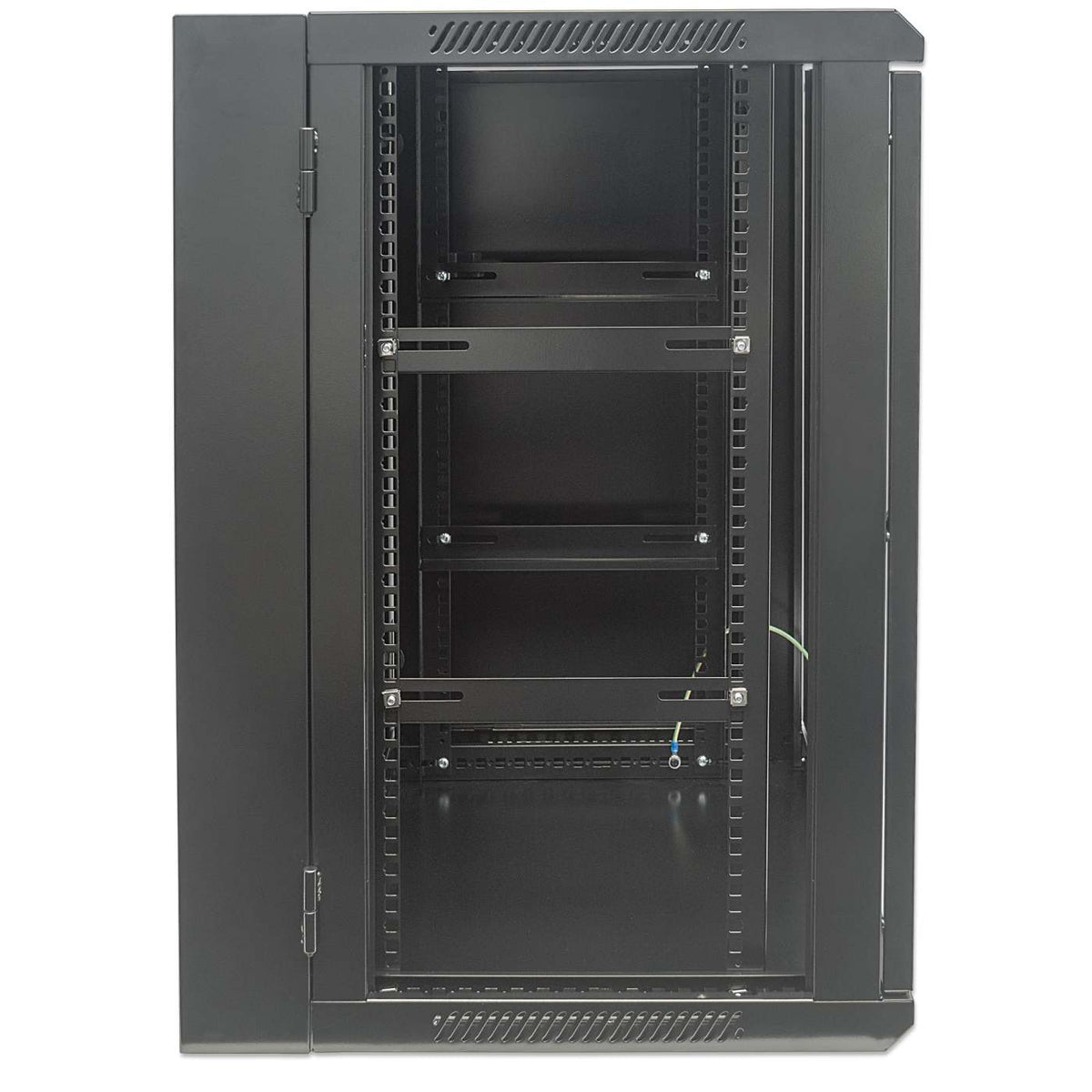

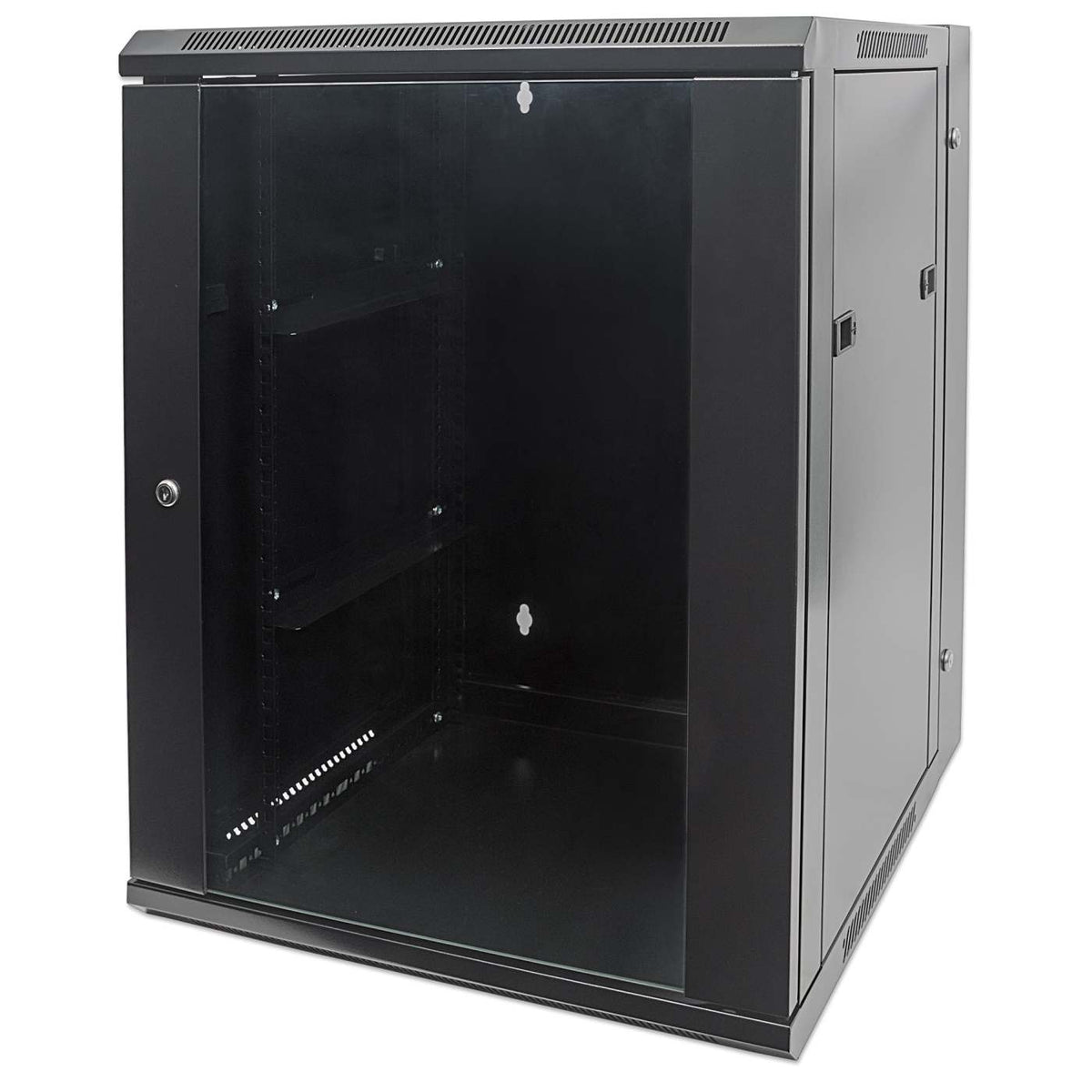

19" Double Section Wallmount Cabinet, 15U, 550 mm (21.7 in.) Depth, Black

Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. The tempered-glass door, easily removable side panels and cold-rolled galvanized steel are just some of the top quality workmanship and materials that are standard. These cabinets ship completely assembled for a quick and easy installation.

• Ideal for 19" rackmount applications
• Maximum static load of 30 kg
• Usable depth: 62 mm (2.44 in.) to 369 mm (14.53 in.)
• Tempered-glass door can be opened more than 180°
• Cable entry via top panel
• Rear door for easy access to back of cabinet
• Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
• Reversible Front door
• Easily removable and lockable side panels
• Ships assembled
• Three-Year Warranty

General

• 19"

• Height: 15U

• Color: Black RAL9005

• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

  Physical

• 770 (h) x 600 (w) x 550 (d) mm

• 30.3 (h) x 23.6 (w) x 21.7 (d) in.

• Usable depth: 62 mm (2.44 in.) to 369 mm (14.53 in.)

• Maximum static load: 30 kg (66 lbs.)

  Package Contents

• Double section wall mount

• Installation hardware including tool, 20x M6 Sets and 6x Keys

Warning

This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Model#: INC-WMDA-22-15U
• EAN: 0766623712019
• UPC: 766623712019



• Physical Specifications

• Product net weight: 60.63 lbs
• Product gross weight: 68.34 kg
• Dimensions: 30.3 x 23.6 x 21.7 (in.)

• Datasheet
• Datasheet     » Download


• Technical Drawing
  Cabinet     » Download




• Manual
• Double Section Wallmount Assembly Guide
  Assembly instructions for Double Section Wall-mount Cabinet.     » Download
