19" Double Section Wallmount Cabinet, 9U, 600 mm (23.6 in.) Depth, Black
19" Double Section Wallmount Cabinet, 9U, 600 mm (23.6 in.) Depth, Black
Flat Pack, Steel Panels, Maximum Static Load 30 kg
Highlights
- Ideal for 19" rackmount applications
- Maximum static load of 30 kg
- Usable depth: 279 mm (10.98 in.) to 359 mm (14.13 in.)
[ view high resolution images ]
Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. Since they ship flat-pack (unassembled)*, they save you space and money. High quality features include a 4MM toughened glass door and cold-rolled galvanized steel. The rear door access to the back of the cabinet makes cabinet and component exchange a breeze.
*Completely assembled versions are available in certain countries.
- Ideal for 19" rackmount applications
- Maximum static load of 30 kg
- Usable depth: 279 mm (10.98 in.) to 359 mm (14.13 in.)
- Cable entry via rear or top panel
- 4MM toughened glass door

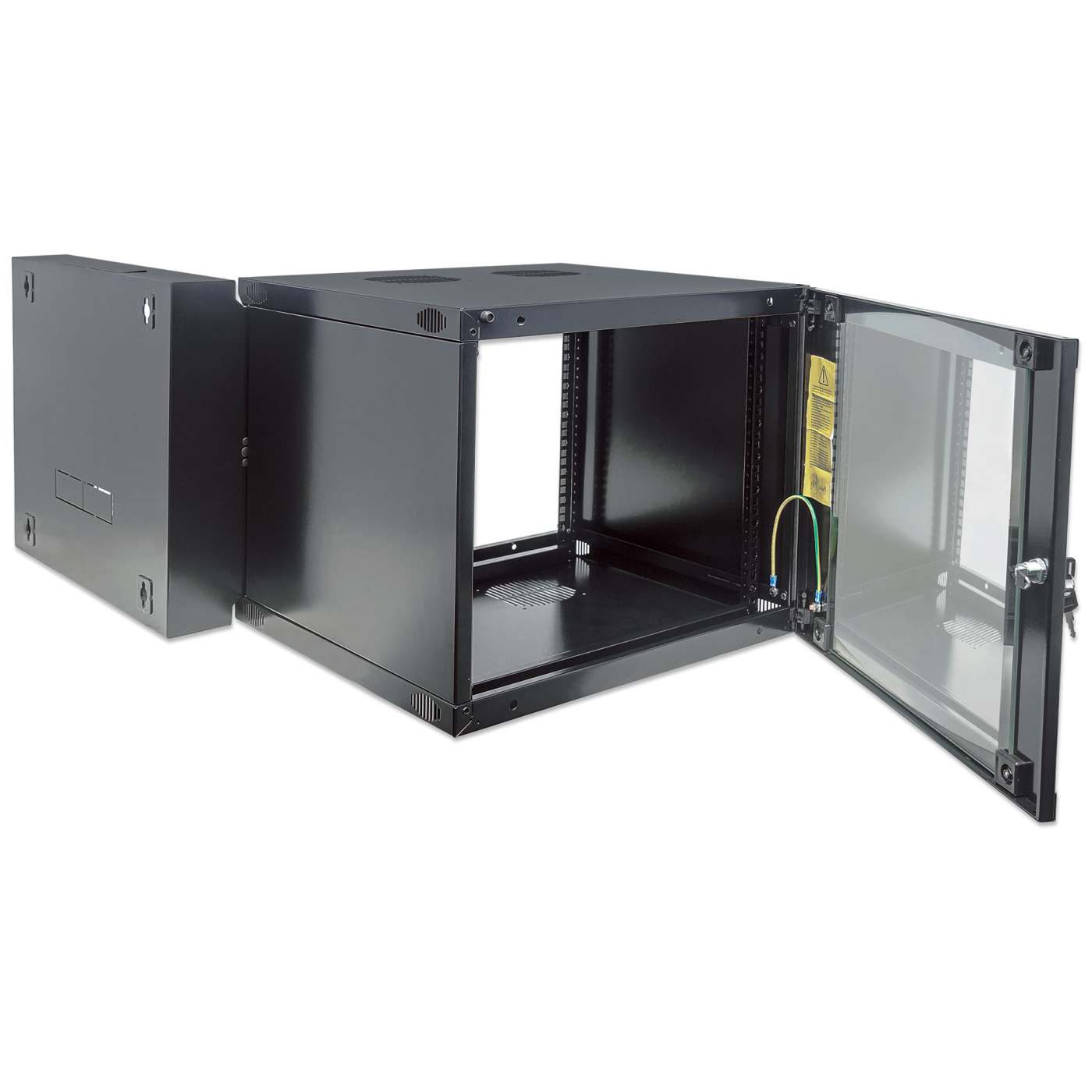

- Rear door for easy access to back of cabinet
- Cold-rolled, galvanized SPCC steel with up to 1.5 mm thickness

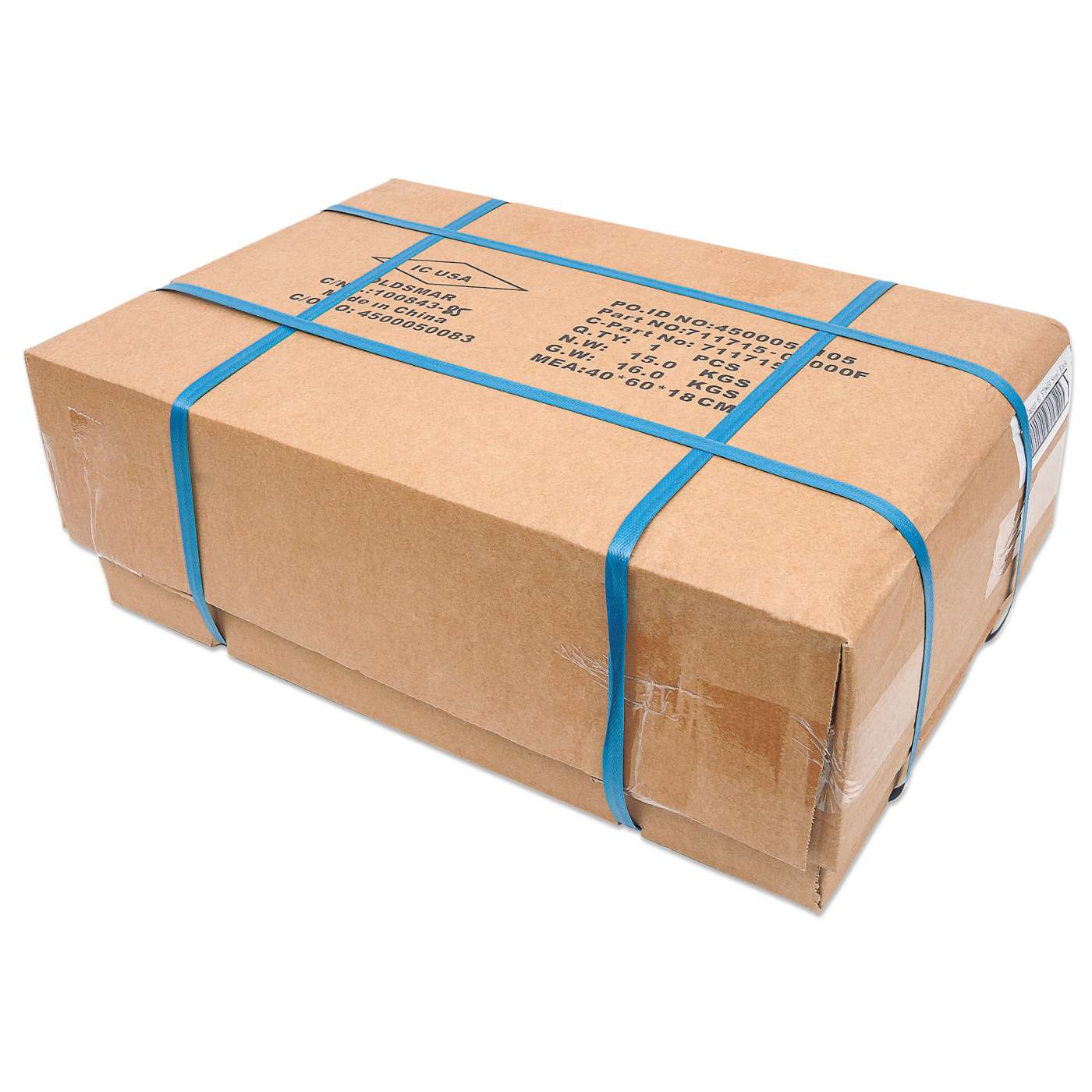

- Ships Flatpacked
- Three-Year Warranty
- General
- 19"
- Height: 9U
- Color: Black RAL7021
- Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Physical - 460 (h) x 540 (w) x 600 (d) mm
- 18.11 (h) x 21.26 (w) x 23.62 (d) in.
- Usable depth: 279 mm (10.98 in.) to 359 mm (14.13 in.)
- Maximum static load: 30 kg (66 lbs.)
Package Contents - 2 Rail frames
- Top, Bottom, Front, Back & Side Panels
- Installation hardware including 10x M6 Sets and 2x Keys
Additional SKUs
- Alphanumeric Model#: INC-WMDF-24-9U
- EAN: 0766623713849
- UPC: 766623713849
Physical Specifications
- Product net weight: 44.09 lbs
- Product gross weight: 48.5 kg
- Dimensions: 23.62 (D) x 21.26 (W) x 18.11 (H) [in]
Warning
This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.- Datasheet
