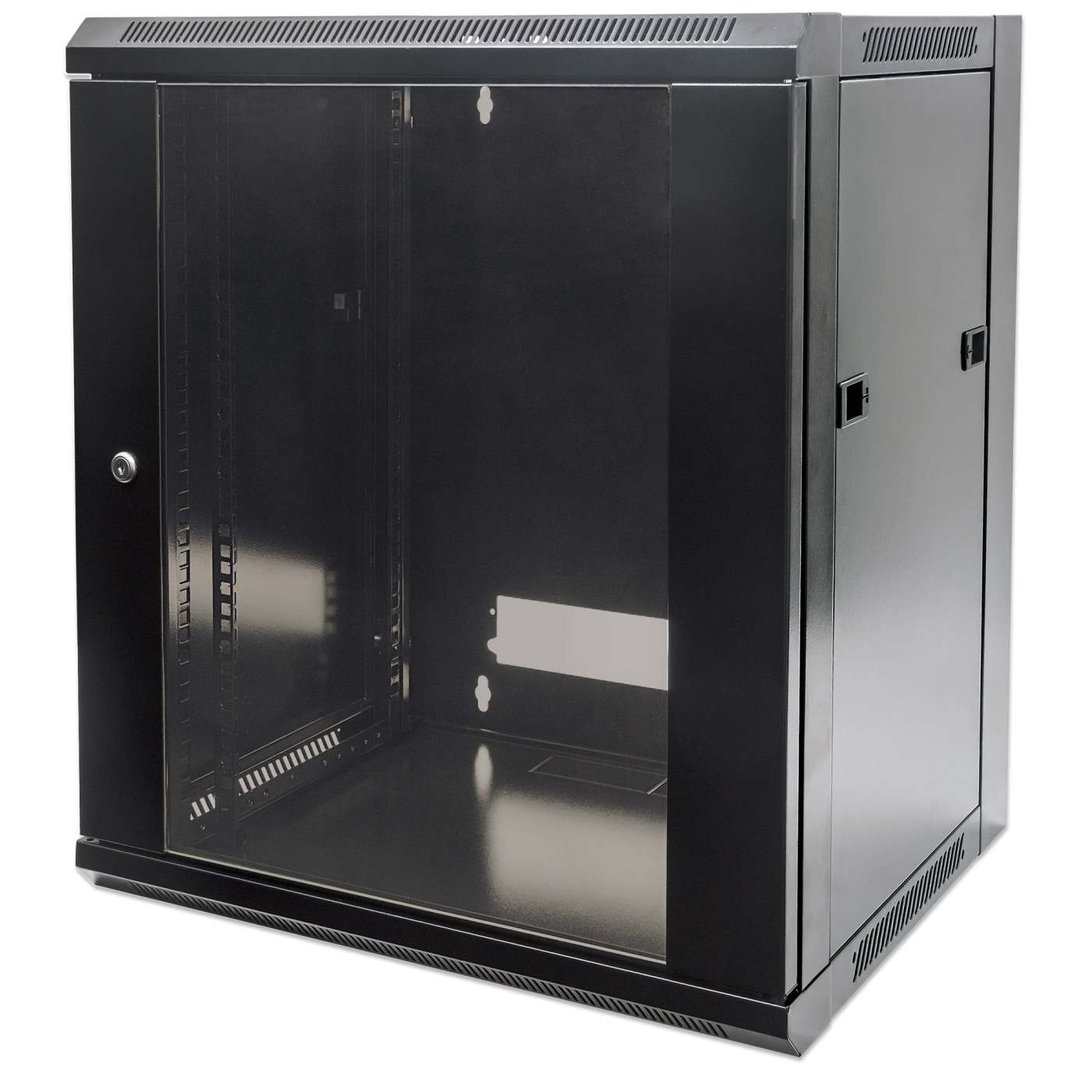

12U 19-Inch Wall Mount Network Cabinet, 17.7" Deep, Lockable Tempered Glass Door, Black

Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Top quality materials and workmanship include cold-rolled, galvanized steel frame and a tempered-glass door; while the flat-pack (unassembled) shipping* saves you space and money.

*Completely assembled versions are available in certain countries.

• Fits standard 19 in. rackmount equipment
• Max static load: 132 lb
• Distance between front and rear mounting rails: 10.63–13.78 in
• Maximum usable device depth: Up to 14.5 in (approx.)
• Lockable tempered-glass front door
• Cable entry via rear or top panel
• Cold-rolled SPCC steel construction
• Removable side panels
• Ships flat packed
• 3-year warranty

General

• 19"

• Height: 12U

• Color: Black RAL 9004

• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

  Dimensions

• 635 (h) x 570 (w) x 450 (d) mm

• 25 (h) x 22.4 (w) x 17.7 (d) in.

• Usable depth: 270 mm (10.63 in.) to 350 mm (13.78 in.)

  Package Contents

• 2 depth-adjustable mounting rails

• Installation hardware including tool, 10x M6 Sets and 2x Keys

  There is a 2-piece set of spare rails available for this product by the model number shown:

• #712453

Warning

This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Model#: INC-WMF-18-12U
• EAN: 0766623711869
• UPC: 766623711869



• Physical Specifications

• Product net weight: 46.3 lbs
• Product gross weight: 47.4 kg
• Dimensions: 25 x 22.4 x 17.7 (in.)

• Datasheet
• Datasheet     » Download


• Technical Drawing     » Download
