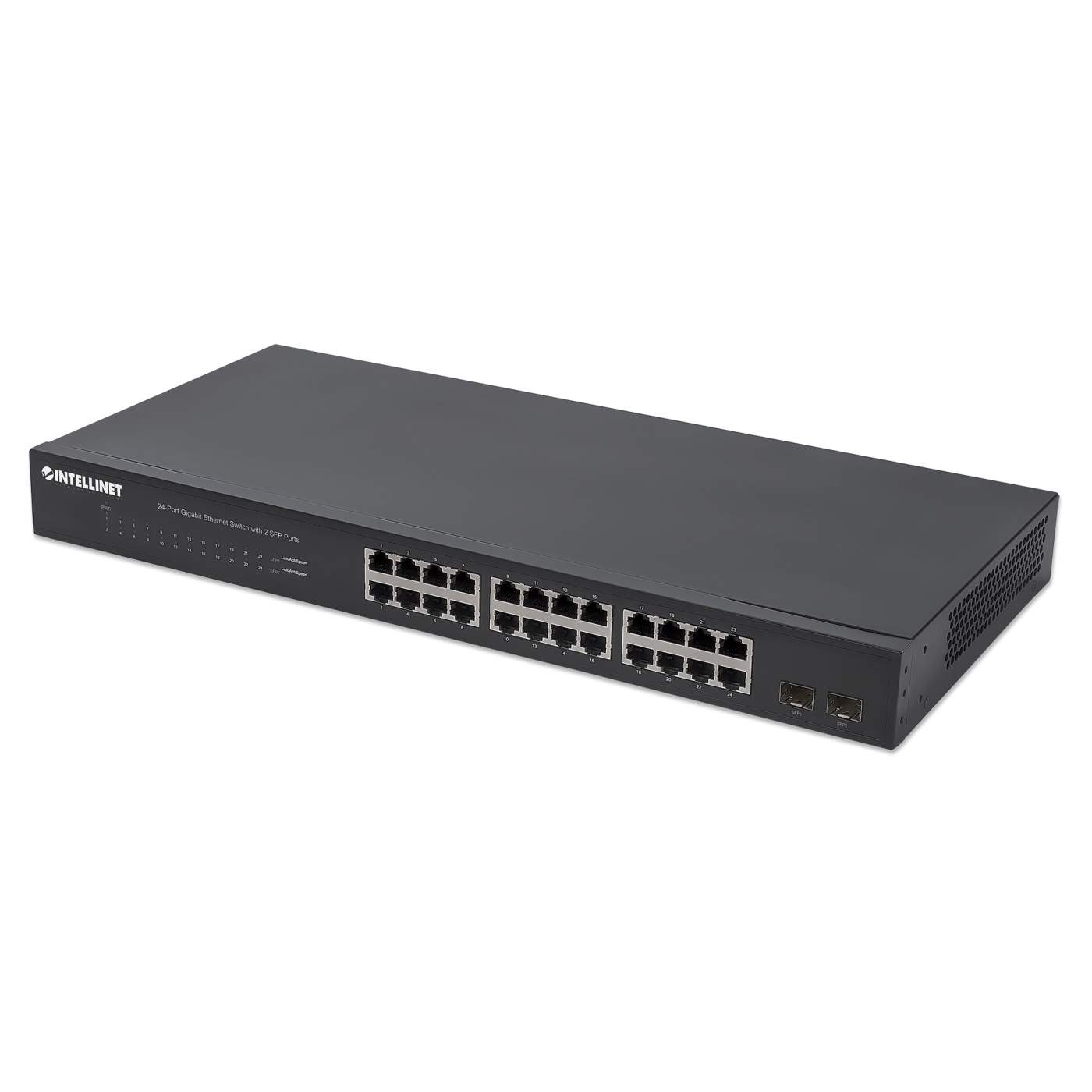

24-Port Gigabit Ethernet Switch with 2 SFP Ports

Boost your network speed

The Intellinet Network Solutions Gigabit Ethernet Rackmount Switch, model 561044, offers an array of features while providing superior network throughput.

Extreme Flexibility

Twenty-four 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds.

Eliminate Bottlenecks with 26 Gigabit Ports

Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this switch offers plenty of performance for your computers, servers and other networking devices. In addition, two small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances. These are not shared combo-ports, but true Gigabit ports, pushing the total available bandwidth up to 52 Gbps.

• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Two small form-factor pluggable GBIC module slots (SFP)
• All RJ45 ports with Auto-MDIX (auto uplink) support
• Supports NWay auto-negotiation
• Store and forward switching architecture
• Full/half duplex operation
• Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
• Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
• 52 Gbps switch fabric
• Supports Jumbo frames 9 kBytes
• 512 kBytes buffer memory
• Supports up to 8K MAC address entries
• Fanless design ideal for silent operation
• Includes 19" rackmount brackets
• Supports MAC address auto-learning and auto-aging
• Fully NDAA-compliant
• Three-Year Warranty

Standards

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)

• IEEE 802.3az (Energy Efficient Ethernet EEE)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3x (flow control, for full duplex mode)

  General

• Media support:
  - 10Base-T Cat3, 4, 5 UTP/STP RJ45
  - 100Base-TX Cat5 UTP/STP RJ45
  - 1000Base-T Cat5e UTP/STP RJ45

• Packet filter/forwarding rate:
  - 1,488,000 pps (1000 Mbps)
  - 148,800 pps (100 Mbps)
  - 14,880 pps (10 Mbps)

• Buffer memory: 512 kBytes

• MAC address table: 8K entries

• Backplane speed: 52 Gbps

• Switch architecture: store and forward

• 24 RJ45 Gigabit Ethernet ports

• 2 SFP (Small Formfactor Pluggable) slots

• Certifications: FCC Class A, CE, UKCA, NDAA

  LEDs

• Power

• Link Speed per port: 1000 Mbps

• Link/Activity per port

  Power

• Internal power supply, 100 – 240 VAC, 50/60 Hz

• Power consumption: 20 watts (maximum)

  Environmental

• Metal housing, 19" rackmount, 1 U

• Dimensions: 440 (W) x 208 (L) x 44 (H) [mm] / 17.32 (W) x 8.19 (L) x 1.73 (H) [in.]

• Weight: 3.00 kg (6.6 lbs.)

• Operating temperature: 0 – 40°C (32 – 104°F)

• Operating humidity: 10 – 90% RH, non-condensing

• Storage temperature: -10 – 70°C (14 – 158°F)

  Package Contents

• Gigabit Ethernet Rackmount Switch

• Power cable

• 19" rackmount brackets

• User manual

Warning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Model#: IES-24G02
• EAN: 0766623561044
• UPC: 766623561044



• Physical Specifications

• Product net weight: 4.41 lbs
• Product gross weight: 6.61 kg
• Dimensions: 8.19 (L) x 17.32 (W) x 1.73 (H) [in]

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download




• Manual
• Quick Install Guide (multilanguage)
  English, Deutsch, Español, Polski, Italiano, Français     » Download


• Declaration of Conformity     » Download


• Quick Instruction Guide
  For versions purchased after 09/21.     » Download
