5-in-1 Cable Tester
5-in-1 Cable Tester
Tests Ethernet (RJ45), 10Base2 / BNC, RJ11, USB and FireWire
Highlights
- Versatile cable tester for five commonly used network and computer cables
- For Cat5/6 network and ISDN connection tests
- USB AB- and IEEE1394 6-pin FireWire cable tester
[ view high resolution images ]

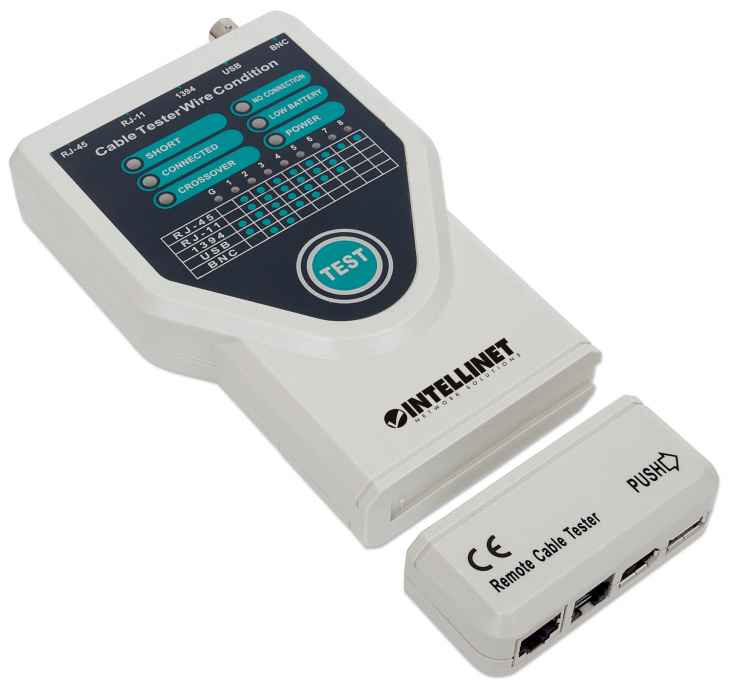

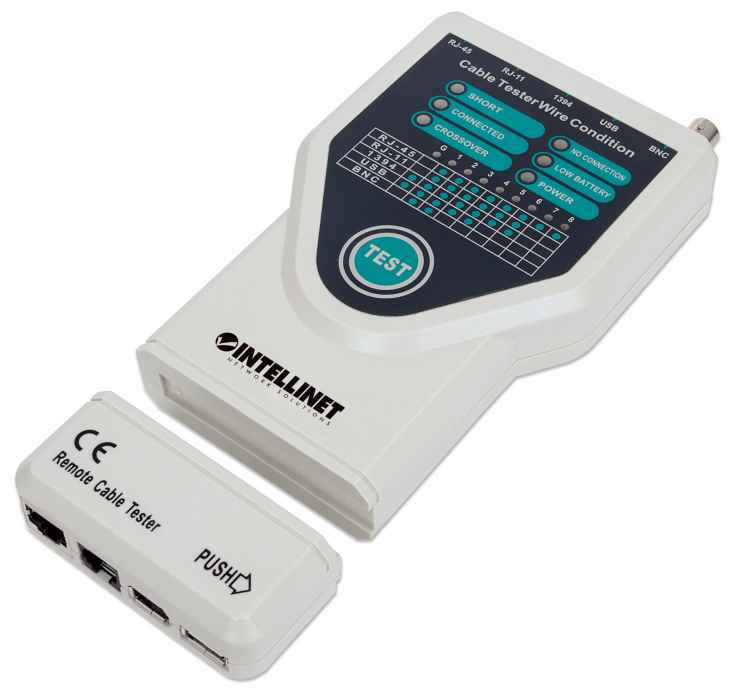

The Intellinet Network Solutions 5-in-1 Cable Tester is an affordable and versatile MIS tool that tests five common LAN and computer cables up to 600 ft. long: Ethernet (RJ45), 10Base, RJ11, FireWire (1394) and USB. It checks for continuity, crossover and shorting. Testing is completed with the press of a button, and LEDs indicate connections and faults of wires and pins. Designed for use with both shielded (STP) and unshielded (UTP) cables up to 180 m (600 ft.) long.
- Versatile cable tester for five commonly used network and computer cables
- For Cat5/6 network and ISDN connection tests
- USB AB- and IEEE1394 6-pin FireWire cable tester

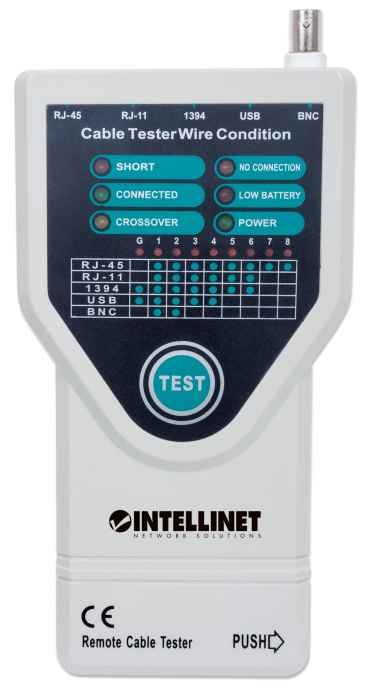

- Connection test with LED indicators for 8 single lines and screening
- Tests for: Short, Non-Parallel, No Connection
- Quality protective pouch
- Lifetime Warranty
- Open / Short wiring test
- Connected wires display
- No Connection / No Termination indicator
- Bad Connection / Non-Parallel Connection indicator

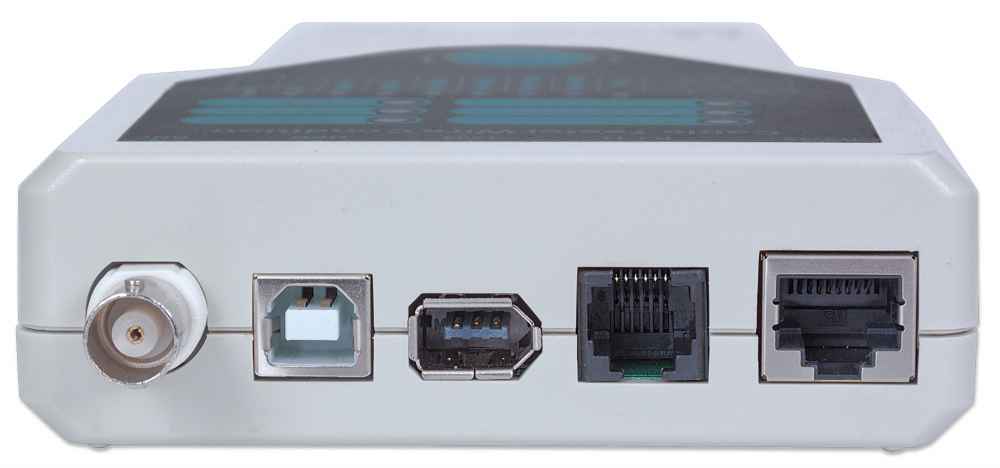

- Ethernet (RJ45), 10Base2 / BNC, RJ11, USB and FireWire testing options
Package Contents - Cable Tester

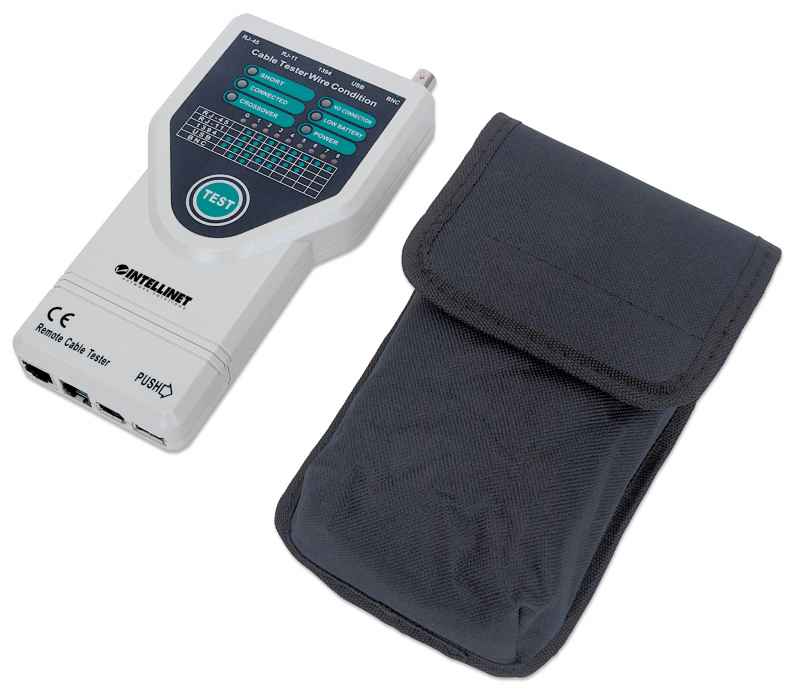

- Protective pouch
- Coaxial adapter
- Instructions
Additional SKUs
- Alphanumeric Model#: ICT-MF4
- EAN: 0766623780094
- UPC: 766623780094
Physical Specifications
- Product net weight: 0.77 lbs
- Product gross weight: 0.88 kg
- Dimensions: 7.28 (L) x 1.22 (W) x 3.94 (H) [in]
