Intellinet

Adjustable 19" Rackmount DIN Rail Kit, 2U

Adjustable 19" Rackmount DIN Rail Kit, 2U

Chassis to Mount Top Hat DIN Rail Equipment in a 19 in. Rack, Adjustable Rail Depth of 48 to 174 mm (1.9 to 6.9 in.), Aluminum, Black RAL 9005

SKU: 716345 IRK-DIN-192U

Highlights

  • Rack-mountable chassis with top hat DIN rail to easily install any 35 mm (0.79’’) equipment in a 19 in. network or server cabinet
  • Depth-adjustable on eight levels from 48 to 174 mm (1.89 to 6.85 in.) to accommodate a wide range of products
  • Ideal for DIN-rail equipment like industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks and more
NDAA Compliant
[ view high resolution images ]

Depth-Adjustable DIN Rail Rack-Mount Kit to Easily Mount Your Top Hat Equipment in a 19-inch Cabinet

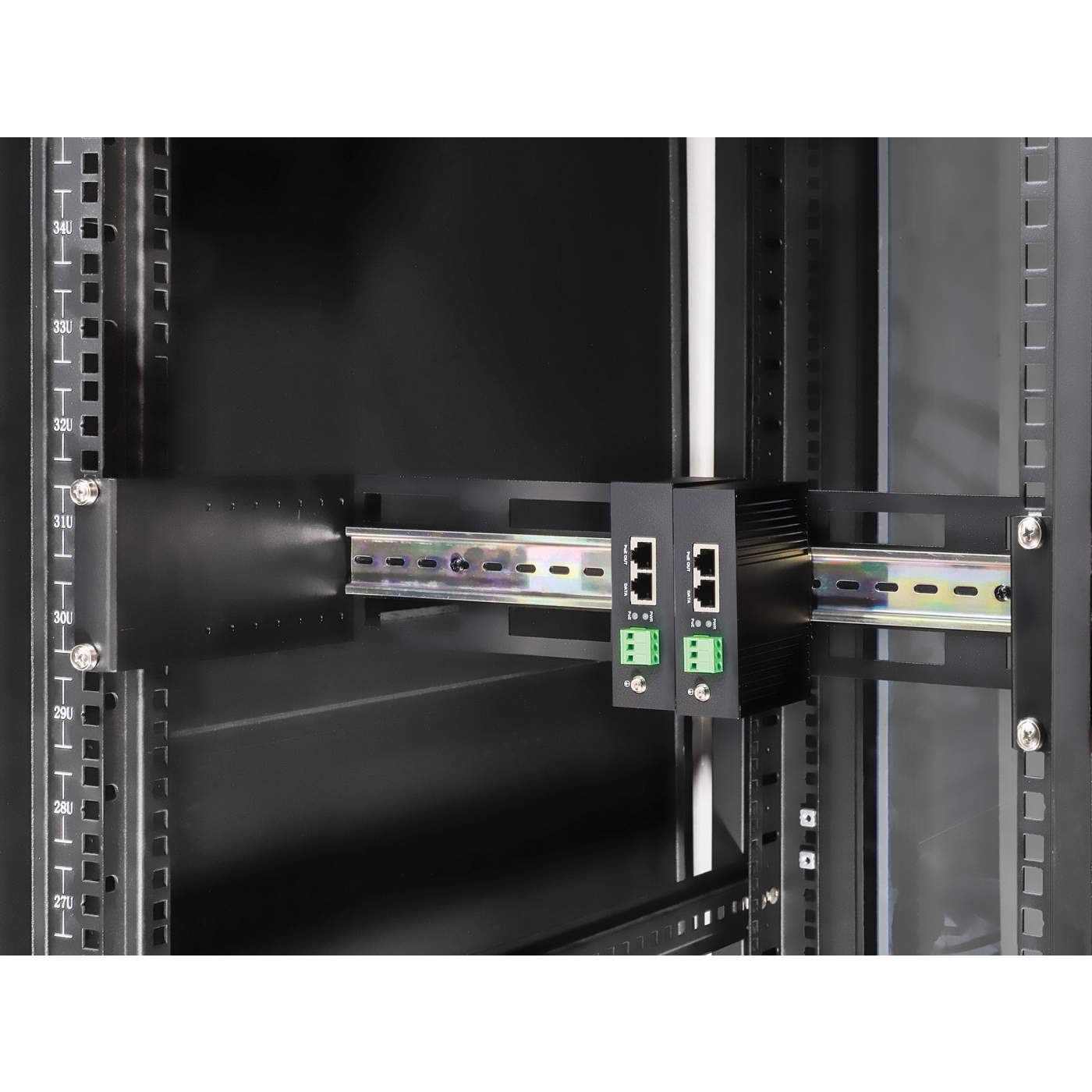

The Adjustable 19" Rackmount DIN Rail Kit, 2U from Intellinet Network Solutions allows for seamless integration of your top hat DIN rail equipment into a 19 in. network enclosure, open frame rack or server cabinet.

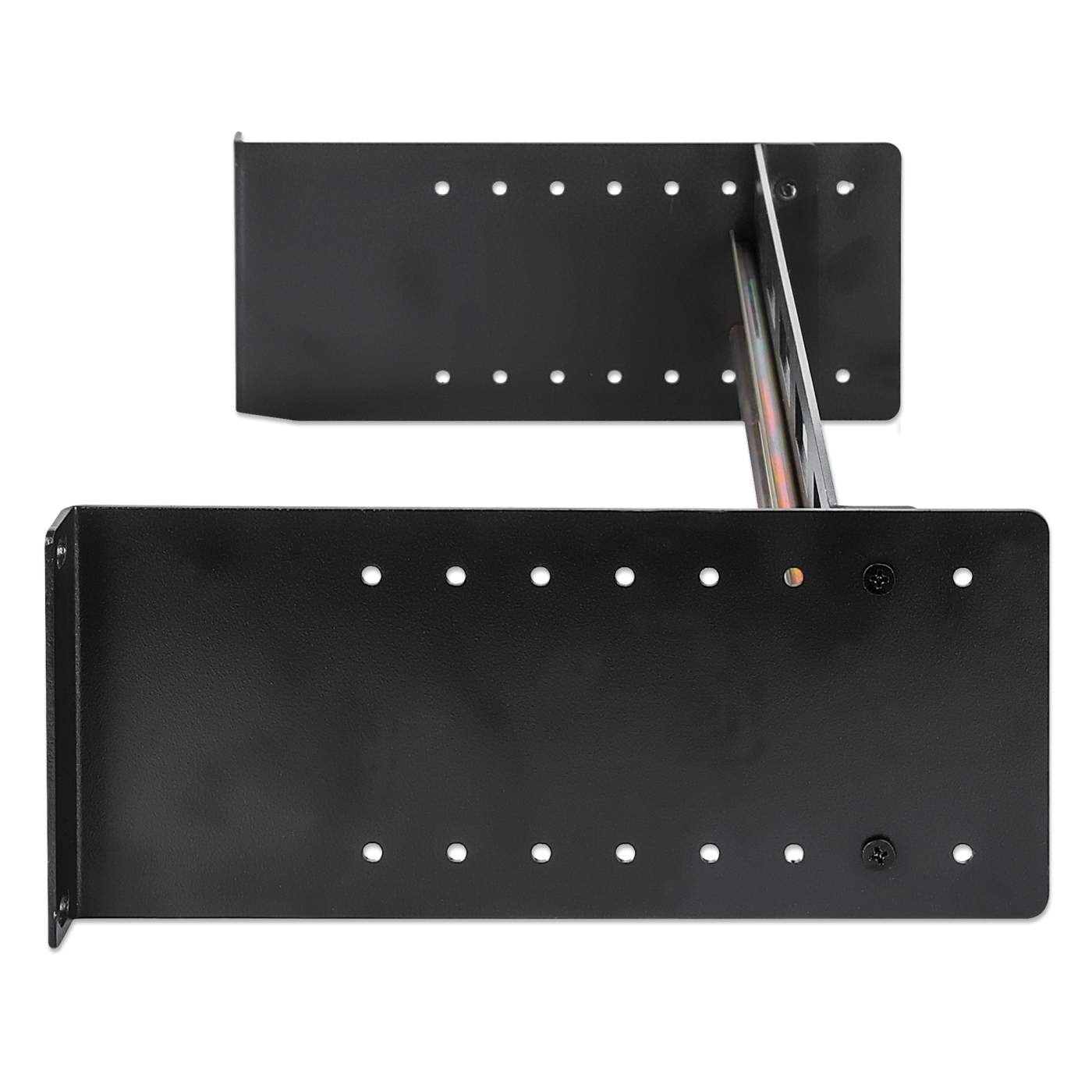

Tailor Your Space with Depth Adjustment

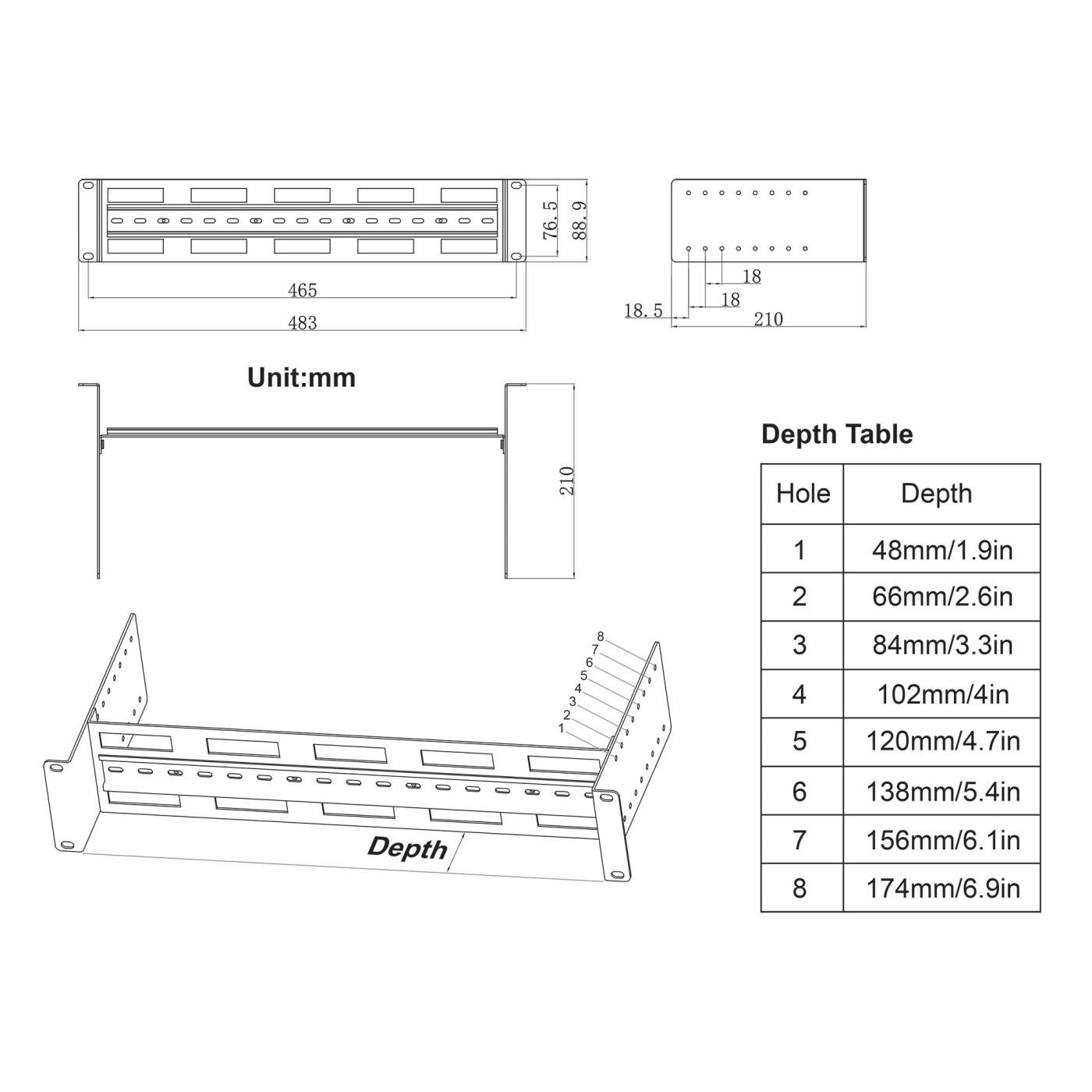

With eight adjustable levels ranging from 48 to 174 mm (1.89 to 6.85 in.), it accommodates a wide spectrum of products. Whether it's industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks, or more – this kit adapts to your needs.

Compliant and Compatible

Meeting EIA 310 / IEC 60297 standards, it fits into all standard 19 in. / 482.6 mm racks. The DIN-rail, in accordance with IEC/EN 60715 standards, ensures a perfect fit for your equipment.

Durable Construction Built to Last

Crafted with heavy-duty anodized 2 mm thick aluminum, our kit is built to withstand the test of time. It offers great strength and stability, providing a maximum load capacity of 9 kg (20 lbs.).

Everything You Need Included

We've got you covered with a package that includes four M6x12 screws, four M6 cage nuts, and four M6 plastic washers for 19" mounting straight out of the box.

  • Rack-mountable chassis with top hat DIN rail to easily install any 35 mm (0.79’’) equipment in a 19 in. network or server cabinet
  • Depth-adjustable on eight levels from 48 to 174 mm (1.89 to 6.85 in.) to accommodate a wide range of products
  • Ideal for DIN-rail equipment like industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks and more
  • IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm racks
  • DIN-rail in accordance with IEC/EN 60715
  • Heavy-duty construction with anodized 2 mm thick aluminum
  • Maximum load capacity of 9 kg (20 lbs.)
  • Includes 19" mounting material with four M6x12 screws, four M6 cage nuts, and four M6 plastic washers
  • Three-year warranty
