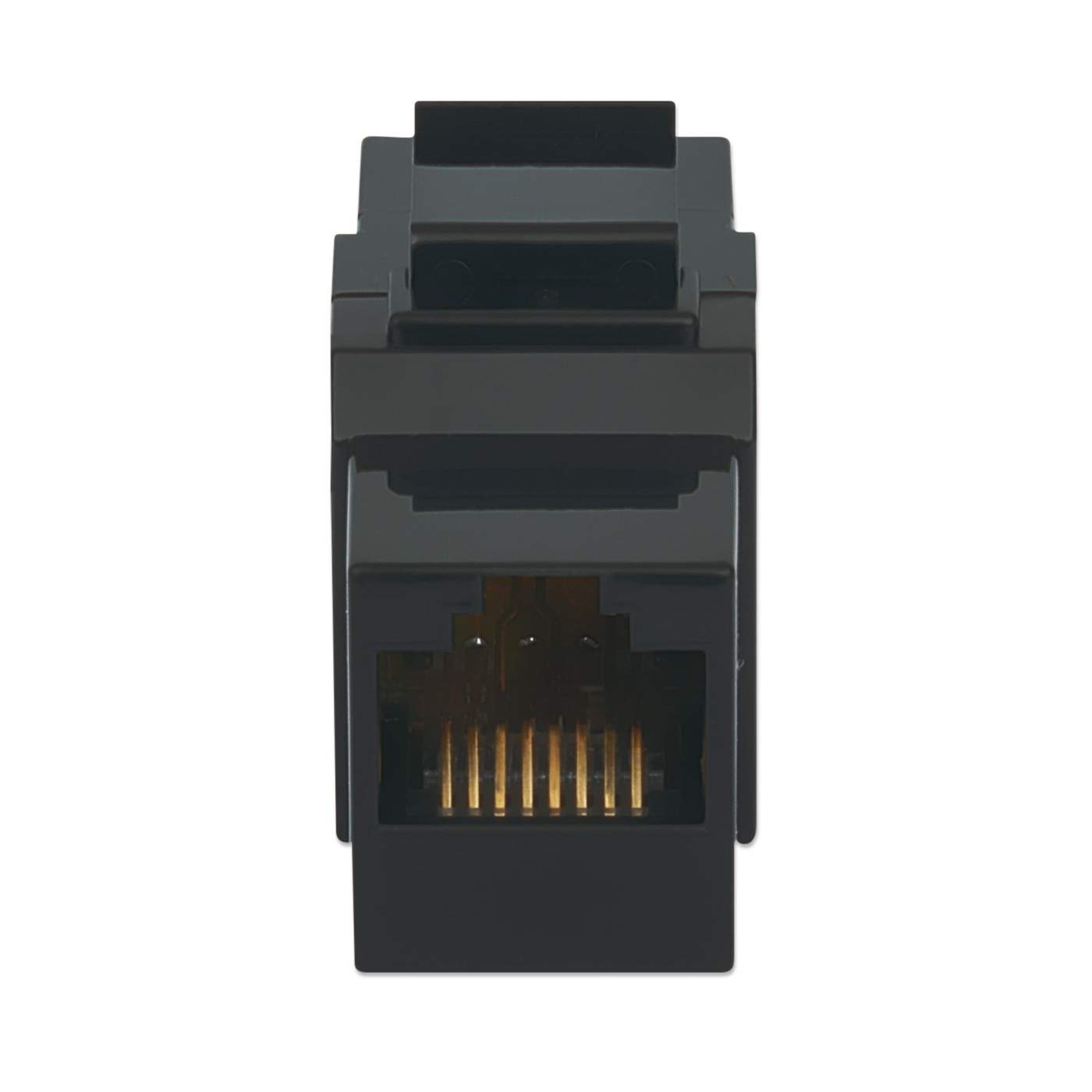

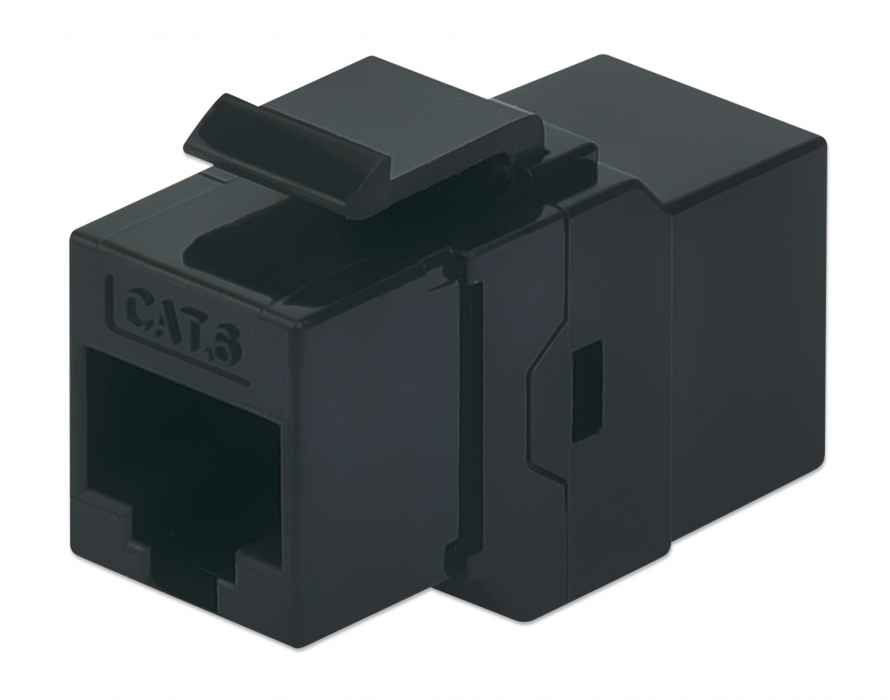

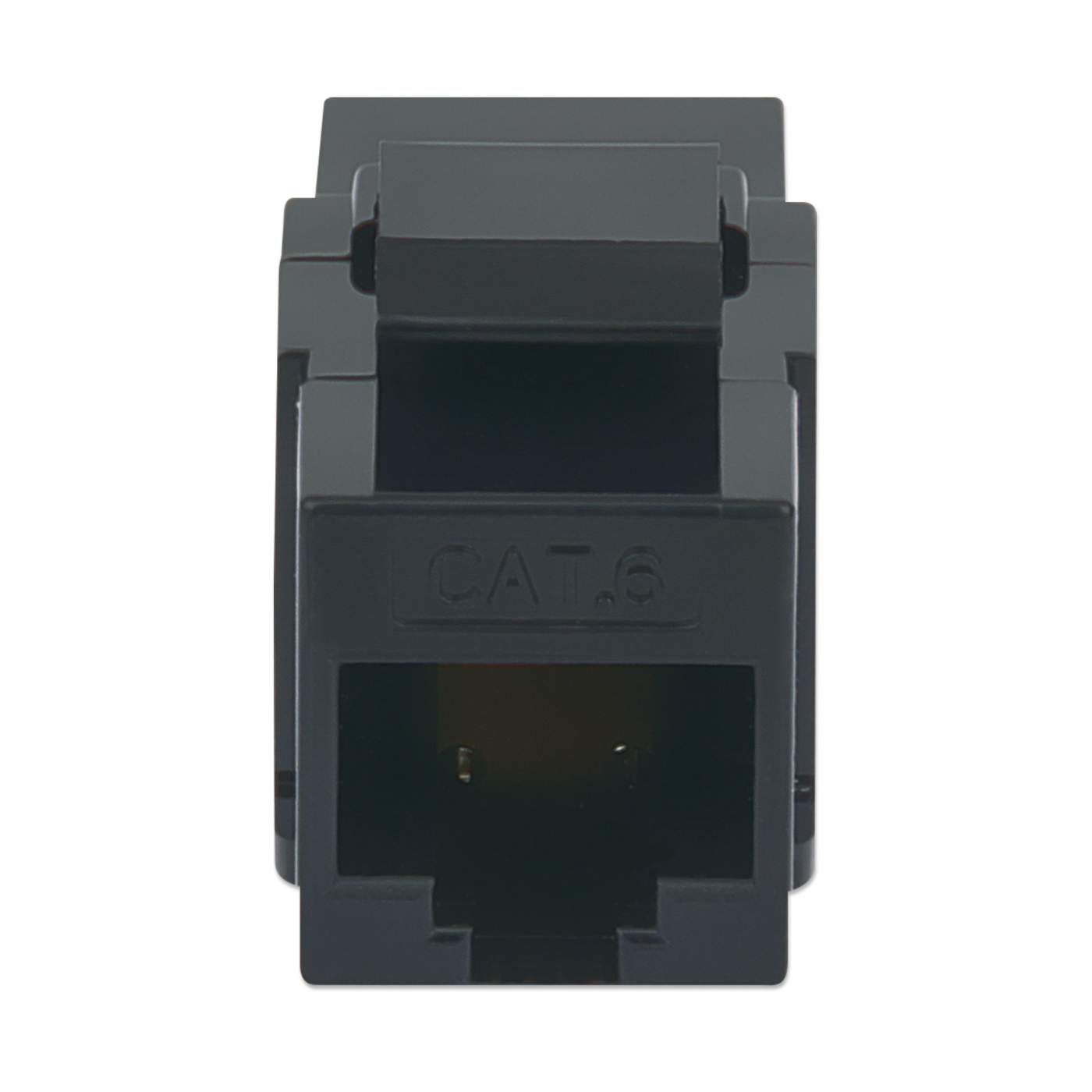

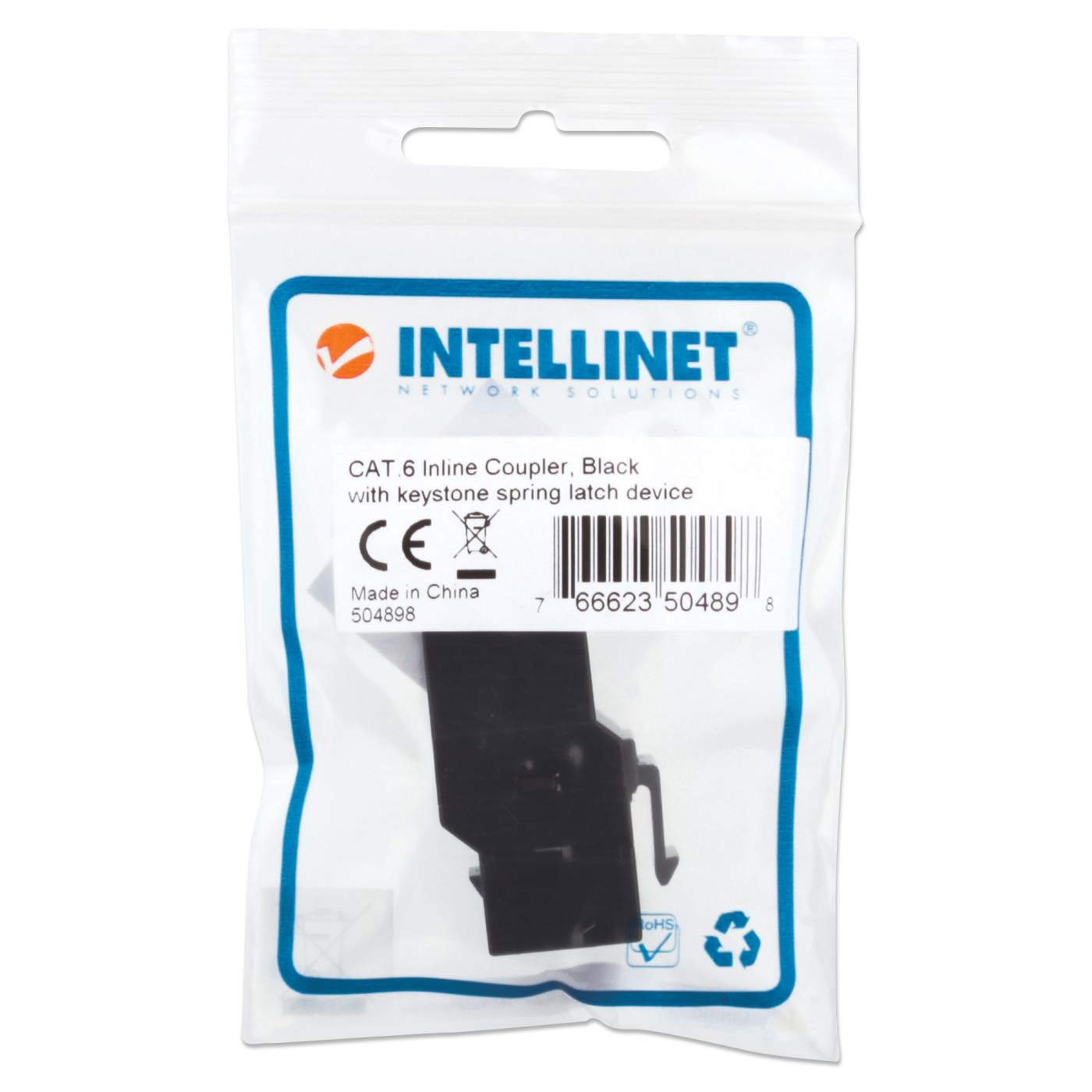

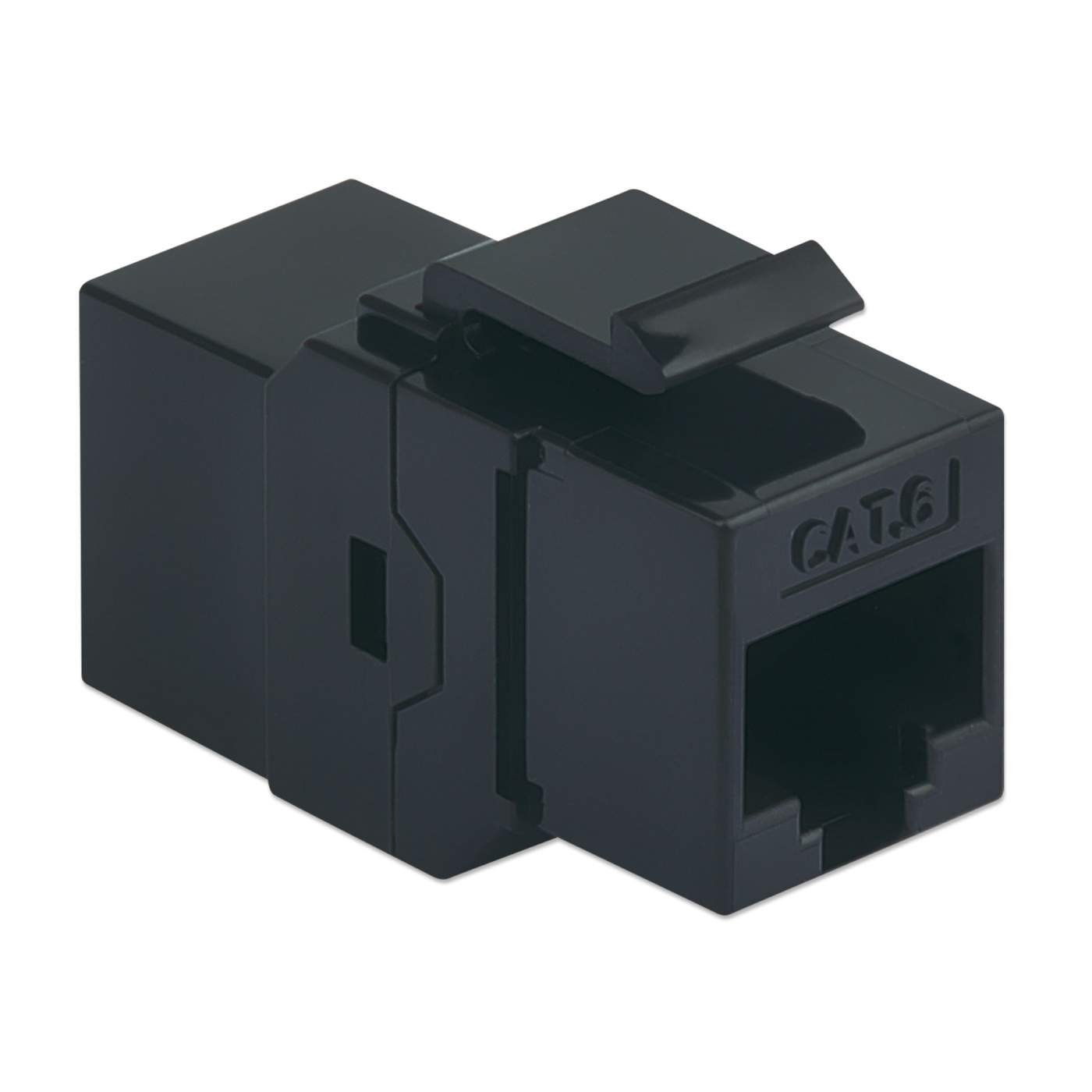

Cat6 Inline Coupler, Keystone Type

RJ45 Keystone Coupler - extend patch cable connections

The Intellinet Network Solutions Cat6 Inline Coupler, Keystone Type easily connects two patch cables to create longer links to networking devices. This RJ45 keystone coupler is designed to fit in a wall plate, face plate or patch panel. Its sturdy construction offers more robust housing, and gold-plated contacts help ensure quality connections.

• 50 micron gold plated contacts
• For use with unshielded twisted pair (UTP) Cat6 cable
• Cat6 performance is in compliance with ANSI/TIA/EIA 568 B.2-1 standard
• Lifetime Warranty

• Plastic housing

• EIA/TIA approved

• UL listed E157358

• 568 A/B color coded

• Straight-through wiring

• Operating temperature: -40 – 80°C (-40 – 176°F)

Warning

This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Model#: IKJ-C6U-CP-BK
• EAN: 0766623504898
• UPC: 766623504898



• Physical Specifications

• Product net weight: 0.01 lbs
• Product gross weight: 0.02 kg
• Dimensions: 1.38 (L) x 0.64 (W) x 0.78 (H) [in]

• Datasheet
• Datasheet     » Download
