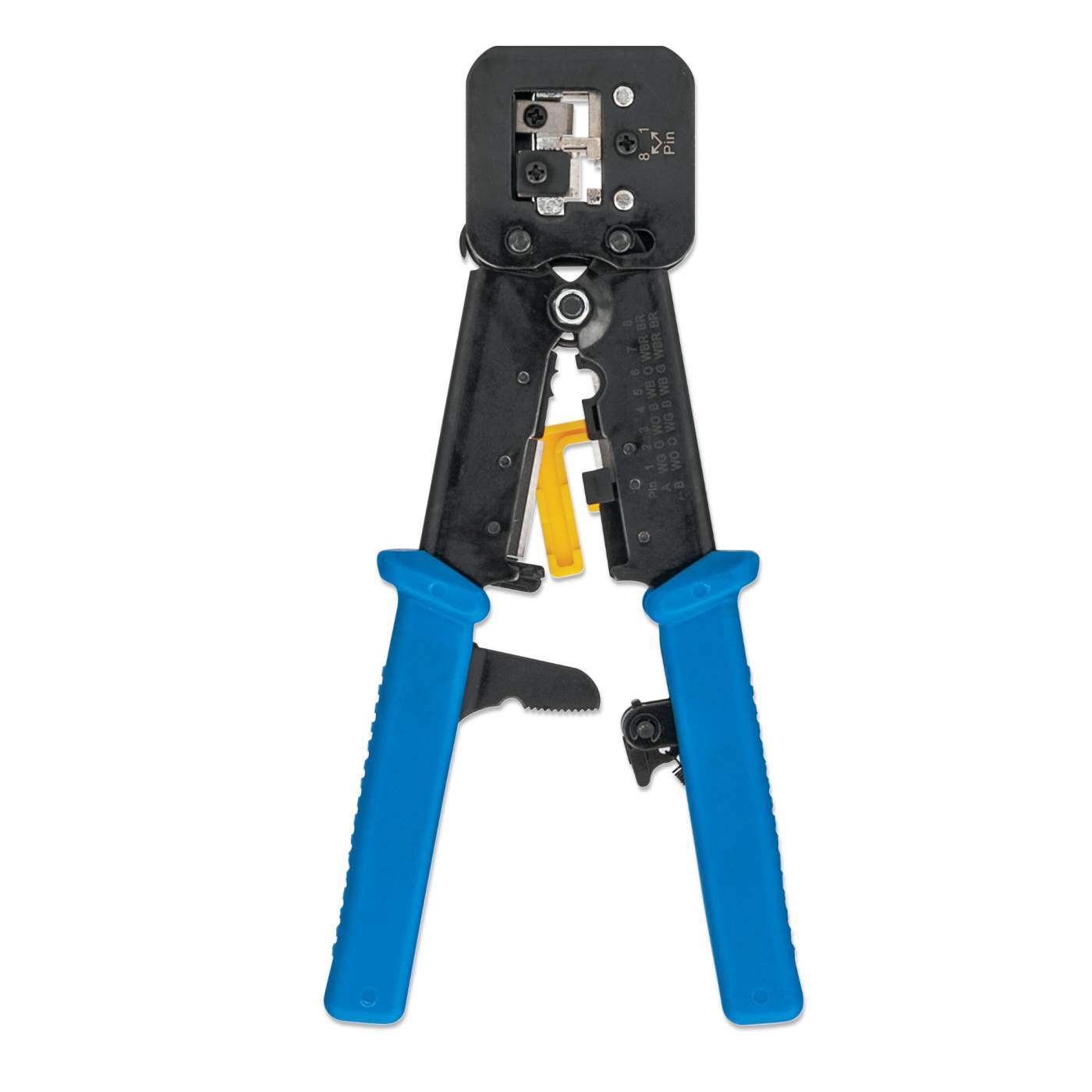

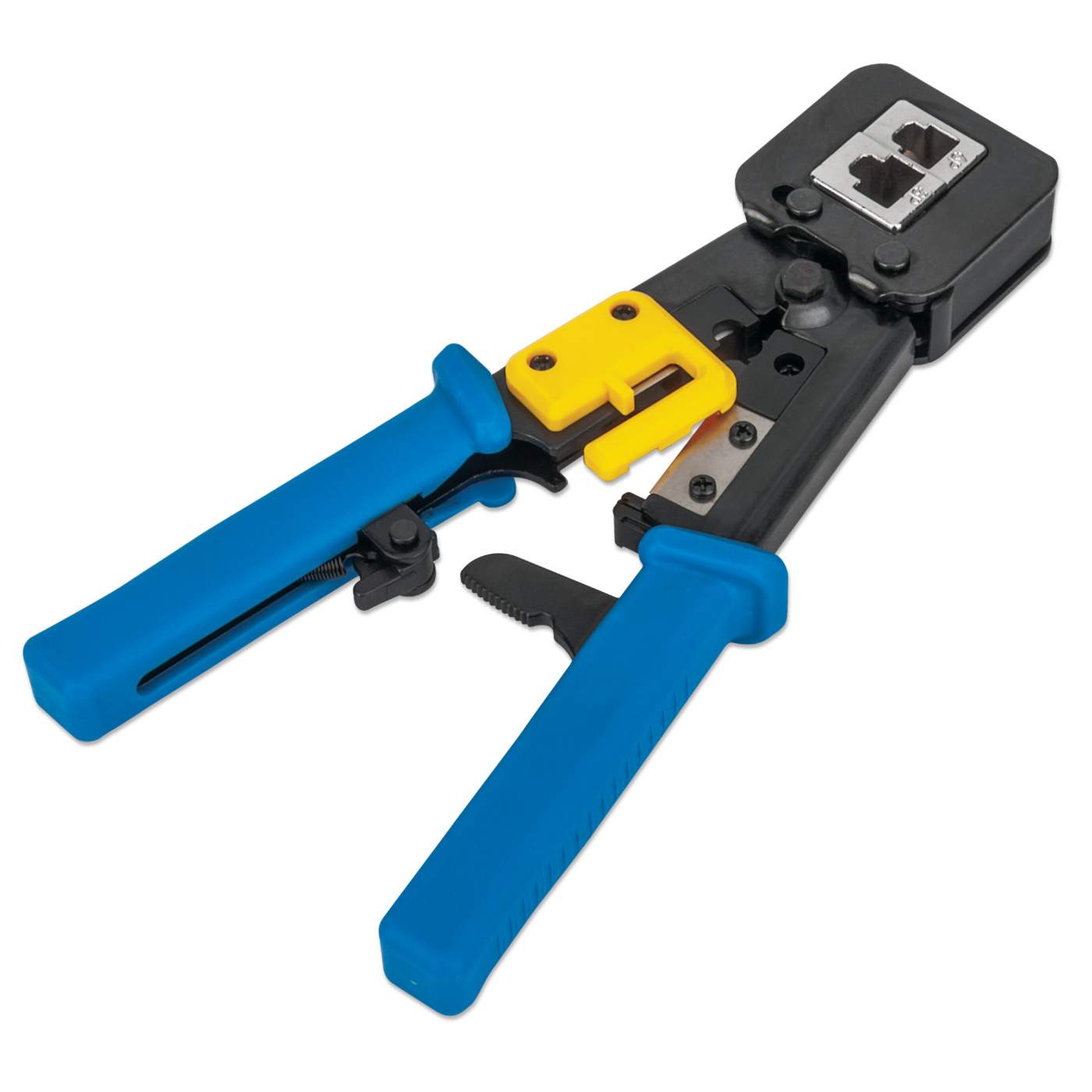

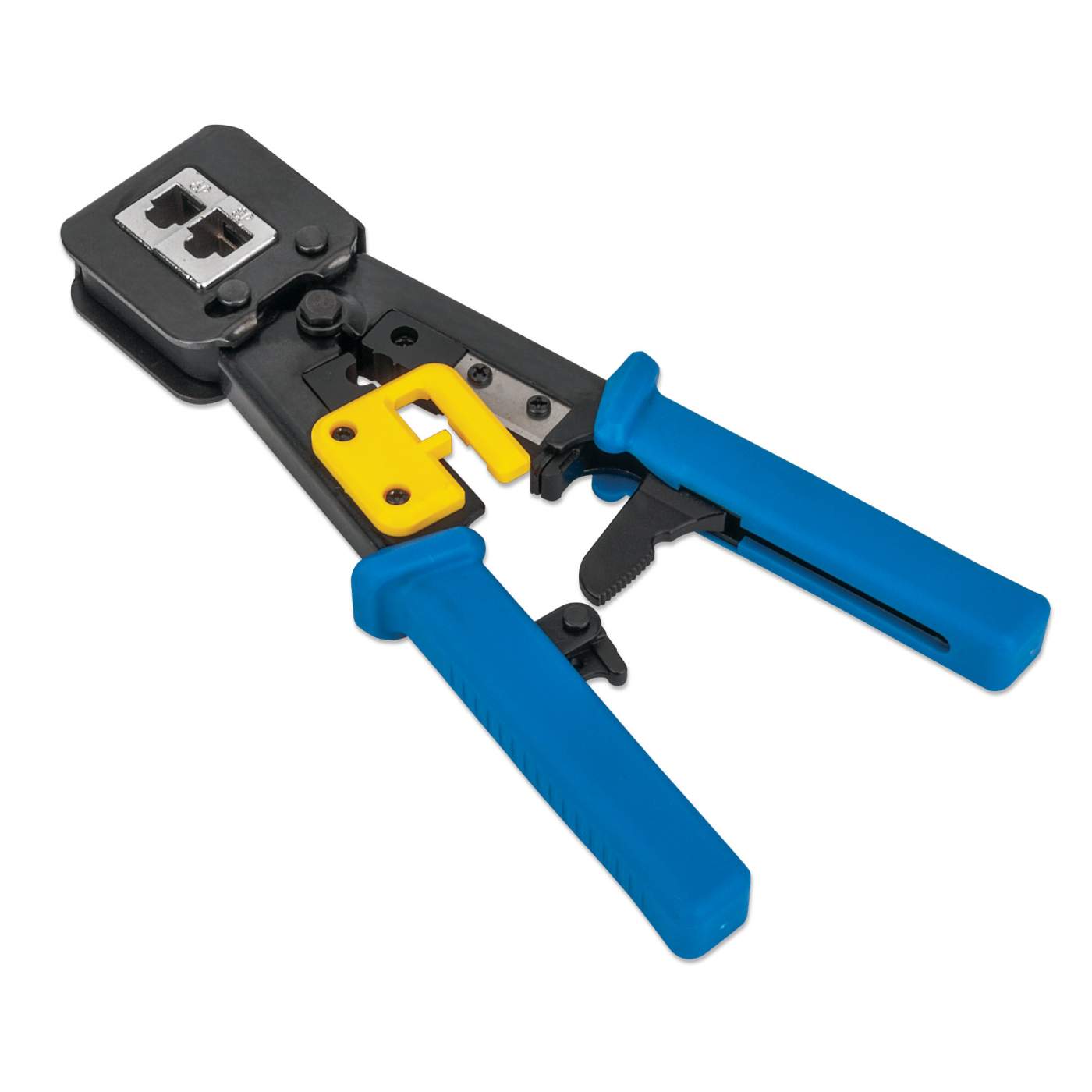

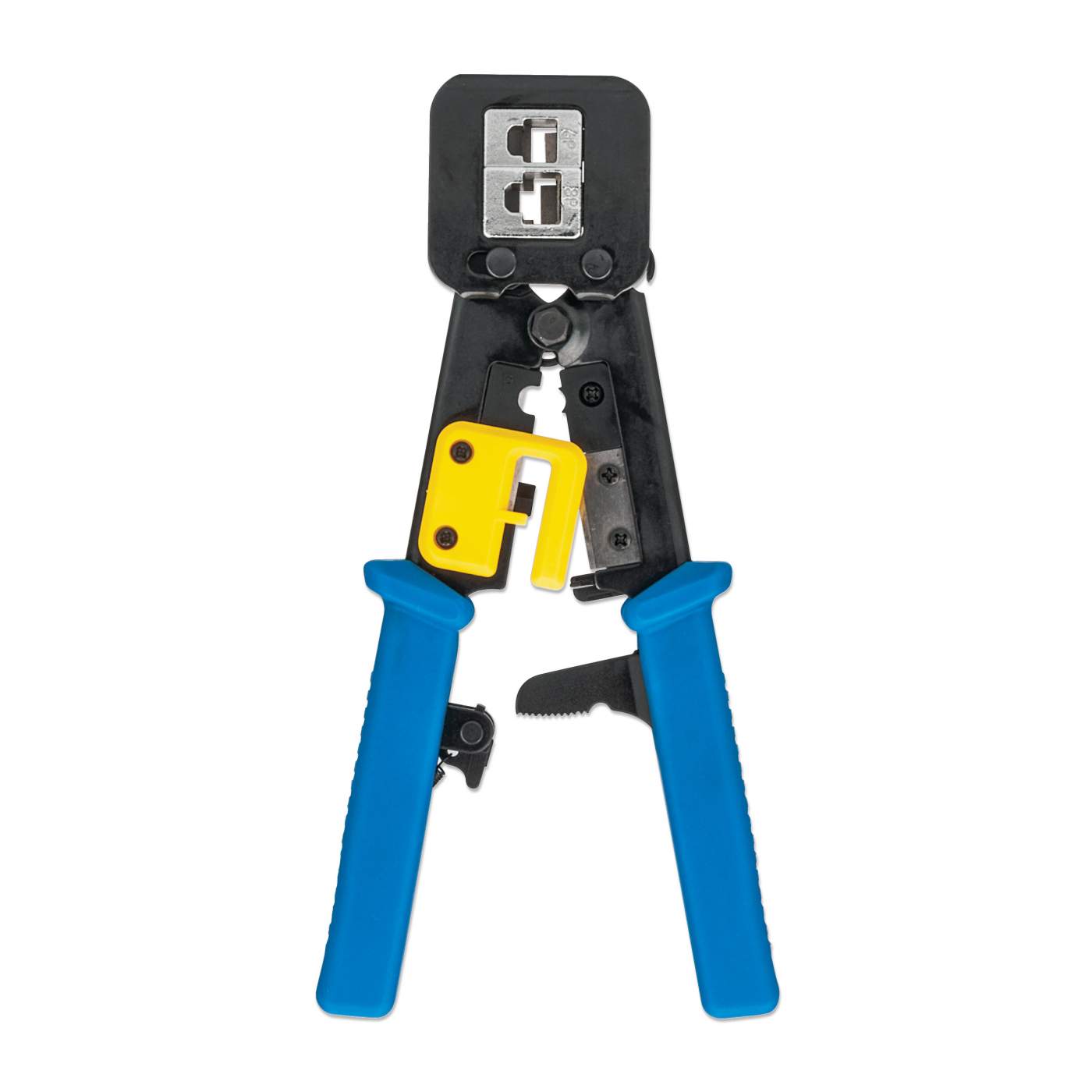

FastCrimp Modular Plug Crimping Tool
FastCrimp Modular Plug Crimping Tool
For Intellinet Network Solutions FastCrimp RJ45 Modular Plugs and Compatible Plugs
Highlights
- All-in-one professional modular crimping tool with cutting and stripping functions
- High-quality carbon steel with black finish
- Ratchet mechanism to control the tension of the tool with less strength required
[ view high resolution images ]
A versatile crimping tool for faster and easier terminations
FastCrimp RJ45 Modular Plug Crimping Tool from Intellinet Network Solutions helps installers terminate RJ45 cables quickly and easily. Getting clean connections with the jacket at the crimp point sometimes requires an extra trimming step to get the wire lengths just right. With the intuitive design of the FastCrimp Modular Plugs, you run the wires all the way through the plug and out the front before you crimp and cut them with this tool. There’s no more wondering if the wires got crossed in the connector or if they are seated completely — you can easily check them for perfect positioning and additional peace of mind.
- All-in-one professional modular crimping tool with cutting and stripping functions
- High-quality carbon steel with black finish
- Ratchet mechanism to control the tension of the tool with less strength required
- Cuts and strips both round and flat cable
- Durable, nonslip plastic handle
- Laser marked with wiring guide for proper wire sequence
- For use with Intellinet Network Solutions FastCrimp RJ45 Modular Plugs and compatible plugs
- Lifetime warranty
- General
- Crimps the following types of modular plugs: RJ45/8P8C; RJ12/6P6C; RJ11/6P4C, 6P2C
Physical - Dimensions: 220 (L) x 106 (W) x 22 (H) [mm] / 8.7 (L) x 4.17 (W) x 0.87 (H) [in.]
- Weight: 0.48 kg (1.06 lbs.)

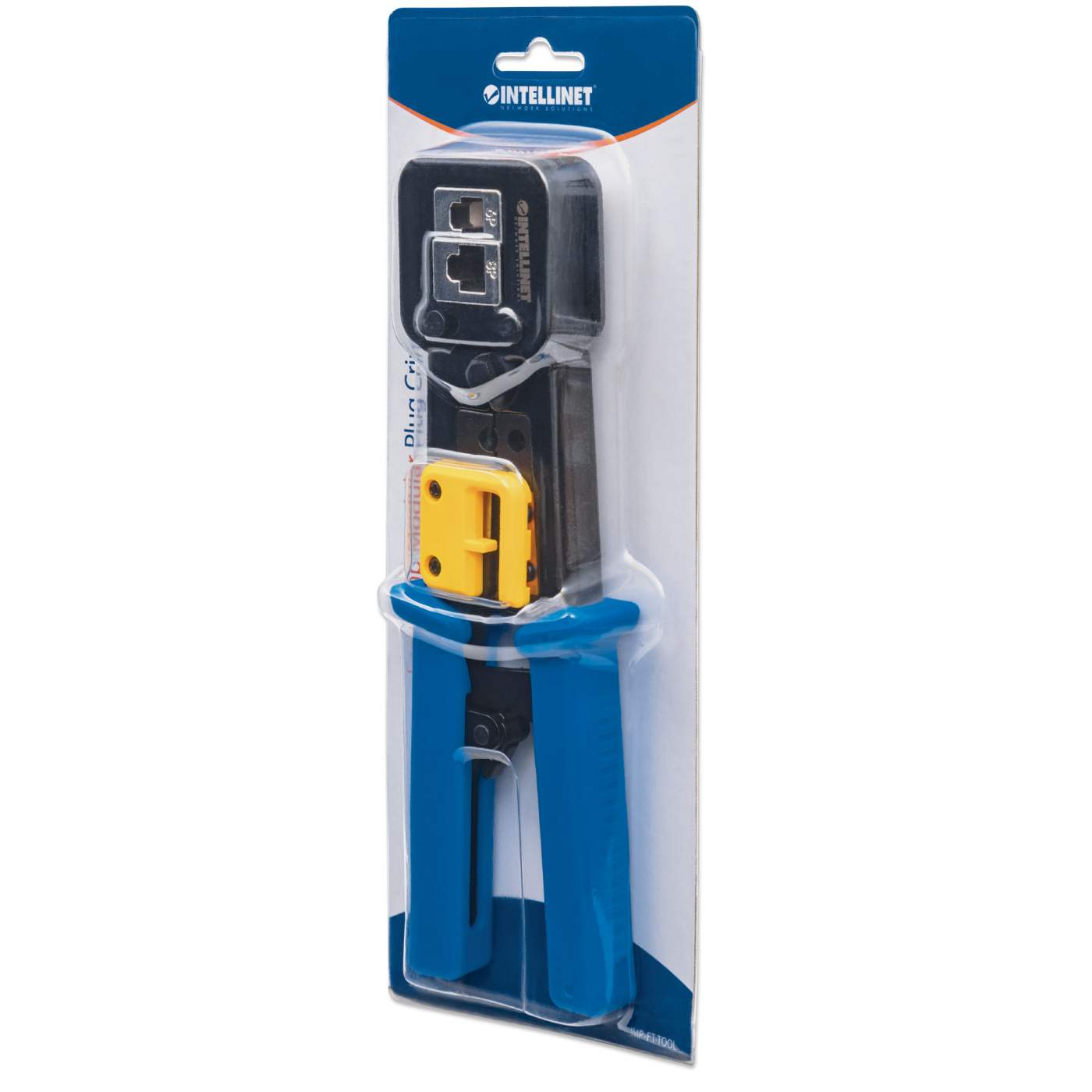

Package Contents - FastCrimp Modular Plug Crimping Tool
Additional SKUs
- Alphanumeric Model#: IMP-FT-TOOL
- EAN: 0766623790352
- UPC: 766623790352
Physical Specifications
- Product net weight: 1.07 lbs
- Product gross weight: 1.12 kg
- Dimensions: 8.7 (L) x 4.17 (W) x 0.87 (H) [in]
