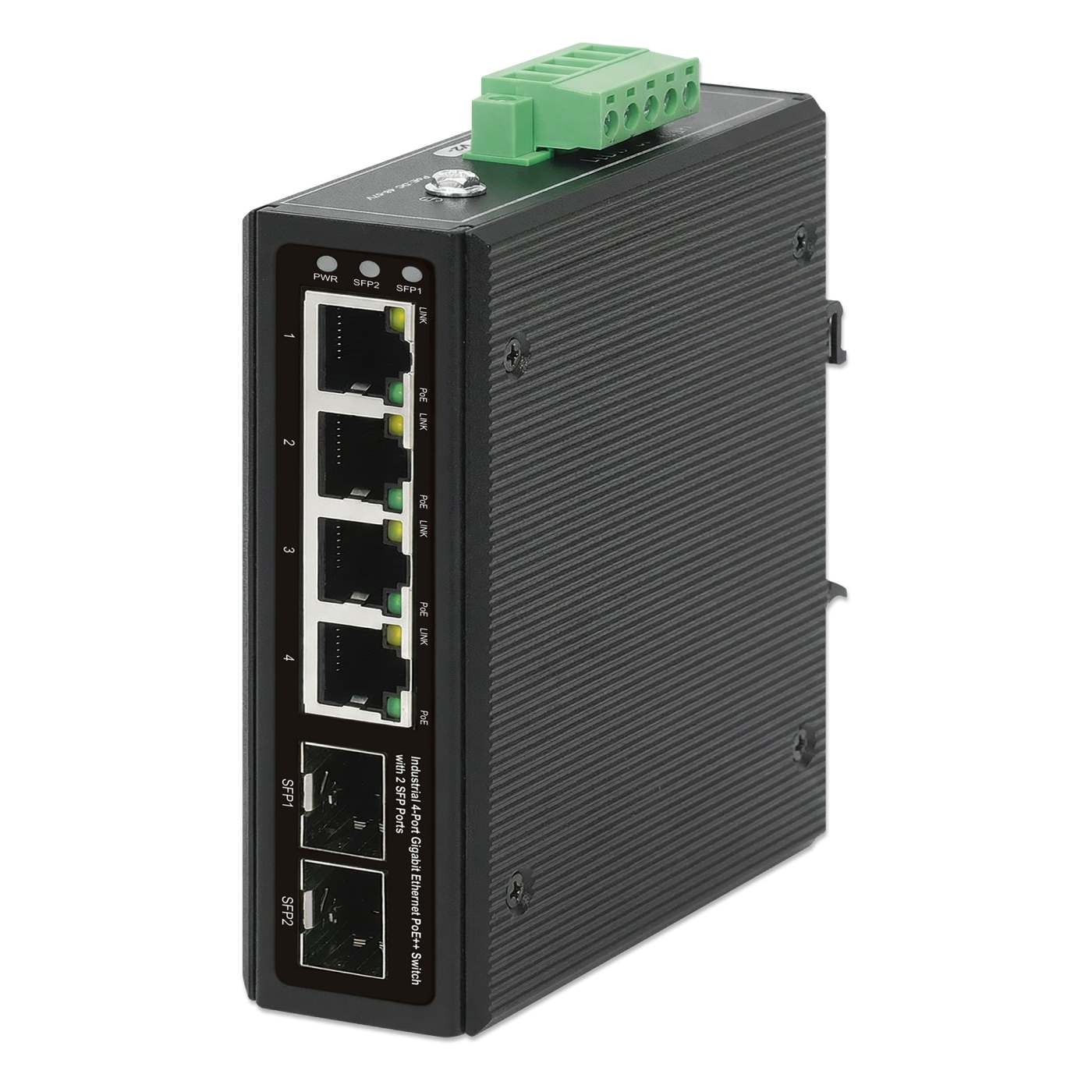

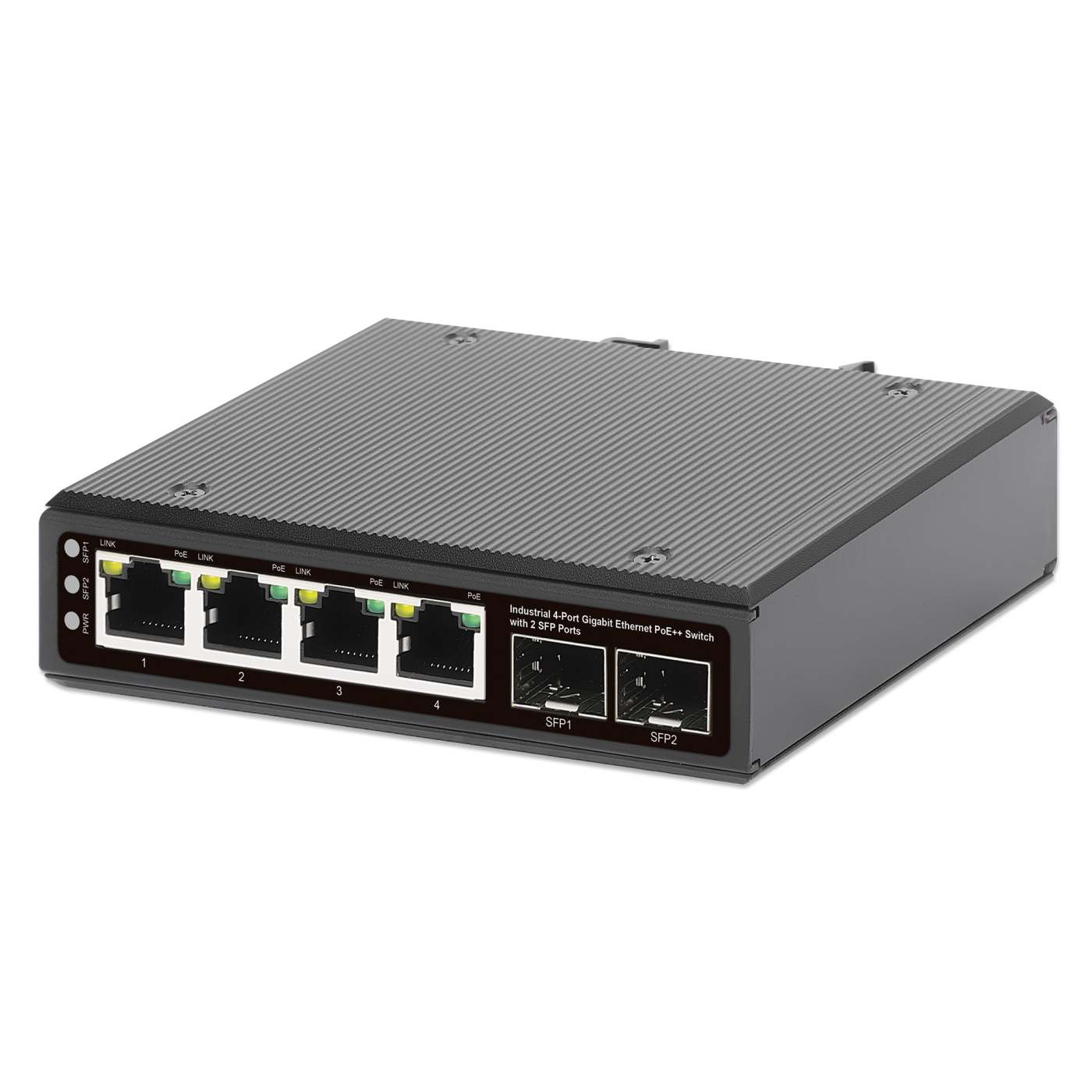

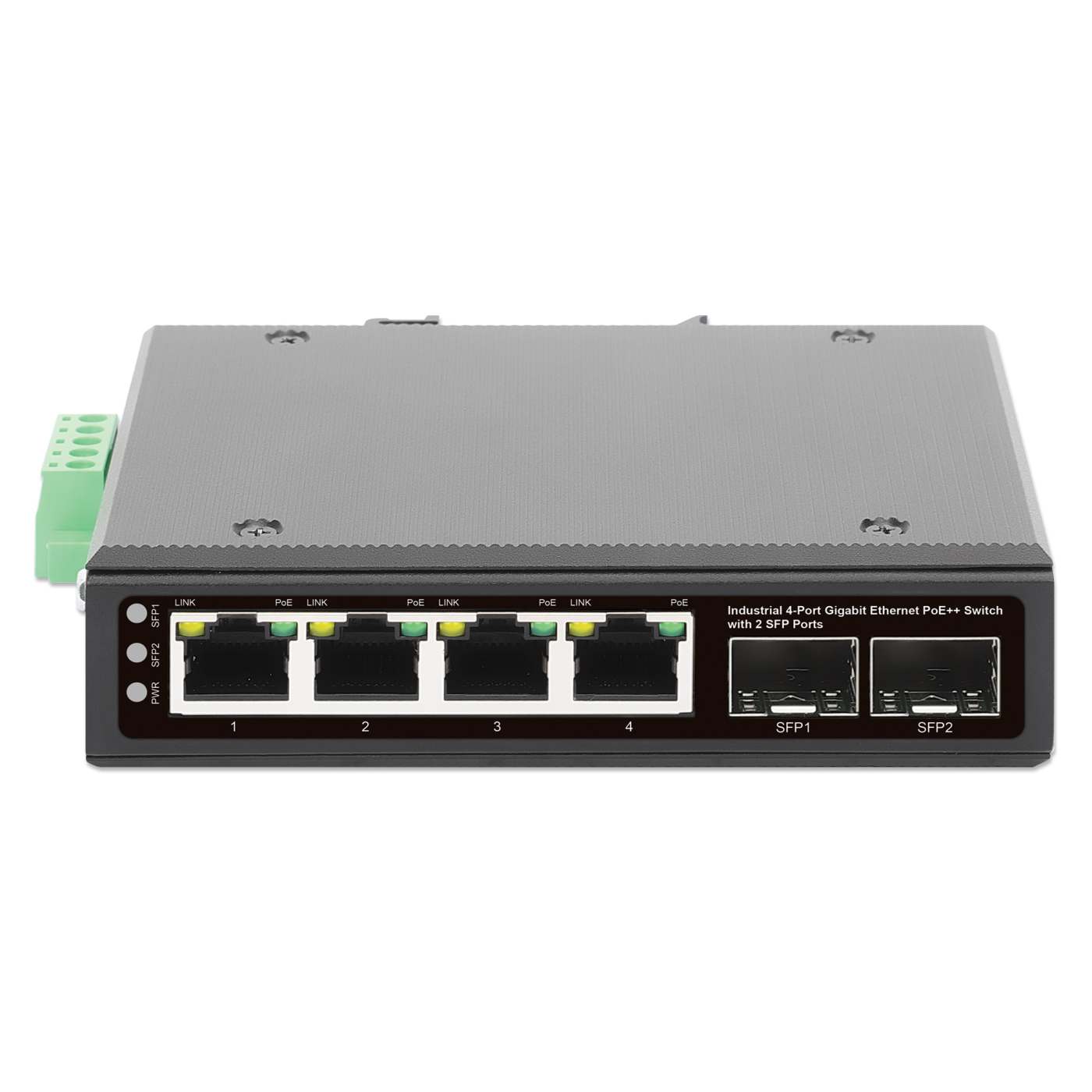

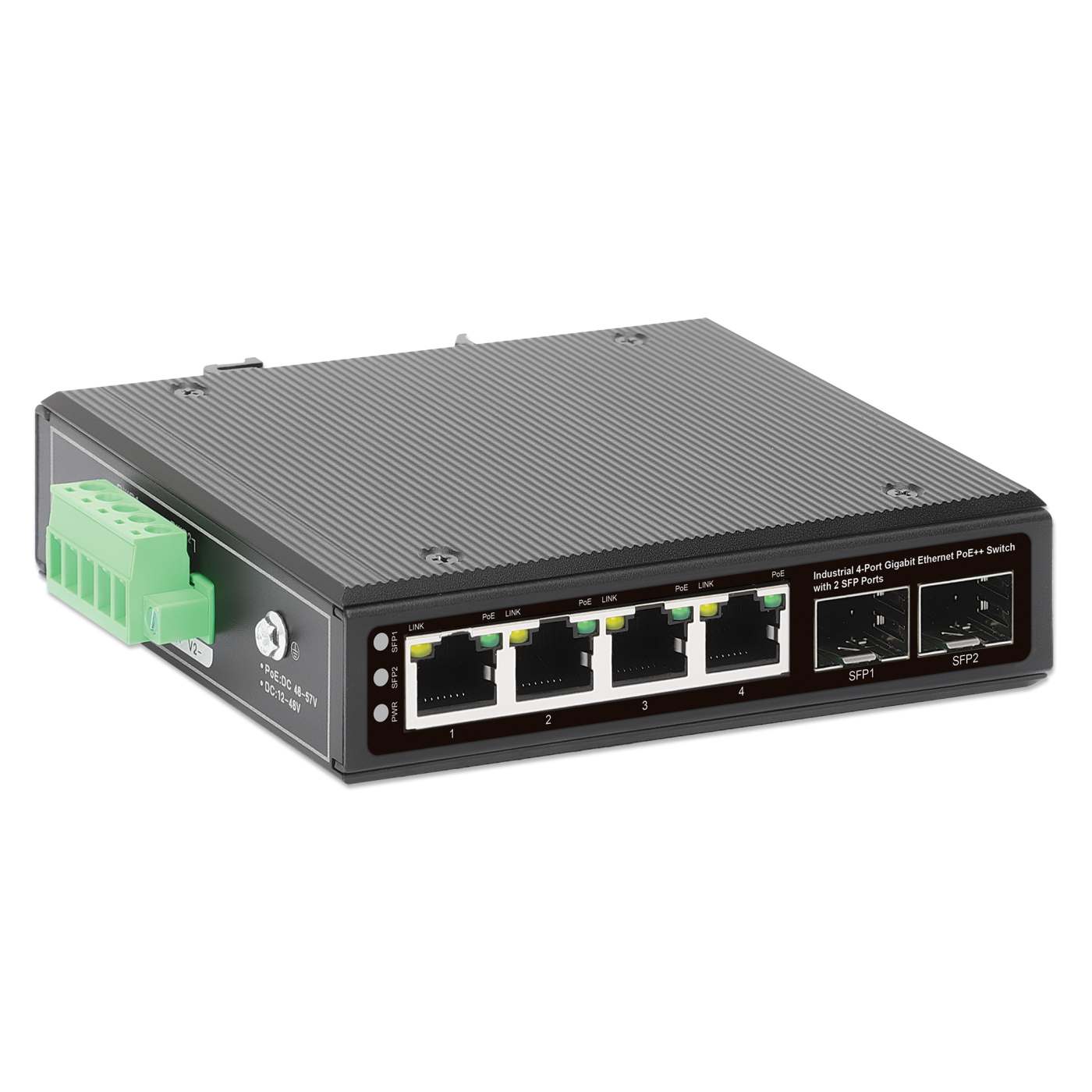

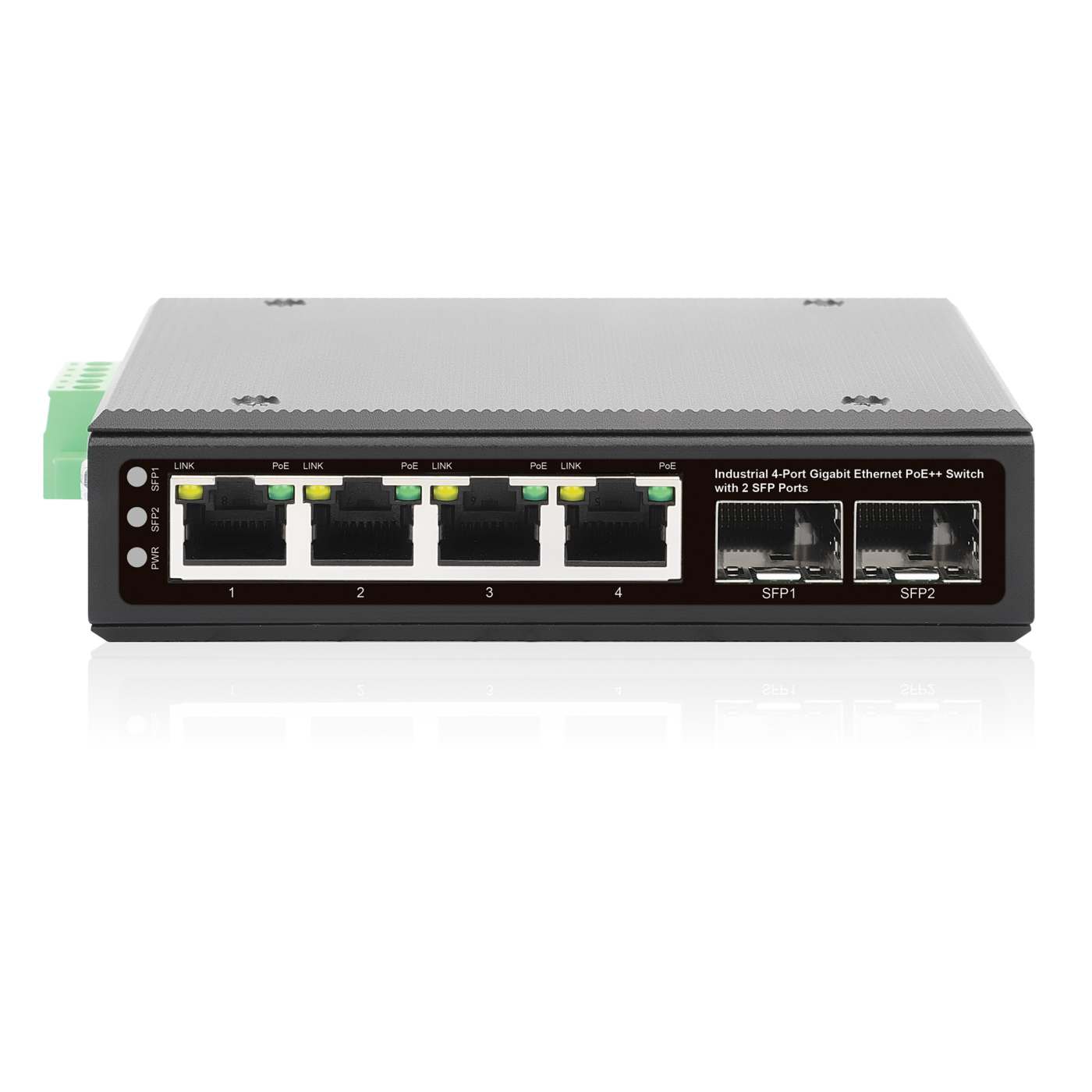

Industrial 4-Port Gigabit Ethernet PoE++ Switch with 2 SFP Ports
Industrial 4-Port Gigabit Ethernet PoE++ Switch with 2 SFP Ports
IEEE 802.3bt (4PPoE) Compliant, PoE Power Budget up to 240 W, Output up to 95 W per Port, IP40-Rated Metal Housing, DIN-Rail Mount
SKU: 508995 IIS-4G02POE-240W
Highlights
- Provides up to four PoE network devices with power and data
- Power over Ethernet with output up to 95 watts per port
- PoE power budget of 240 watts (depending on the power supply used)
[ view high resolution images ]
Hardened PoE Switch - Industrial 6-Port Gigabit PoE++ Switch with DIN Rail Mount - unmanaged 802.3bt Power over Ethernet connectivity for harsh environments

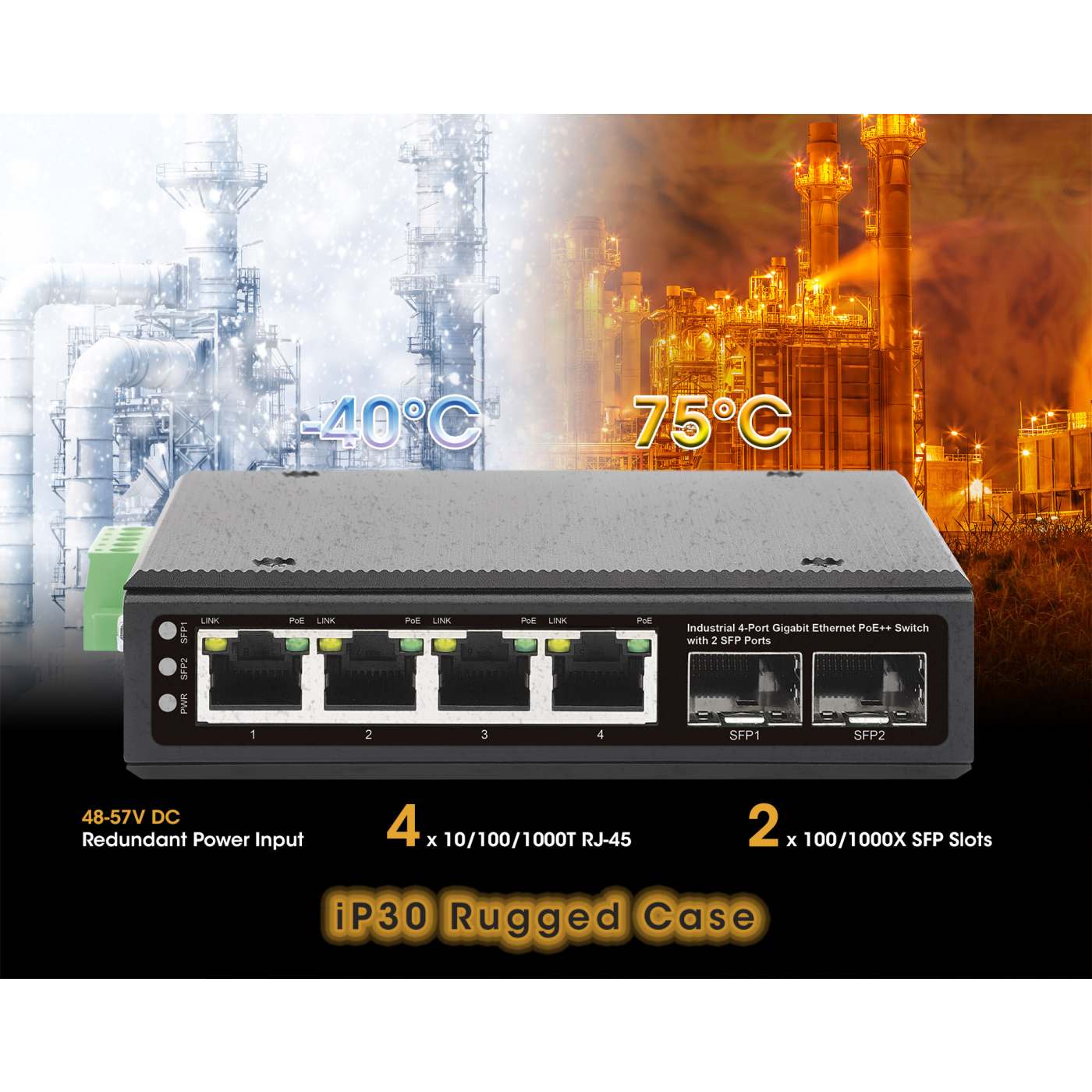

The Industrial 4-Port Gigabit Ethernet PoE++ Switch with 2 SFP Ports from Intellinet Network Solutions was designed to give you the network connections and device power you need in places that are less than calm or temperate. With a rugged IP40-rated metal case, the switch operates reliably and quietly, even in extreme temperatures that range from -20 - 75°C (-4 - 167°F). In combination with its DIN-rail mounting option and two safe, redundant DC power inputs and plenty of other safety features, this switch is ideal for IoT applications in Industry 4.0 and more.
Ultra-high 4PPoE output of 95 W per port paired with a large Power Budget and Gigabit Speeds

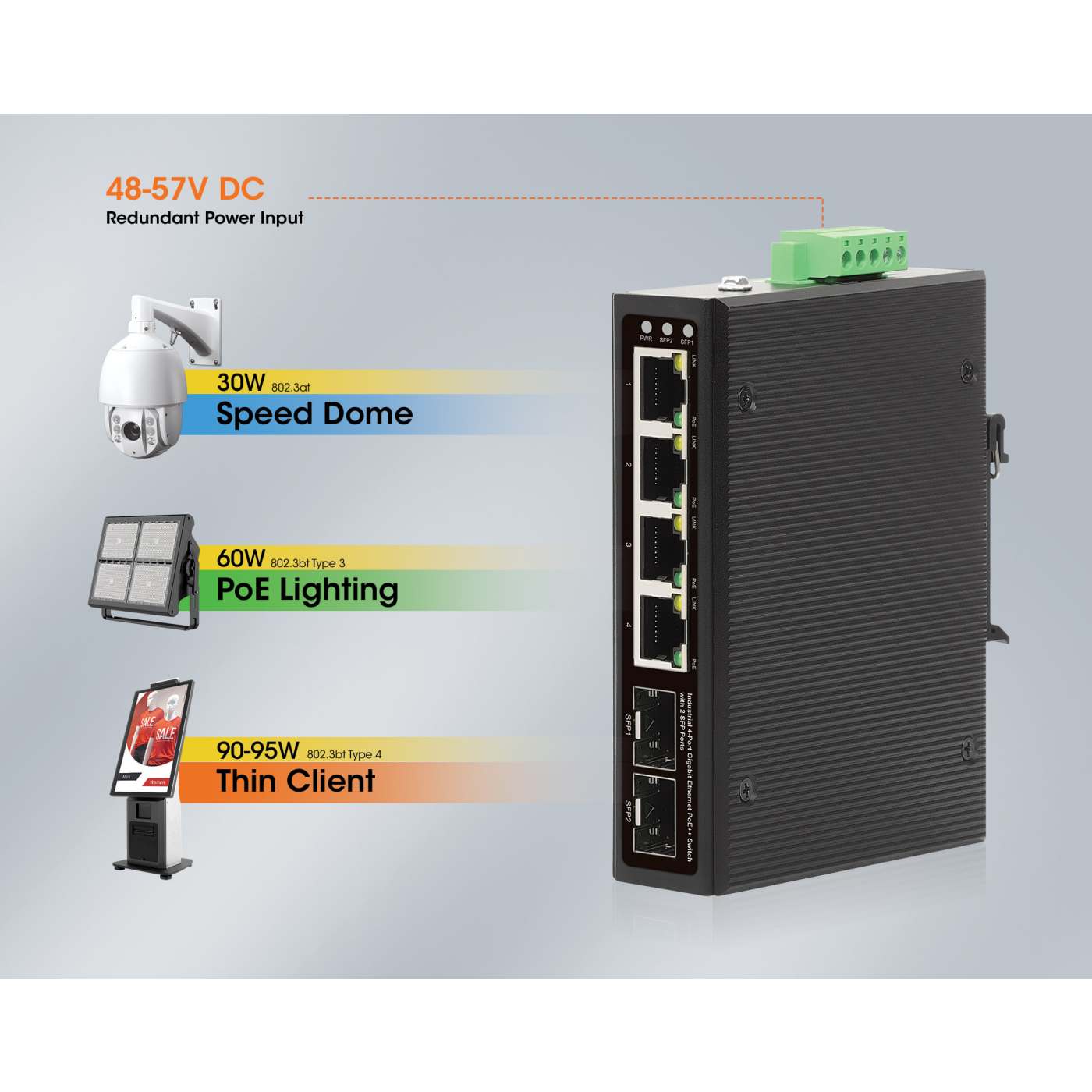

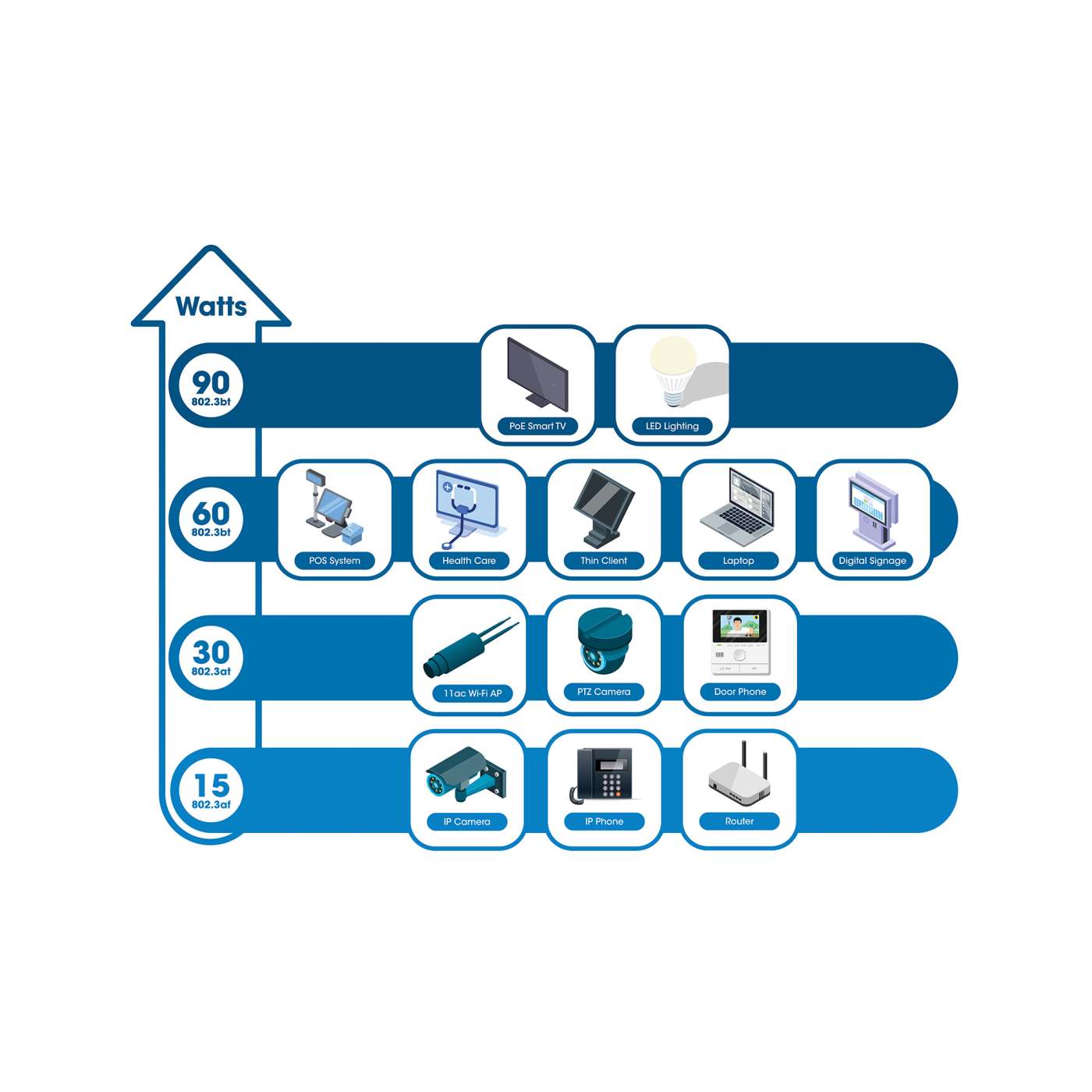

Featuring four auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this unmanaged switch offers plenty of performance for the devices in your network. Two small form-factor pluggable (SFP) GBIC module slots provide fiber connectivity for greater distances. The switch features a power budget of 240 W and can distribute a full 95 W (per the IEEE 802.3bt standard) to an RJ45 port while being downwards compatible with IEEE 802.3at/af. The output power rating up to 95 watts is enough for even very power-hungry PoE++ devices like motorized PTZ cameras, thin clients, point-of-sale systems, lighting controllers and digital signage applications.
Safe protection for your expensive network equipment
The auto-sensing technology of this PoE Switch ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages. Port surge protection up to 6 kV and ESD protection up to 15 kV make its safety complete.
- Provides up to four PoE network devices with power and data
- Power over Ethernet with output up to 95 watts per port
- PoE power budget of 240 watts (depending on the power supply used)
- Two small form-factor pluggable (SFP) GBIC module slots
- IP40 slim-type metal housing to withstand harsh industrial conditions
- Suitable for extreme operating temperatures of -20 to 75ºC (-4 to 167ºF)

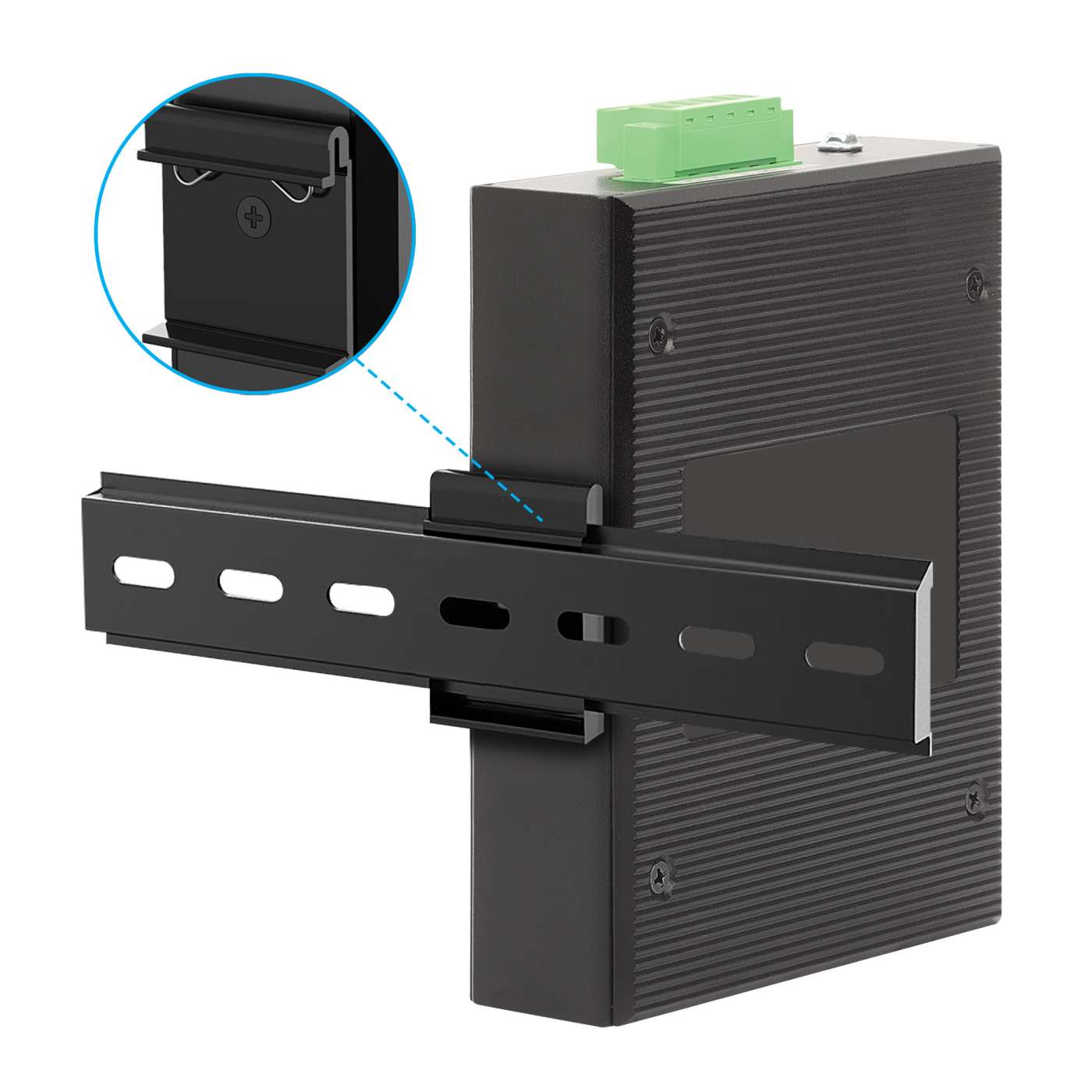

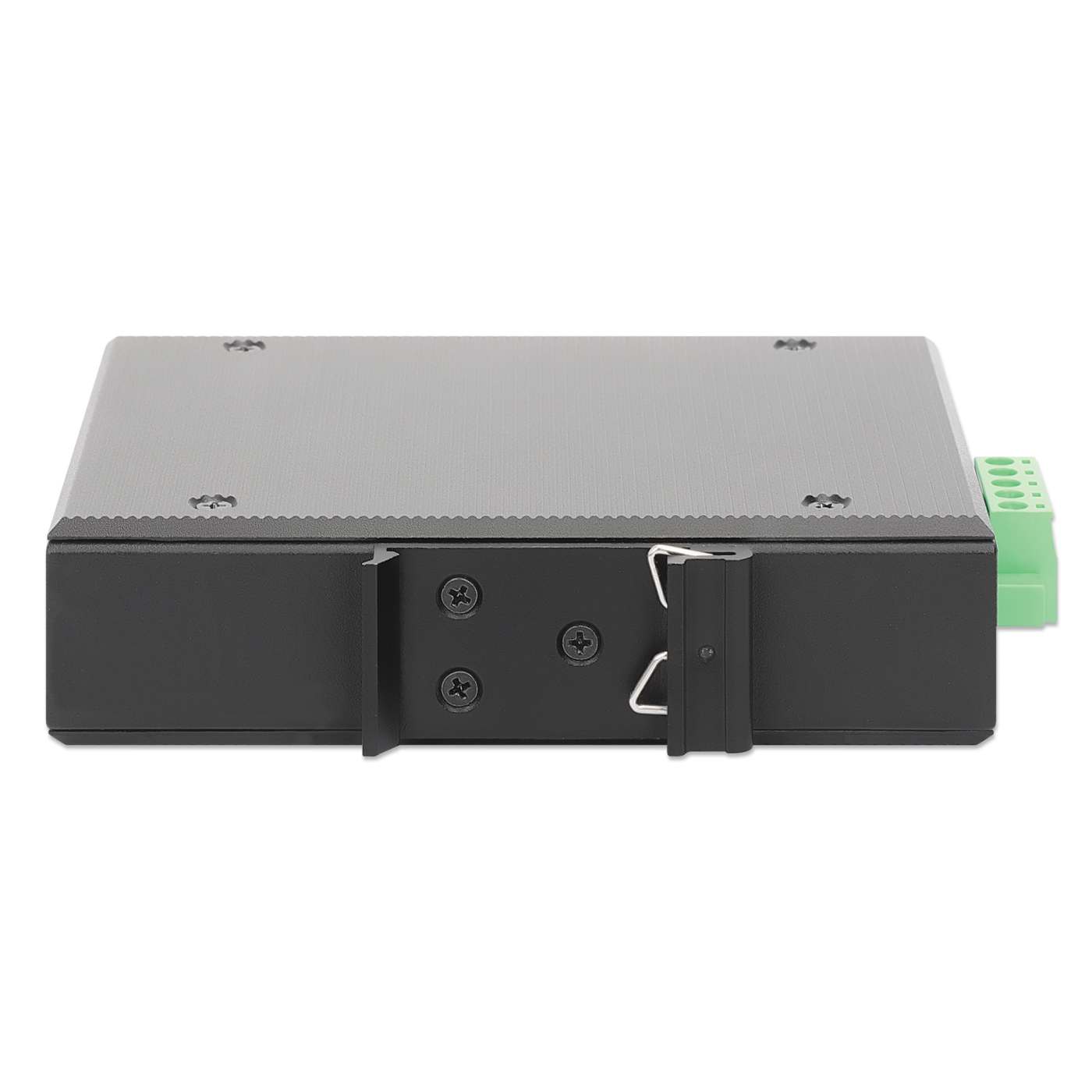

- Option for DIN-rail installation
- 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
- Compatible with IEEE 802.3bt/at/af-compliant powered devices (PD) such as network cameras, wireless access points, VoIP phones and more
- Two redundant DC inputs (48 - 57 V) with I/O terminal block
- ESD protection up to 15 kV (air) and 8 kV (contact)
- Port surge protection up to 6 kV
- Grounding point to protect equipment from external electrical surges
- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
- 12 Gbps switch fabric
- Supports IEEE 802.3bt/at/af detection and short circuit, overload and high-voltage protection
- Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
- Supports 2k MAC address entries with Auto-Learning and Auto-Aging
- Supports jumbo frames up to 9.2 kBytes
- Store and forward switching architecture
- Full/half duplex operation
- IEEE 802.3x flow control for full duplex
- LEDs for power, link/activity and PoE
- Fanless design for silent operation
- Requires additional industrial power supply (not included)
- Fully NDAA-compliant
- Three-year warranty
