Industrial Gigabit Fiber SFP Optical Transceiver Module
Industrial Gigabit Fiber SFP Optical Transceiver Module
1000Base-SX (LC) Multi-Mode Port, 550 m, MSA-compliant for Maximum Compatibility, Silver
Highlights
- MSA-compliant for compatibility with leading switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and more (see specs)
- Data transfer rate: 1000 Mbps
- One 1000Base-SX multi-mode fiber LC duplex port
[ view high resolution images ]
Industrial SFP Module — handles extreme temps, MSA compatible

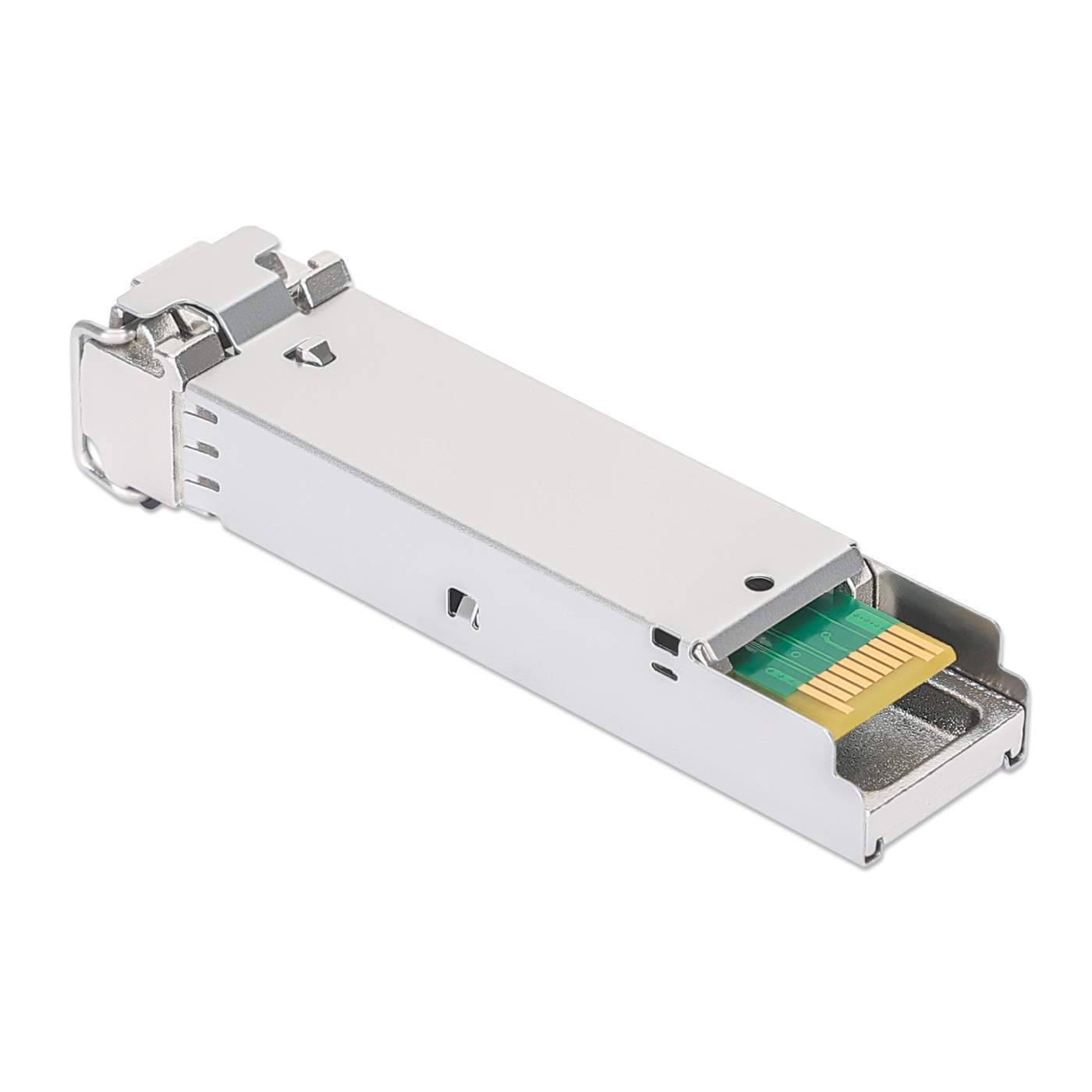

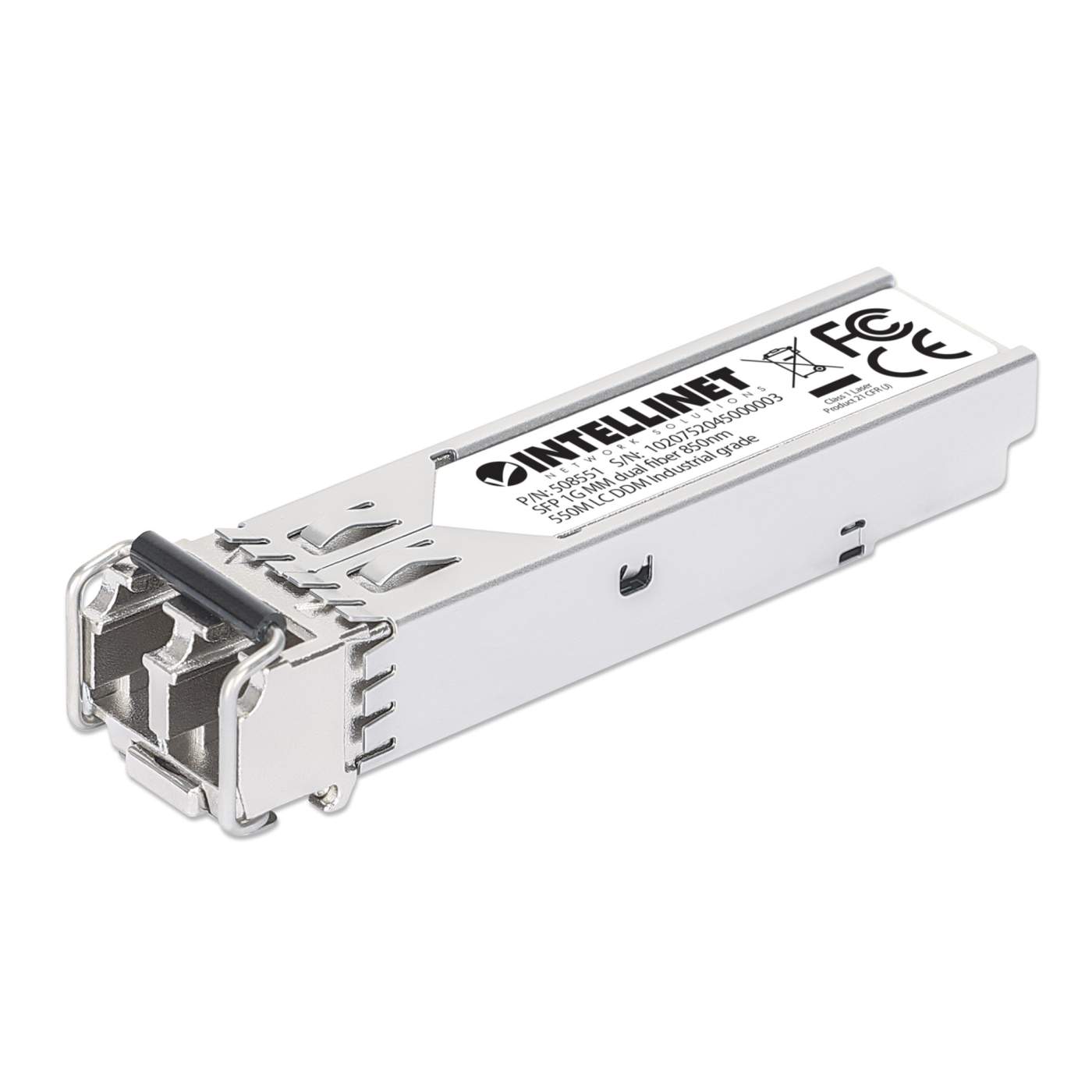

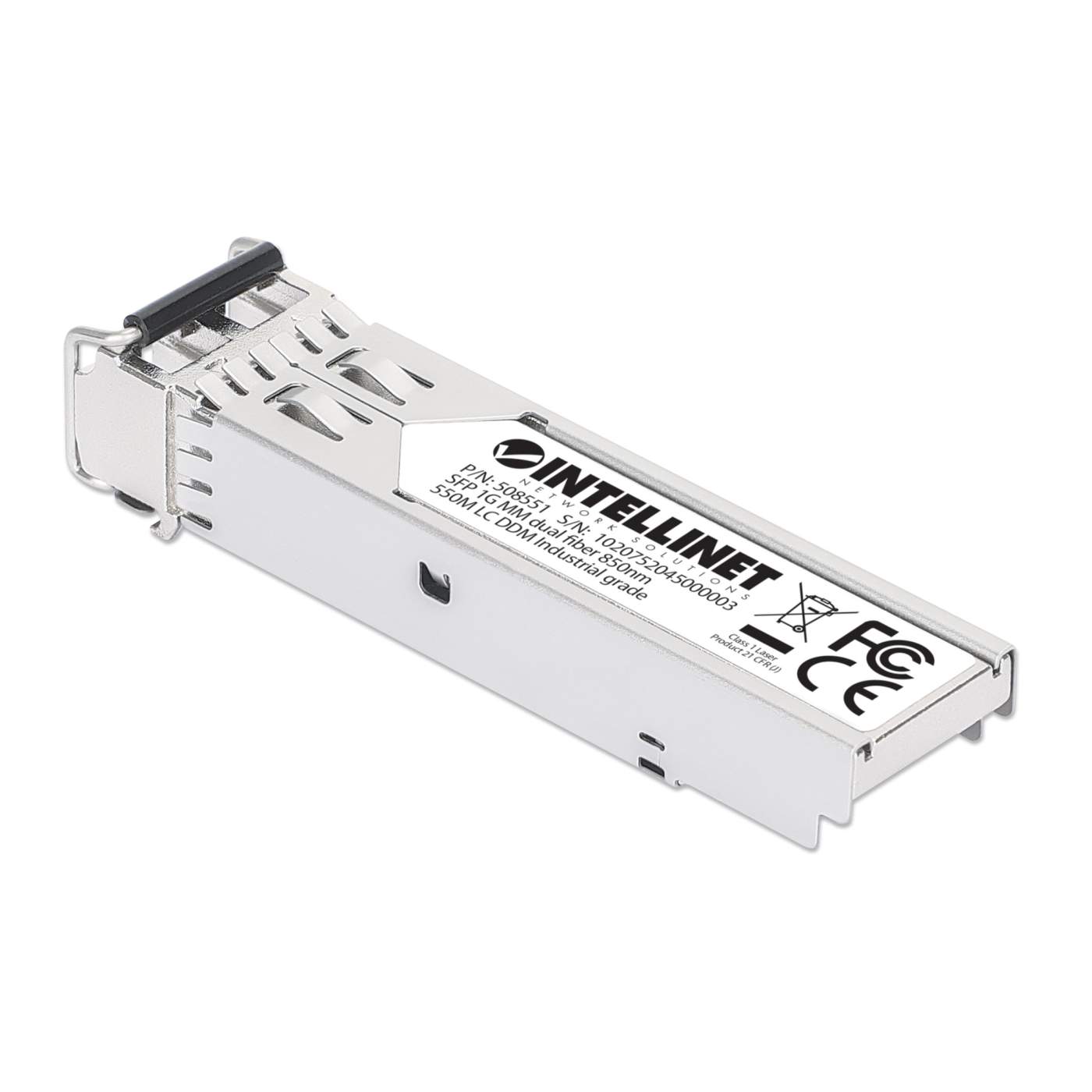

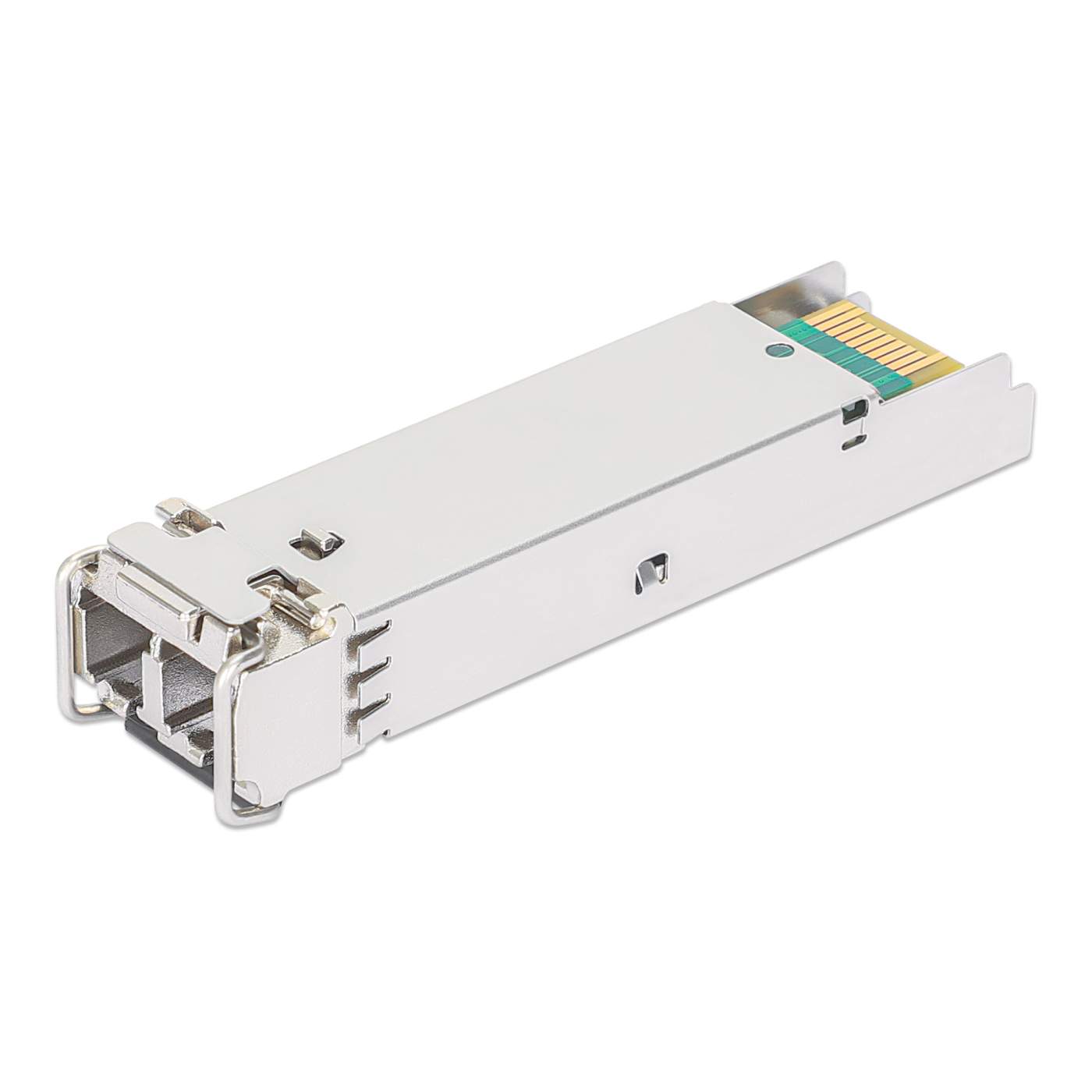

The Small Form Factor Pluggable (SFP) Transceiver from Intellinet Network Solutions provides a great combination of performance and affordability. Also known as a mini-Gigabit Interface Converter (GBIC), this SFP module's metal housing reduces electromagnetic interference and increases its durability.
Small Size for High-Density Fiber Connections
The transceiver's mini-GBIC form factor helps it take up less space on the equipment it plugs into. It's ideal in environments that require many fiber connections.

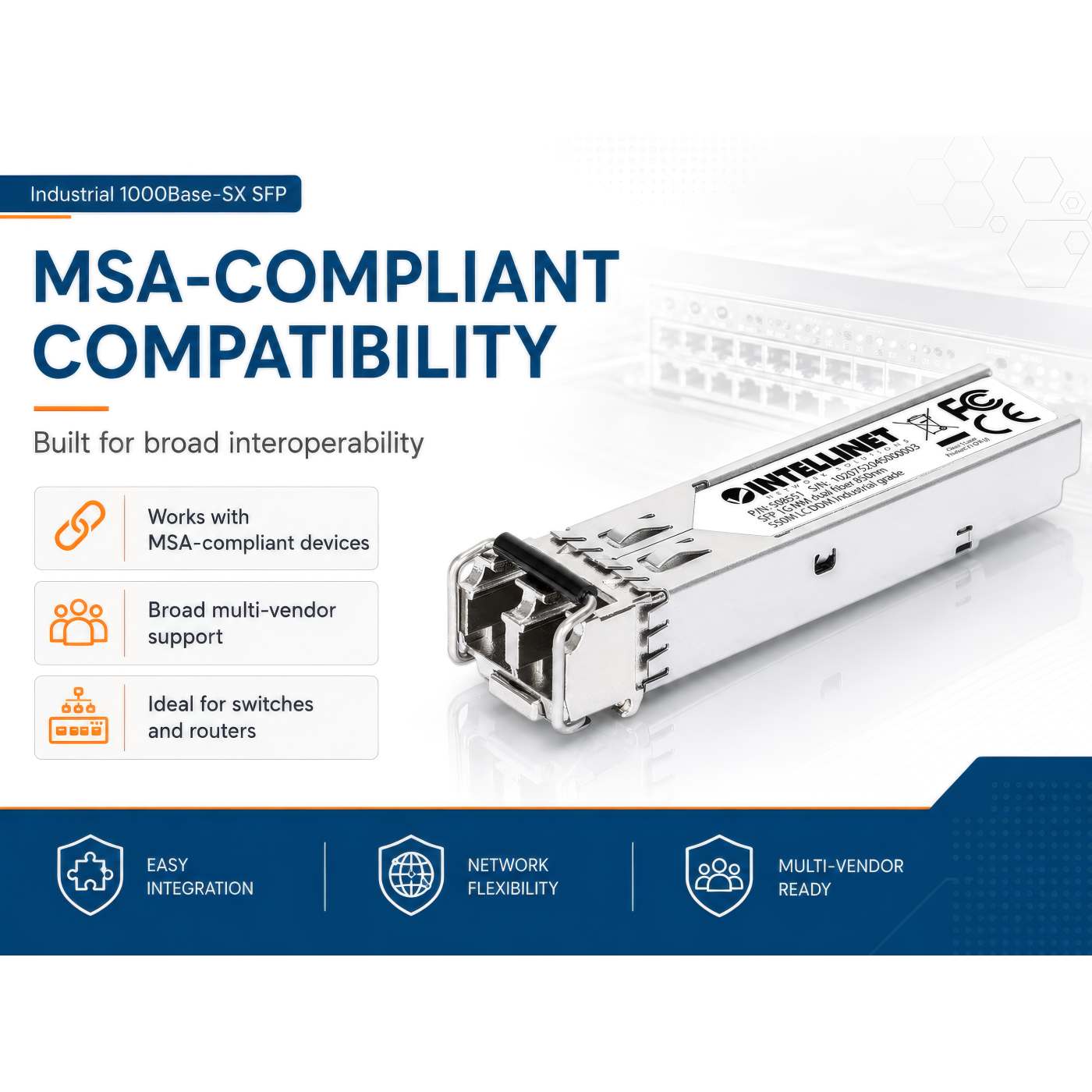

Multi-vendor Compatible
Compatibility in your network is everything, and this SFP Transceiver Module delivers. Use it with any Intellinet SFP equipped network switch or any other Multi Source Agreement (MSA) compliant SFP enabled switch. It is designed, programmed and tested to work with compatible switches and routers from Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more.
Hot-pluggable
There's no need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy to make adjustments to your network that allow your business to keep pace with the changing demands of the market.

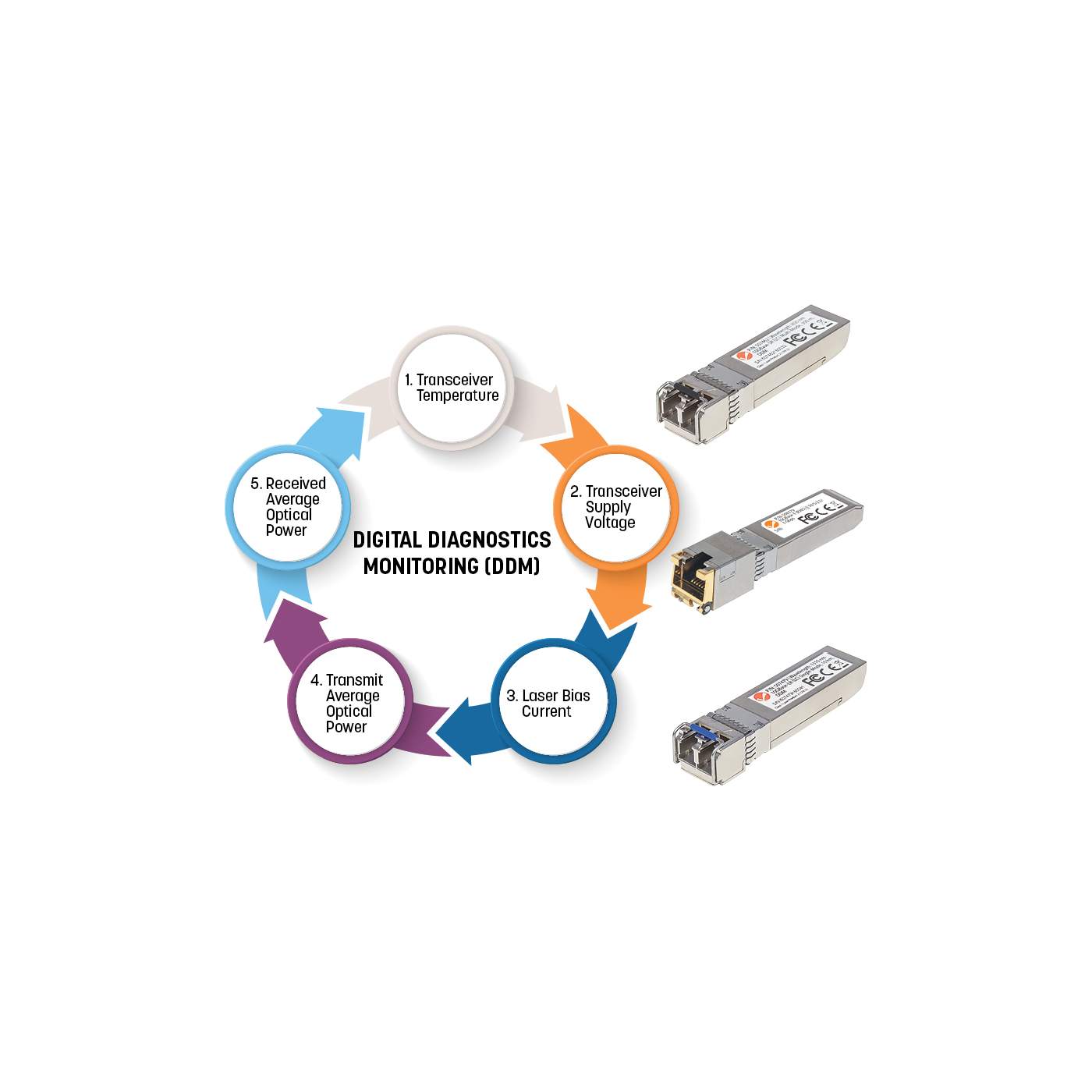

Digital Diagnostics Monitoring (DDM)
This transceiver supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). That gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.
Equipped even for challenging environment conditions
With its rugged, protective metal housing, the transceiver operates reliably, even in extreme temperatures from -40 - 75℃ (-40 - 167°F).
- MSA-compliant for compatibility with leading switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and more (see specs)
- Data transfer rate: 1000 Mbps
- One 1000Base-SX multi-mode fiber LC duplex port
- Distance support: up to 550 m
- Wavelength: 850 nm
- Equivalent to the Cisco GLC-SX-MM transceiver
- SFP standard form factor
- Supports digital diagnostics monitoring (DDM)
- Wide operating temperature: -40 - 75°C (-40 - 167°F)
- Low EMI due to fully metallic housing
- Supports hot-plugging
- Fully NDAA-compliant
- Three-year warranty
- Standards
- IEEE 802.3z (Fiber Optic Gigabit Ethernet)
General - Media support:
- 1000Base-SX multi-mode 50/125 µm fiber
- 1000Base-SX multi-mode 62.5/125 µm fiber - Connector: fiber LC duplex port, 1000Base-SX
- Distances: 550 m
- Wavelength: 850 nm
- Fiber power budget
- Maximum TX power: -3 dBm
- Minimum TX power: -9 dBm
- Sensitivity: -18 dB
- Power budget: 9 dB - Design: SFP (small form factor pluggable)
- SFF-8472 Diagnostic Monitoring Interface for Optical Transceivers
- Certifications: FCC Class B, CE, RoHS, UKCA, NDAA
Compatible Brands - Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more
Power - Power requirement: 3.3 V
- Power consumption: 1.0 watt (maximum)
Physical - Dimensions (L x W x H): 57 x 14 x 12 mm (2.24 x 0.55 x 0.5 in.)
- Weight: 20 g (0.71 oz.)
Environmental - Storage temperature: -40 - 85°C (-40 - 185°F)
- Operating temperature: -40 - 75°C (-40 - 167°F)
- Operating humidity: 5 – 95% RH, non-condensing
Package Contents - Industrial Gigabit Fiber SFP Optical Transceiver Module
Additional SKUs
- Alphanumeric Model#: ISFPI-1G-LCMM-550M
- EAN: 0766623508551
- UPC: 766623508551
Physical Specifications
- Product net weight: 0.04 lbs
- Product gross weight: 0.1 kg
- Dimensions: 2.17 (L) x 0.51 (W) x 0.47 (H) [in]
Warning
This product can expose you to chemicals including Bisphenol-A, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.- Datasheet
- Datasheet » Download
