Intellinet

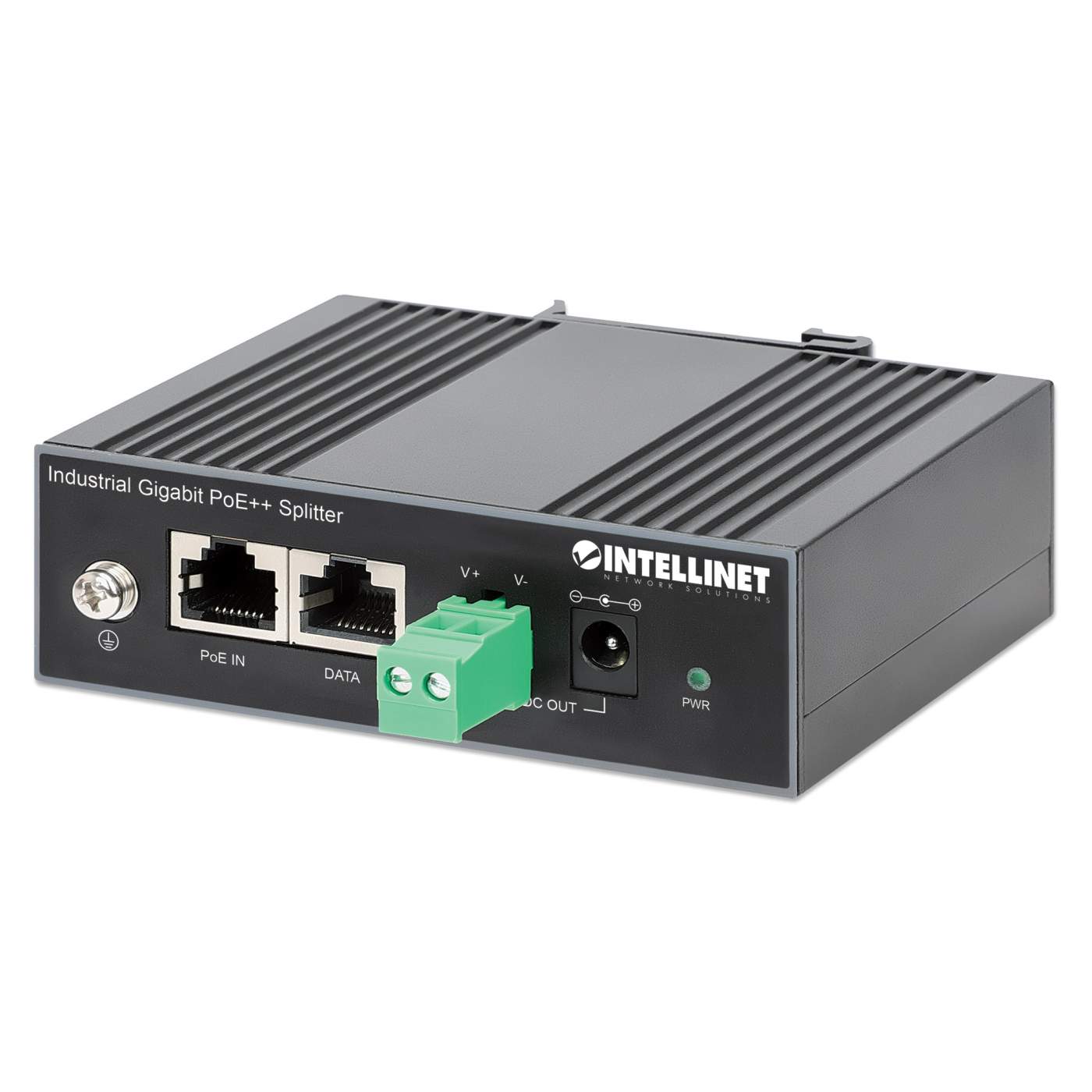

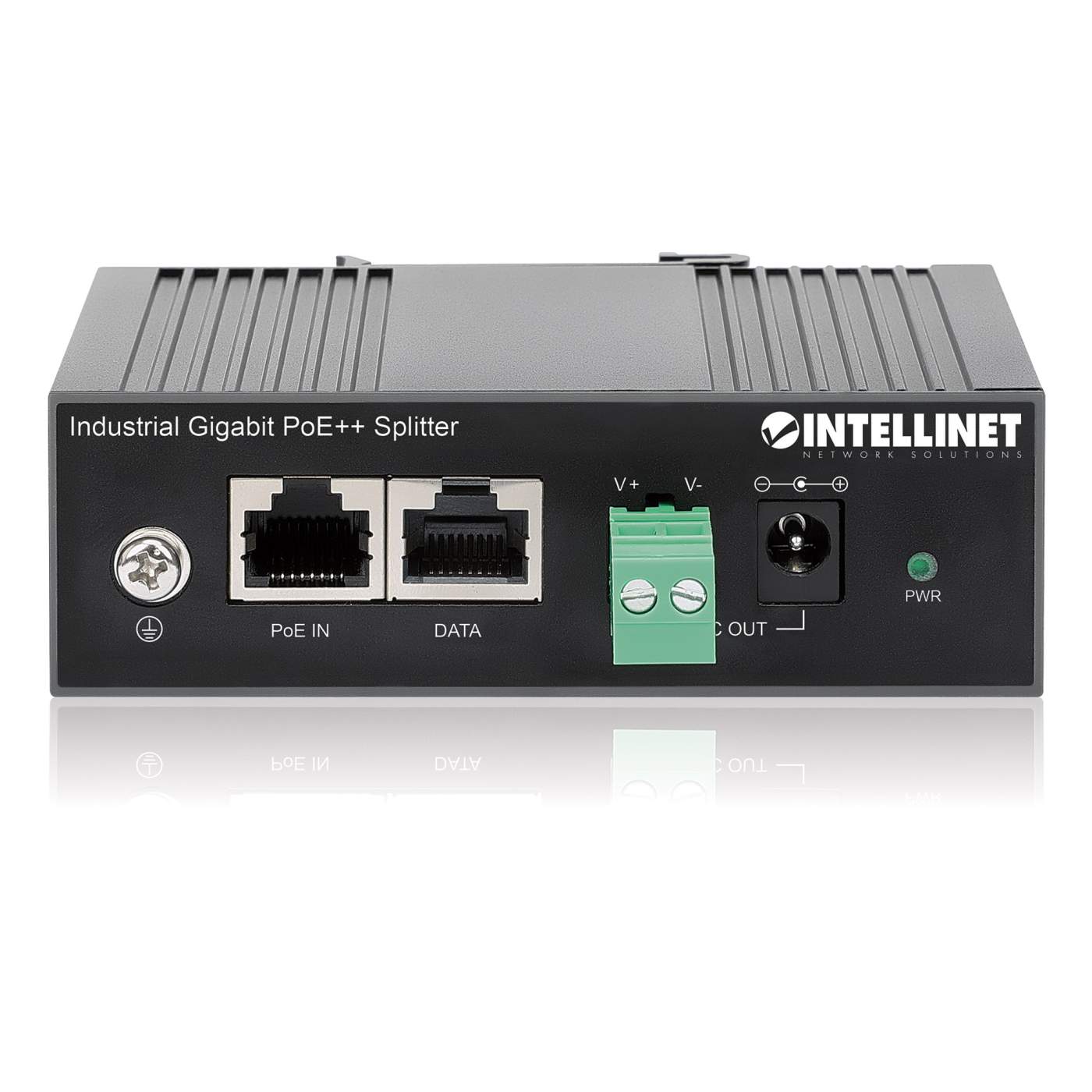

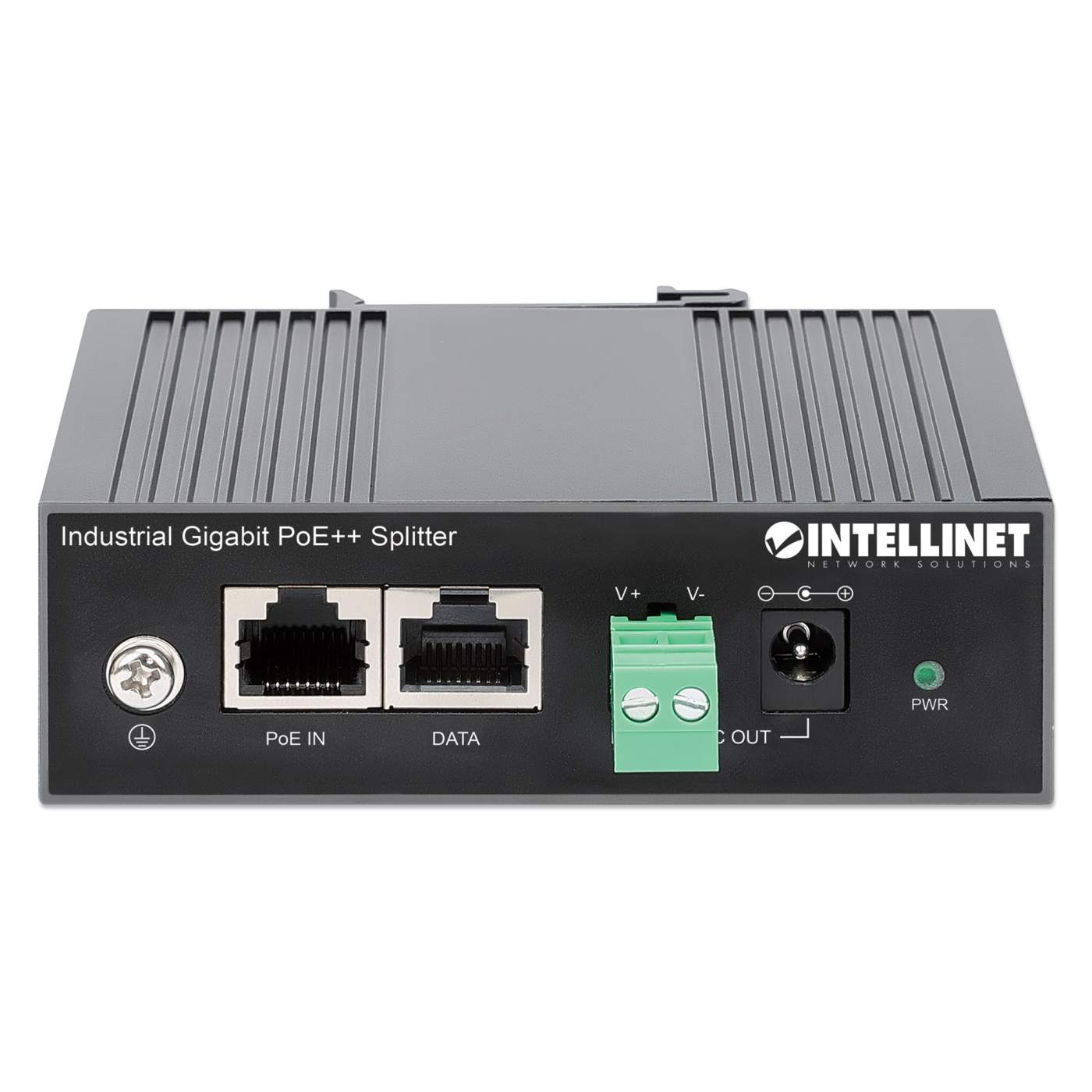

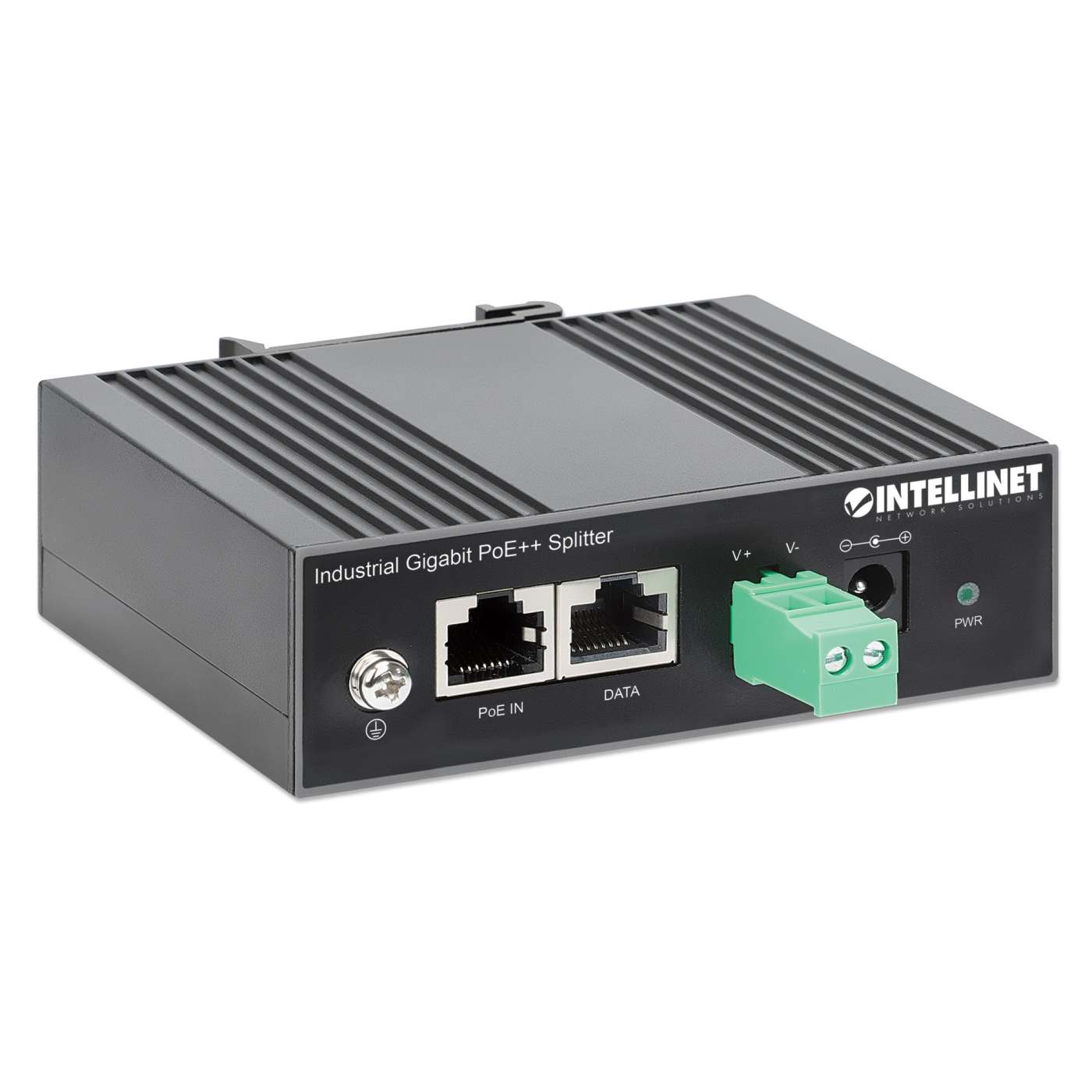

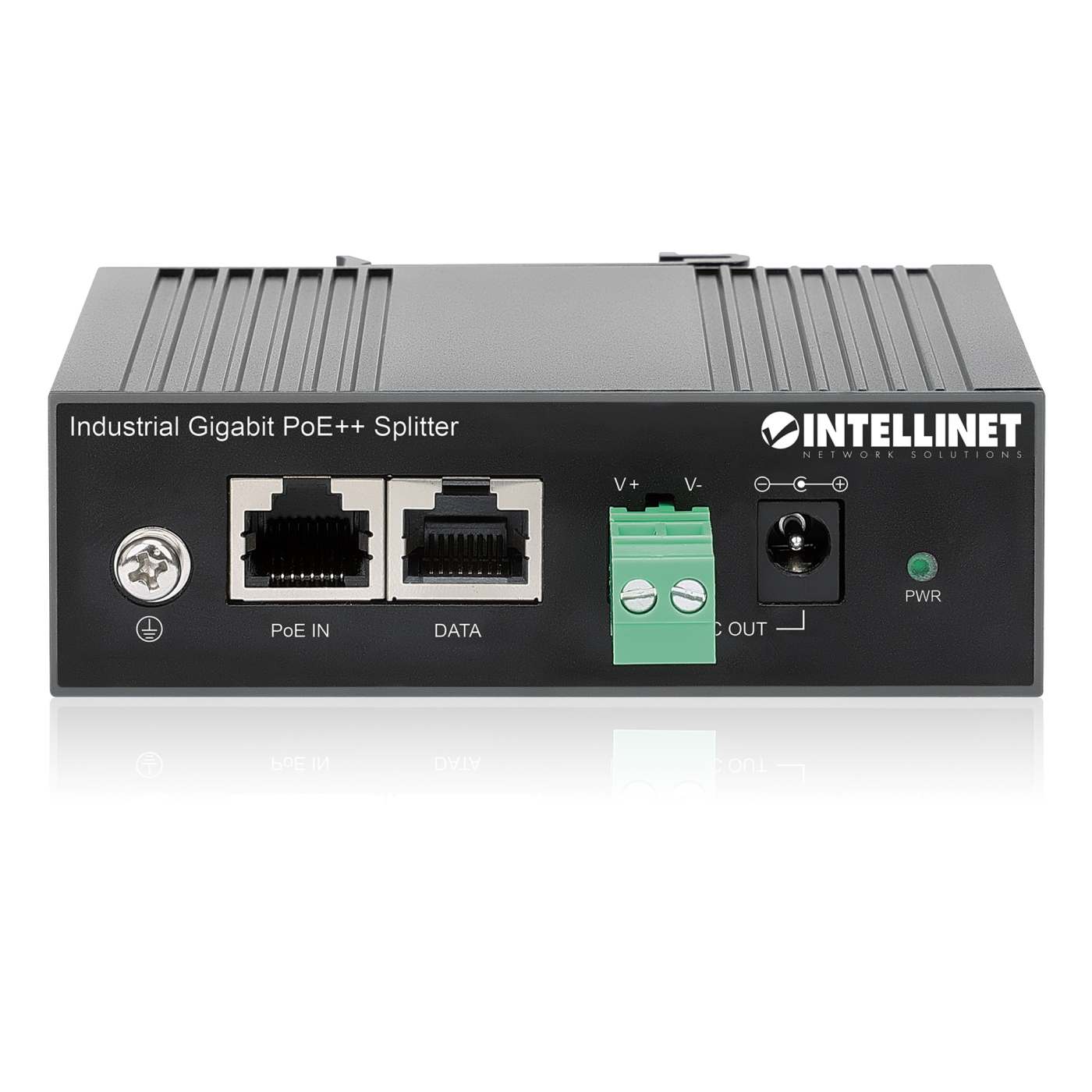

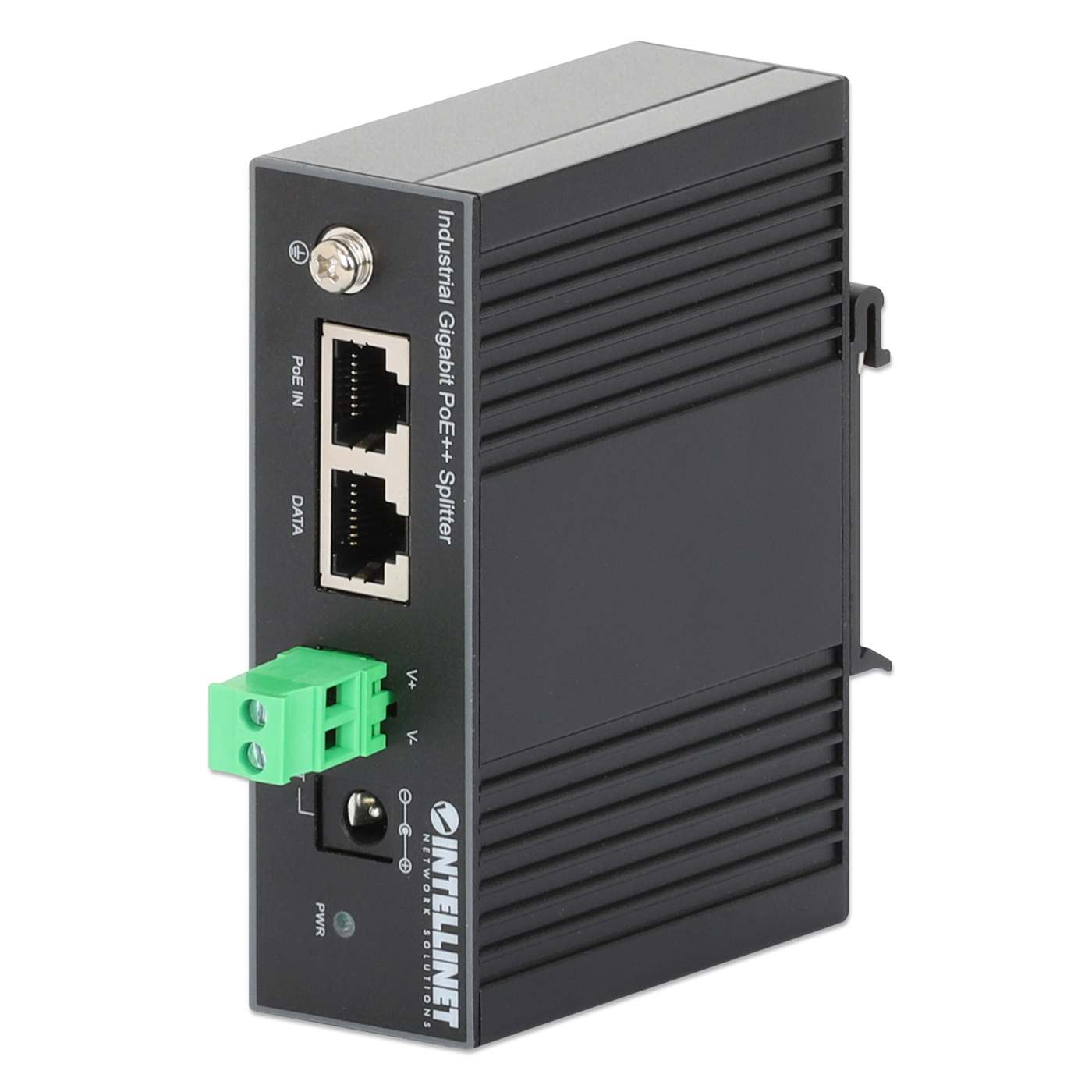

Industrial Gigabit PoE++ Splitter

Industrial Gigabit PoE++ Splitter

IEEE 802.3bt (4PPoE) Compliant, up to 60 W Input, 12 V / 4.25 A DC Output, IP30-rated Metal Housing, DIN-rail Mount

SKU: 508940 IPIK-60G

Highlights

  • Splits an IEEE 802.3bt PoE++ connection into power and Gigabit Ethernet for non-PoE devices
  • Two DC outputs with power up to 12 V / 4.25 A / 51 W via 2-pin terminal block or DC jack
  • One RJ45 input port up to 60 W from an IEEE 802.3bt/at/af-compliant PoE injector or PoE switch (PSE)
NDAA Compliant
[ view high resolution images ]

Turn a higher-power PoE link into separate DC/terminal-block power and Gigabit data connections

Need power but don’t have an outlet? Take it from your PoE network with the Intellinet Industrial Gigabit PoE++ Splitter. With a simple Ethernet cable connected to your PoE++ Switch or injector, this Splitter can give up to 51 W to a non-PoE device in tough or industrial environments via your choice of output — a 2-pin terminal block or a DC jack — and still provide a gigabit network connection. It’s a great choice for non-PoE cameras, laptops, and other devices that require a power adapter, and it’s cheaper in both time and money than hiring an electrician.

  • Splits an IEEE 802.3bt PoE++ connection into power and Gigabit Ethernet for non-PoE devices
  • Two DC outputs with power up to 12 V / 4.25 A / 51 W via 2-pin terminal block or DC jack
  • One RJ45 input port up to 60 W from an IEEE 802.3bt/at/af-compliant PoE injector or PoE switch (PSE)
  • One RJ45 output port with 10/100/1000 data rates
  • IP30-rated metal housing to withstand harsh industrial conditions
  • Suitable for extreme operating temperatures of -40 to 75ºC (-40 to 167ºF)

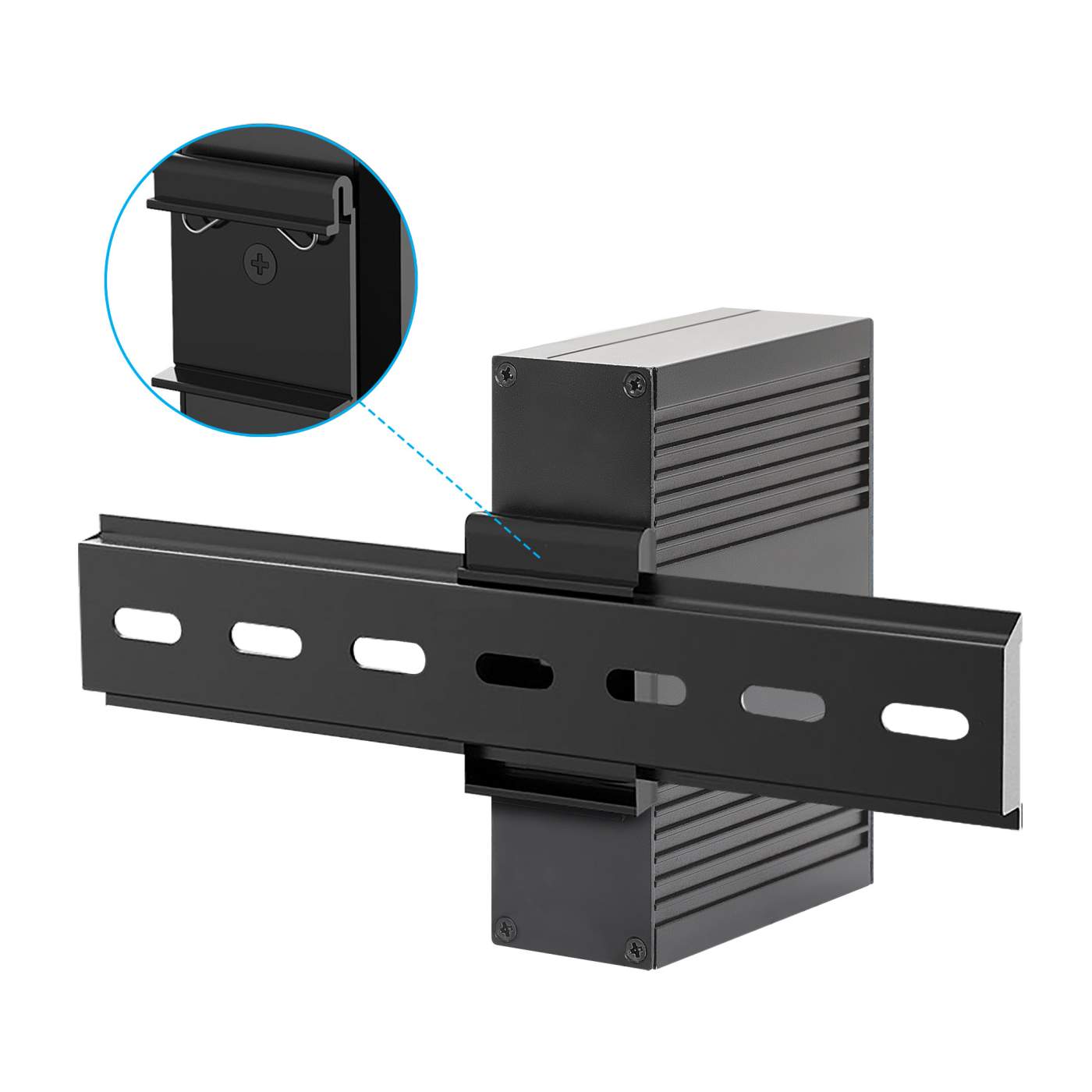

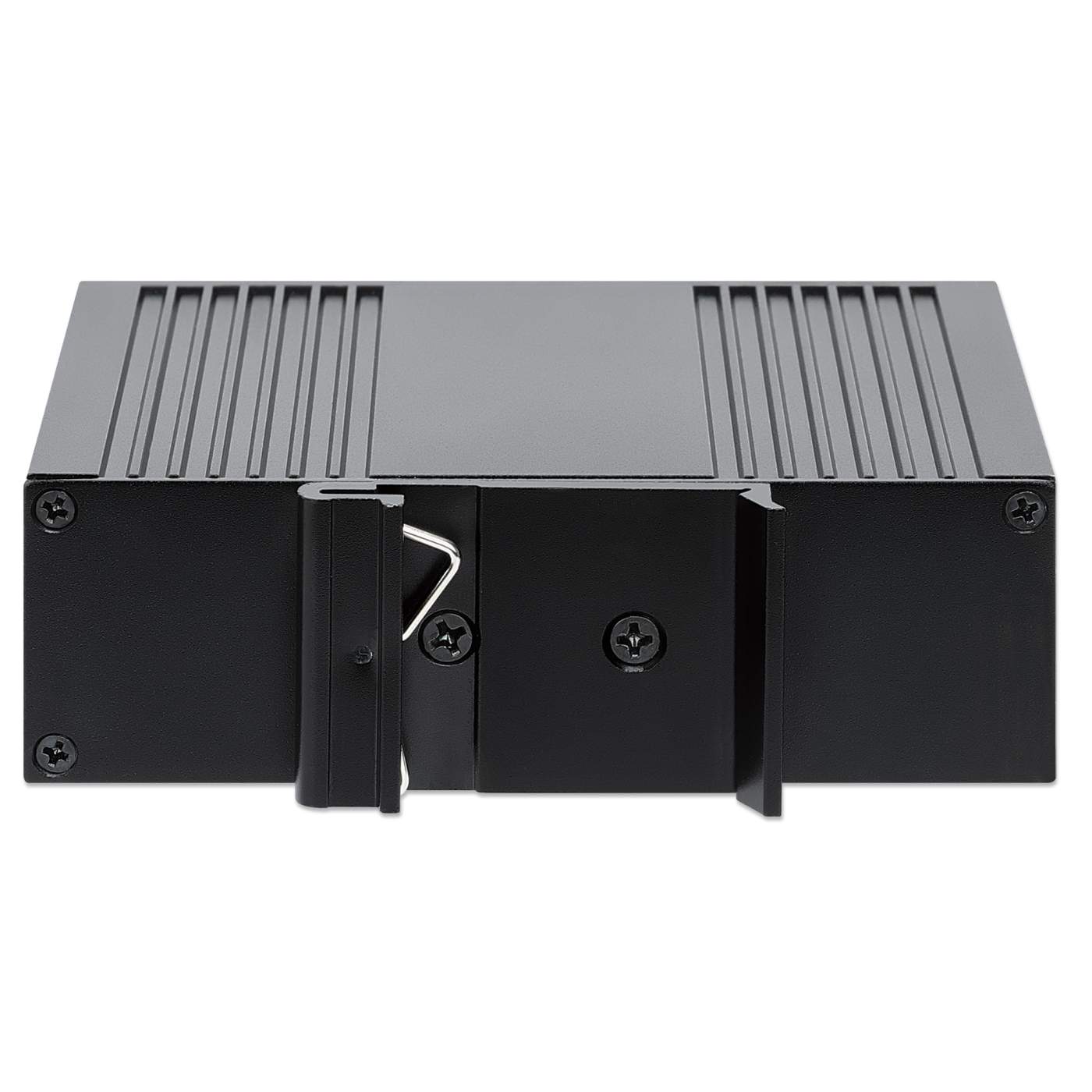

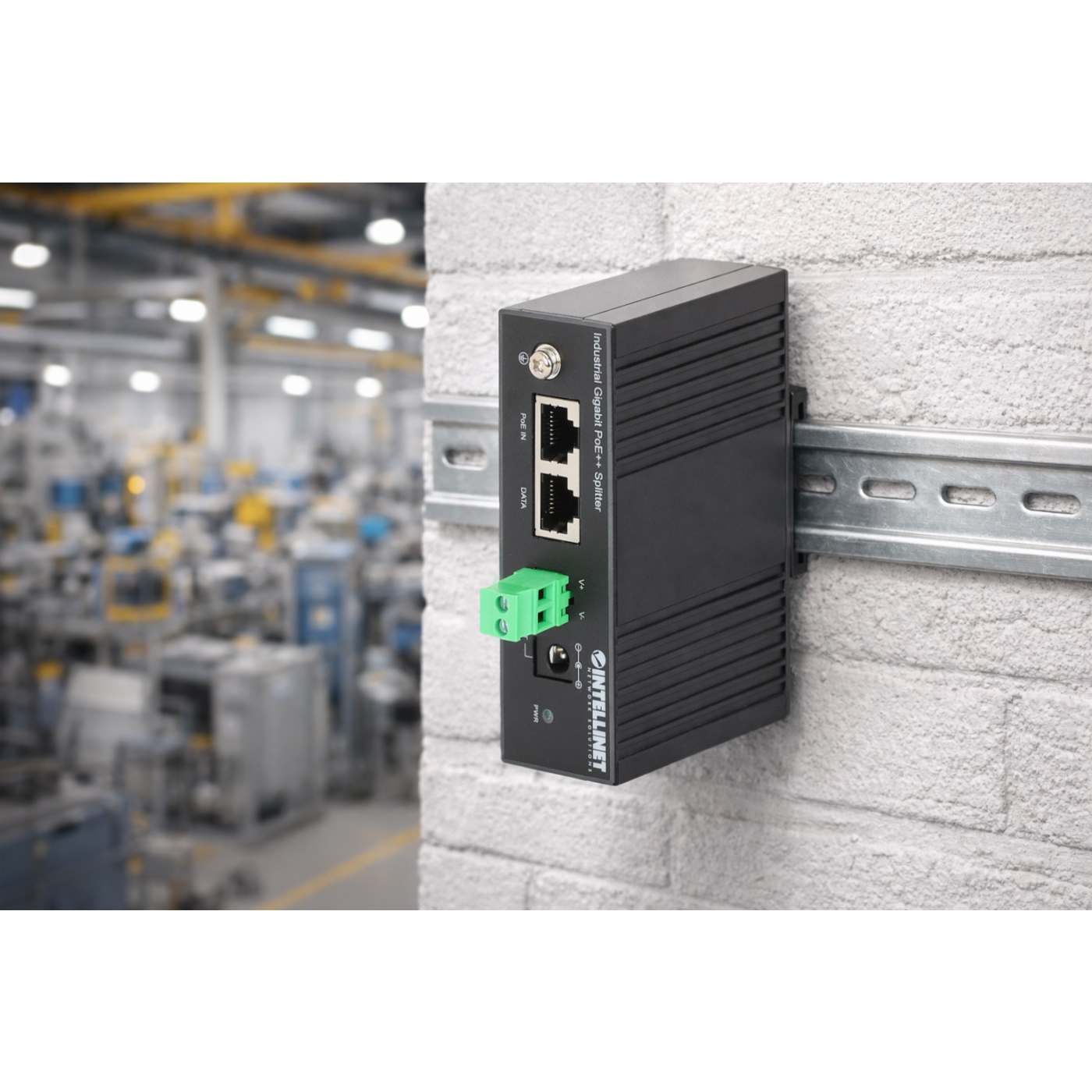

  • Option for DIN-rail installation
  • Distance support: up to 100 m (328 ft.)
  • Short-circuit, overload and high-voltage protection
  • Grounding point to protect equipment from external electrical surges
  • ESD protection up to 8 kV (air) and 6 kV (contact)
  • Port surge protection up to 2 kV
  • Fully NDAA-compliant
  • Three-year warranty
