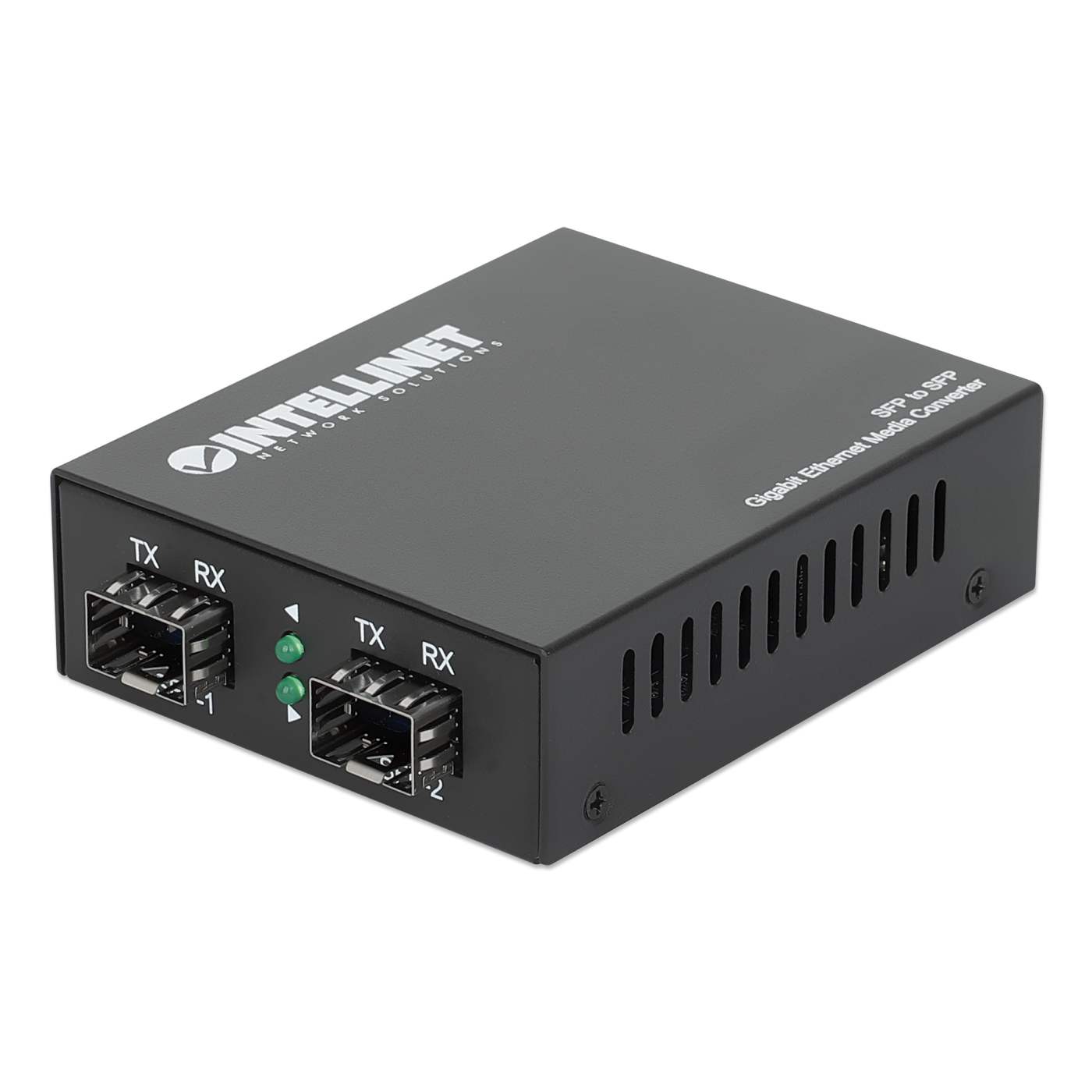

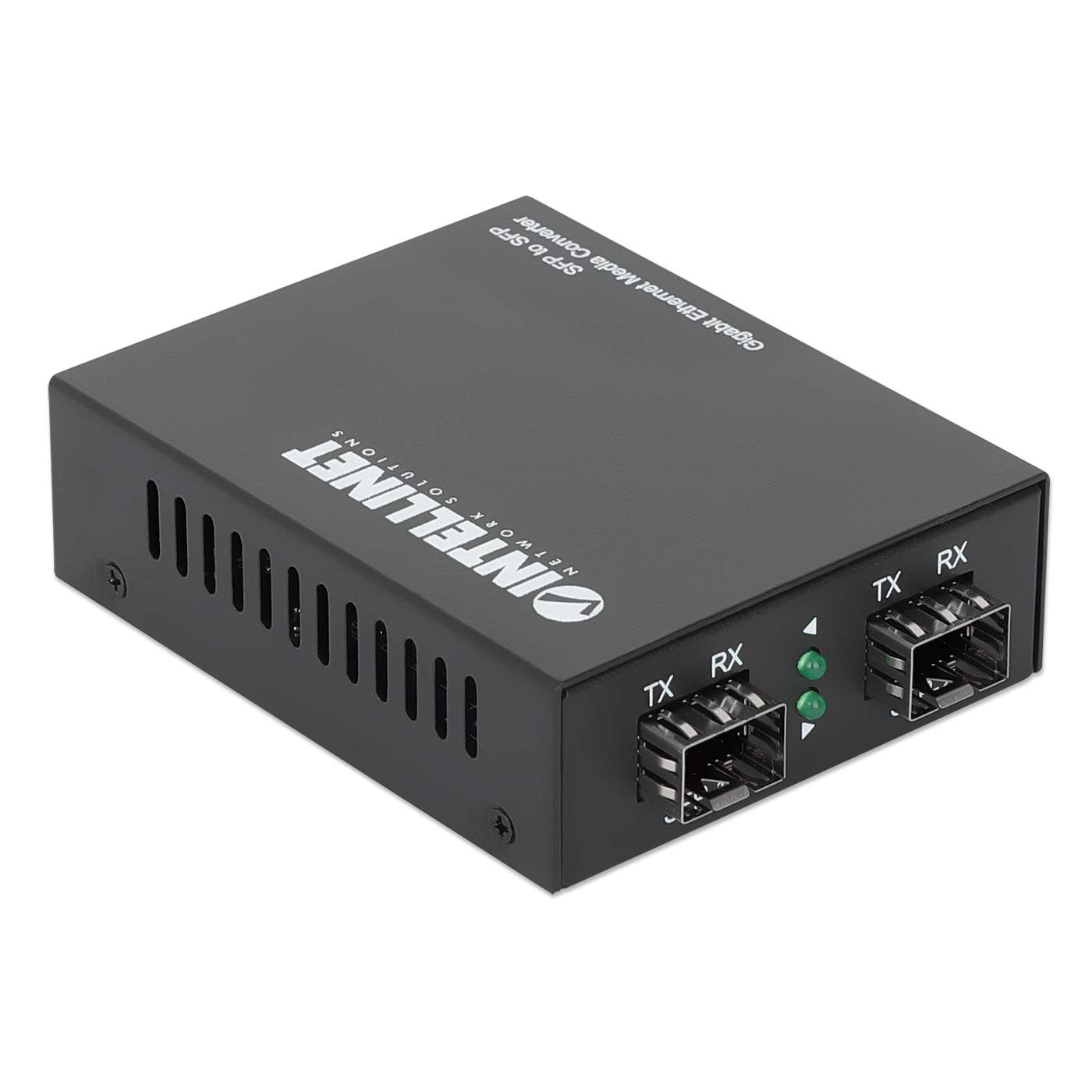

SFP to SFP Gigabit Ethernet Media Converter
SFP to SFP Gigabit Ethernet Media Converter
Two Empty SFP Slots, Converts Different Wavelengths, Multi-Mode to Single-Mode and Vice Versa, Metal Housing, Black
Highlights
- Highly flexible solution with two empty slots for Gigabit multi-mode or single-mode 1.25G Mini GBIC SFP fiber modules
- Accommodates any type and combination of SFP (Mini-GBIC) fiber transceivers as needed
- Converts different wavelengths (850/1310/1550 nm), multi-mode to single-mode, and vice versa
[ view high resolution images ]
Media Converter with Two Empty SFP Slots for Most Flexible Conversions between Different Modes and Wavelengths
Upgrade your network infrastructure with the SFP to SFP Gigabit Ethernet Media Converter from Intellinet Network Solutions with superior flexibility, extensive reach, and hassle-free installation.
Universal Compatibility
Equipped with two empty slots for Gigabit multi-mode or single-mode 1.25G Mini GBIC SFP fiber modules, this converter provides maximum flexibility for your network requirements. It accommodates any type and combination of SFP (Mini-GBIC) fiber transceivers, allowing seamless integration with your existing network infrastructure.
Wavelength Conversion
It effortlessly converts different wavelengths (850/1310/1550 nm), enabling smooth transitions between multi-mode and single-mode fiber connections, and vice versa.
Extended Reach
With a range up to 100 km (62 mi.), it is ideal for long-distance data transmission and bridging remote network segments.
Effortless Installation
SFP modules can be hot-swapped, ensuring seamless network upgrades or replacements without interrupting your operations. Enjoy plug-and-play installation with no configuration required, simplifying the setup process and reducing deployment time. Several converters can be simultaneously installed into a 19" rack-mountable chassis
- Highly flexible solution with two empty slots for Gigabit multi-mode or single-mode 1.25G Mini GBIC SFP fiber modules
- Accommodates any type and combination of SFP (Mini-GBIC) fiber transceivers as needed
- Converts different wavelengths (850/1310/1550 nm), multi-mode to single-mode, and vice versa
- Supports distances up to 100 km (62 mi.)
- SFP modules hot-swappable for seamless network upgrades or replacements
- Functions as a stand-alone converter or can be used with the 14-slot Media Converter Chassis, model 507356
- Plug-and-play installation; no configuration required
- Fully NDAA-compliant
- Three-year warranty
- General
- Media support:
- Fiber media support depends on SFP modules - Connectors:

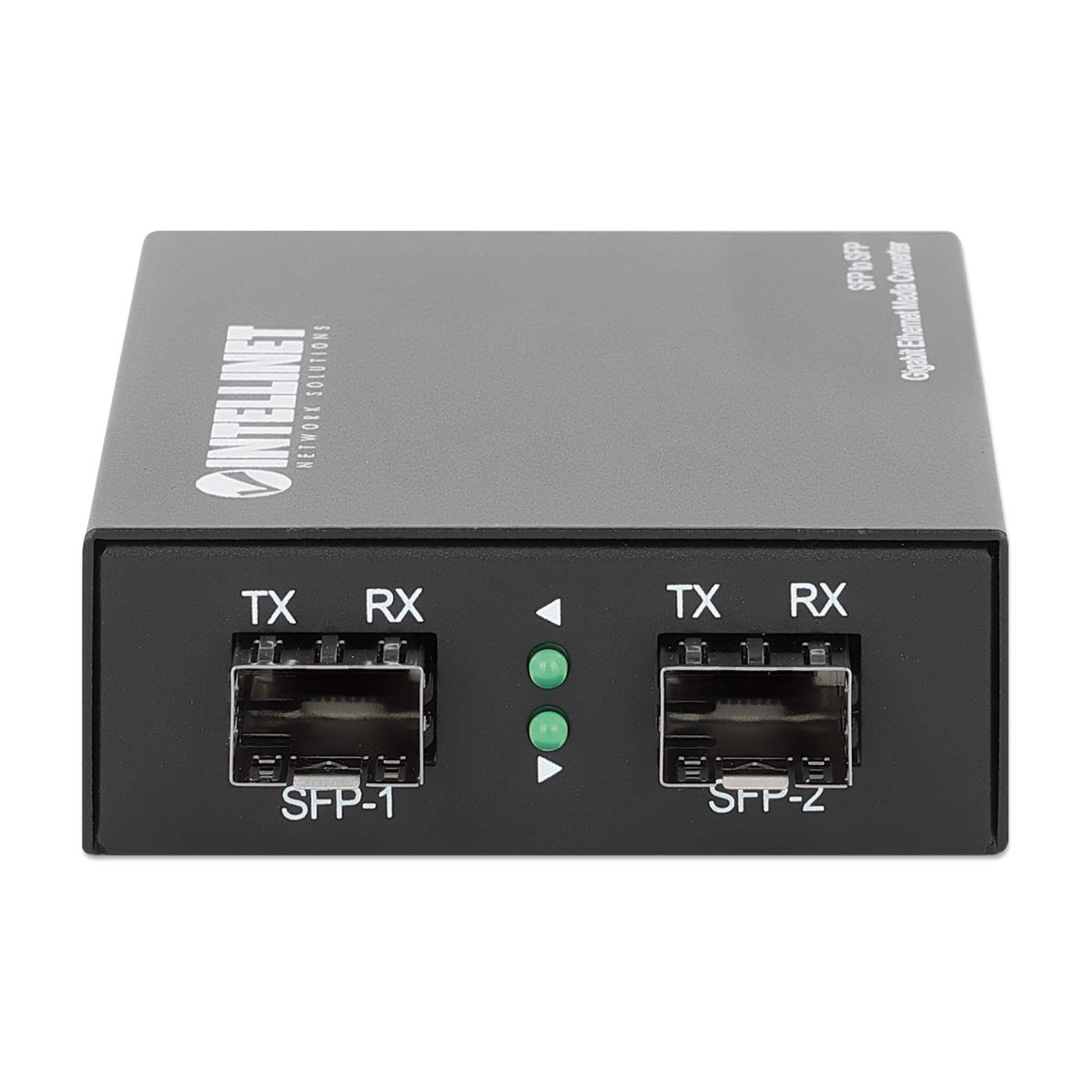

- 2 x SFP module slot - Distances:
- Fiber distances depending on SFP module - Certifications: FCC, CE, RoHS, REACH, UKCA
- MTBF: ~100,000 hours
LEDs for Activity - 1 V
- 2 V

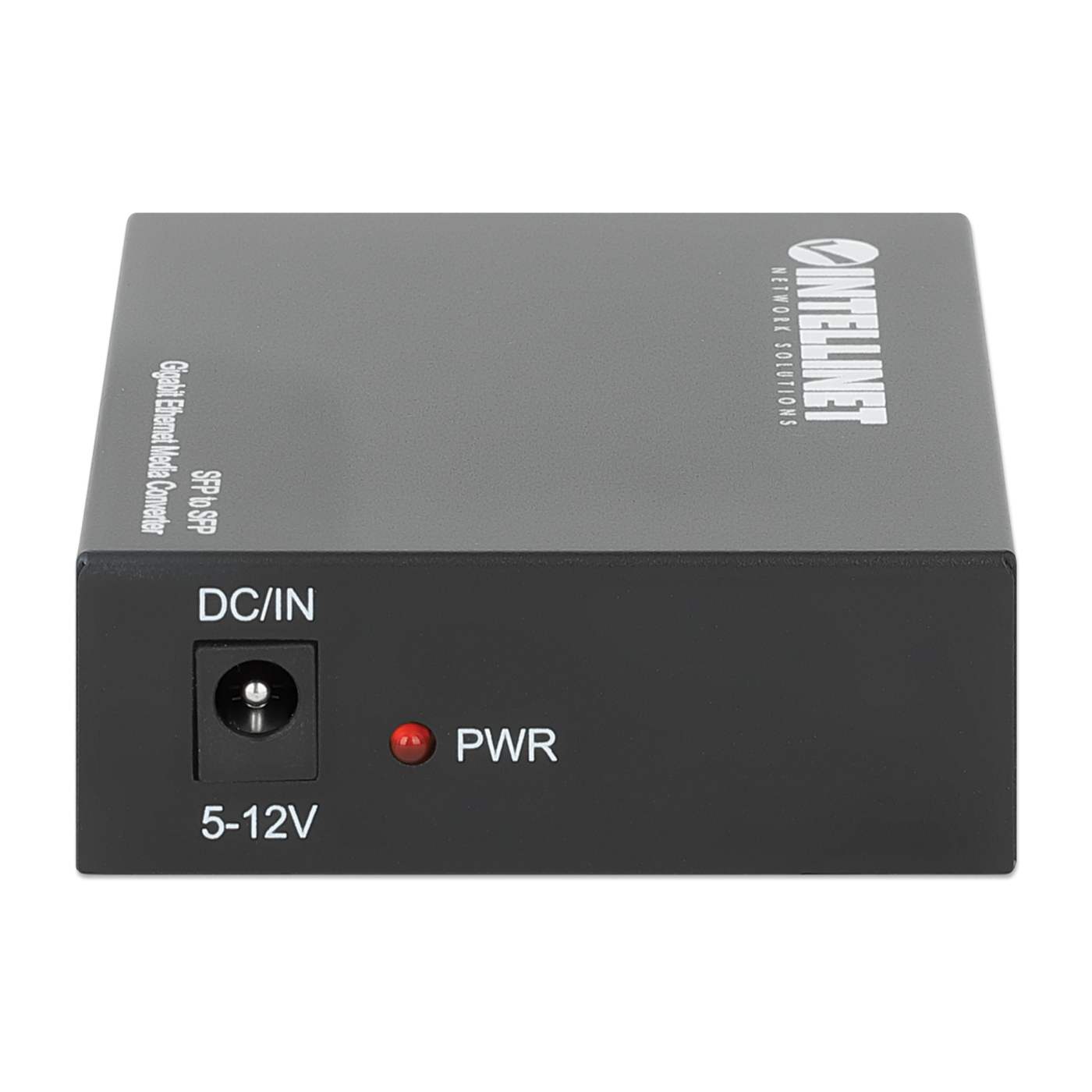

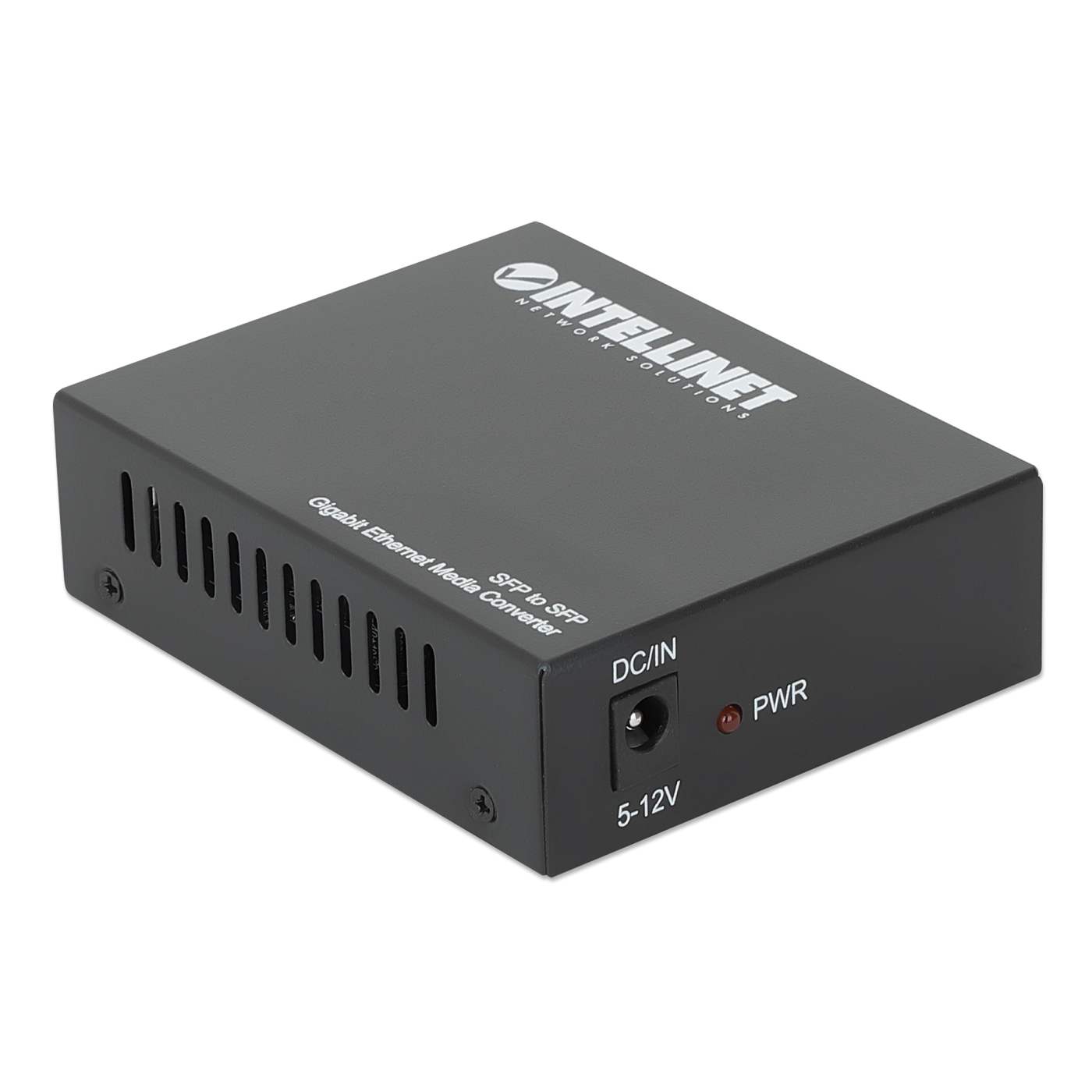

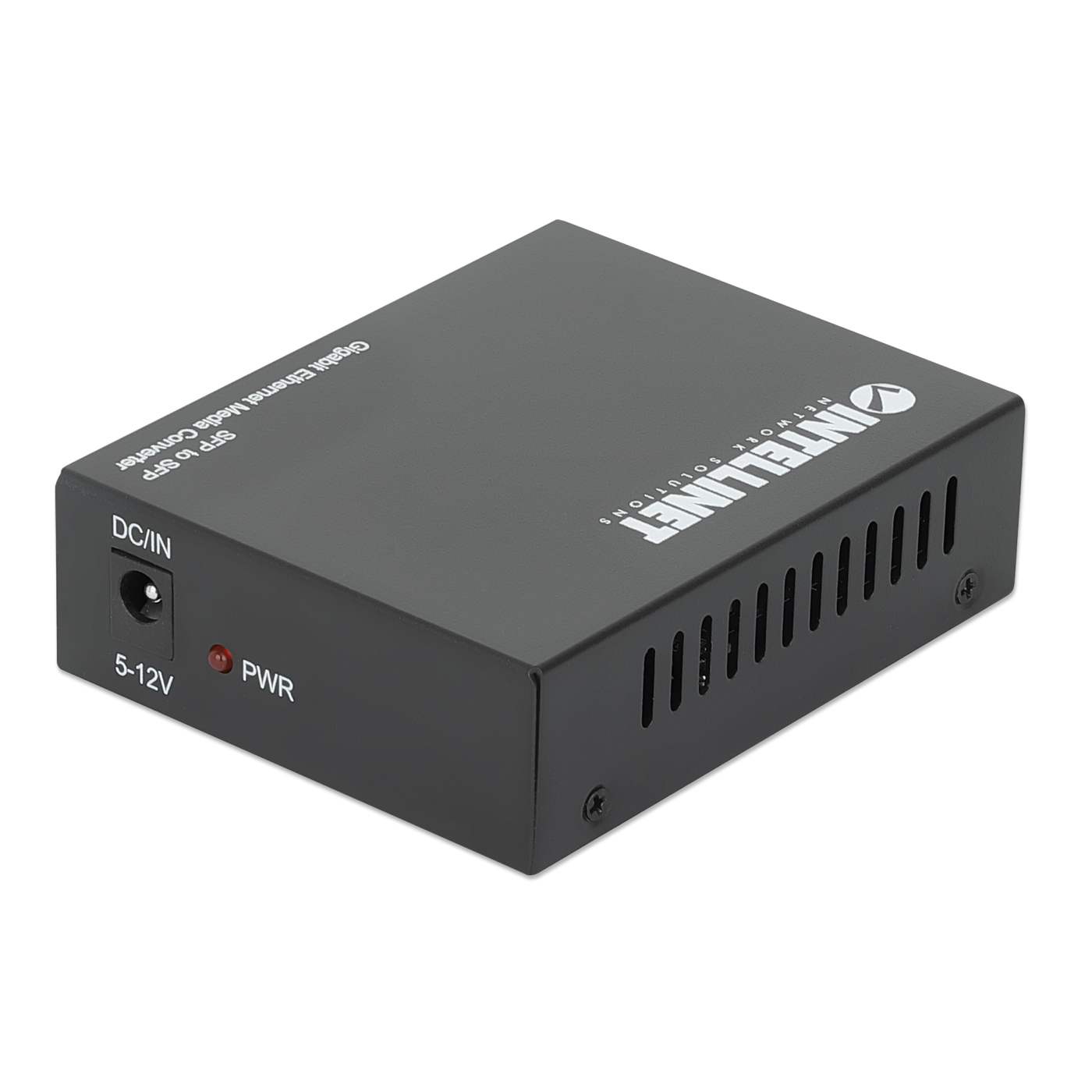

Power - External power adapter, 5 VDC, 1.0 A
- Power consumption: 3.0 watts (max.)
Physical - Dimensions (L x W x H): 96 x 70 x 26 mm (3.78 x 2.76 x 1.2 in.)
- Net weight: 210 g (0.46 lbs.)
- Gross weight: 320 g (0.71 lbs.)
- Metal housing
Operating Environment - Operating temperature: -10 - 50°C (14 - 122°F)
- Operating humidity: 5 - 90% RH, non-condensing
- Storage temperature: -40 - 70°C (-40 - 158°F)
Package Contents - SFP to SFP Gigabit Ethernet Media Converter
- External power adapter
- Instructions
Additional SKUs
- Alphanumeric Model#: IMC-2XSFPG
- EAN: 0766623509183
- UPC: 766623509183
Physical Specifications
- Product net weight: 0.46 lbs
- Product gross weight: 0.71 kg
- Dimensions: 3.78 (L) x 2.76 (W) x 1.02 (H) [in]
