4K HDMI over Ethernet Extender Kit

Easily extend an ultra-high-definition signal via single Ethernet cable.
The Manhattan 4K HDMI over Ethernet Extender Kit is the ideal solution for connecting virtually any digital HDMI source (PlayStation, Xbox, Blu-ray player, satellite receiver, digital recorder, etc.) to an HD display or projector up to 60 m (196 ft.) away — UHD up to 50 m (165 ft.) — via a single Ethernet cable. The Kit provides reliable 1080p or 4K resolution video and multichannel audio transmission over longer distances than HDMI cables alone. The transmitter and receiver modules have additional 3.5 mm ports for bi-directional Infrared (IR) that allows for the control of the devices at either location.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, home theater, conference rooms, business office and retail applications, the Manhattan 4K HDMI over Ethernet Extender Kit is a cost-effective solution that boosts and extends an HDMI signal to where it's needed. Ethernet cabling — UTP, SSTP or SFTP (cables not included) — is less expensive and easier to install than HDMI cabling and in-line signal repeaters. When used with our HDMI over Ethernet Extender Kit, these cables deliver a clear, sharp and vivid picture over longer distances.
Quality Construction and Easy Installation
HDCP compliant with HDMI, the Manhattan 4K HDMI over Ethernet Extender Kit is tested to guarantee performance and reliability. It installs quickly without having to run software or install additional hardware. An included power adapter supplies electricity to the receiver or transmitter unit (depending on the module the power adapter is connected to) using an Ethernet cable (not included), which frees up a power plug for more important applications.

• Extends an HDMI signal up to 50 m (165 ft.) from an HDMI source to a UHD monitor or projector using one Ethernet cable
• Supports video amplifier bandwidth up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps total) for 4K displays
• Supports lossless LPCM 8 channel uncompressed audio formatting and 7.1/5.1 surround sound
• Offers wideband, bi-directional IR transmit (Tx) and receive (Rx) cables that allow for convenient remote control of UHD signal source or display
• Use one single power adapter to supply both the Rx and Tx unit with Power over Cable (PoC)
• Fully HDCP compliant to protect high-definition content transmission and ensure quality reception
• Plug and play — requires no installation or configuration
• Compatible with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
• Gold-plated contacts for corrosion-free connections
• For additional distance capabilities, use 15 m HDMI cables (see part number 323260) on both transmitter and receiver
• Three-year warranty

Standards and Certifications

• HDCP 2.2

• DVI 1.0

• CTS 1.2

• CE

• FCC

• RoHS2

  General

• Cat6 cable: 4K at 50 m (165 ft.)

• Cat6 cable: 1080p at 60 m (196 ft.)

• Cat6 cable: 720p at 80 m (265 ft.)

• Cat6 cable: 480p at 100 m (330 ft.)

• Cat5e cable: 4K at 30 m (100 ft.)

• Cat5e cable: 1080p at 50 m (165 ft.)

• Cat5e cable: 720p at 70 m (230 ft.)

• Cat5e cable: 480p at 100 m (330 ft.)

• Power: 12 VDC / 1 A (cable: 1.4 m [4.5 ft.])

• LED indicator (on: active connection; flashing: poor connection/HDCP inactive; off: no connection)

• Baud rates up to 115 Kbps

  Connections

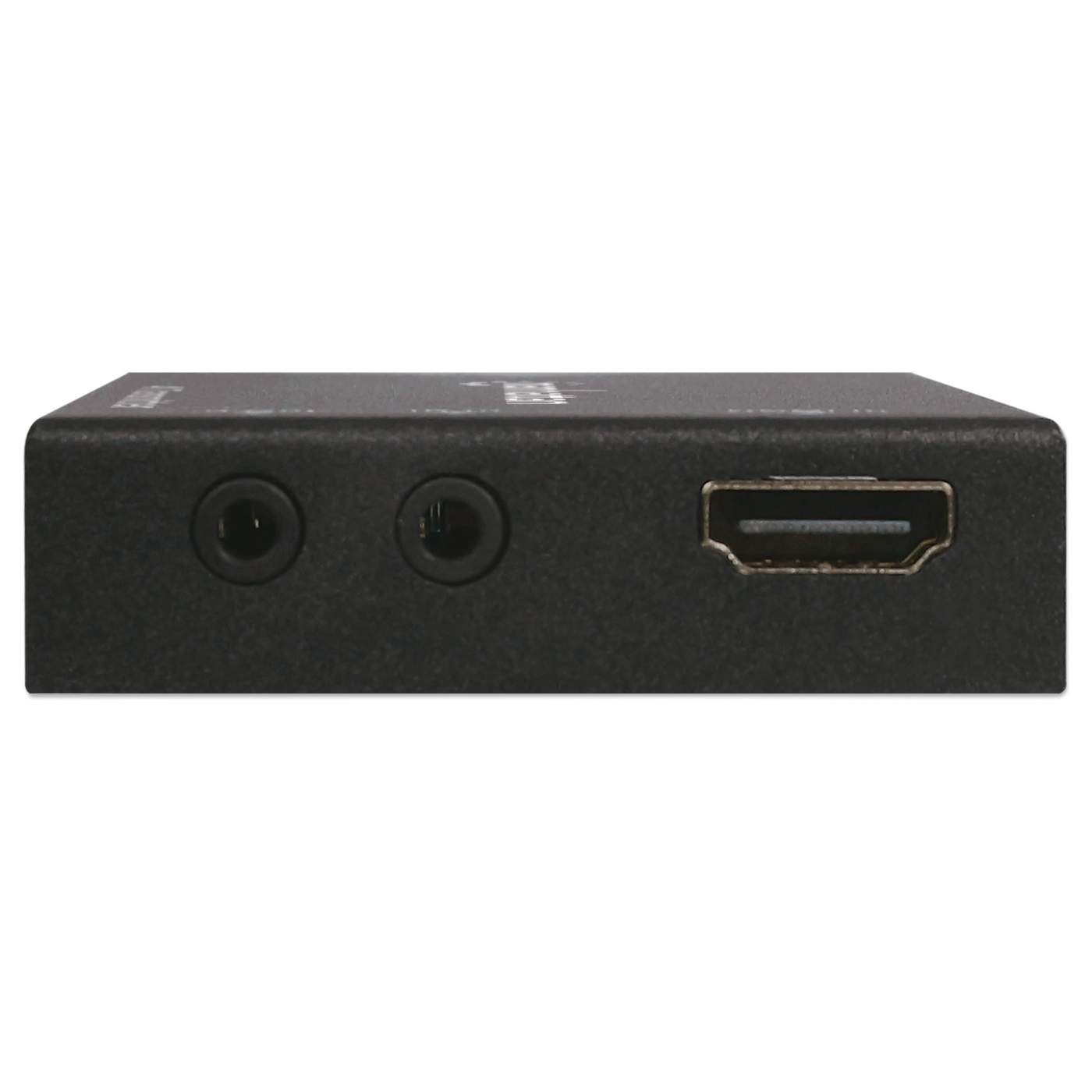

• One HDMI female (transmitter/receiver)

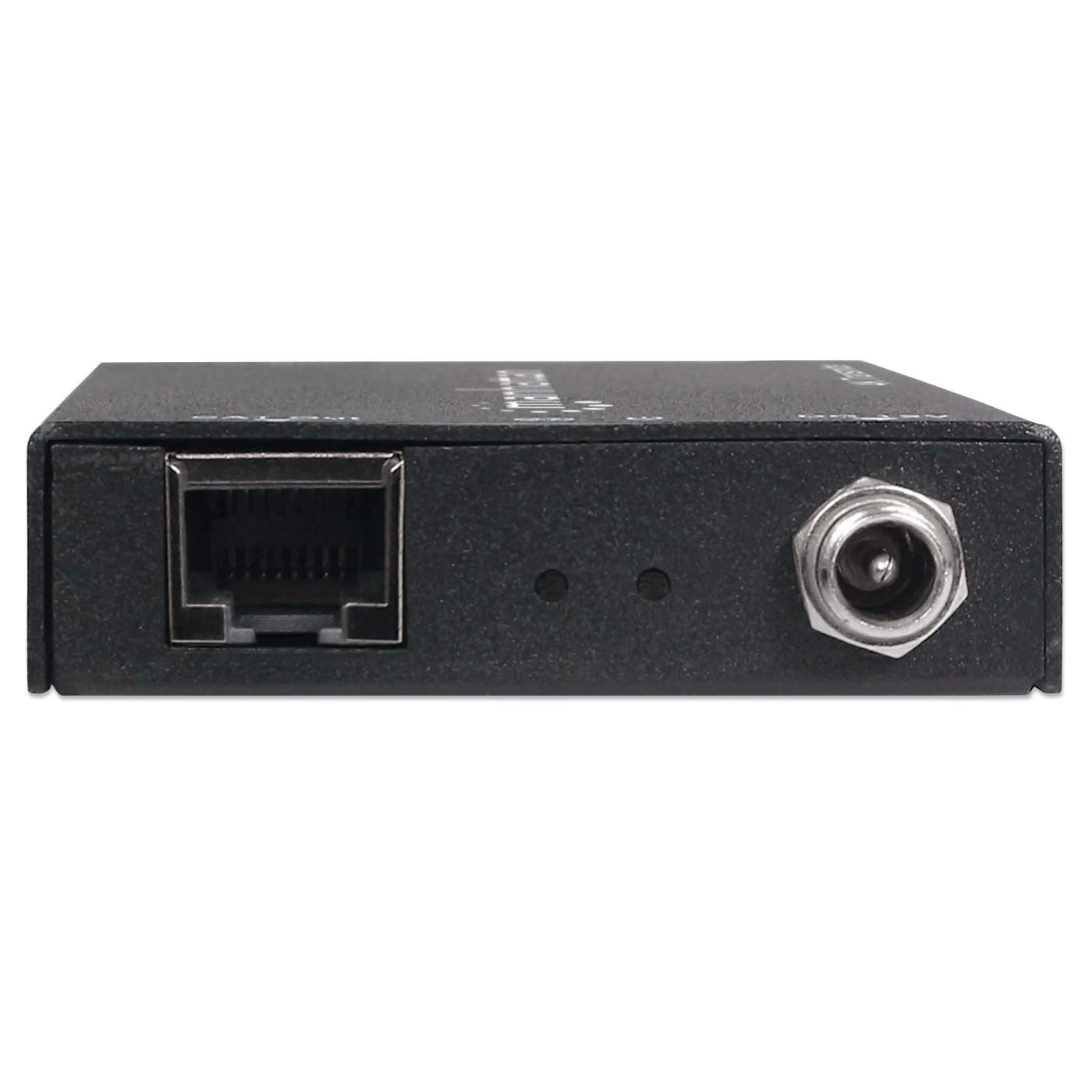

• One RJ45 female (transmitter/receiver)

• One 12 VDC power female (transmitter/receiver)

• Two 3.5 mm IR female (transmitter/receiver)

  Signal Input/Output

• EDID support

• Input video signal: 0.5 – 1.0 V p-p

• Input DDC signal: 5 V p-p (TTL)

• Maximum single-link range: 3840x2160p at 30 Hz, 4096x2160p at 24 Hz and 4K

• Output video: HDCP 2.2, DVI 1.0

• Frequency: 3.40 Gbps / 340 MHz

  Video Resolutions

• Standard-definition TV, High-Definition TV, Ultra-High-Definition TV

• SDTV/HDTV/UHDTV: 480i/576i/480p/576p/720p/1080i/1080p/4K

  Physical

• Dimensions: 115 x 65 x 17 mm (4.5 x 2.6 x 0.7 in.)

• Weight: 0.6 kg (1.3 lbs.)

• Housing: metal

  Operating Environment

• Operation Temperature: 0 – 40°C (32 – 104°F)

• Storage Temperature: -20 – 60°C (-4 – 140°F)

• Humidity (noncondensing): 20 – 96%

  Package Contents

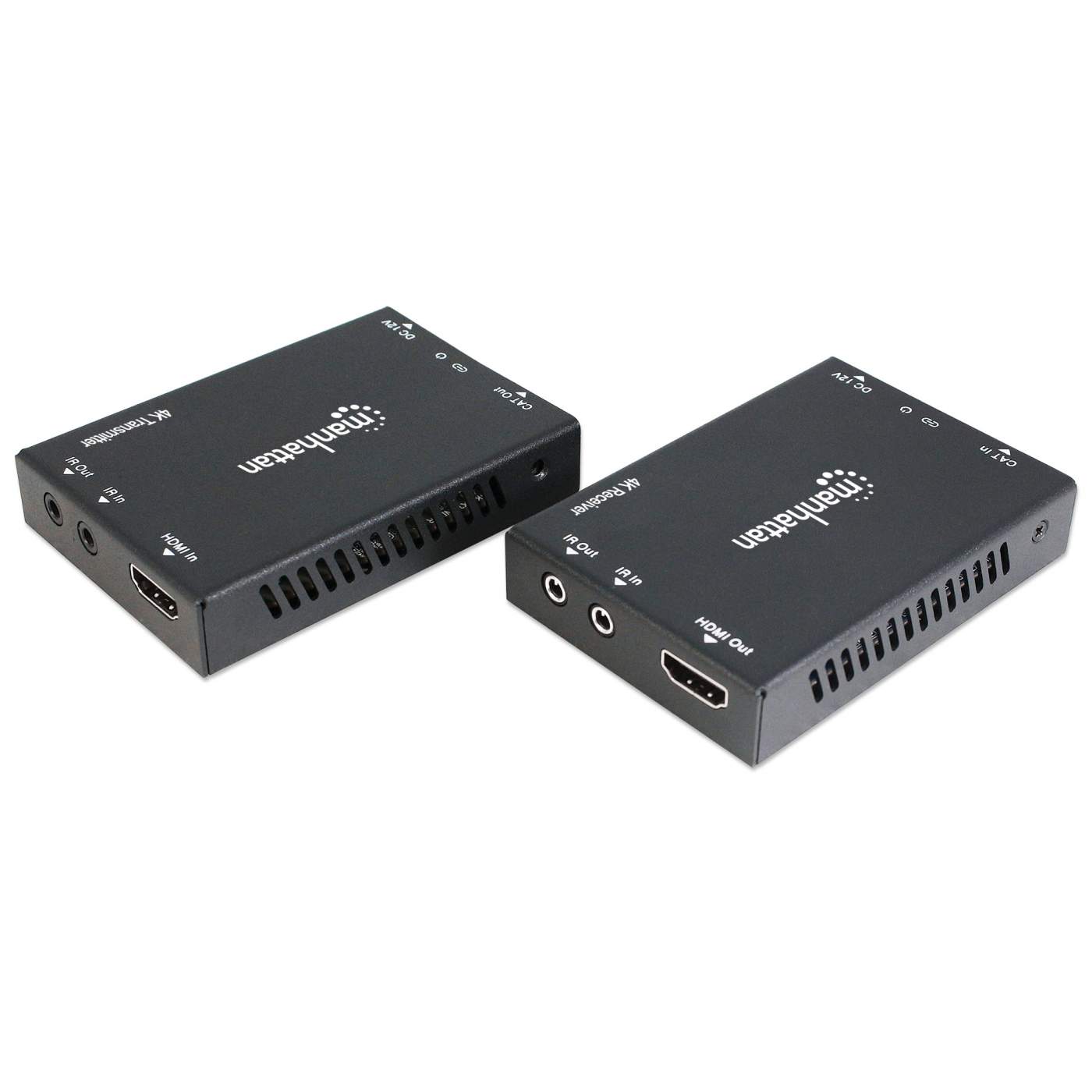

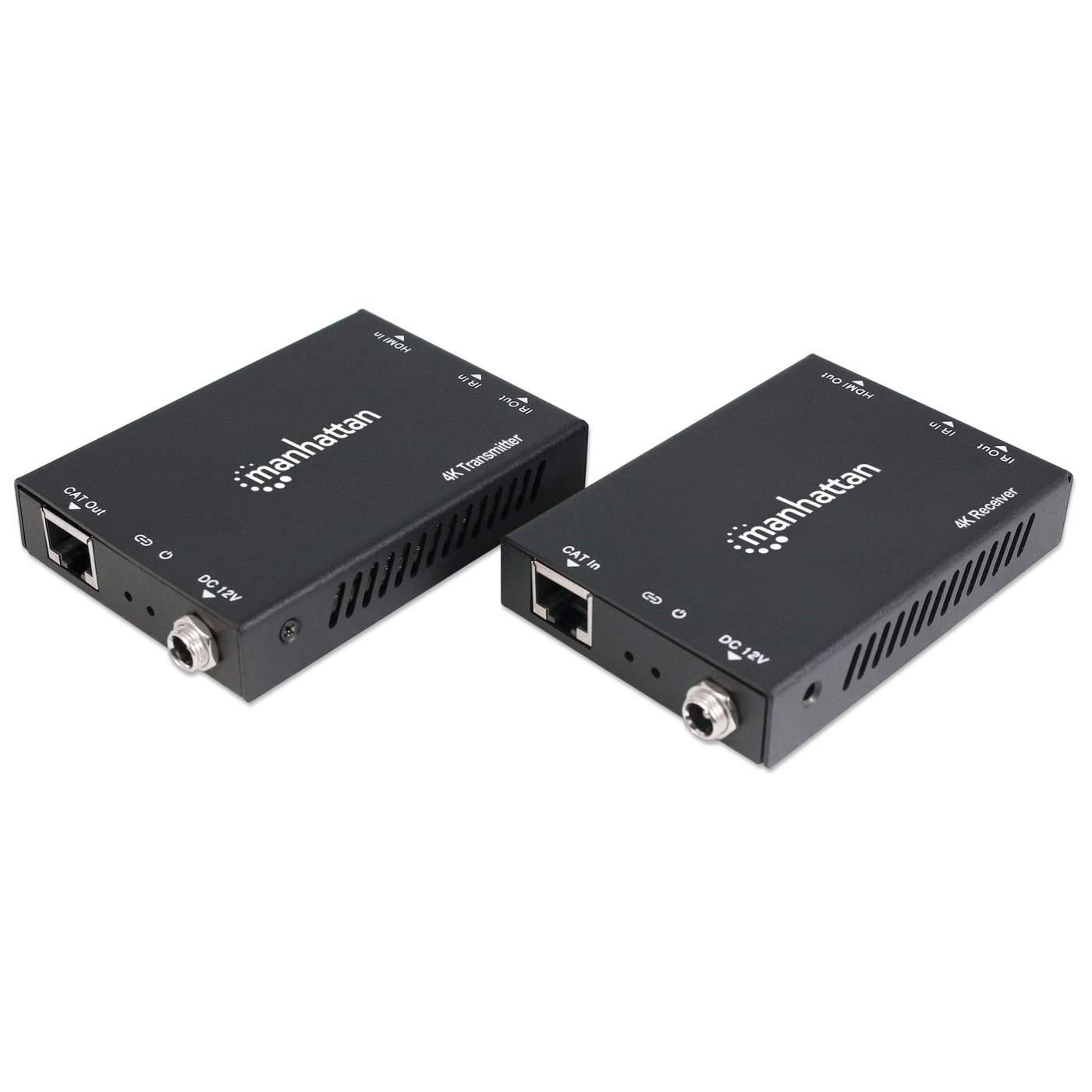

• 4K HDMI over Ethernet Extender Kit (receiver & transmitter modules)

• Power adapter (one unit)

• IR blaster and receiver (two units each)

• Quick Instruction Guide

Warning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• EAN: 0766623207966
• UPC: 766623207966



• Physical Specifications

• Product net weight: 1.32 lbs
• Dimensions: 4.53 (L) x 2.56 (W) x 0.67 (H) [in]
