Full-Motion TV Wall Mount with Post-Leveling Adjustment
Full-Motion TV Wall Mount with Post-Leveling Adjustment
Holds One 32" to 55" TV up to 40 kg (88 lbs.), Adjustment Options for Tilt, Swivel and Post-installation Leveling, Black
Highlights
- Supports one flat or curved 32" to 55" TV up to 40 kg (88 lbs.)
- Optimized views with +5 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment

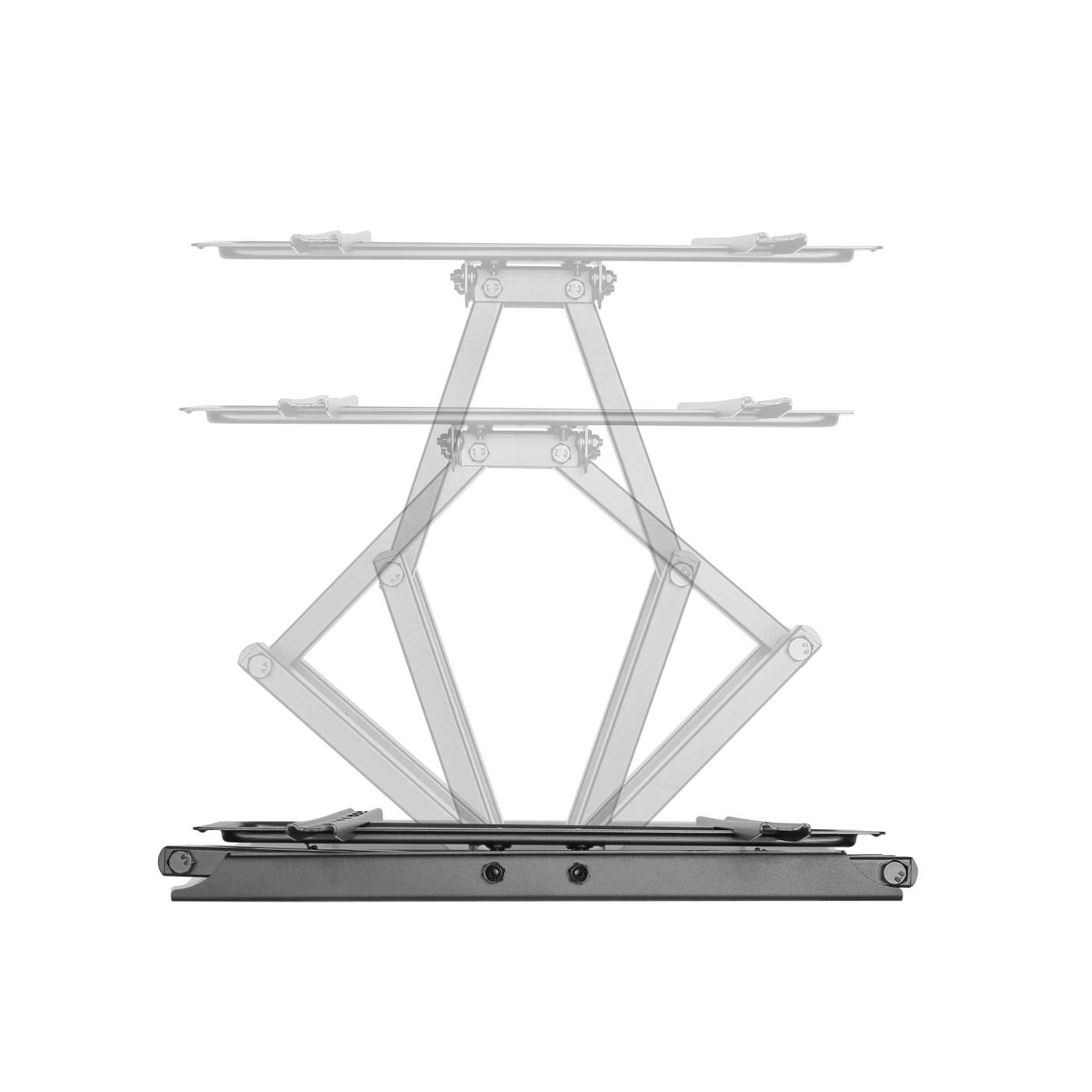

- Holds TV 53 to 464 mm (2.1 to 18.3 in.) from wall
[ view high resolution images ]

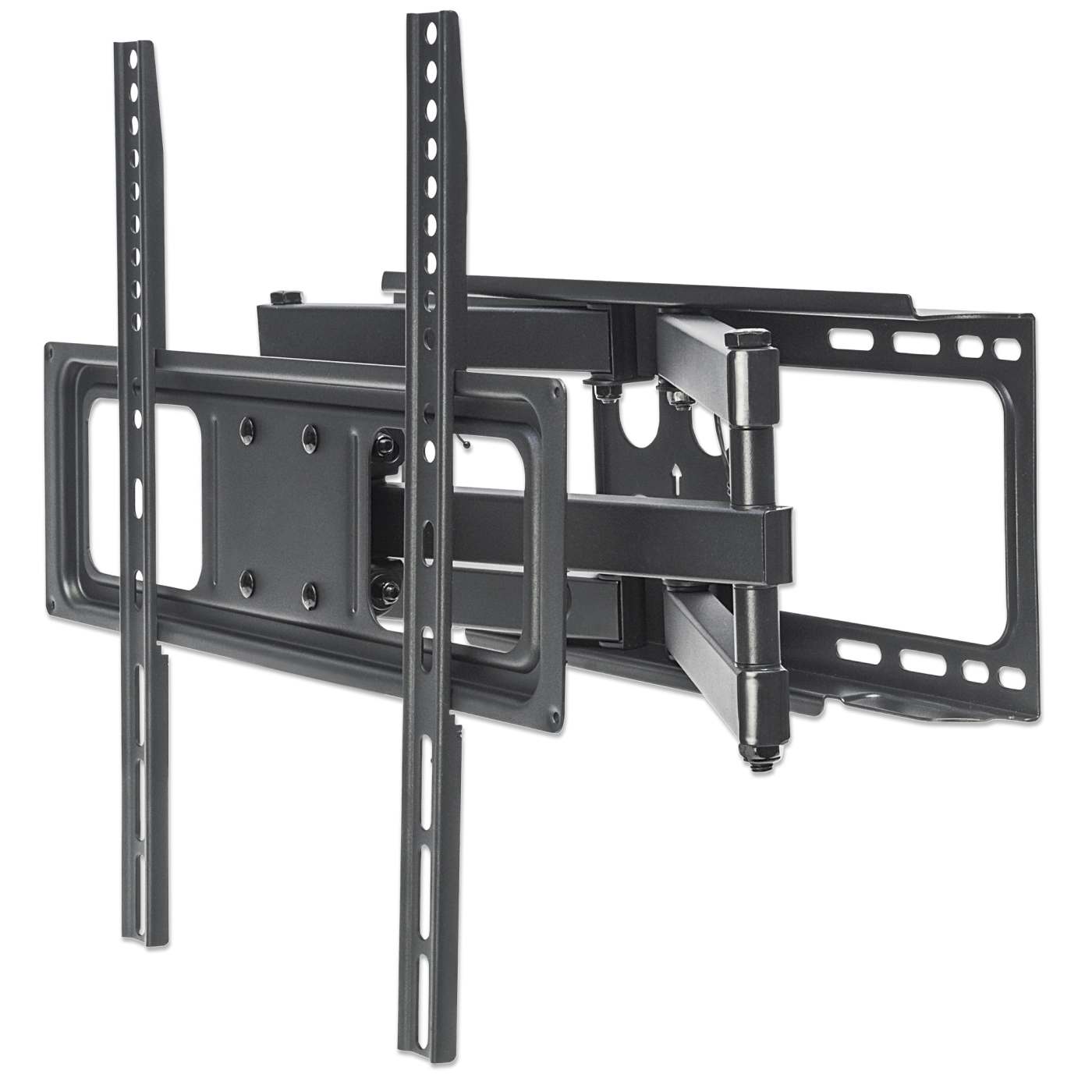

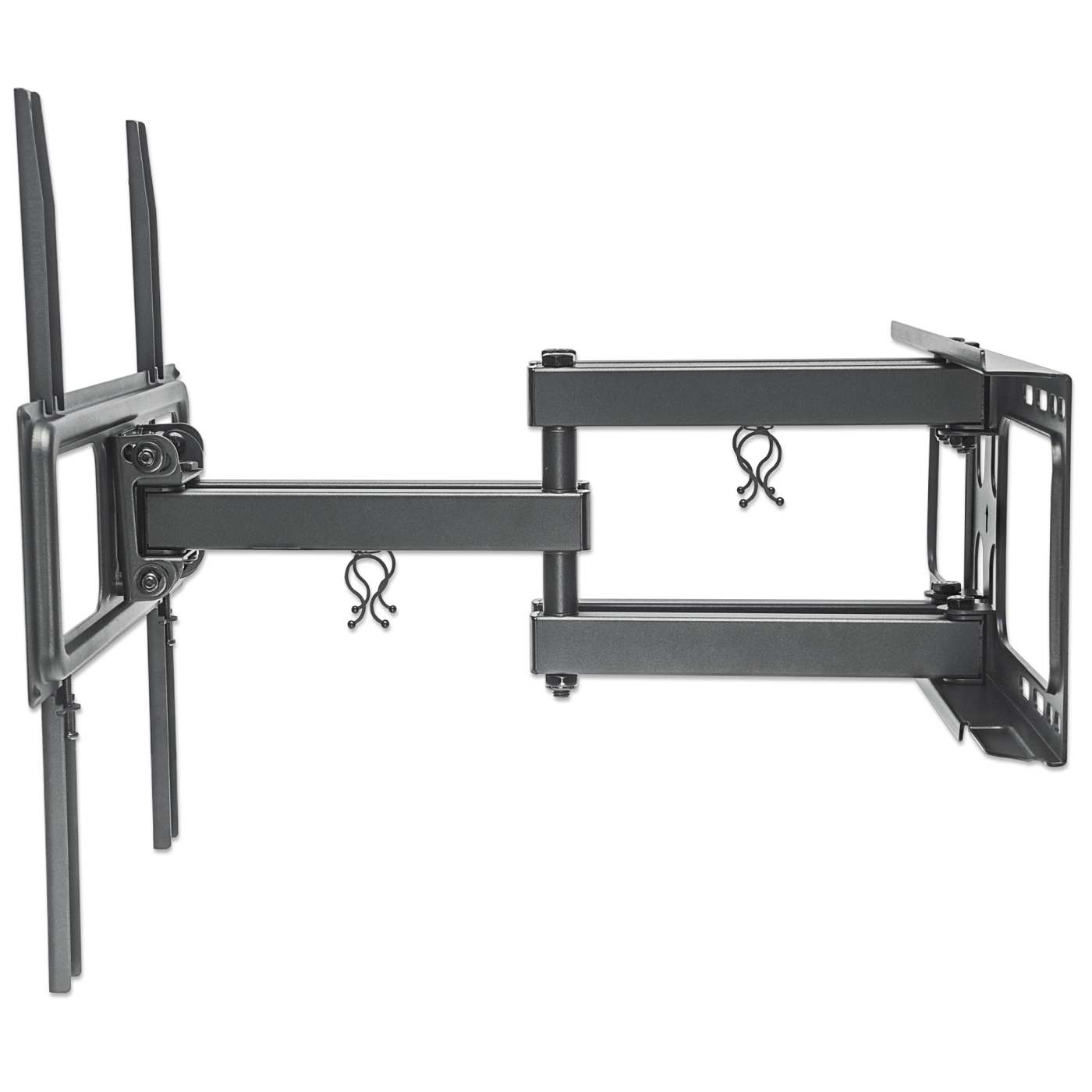

Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space
This strong full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and offers +5 to -15° tilt and +/-60° swivel adjustment for optimized views. It fits flat and curved LCD, OLED or plasma TVs up to 55" and weighing up to 40 kg (88 lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation with +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.
- Supports one flat or curved 32" to 55" TV up to 40 kg (88 lbs.)
- Optimized views with +5 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment
- Holds TV 53 to 464 mm (2.1 to 18.3 in.) from wall
- Heavy-duty steel construction with powder coating

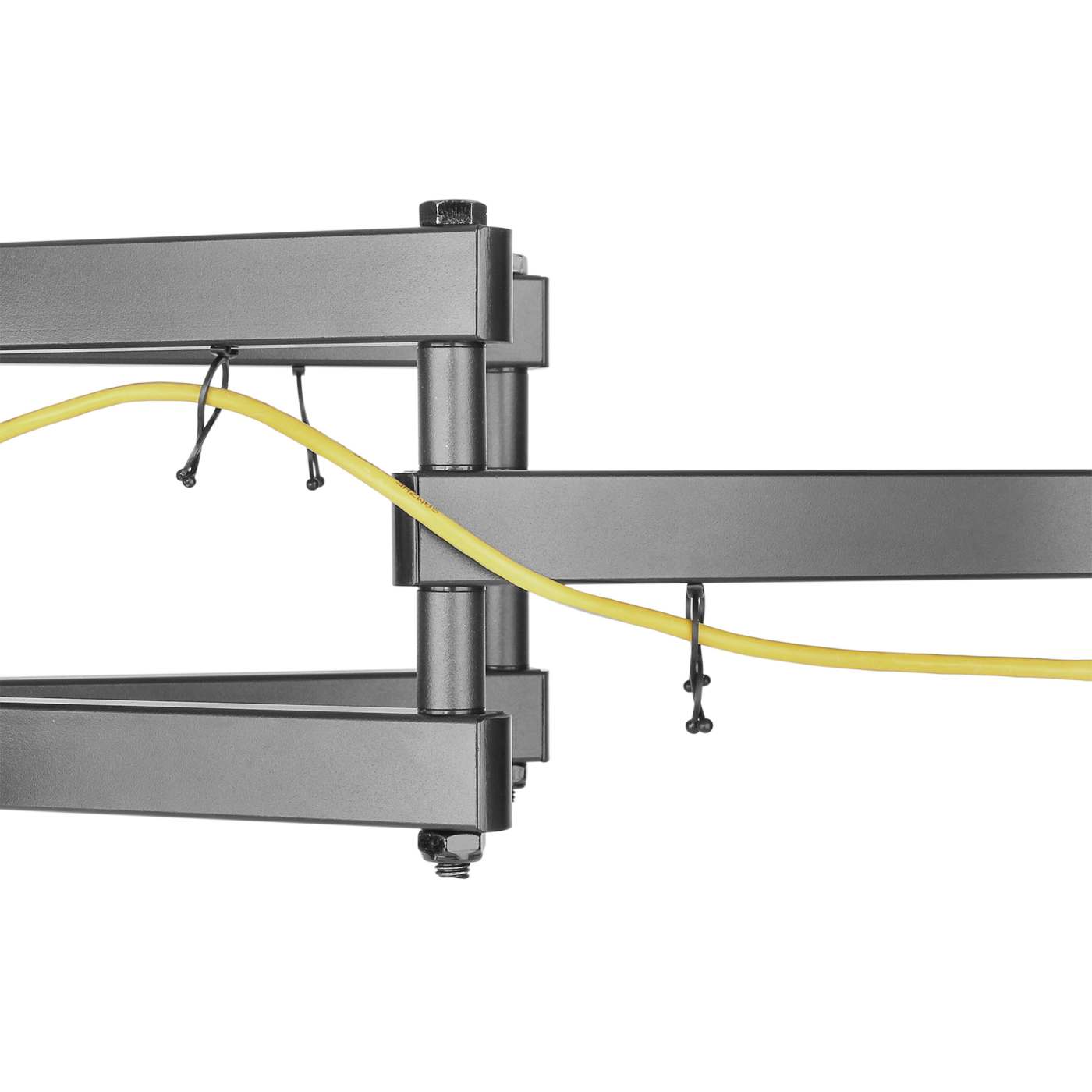

- Built-in cable management to minimize clutter
- Easy installation ideal for home, office and commercial applications
- Meets VESA standards 75x75 to 400x400 e.g. 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x400
- Lifetime warranty
- General
- Designed for most 32" to 55" flat and curved screens
- Weight capacity: 40 kg (88 lbs.)
- Tilt: +5/-15°
- Swivel: +/-60°

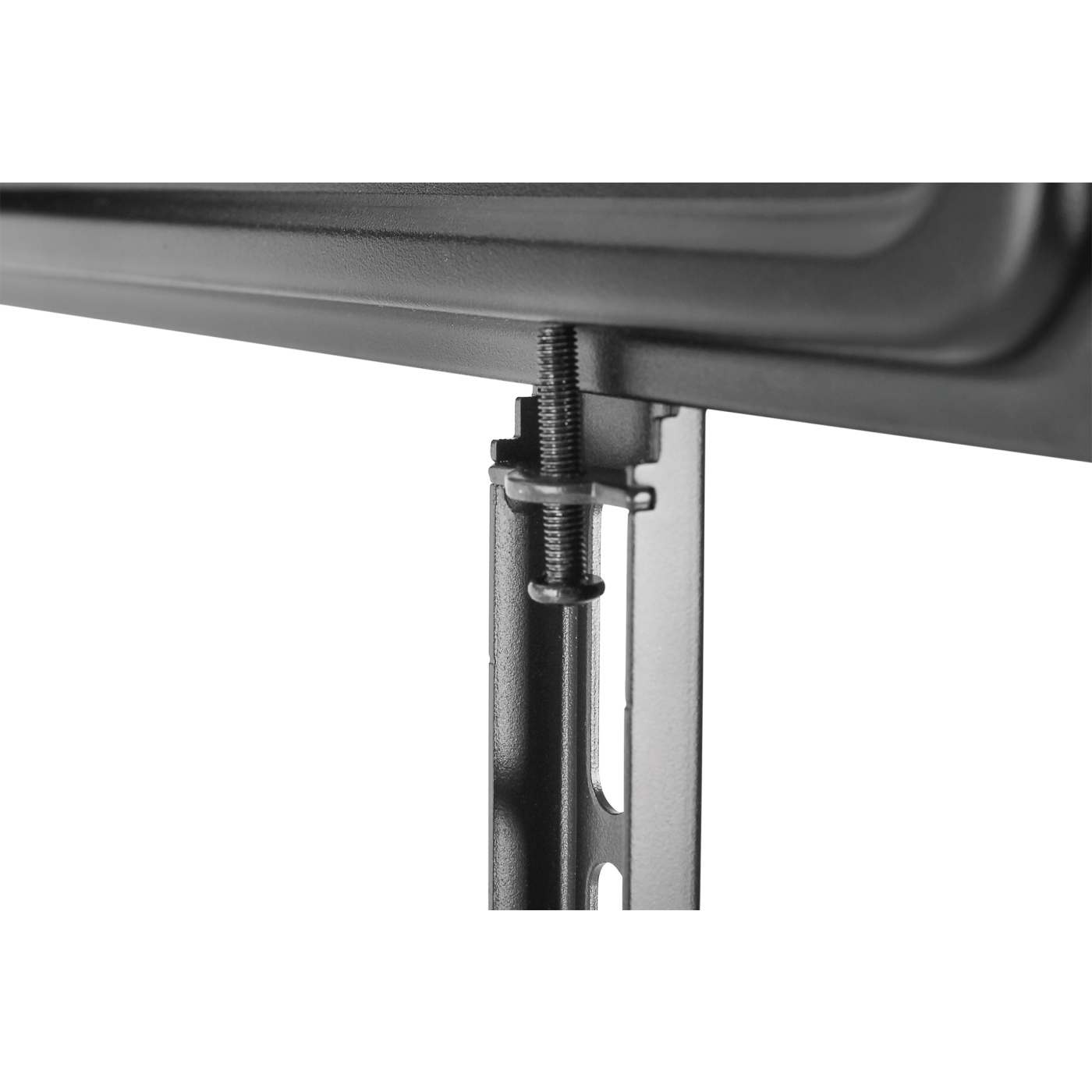

- Post-installation leveling adjustment: +/-3°
- Dimensions (L x W x H): 455 x 464 x 420 mm (17.91 x 18.27 x 16.54 in.)
- Wall profile: 53 to 464 mm (2.1 to 18.3 in.)
- Net weight: 3.33 kg (7.34 lbs.)
- Gross weight: 3.56 kg (7.85 lbs.)
- Material: steel
- VESA standards: 75x75 to 400x400 e.g. 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x400
Package Contents - Full-Motion TV Wall Mount with Post-Leveling Adjustment
- Installation hardware with instructions
Additional SKUs
- EAN: 0766623461344
- UPC: 766623461344
Physical Specifications
- Product net weight: 9.39 lbs
- Product gross weight: 10.71 kg
- Dimensions: 17.91 (L) x 18.27 (W) x 16.54 (H) [in.]
