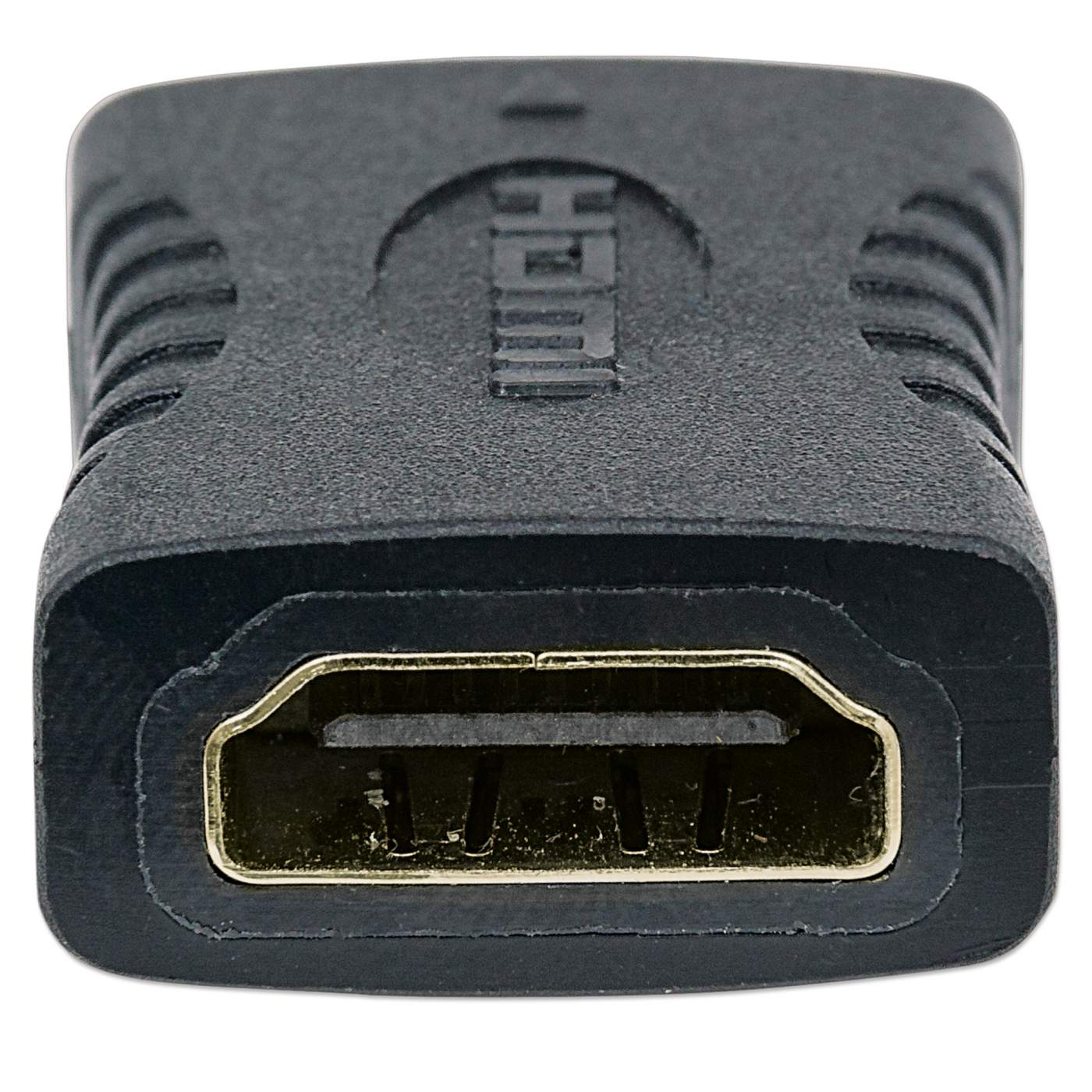

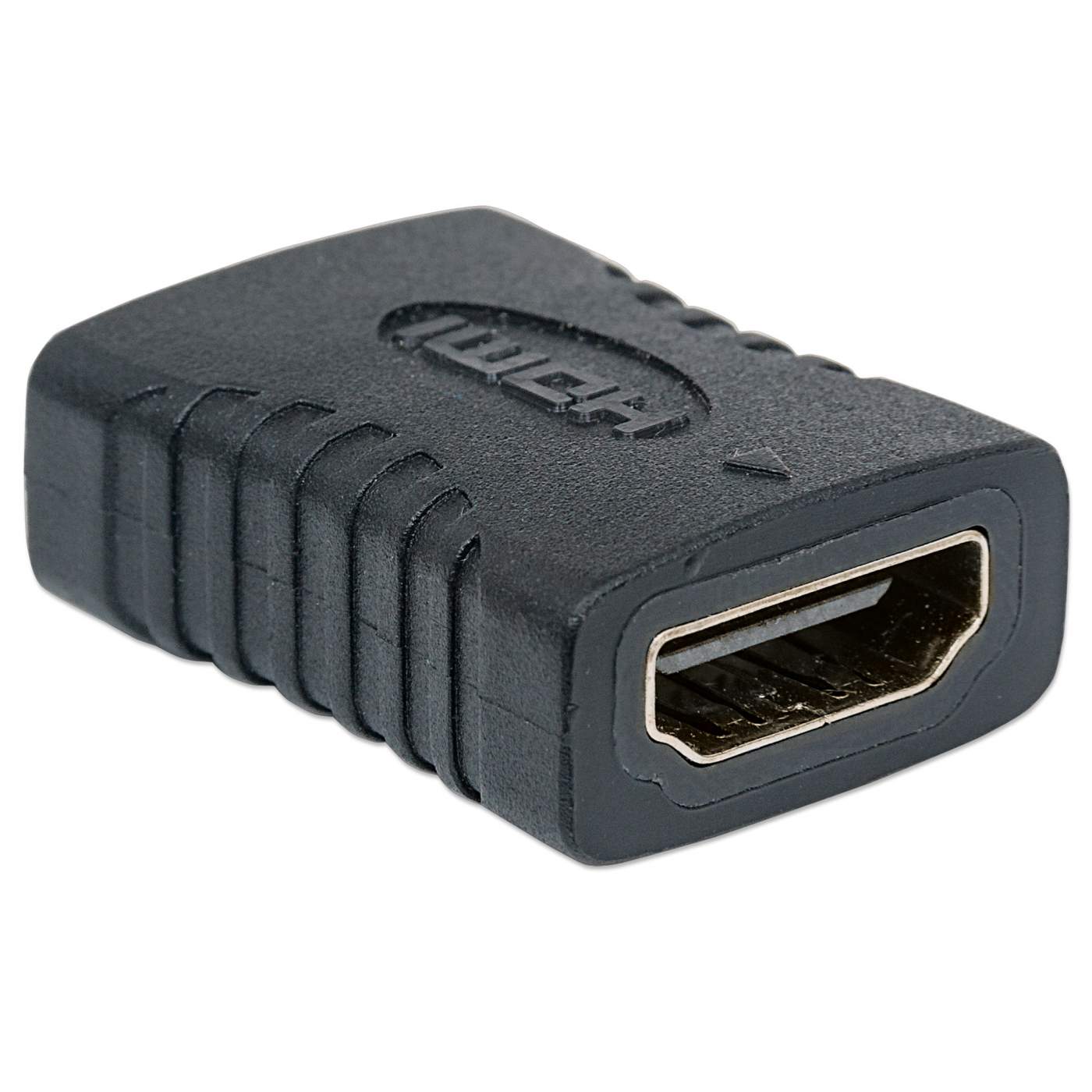

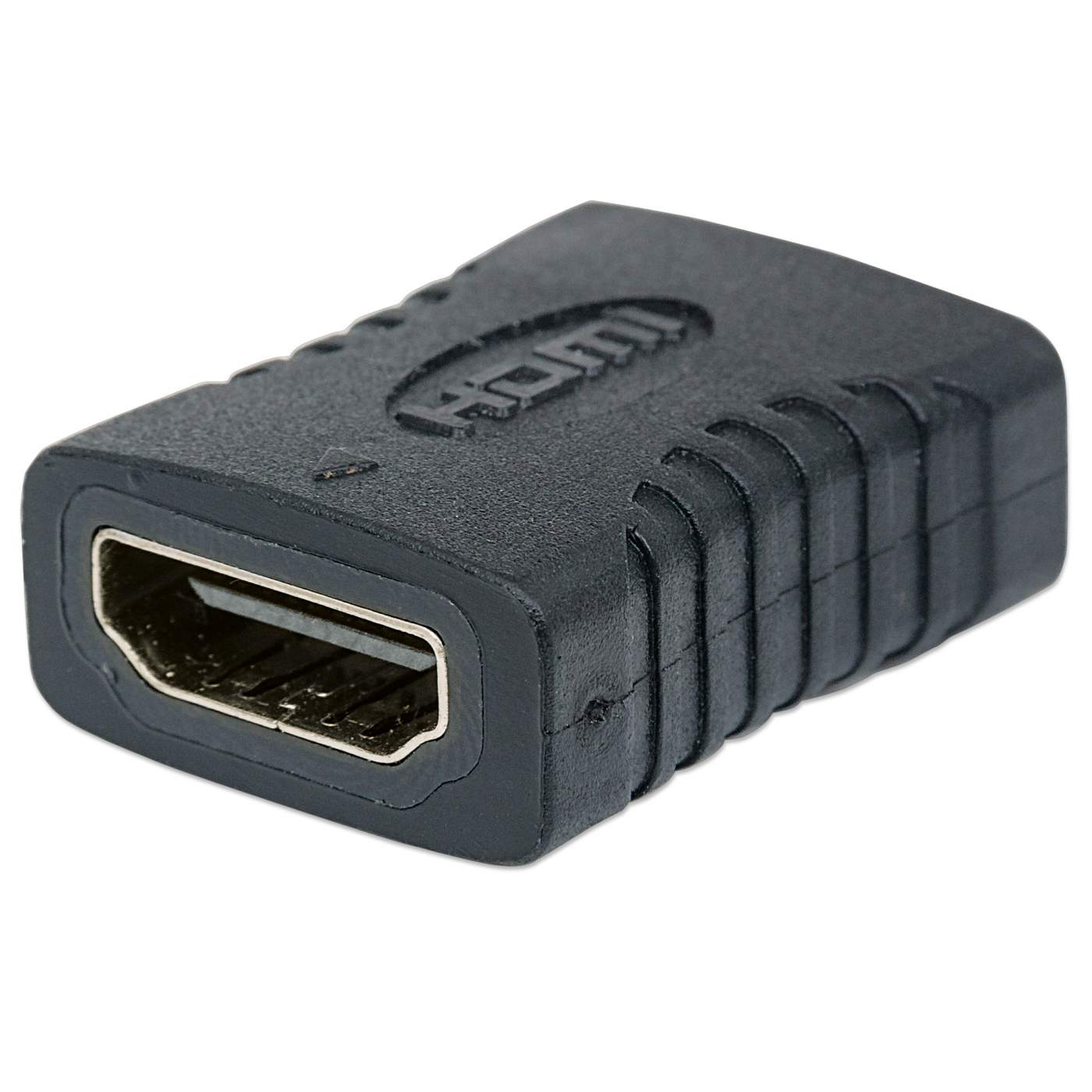

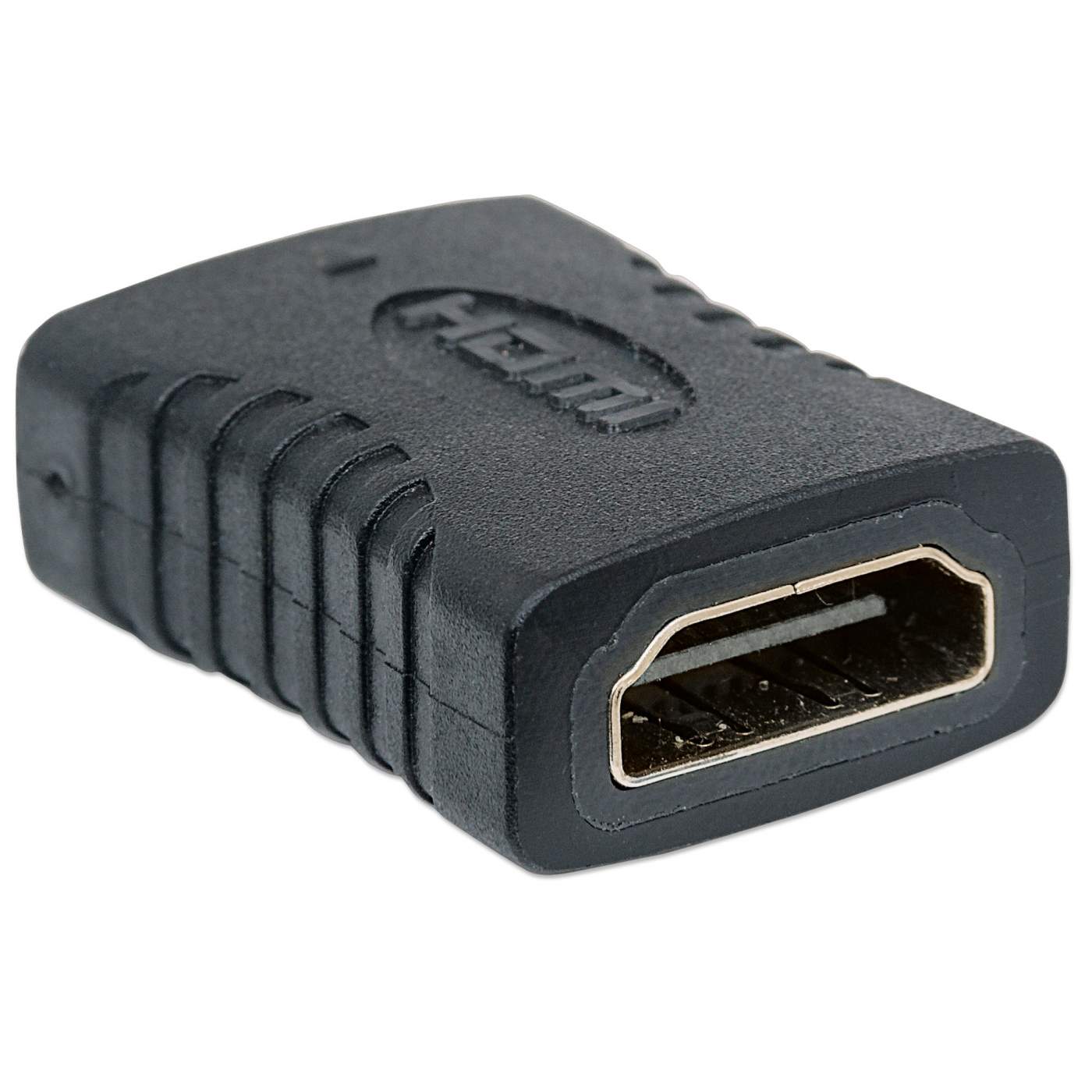

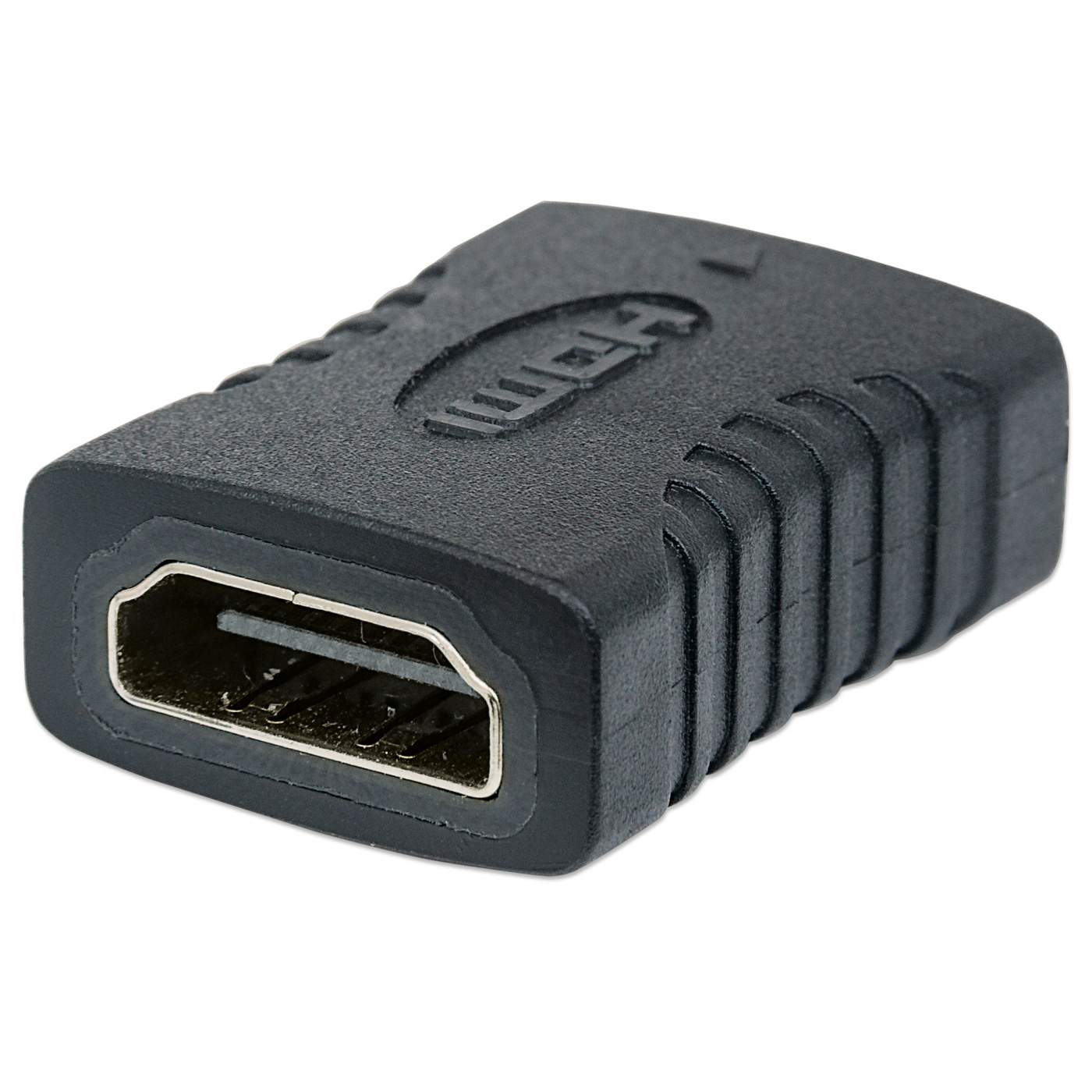

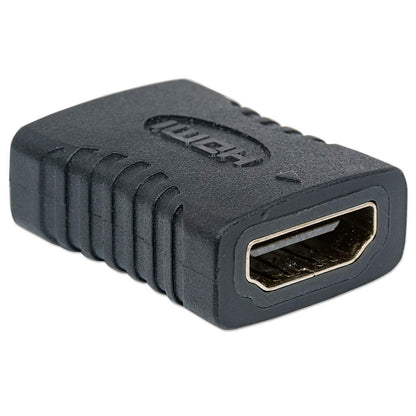

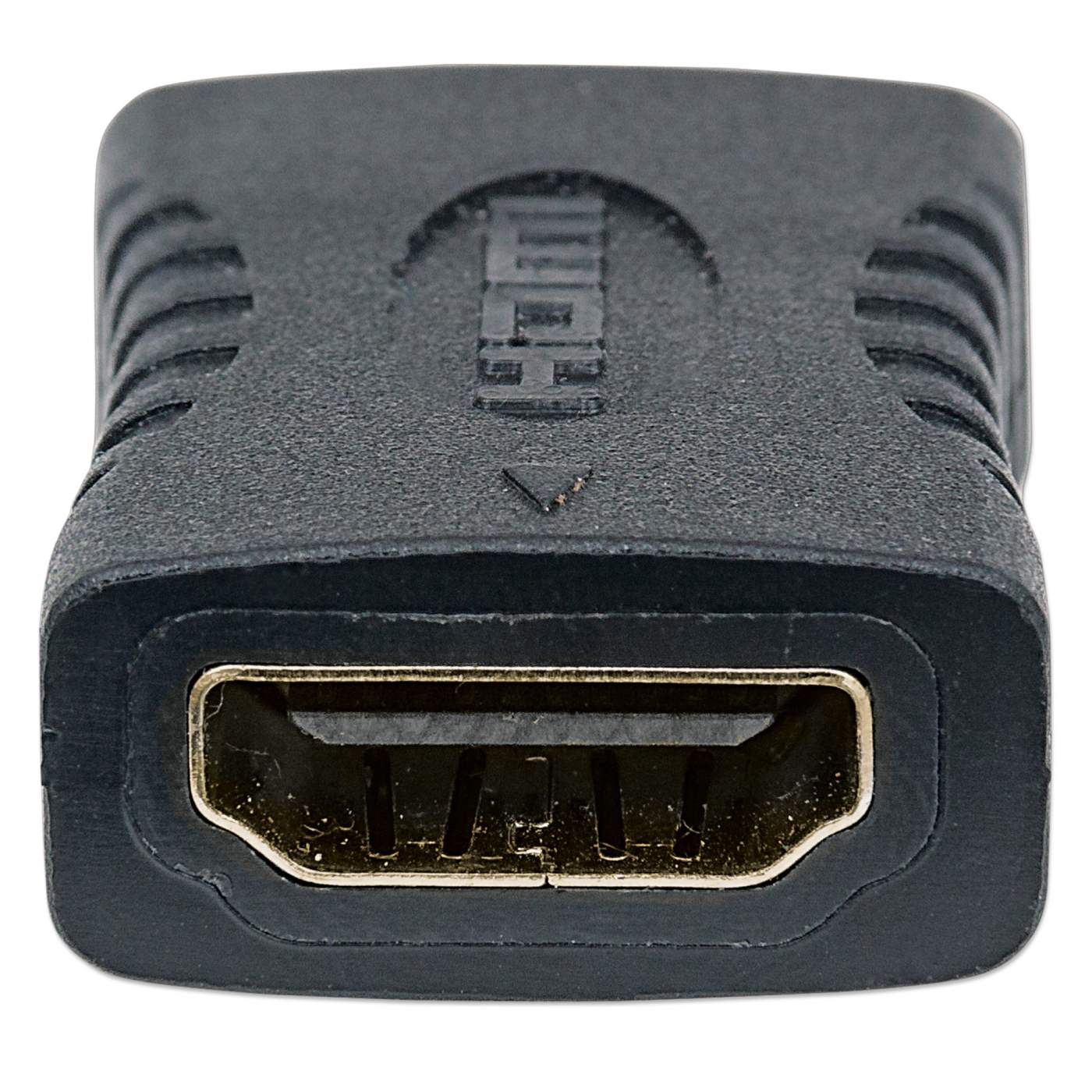

HDMI Coupler

Easily connect two HDMI cables to work over greater distances.
The Manhattan HDMI Adapter is ideal for joining two HDMI cables to give additional length to a cable, passively. This HDMI Coupler allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz.

• Connects 2 HDMI cables
• Supports 4K@60Hz resolution
• Straight, passive coupling connects 2 cables to overcome distance limitations
• Gold-plated contacts for best performance
• Intended for use with Manhattan HDMI cables
• Using HDMI cables up to 5 m (16 ft.) on each side of the coupler is ideal for maintaining signal quality and reliable performance
• Lifetime Warranty

Standards and Certifications

• RoHS2

• ISO 9002

  General:

• Bandwidth: 10.2 Gbps

• 340 MHz

• Meets or exceeds existing HDMI standards

• Length: 3 cm (1.1 in.)

  Connectors

• HDMI A female, 19-pin gold-plated

• HDMI A female, 19-pin gold-plated

  Electrical

• Current rating: 0.5 ADC

• Withstanding voltage: 300 VDC

• Insulation resistance: 5 MΩ

• Conductive resistance: 2 Ω

  General

• Length (overall): 28.5 x 11.2 x 22 mm (1.1 x 0.4 x 0.9 in.)

• Weight: 10 g (0.35 oz.)

• Molded PVC

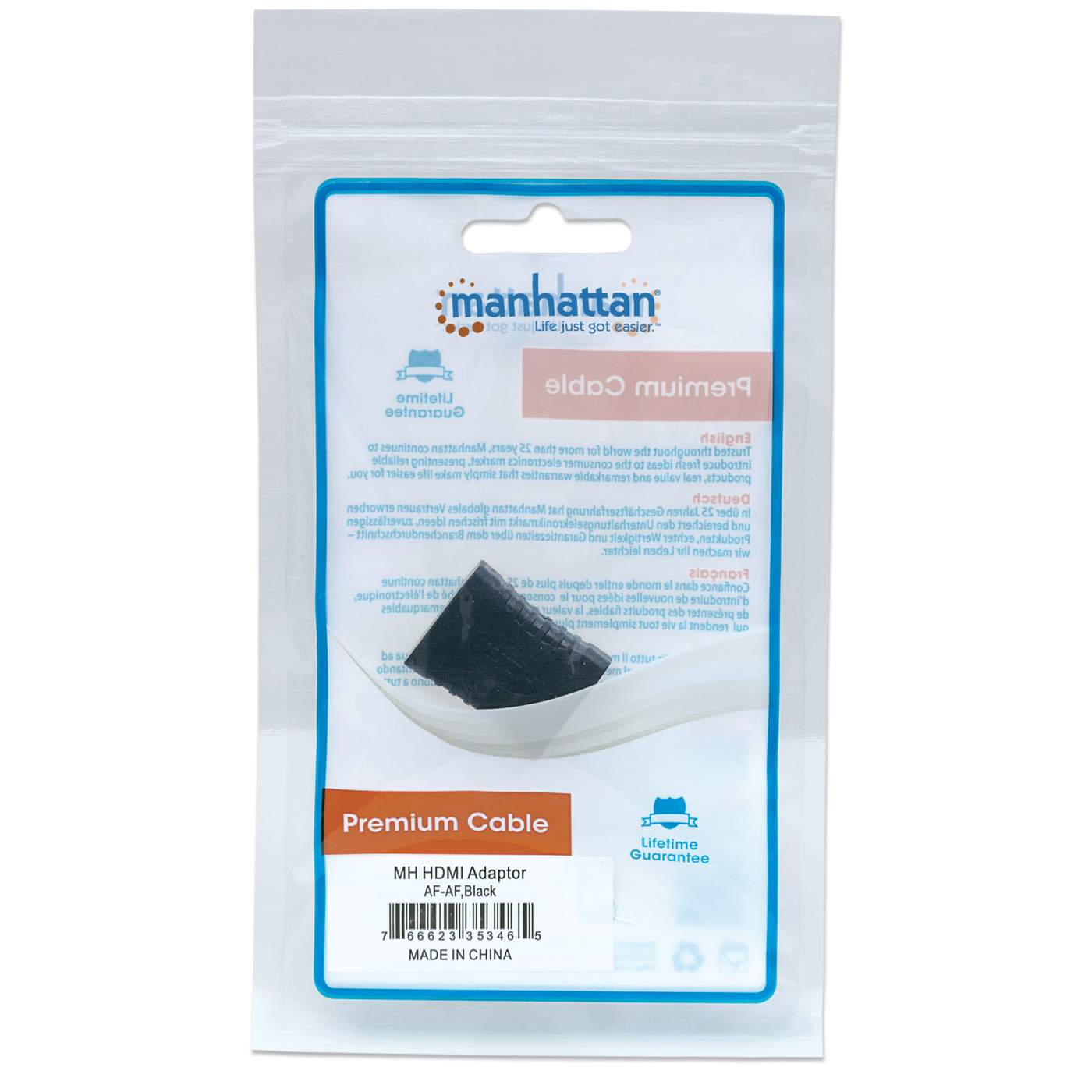

  Package Contents

• HDMI Adapter, A to A

Warning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• EAN: 0766623353465
• UPC: 766623353465



• Physical Specifications

• Product net weight: 0.02 lbs
• Product gross weight: 0.03 kg
• Dimensions: 1.12 (L) x 0.44 (W) x 0.87 (H) [in]
