Hi-Speed USB 2.0 Extension Cable

USB 2.0 Extension Cable - Quality connections for superior performance

Manhattan Hi-Speed USB 2.0 Extension Cables easily lengthen connections between computers and USB-powered peripherals. They're ideal for use with printers, keyboards, external enclosures and an expanding assortment of digital devices. Manhattan Hi-Speed USB 2.0 Extension Cables are constructed of quality materials to support dependable, error-free transmissions and data-transfer rates up to 480 Mbps over longer distances. Full foil and braided shielding, gold-plated contacts and molded boots with strain relief assure maximum conductivity for the fast connection of USB-enabled devices with reduced EMI interference and minimal data degradation.

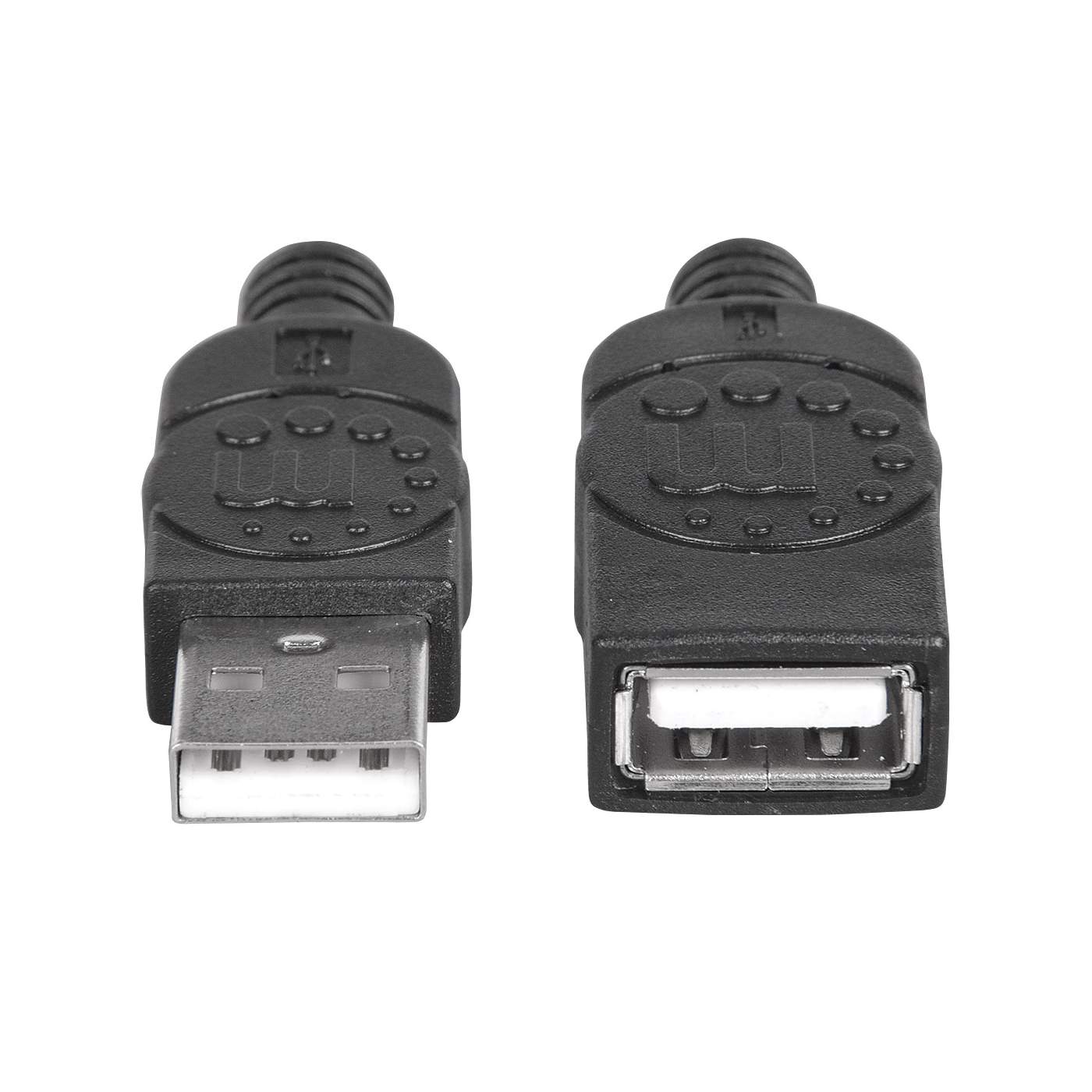

• USB Type-A male to USB Type-A female
• Extends a USB cable to a maximum of 1 m (3 ft.)
• Speeds of up to 480 Mbps
• Hi-Speed USB for ultra-fast data-transfer rates with zero data degradation
• Lifetime Warranty

Standards and Certifications

• UL 2725

• USB 2.0

  Connectors

• One USB 2.0 Type-A male

• One USB 2.0 Type-A female

• Gold plated contacts

• Molded PVC boot with strain relief

  Cable

• Shielded

• Current rating: 0.5 ADC

• Withstanding voltage: 300 VDC

• Insulation resistance: 5 MΩ

• Contact resistance: 5 Ω

• Thermal plastic casing

• 28 AWG

  Physical

• Length: 1 m (3 ft.)

• Weight: 34 g (1.2 oz.)

  Operating Environment

• Operation temperature: 0 - 50°C (32 - 122°F)

• Storage temperature: -25 - 85°C (-13 - 185°F)

• Humidity (noncondensing): 0 - 96%

  Package Contents

• Hi-Speed USB Extension Cable

• Additional SKUs

• EAN: 0766623308519
• UPC: 766623308519



• Physical Specifications

• Product net weight: 0.07 lbs
• Product gross weight: 0.08 kg
• Dimensions: 3.3 ft

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download
