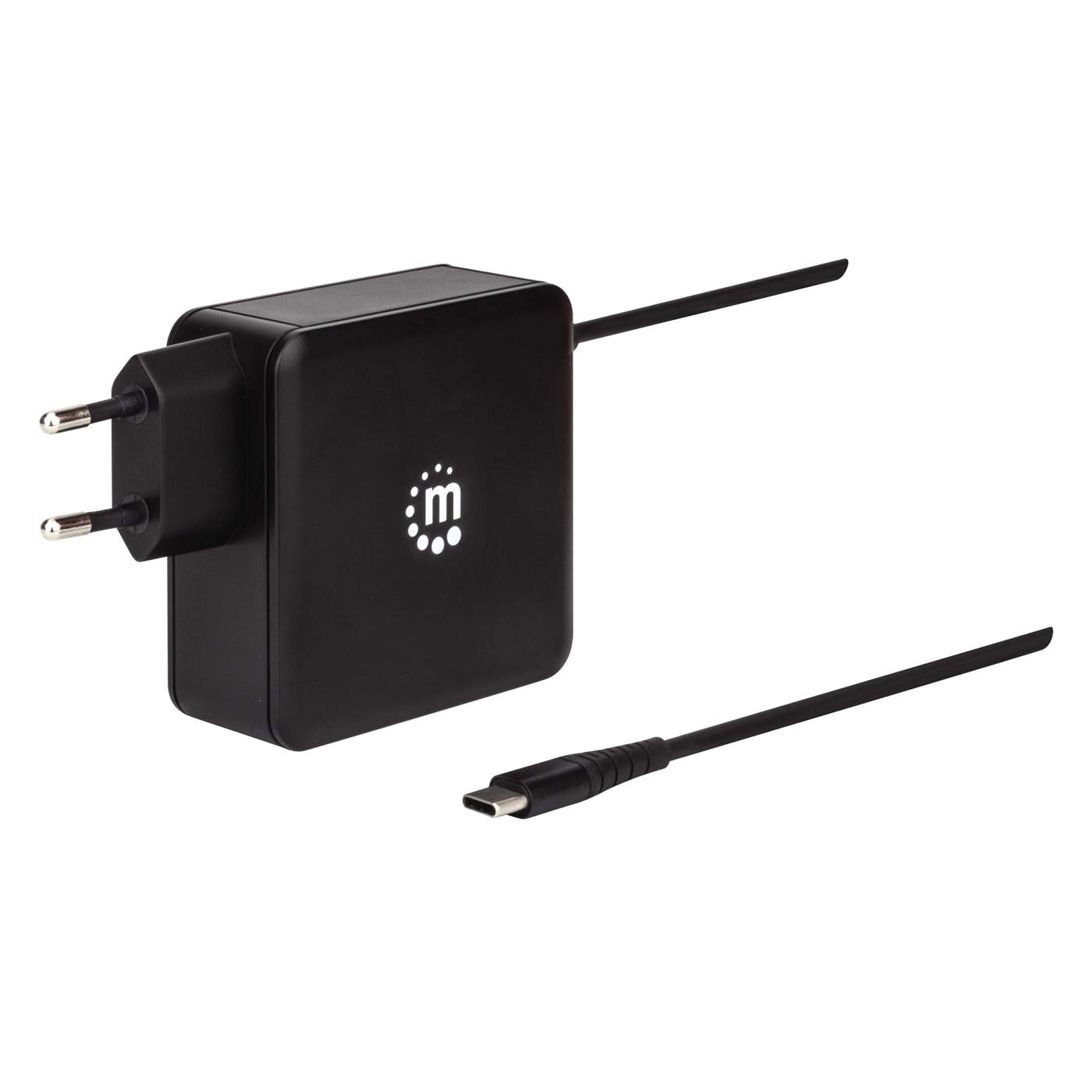

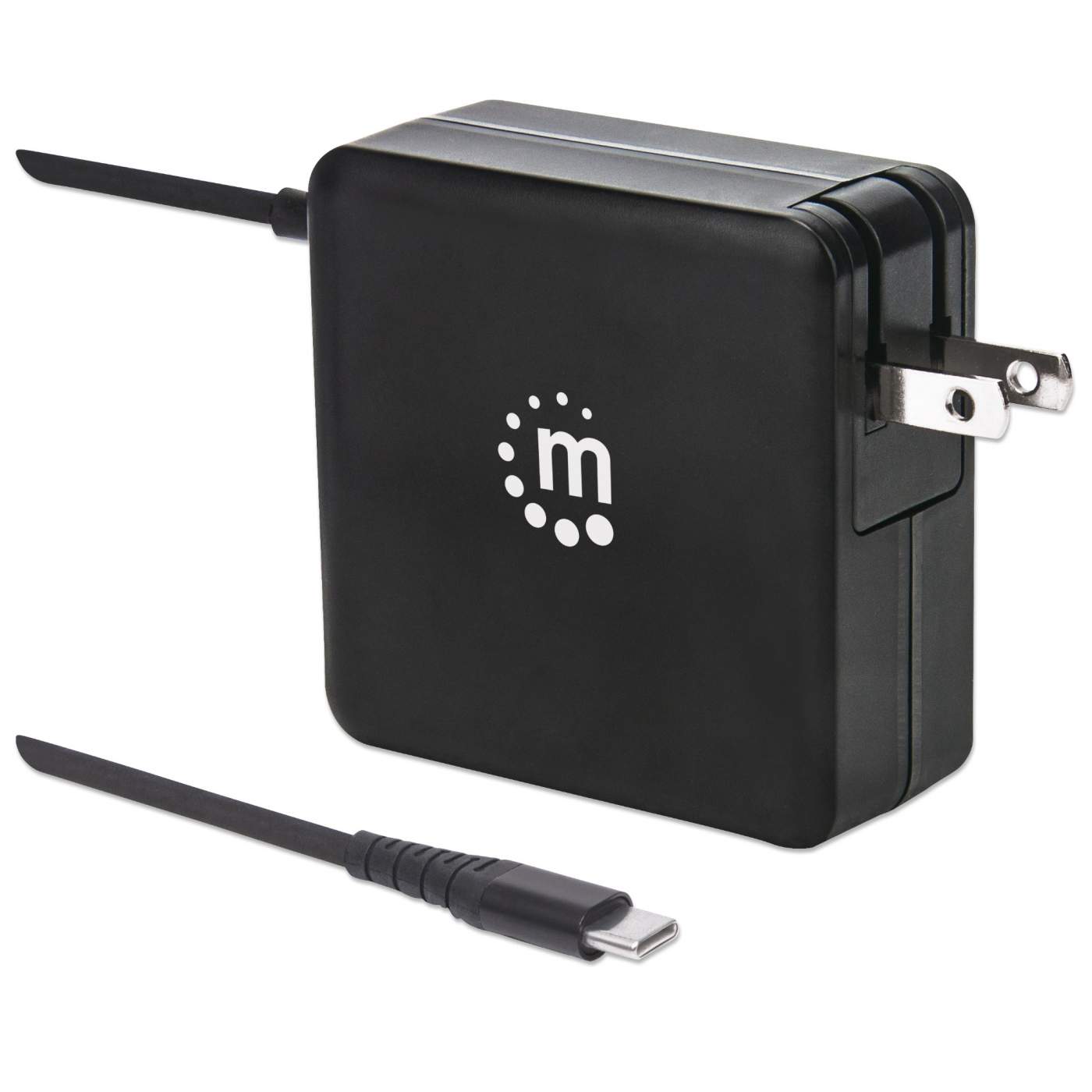

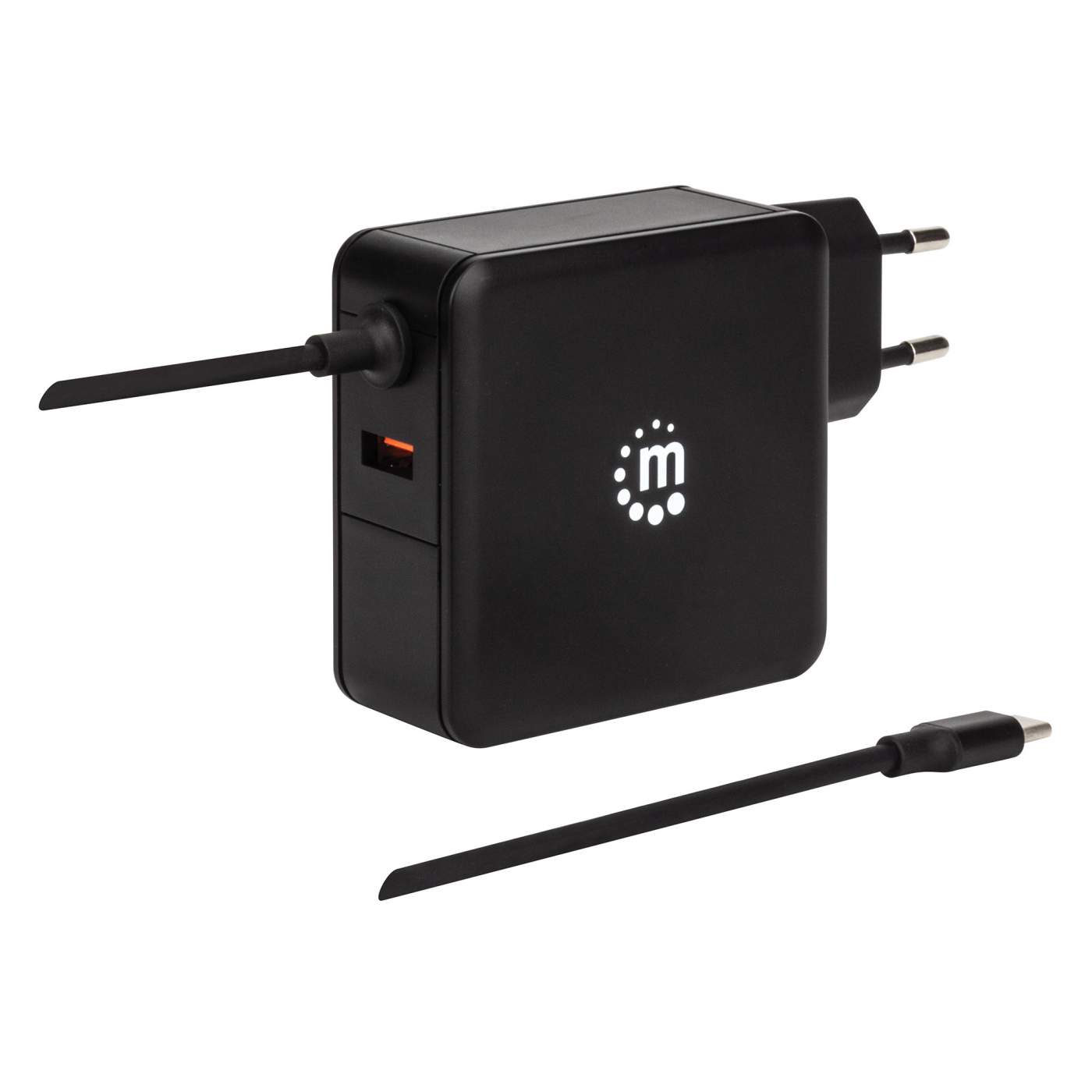

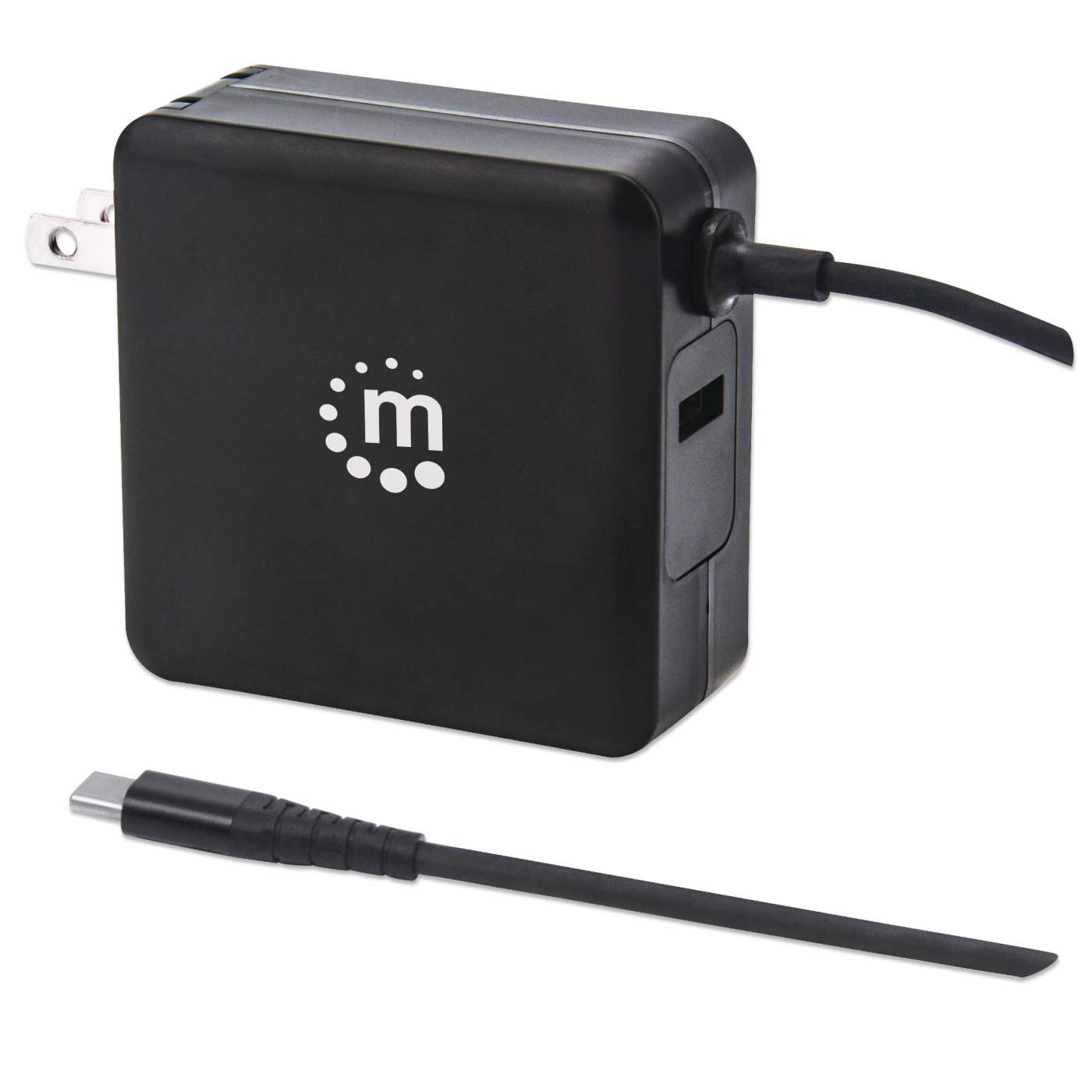

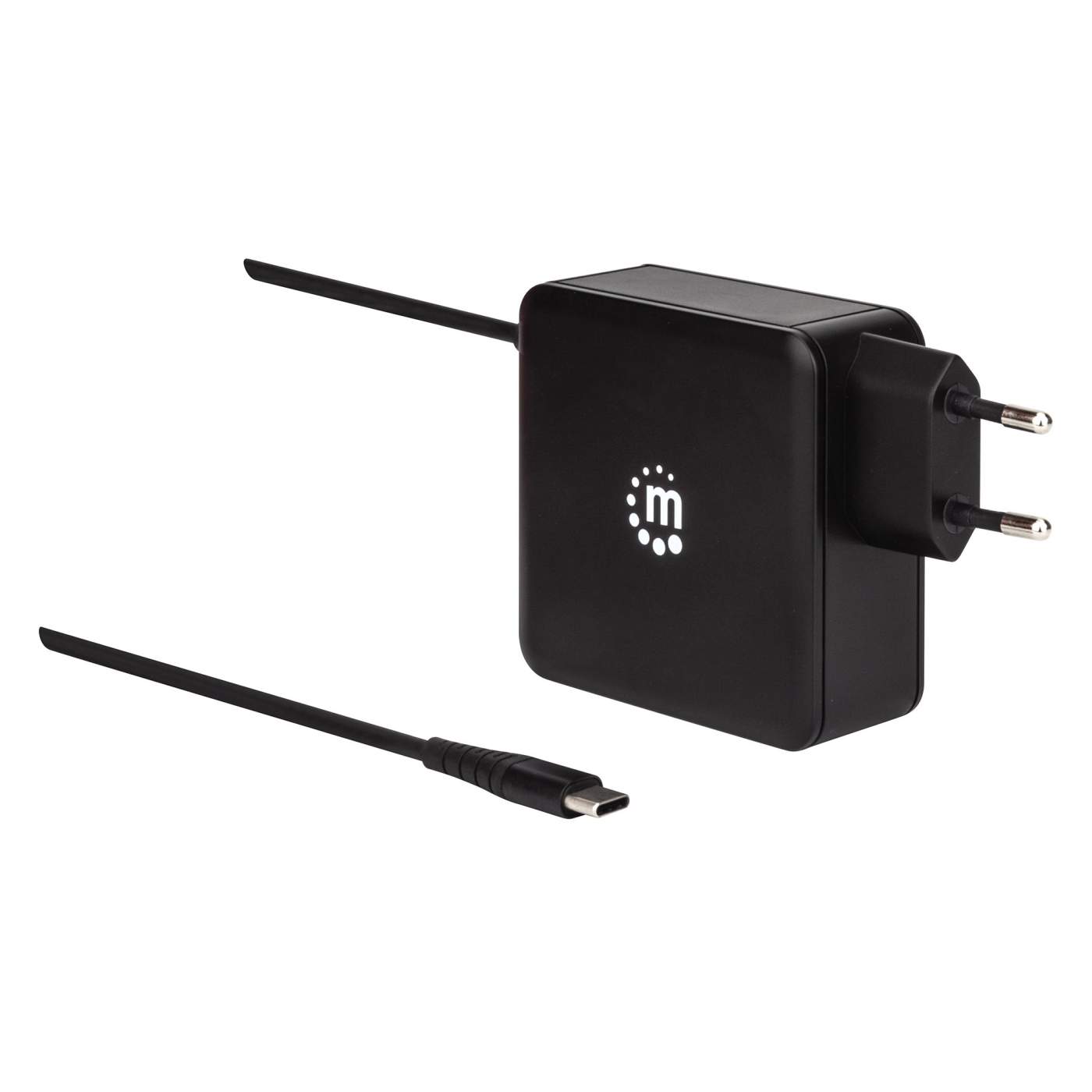

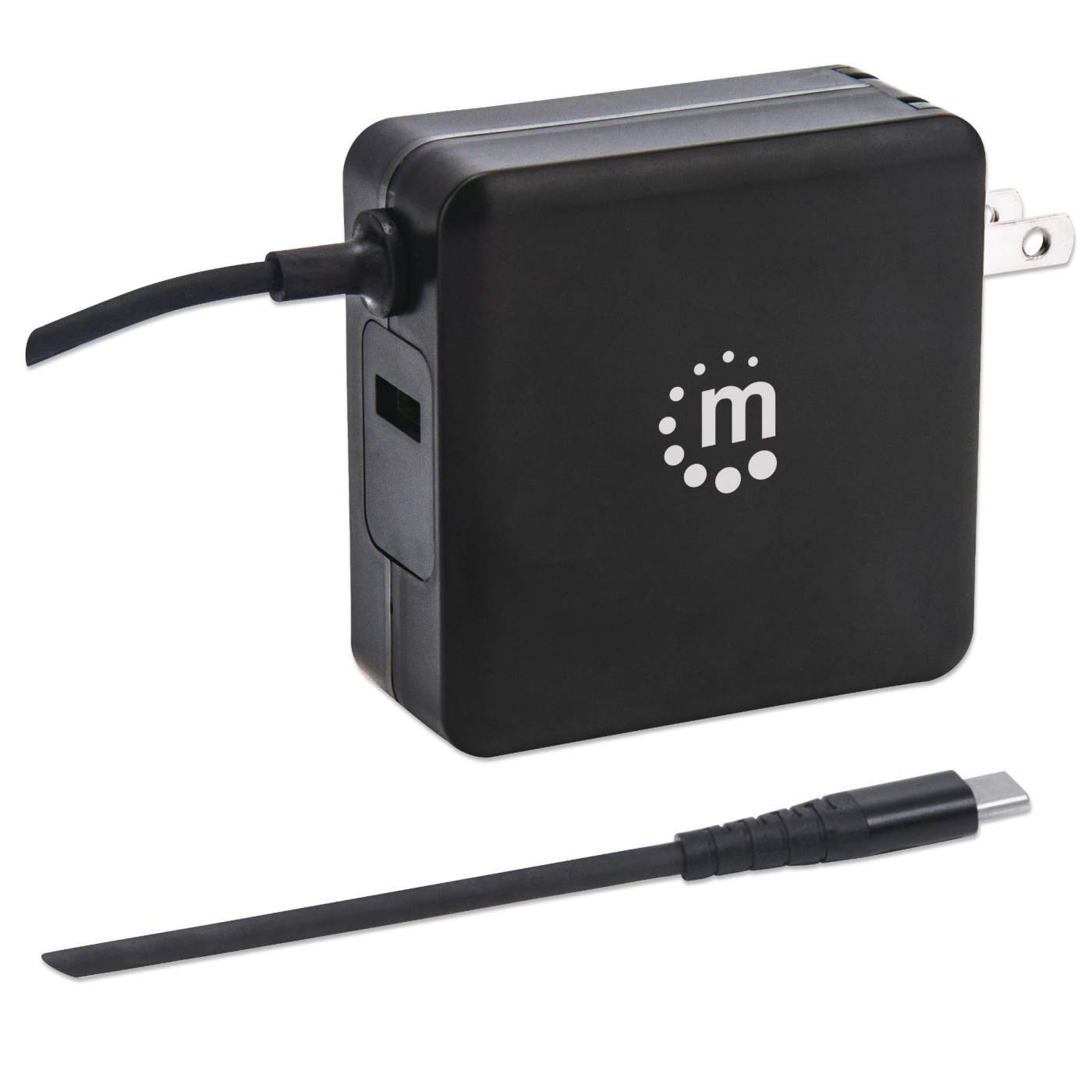

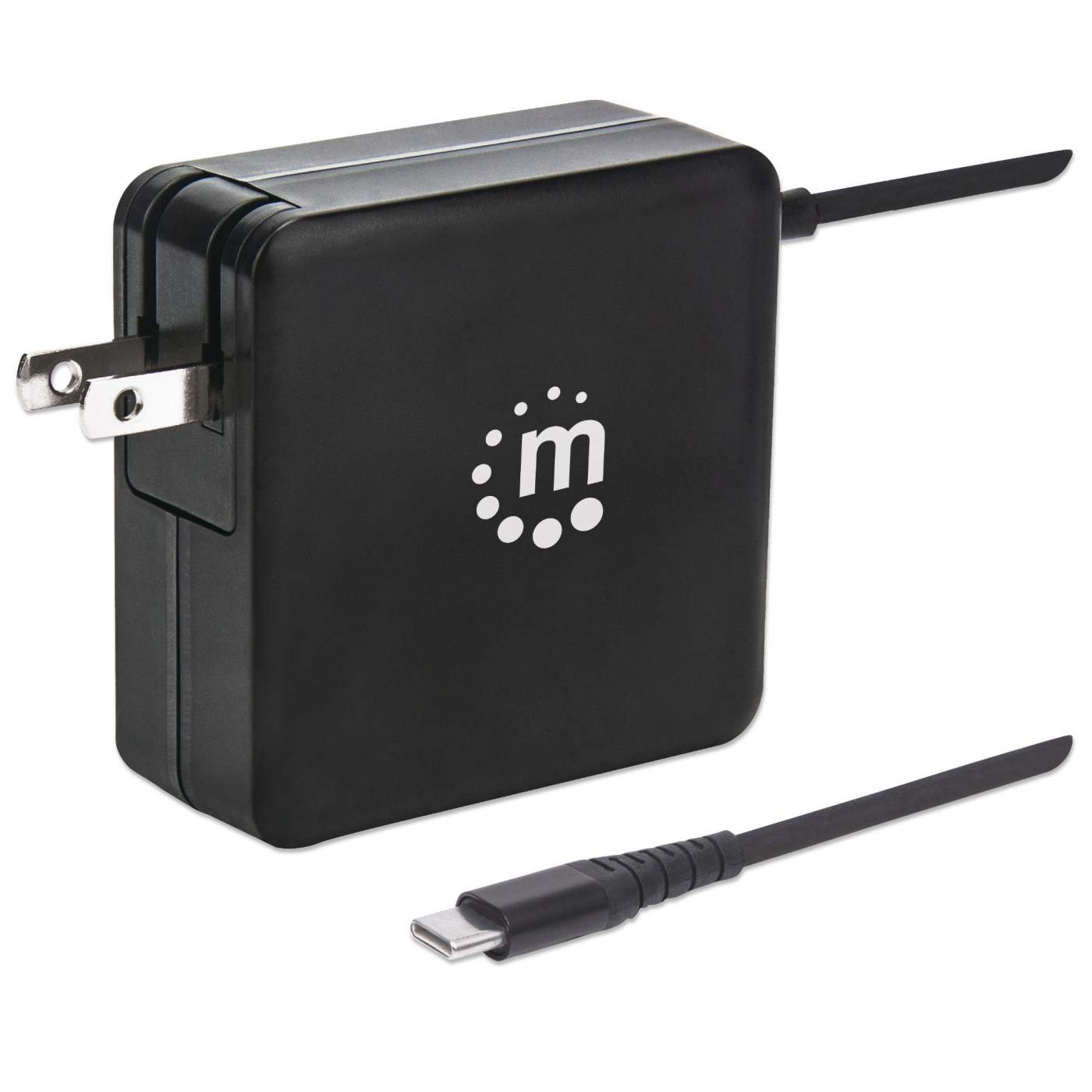

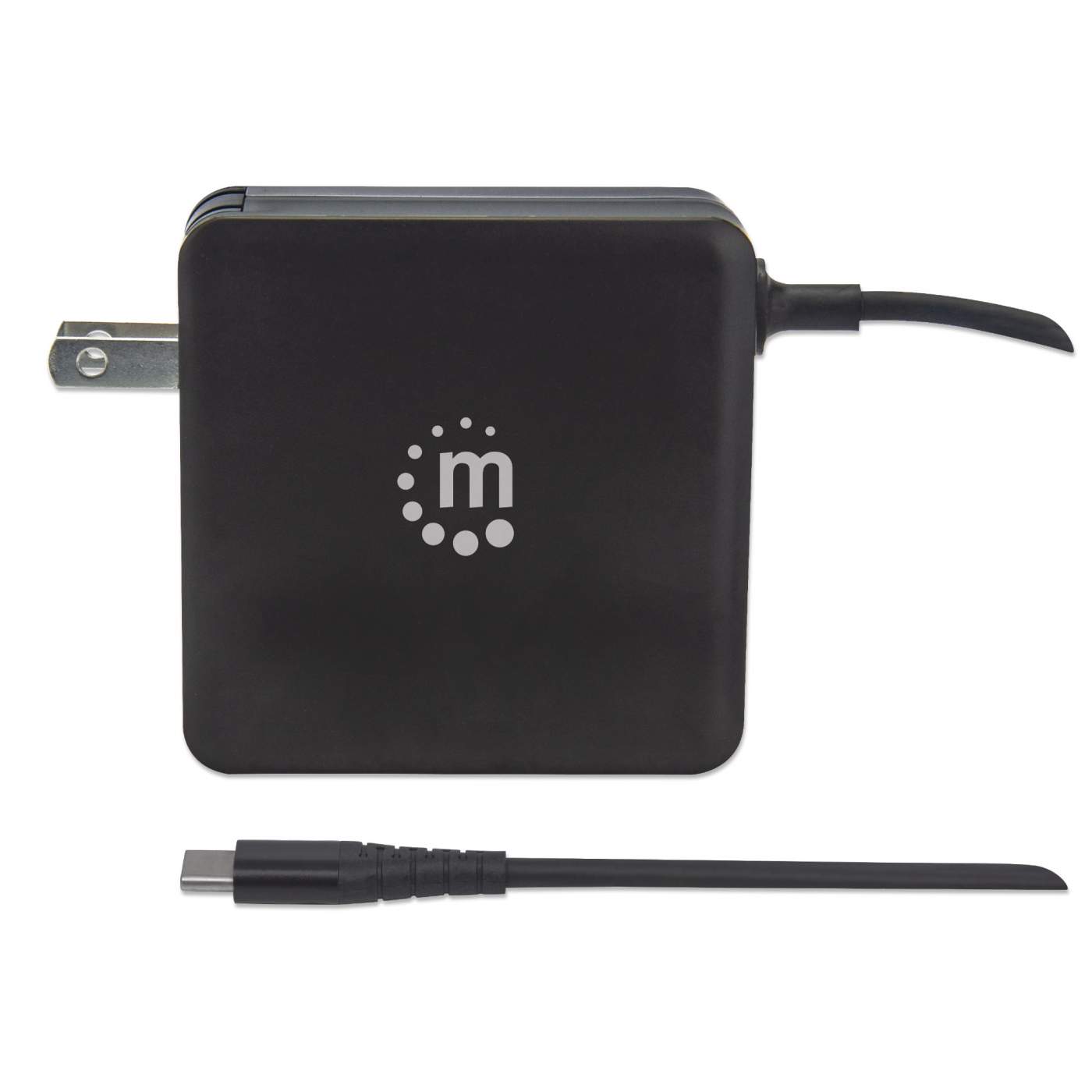

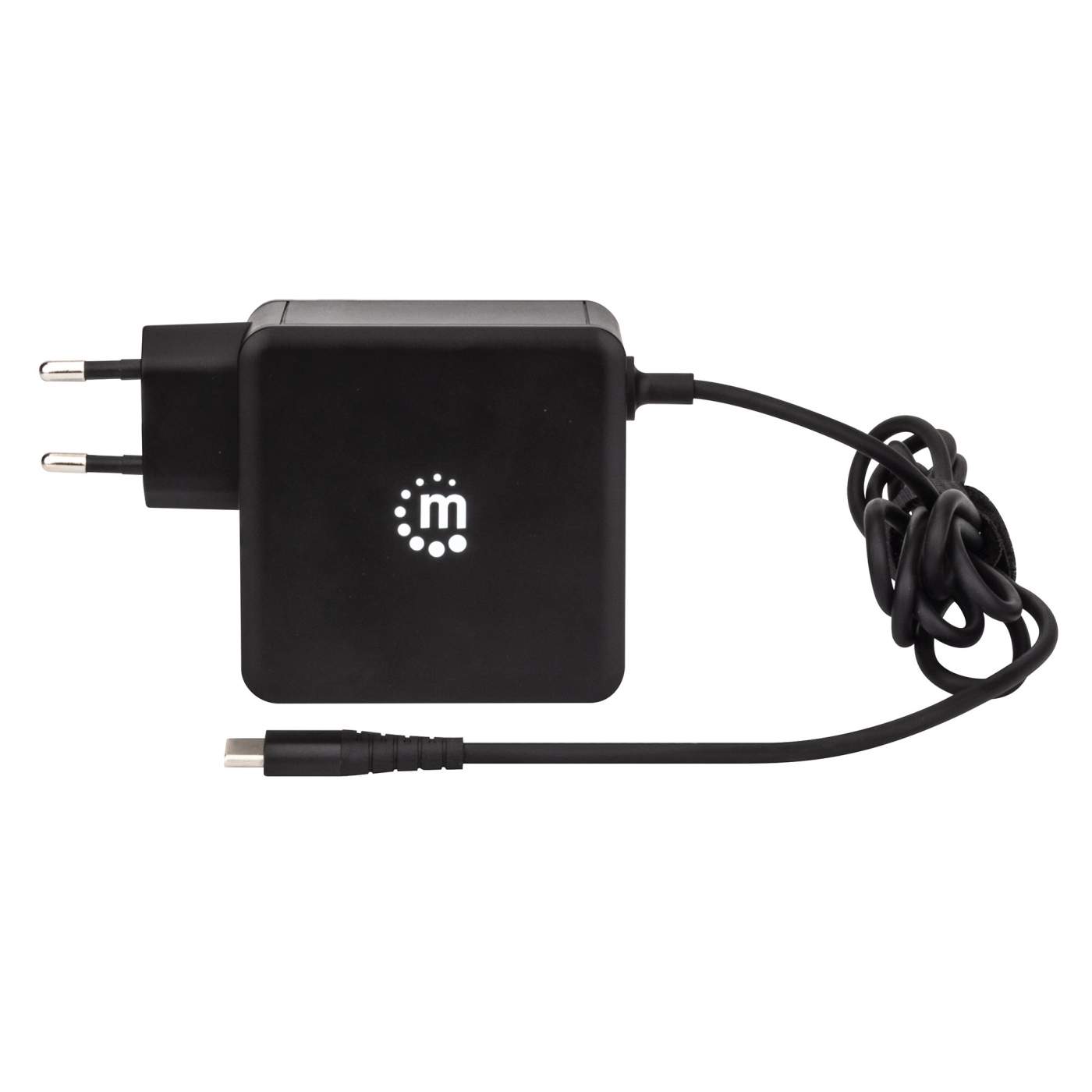

Power Delivery Wall Charger with Built-in USB-C Cable - 60 W

Power up your devices with a portable, powerful Power-Delivery-capable charger.

Enjoy complete charging power with the Manhattan Power Delivery Wall Charger with Built-in USB-C Cable - 60 W. The charger's attached USB-C cable uses Power Delivery (PD) technology to provide plenty of power to laptops and mobile phones, and the additional USB-A port can quickly charge any handheld device or tablet. The perfect companion for travelers with its stylish, compact and ultra-modern design, the Manhattan Power Delivery Wall Charger with Built-in USB-C Cable - 60 W also intelligently safeguards itself and your devices with its short-circuit-, overvoltage-, overcurrent- and overtemperature-protection functions.

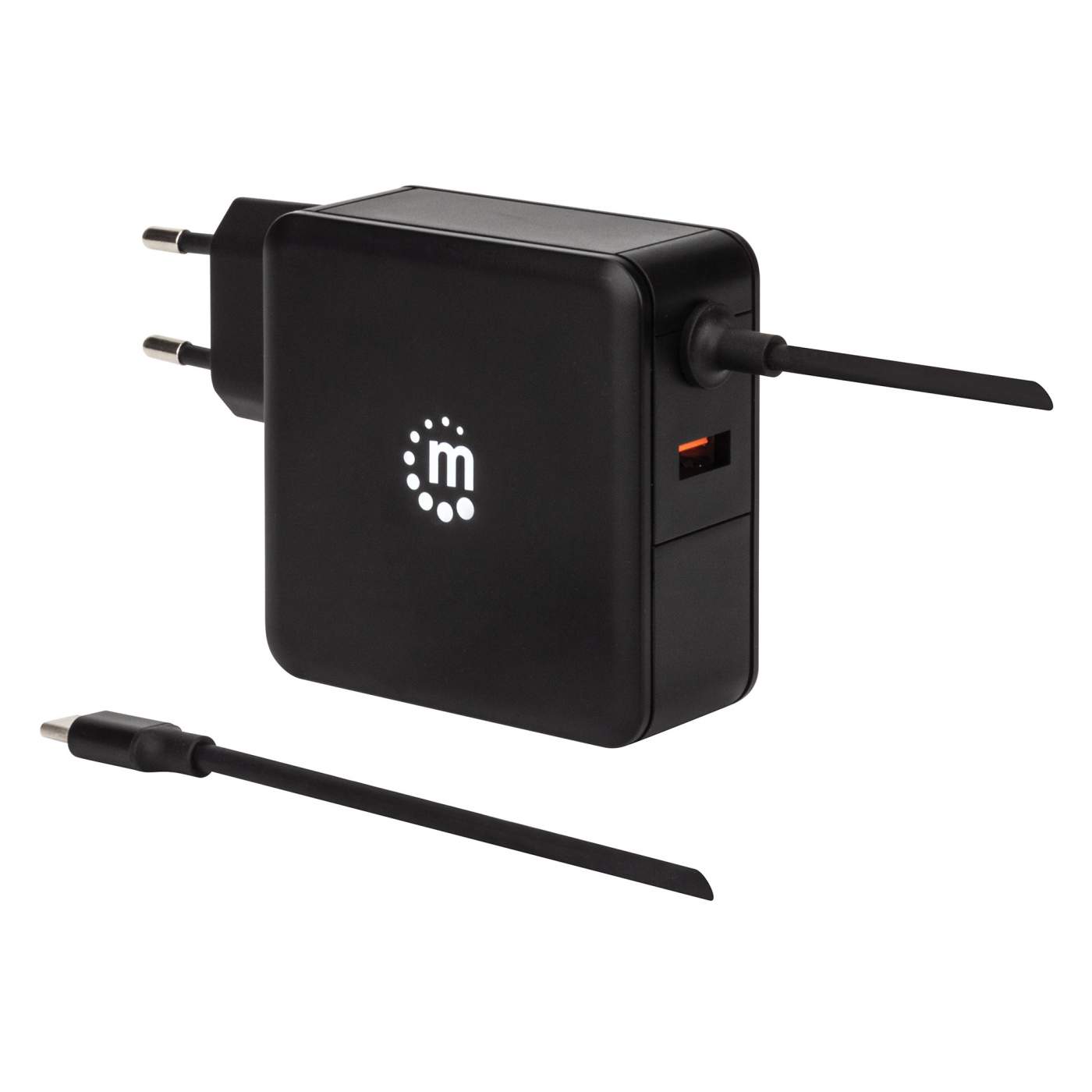

• Two-device charging solution with USB-C Power Delivery (PD 3.0) and USB-A charging port

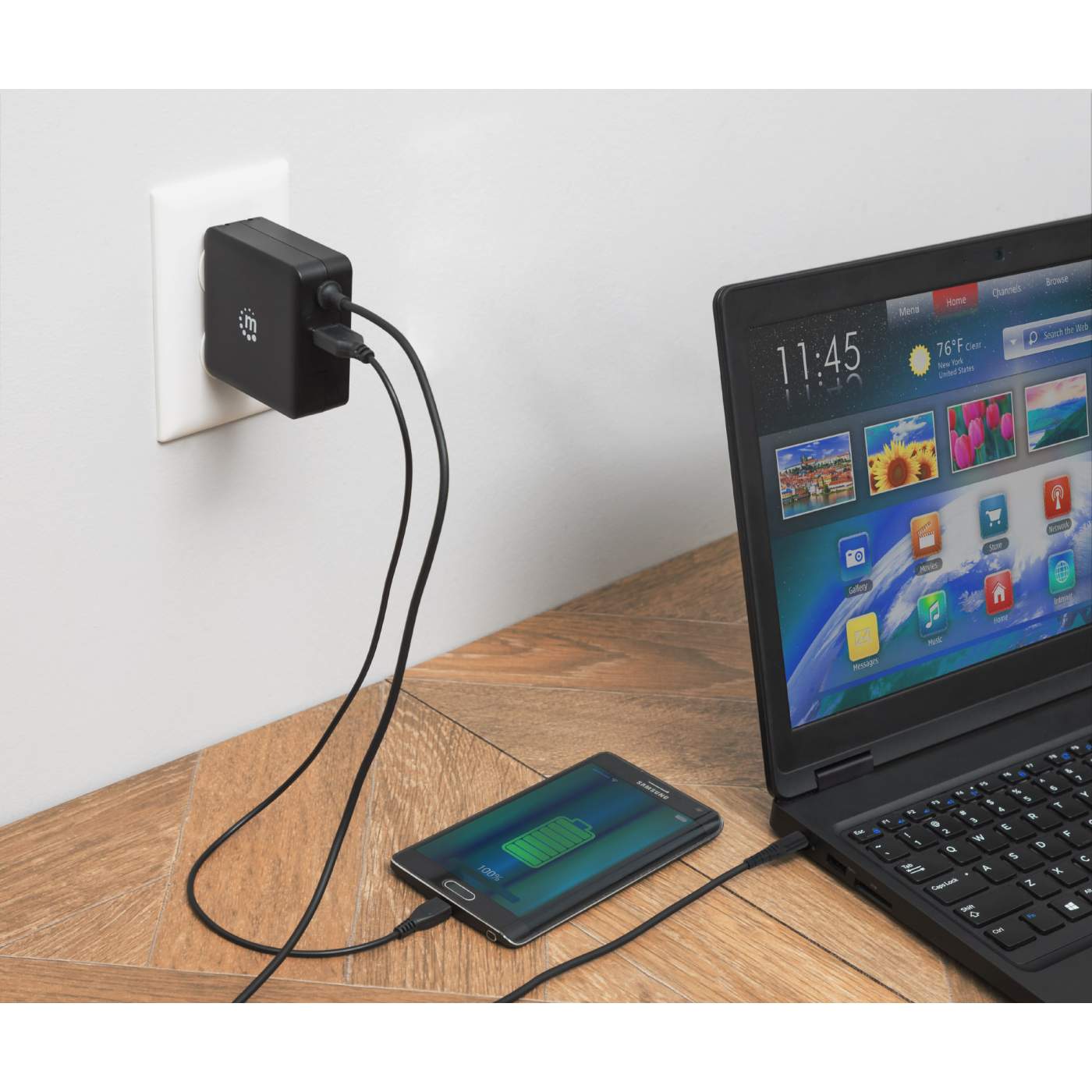

• Charges two different devices simultaneously with ideal potential energy
• USB-C cable with PD function delivering up to 60 W to charge a notebook, laptop, Ultrabook, tablet or other USB-C powered device
• USB-A port delivering up to 5 V / 2.4 A to quickly charge a portable device
• Overload, overcurrent and overheating protection
• Compact, portable and stylish design for easy travel
• Three-year warranty

Standards and Certifications

• USB 2.0

• PD 3.0

• FCC

• UL

• CE

• RoHS

• WEEE

  Connections

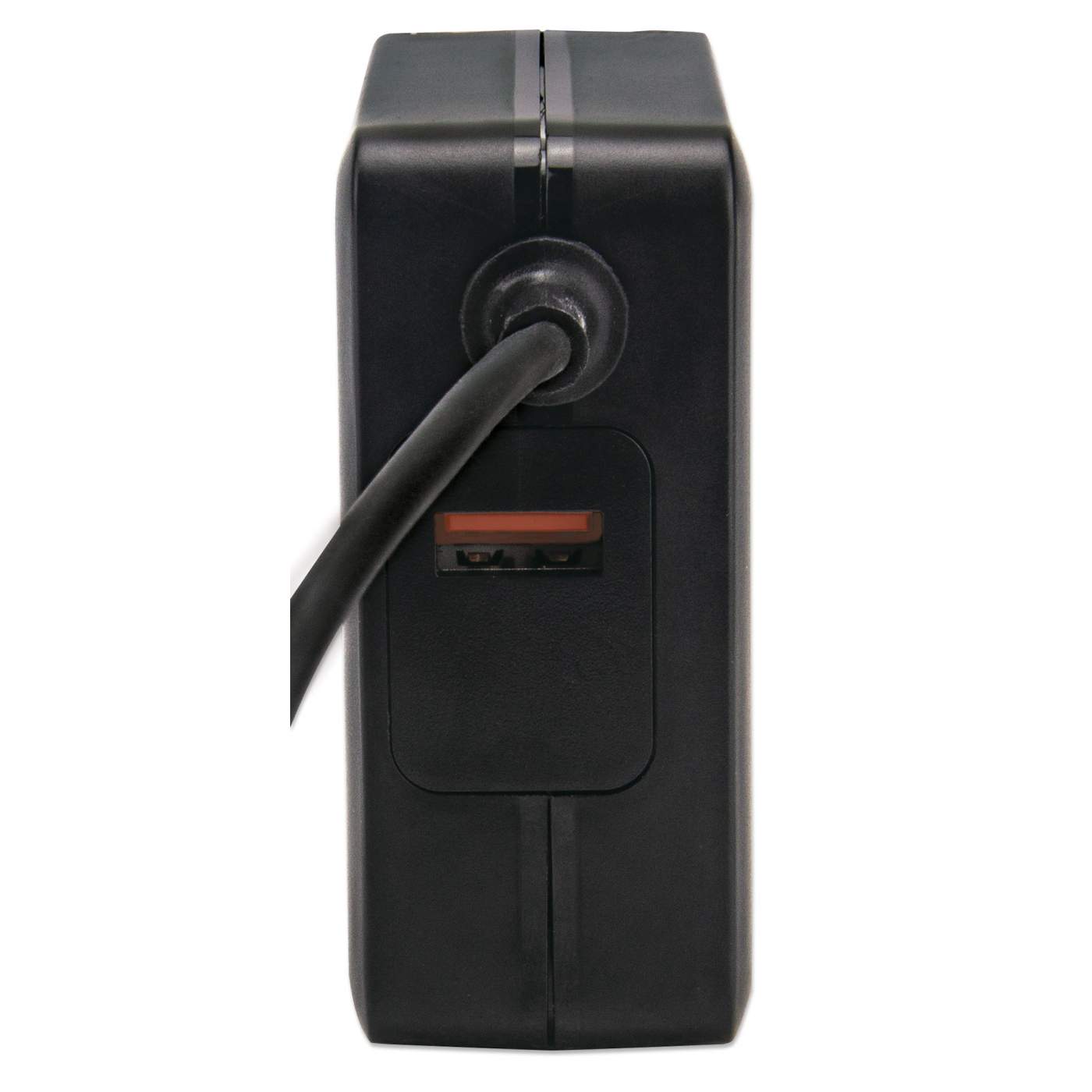

• One built-in USB-C cable with Power Delivery (PD 3.0)

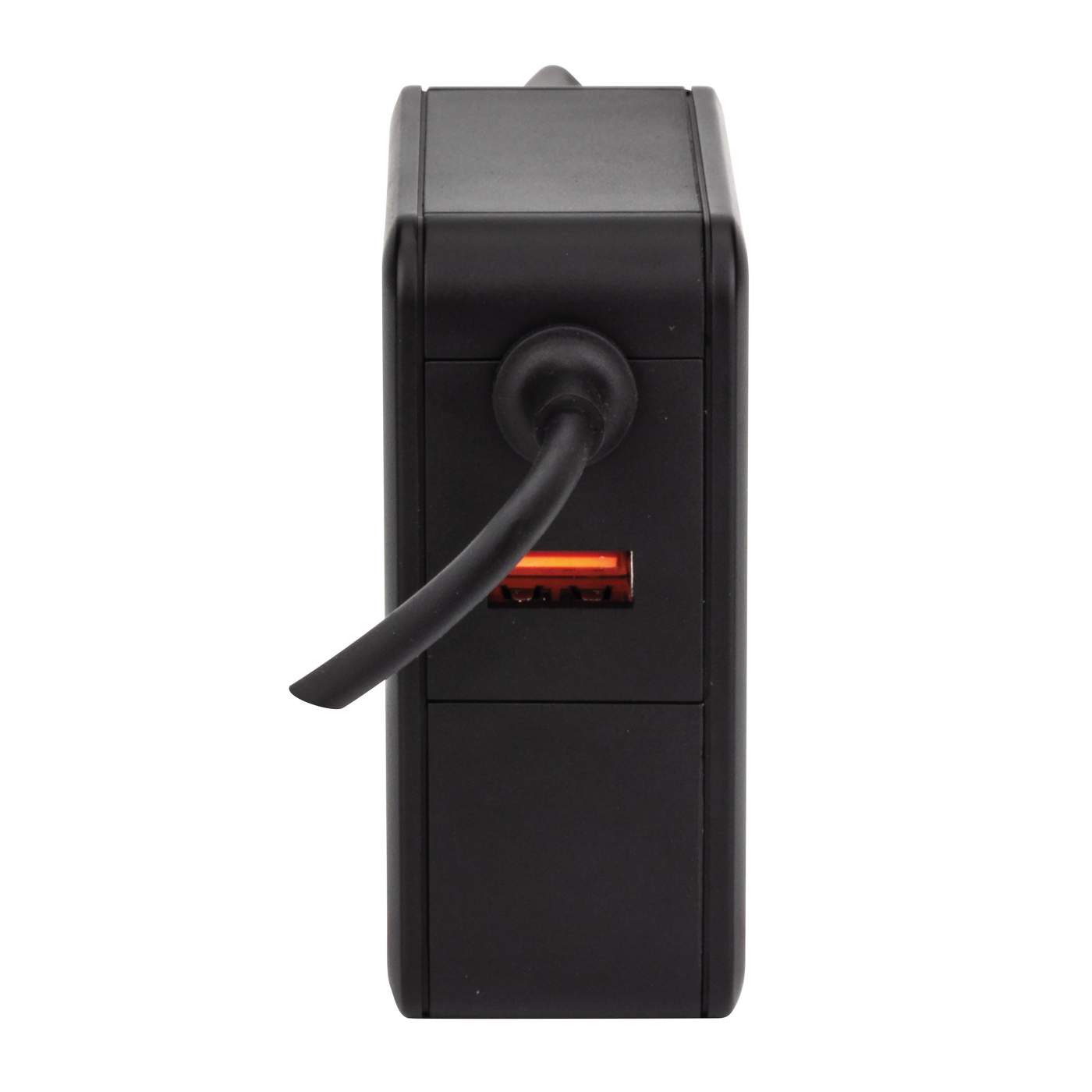

• One USB-A port

  General

• AC input: 100 – 240 V; 50 – 60 Hz

• USB-C output: 5 – 20 V; maximum 3 A; 60 W

• Voltage/current settings (maximum):
  - USB-C:
  - 5 V / 3 A
  - 9 V / 3 A
  - 12 V / 3 A
  - 15 V / 3 A
  - 19 V / 3 A
  - 20 V / 3 A
  - USB-A:
  - 5 V / 2.4 A

  Input Characteristics

• AC rated voltage: 100 – 240 V

• Frequency range: 50 – 60 Hz (±1 Hz)

• Current: ≤ 1 A at 100 VAC 60 HZ

  Output Characteristics

• Rated voltage: 5 / 9 / 12 / 15 / 19 / 20 V

• Current: 3 A maximum (at constant voltage mode)

• Rated power: 60 watts maximum

• Overshoot voltage: ≤ 5%

  Protection Characteristics

• Short circuit (SCP) with auto-recovery mode

• Overvoltage (OVP) with auto-recovery mode

• Overcurrent (OCP) — current limit: 150% (max)

• Overtemperature (OTP)

  Physical

• Dimensions: 7 x 7 x 3 cm (2.76 x 2.76 x 1.18 in.)

• Weight: 0.22 kg (7.5 oz.)

• Housing: plastic

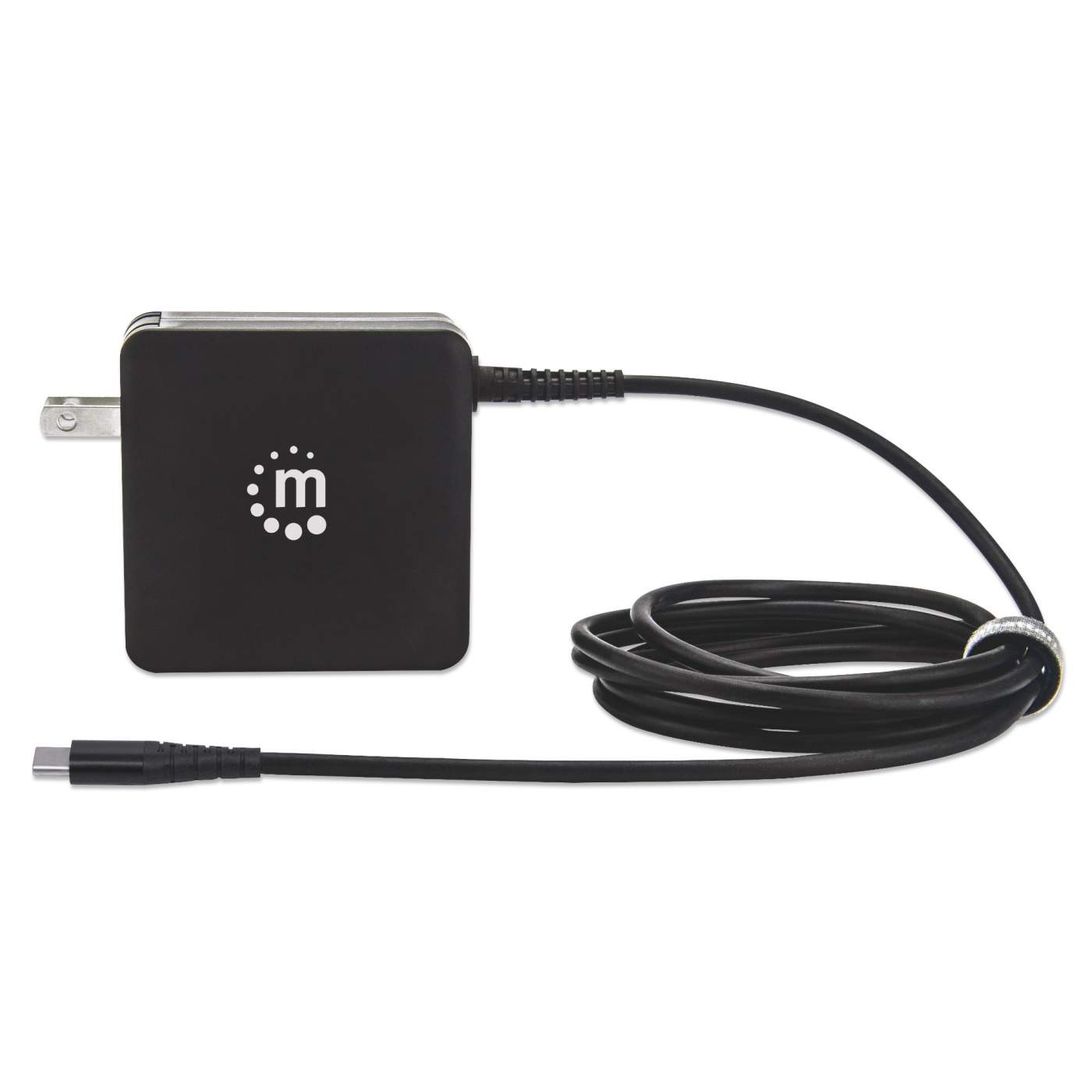

• Cable length: 1.8m

  Operating Environment

• Operation Temperature: 0 – 30°C (32 – 86°F)

• Storage Temperature: -20 – 65°C (-4 – 149°F)

• Humidity (noncondensing): 10 – 90%

  Package Contents

• Power Delivery Wall Charger with Built-in USB-C Cable - 60 W

• Quick Instruction Guide

Warning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• EAN: 0766623180238
• UPC: 766623180238



• Physical Specifications

• Product net weight: 0.06 lbs
• Product gross weight: 0.73 kg
• Dimensions: 2.76 (L) x 2.76 (W) x 1.18 (H) [in]
