USB-A to USB-C Adapter

Type-A to Type-C USB Adapter - Connect new technology to legacy ones with ultra-fast 10G

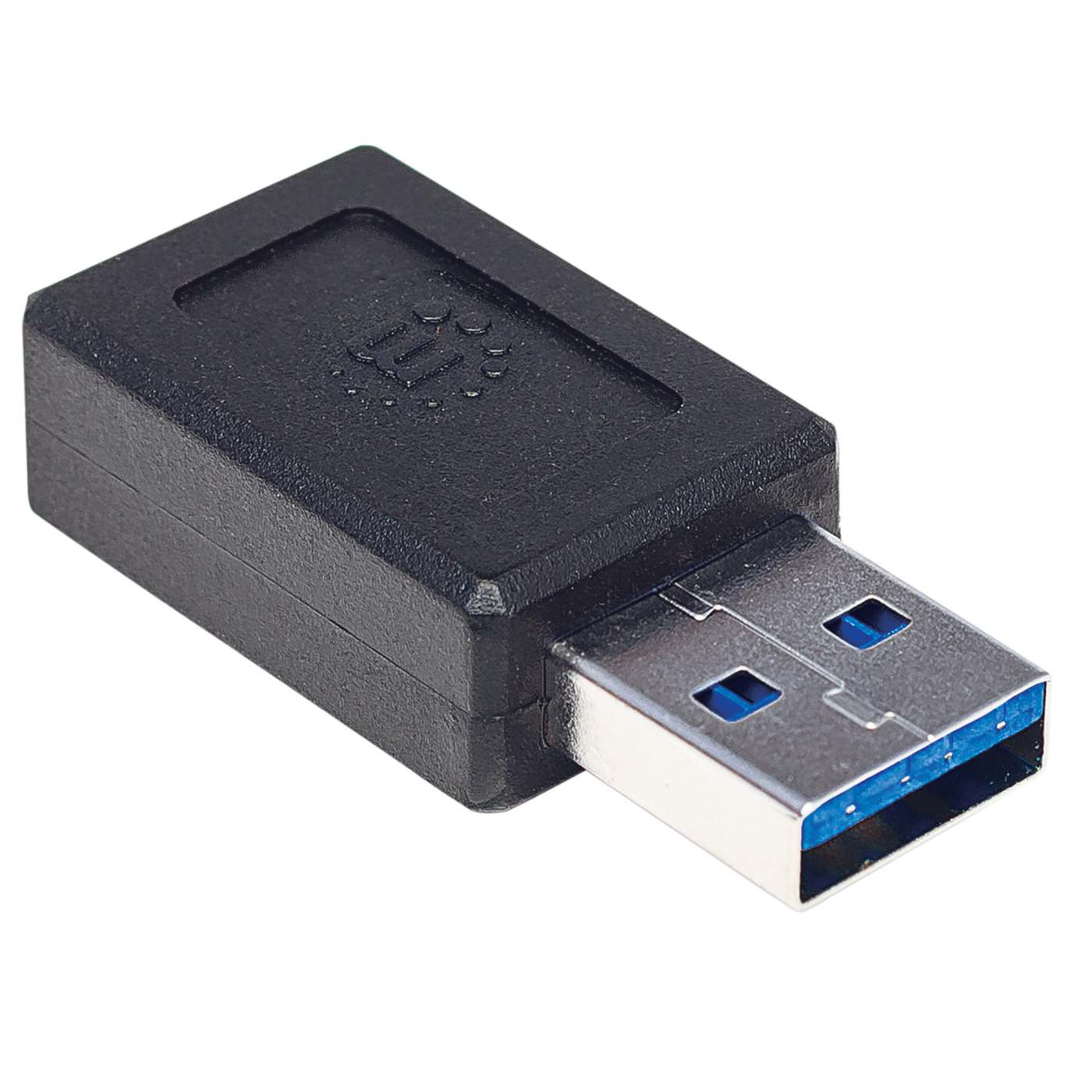

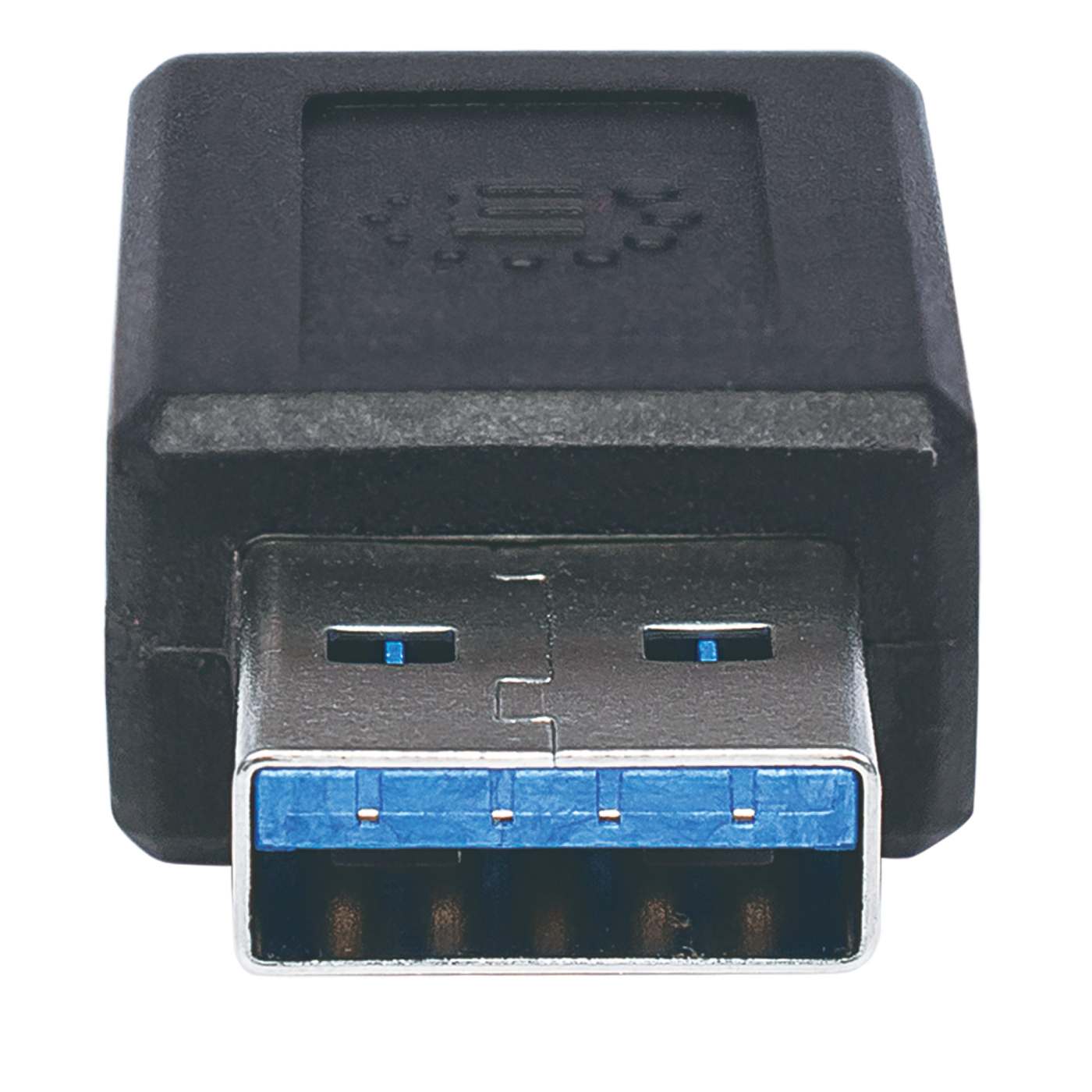

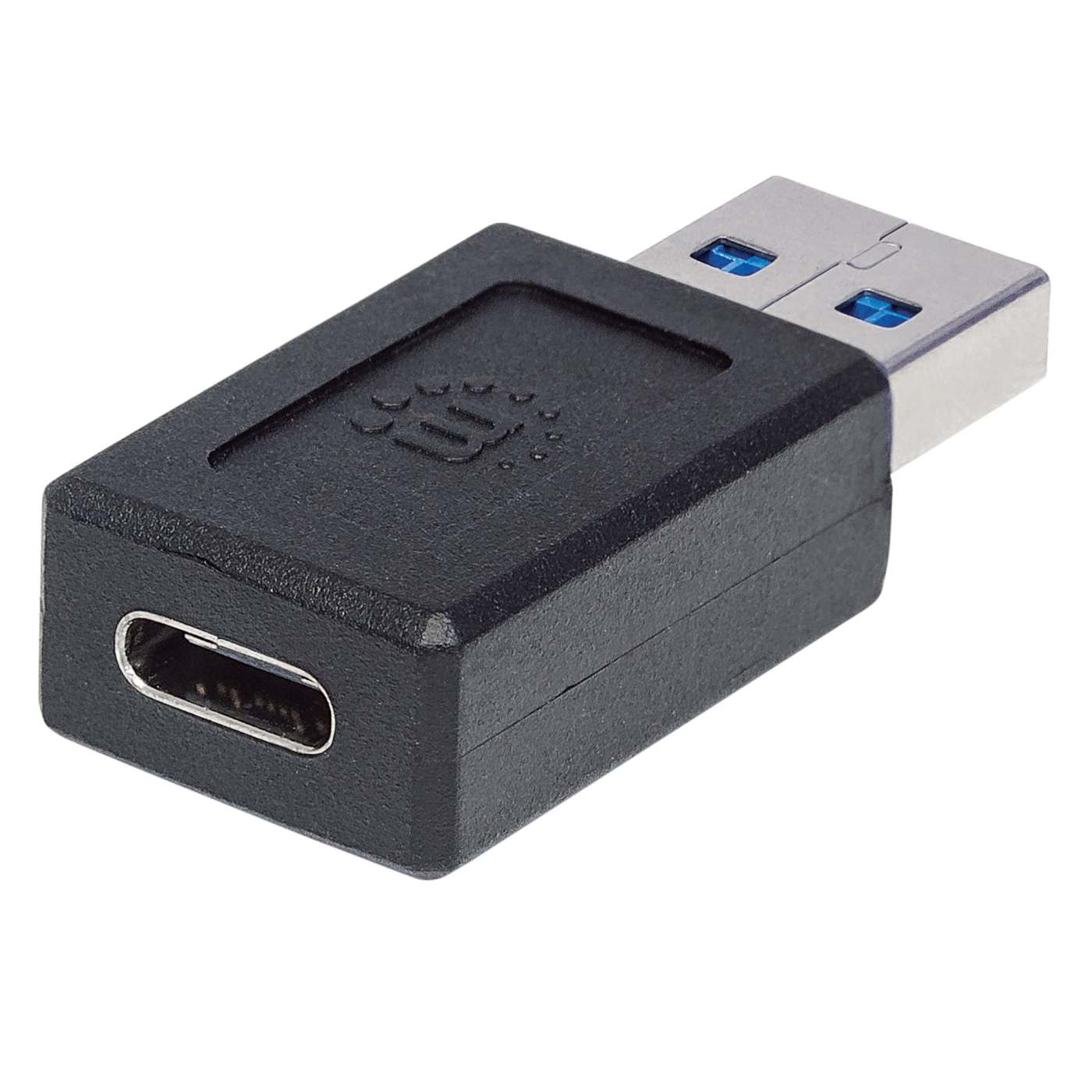

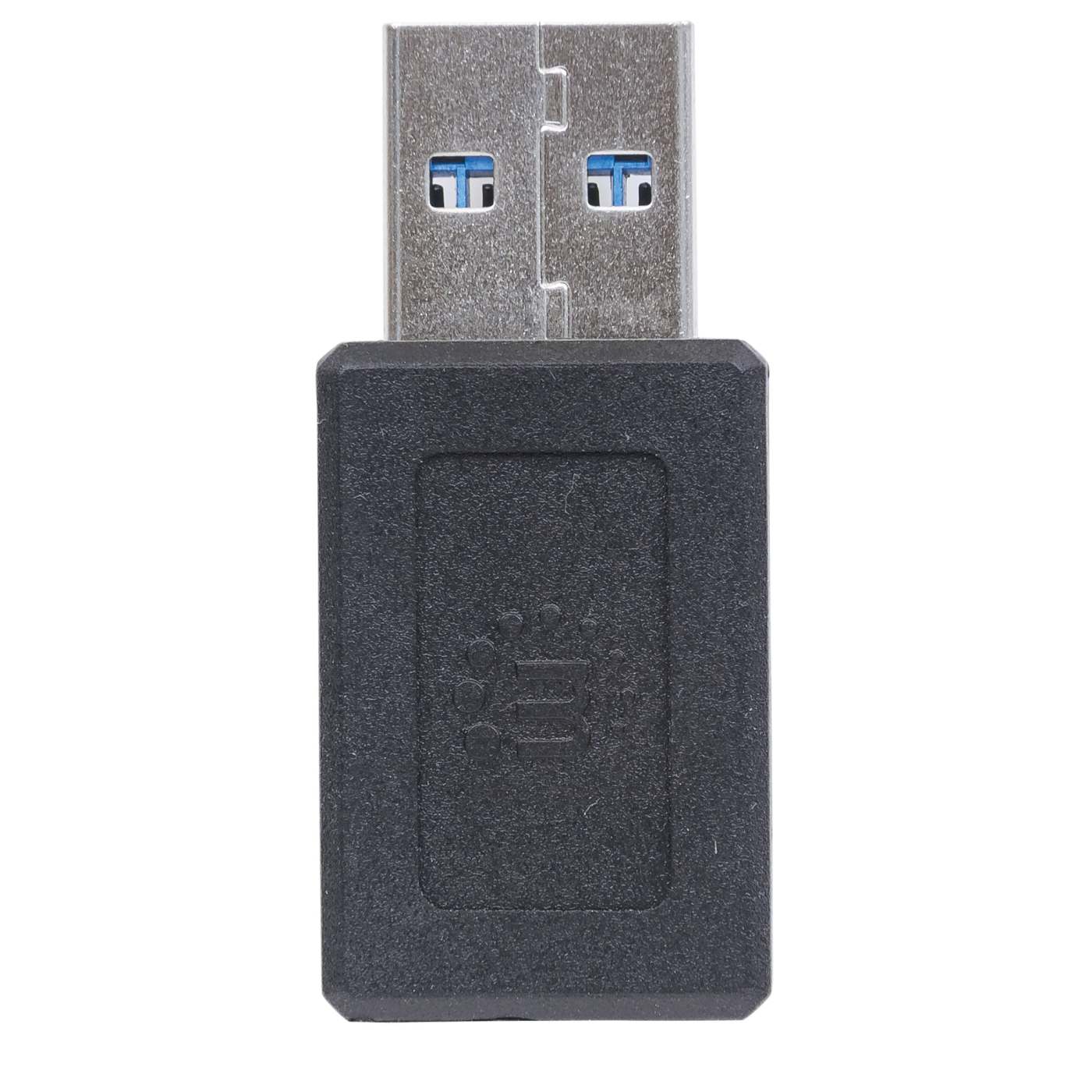

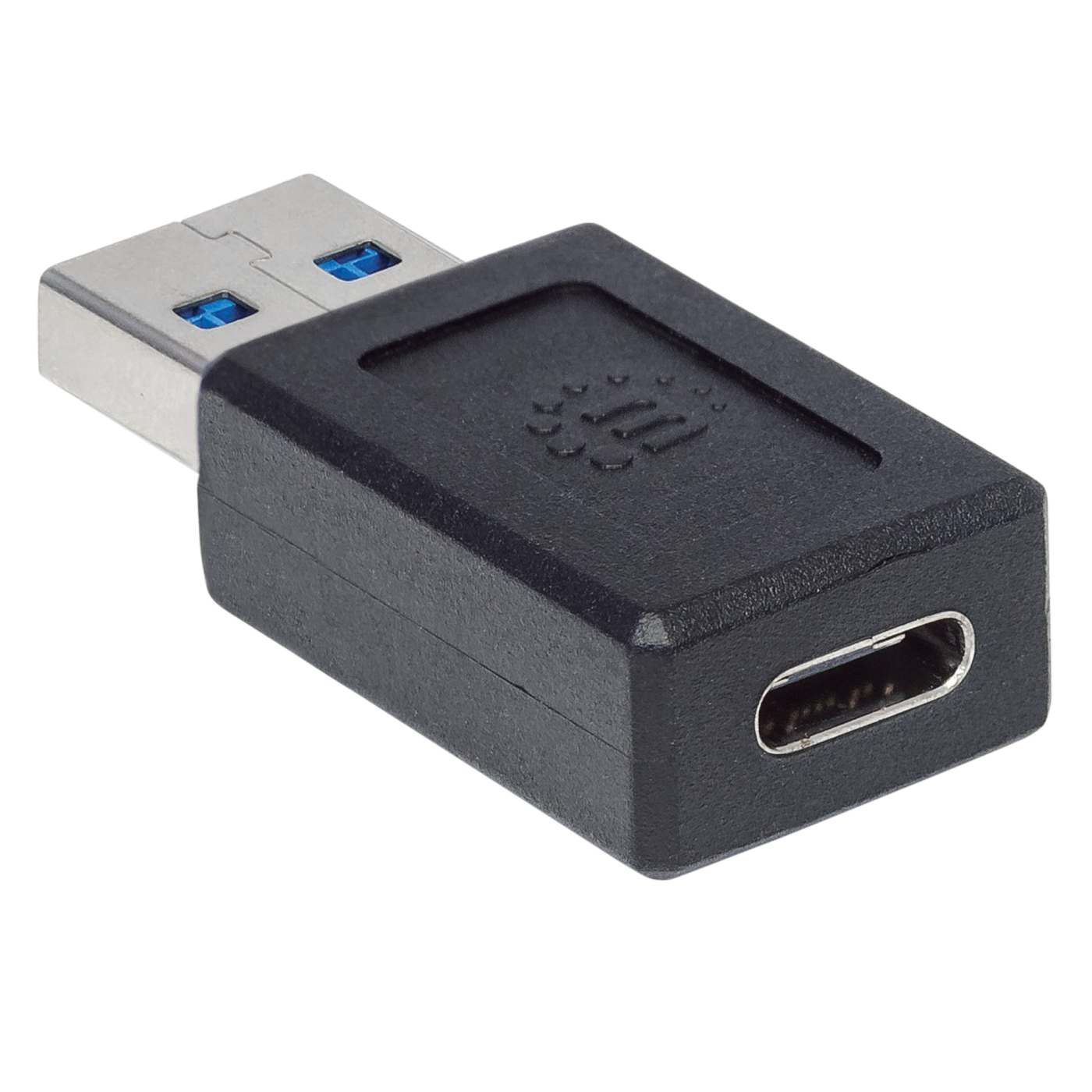

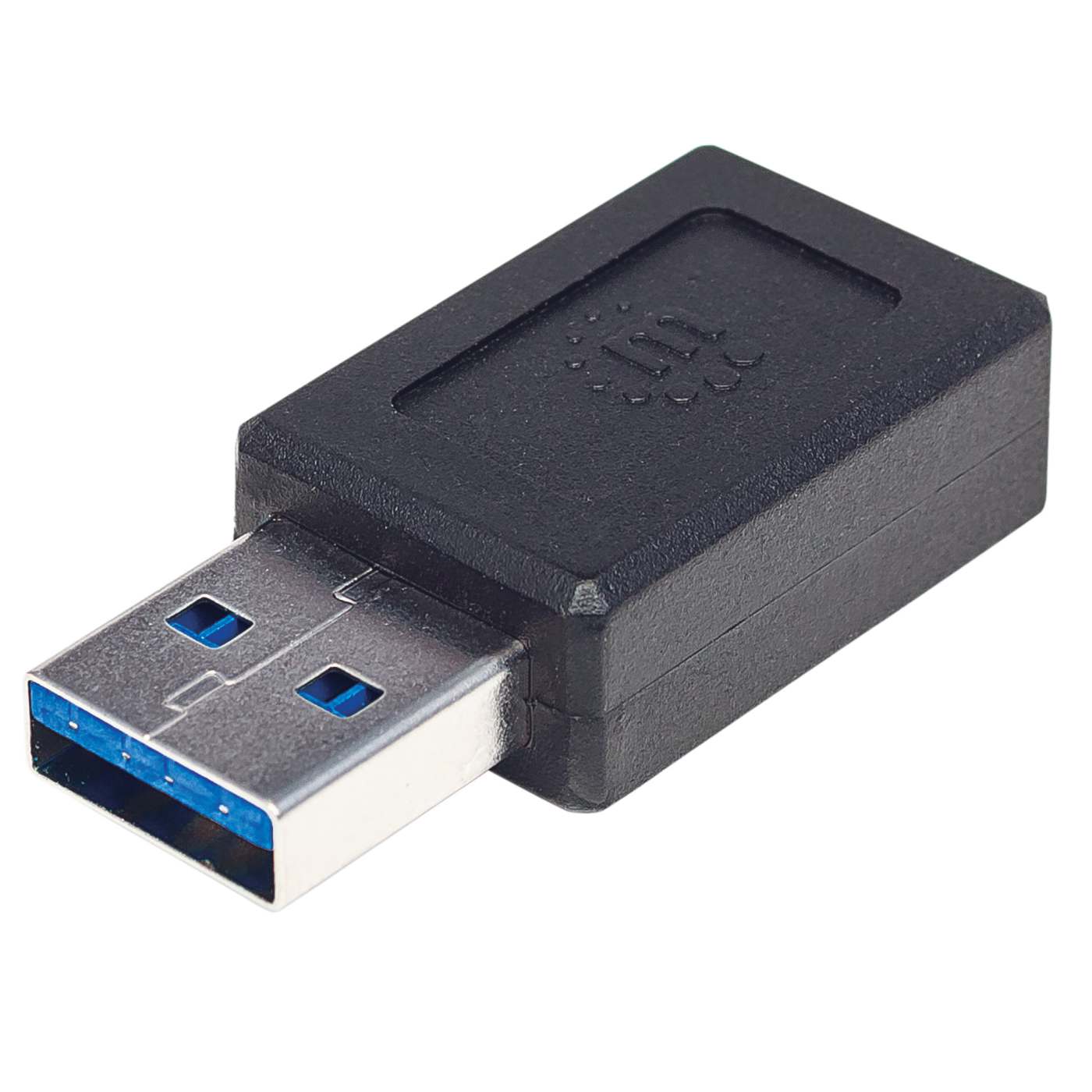

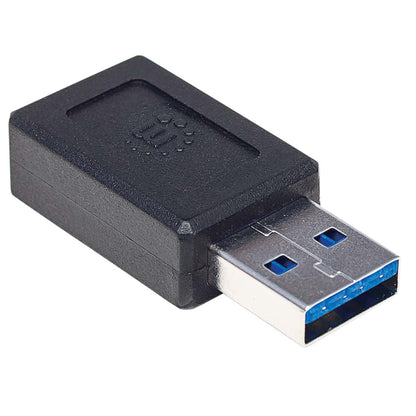

The Manhattan USB 3.2 Gen 2 Type-C to Type-A Adapter is an ultra-compact adapter that allows a USB-C cable or device to connect to a USB Type-A port. Measuring only 27 millimeters (1 in.), the adapter is designed with portability and simplicity in mind. With charge and sync capabilities at up to 3 A and 10 Gbps respectively, you will quickly and easily keep your device ready for whatever is next.

• USB-A adapter for use with USB-C cables
• Connects USB-C cable or device — i.e. hub, card reader, etc. — to Type-A port, allowing devices to charge and sync
• Supports speeds up to 10 Gbps and 3 A charging
• Nickel-plated connections for best performance
• Ultra-compact, portable design
• Lifetime Warranty

Standards and Certifications

• USB 3.2 Gen 2

  General

• Nickel plated

• Molded ABS boot

• 56K Ω resistor

  Connections

• One 9-pin USB Type-A (male)

• One 24-pin USB Type-C (female)

  Electrical

• Insulation resistance: 5M Ω

• Contact resistance: 2 Ω

  Physical

• 27 x 17 x 10 mm (1 x 0.7 x 0.4 in.)

• 8.5 g (0.3 oz)

  Operating Environment

• Operation Temperature: 32 – 104°F (0 – 40°C)

• Storage Temperature: -4 – 140°F (-20 – 60°C)

• Humidity (noncondensing): 0 – 96%

  Package contents

• USB 3.1 Gen2 Type-C to Type-A Adapter

Warning

This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• EAN: 0766623354714
• UPC: 766623354714



• Physical Specifications

• Product net weight: 0.02 lbs
• Product gross weight: 0.02 kg
• Dimensions: 1.5 (L) x 0.68 (W) x 0.4 (H) [in]

• Datasheet
• Datasheet     » Download


• Technical Drawing     » Download


• Declaration of Conformity     » Download
