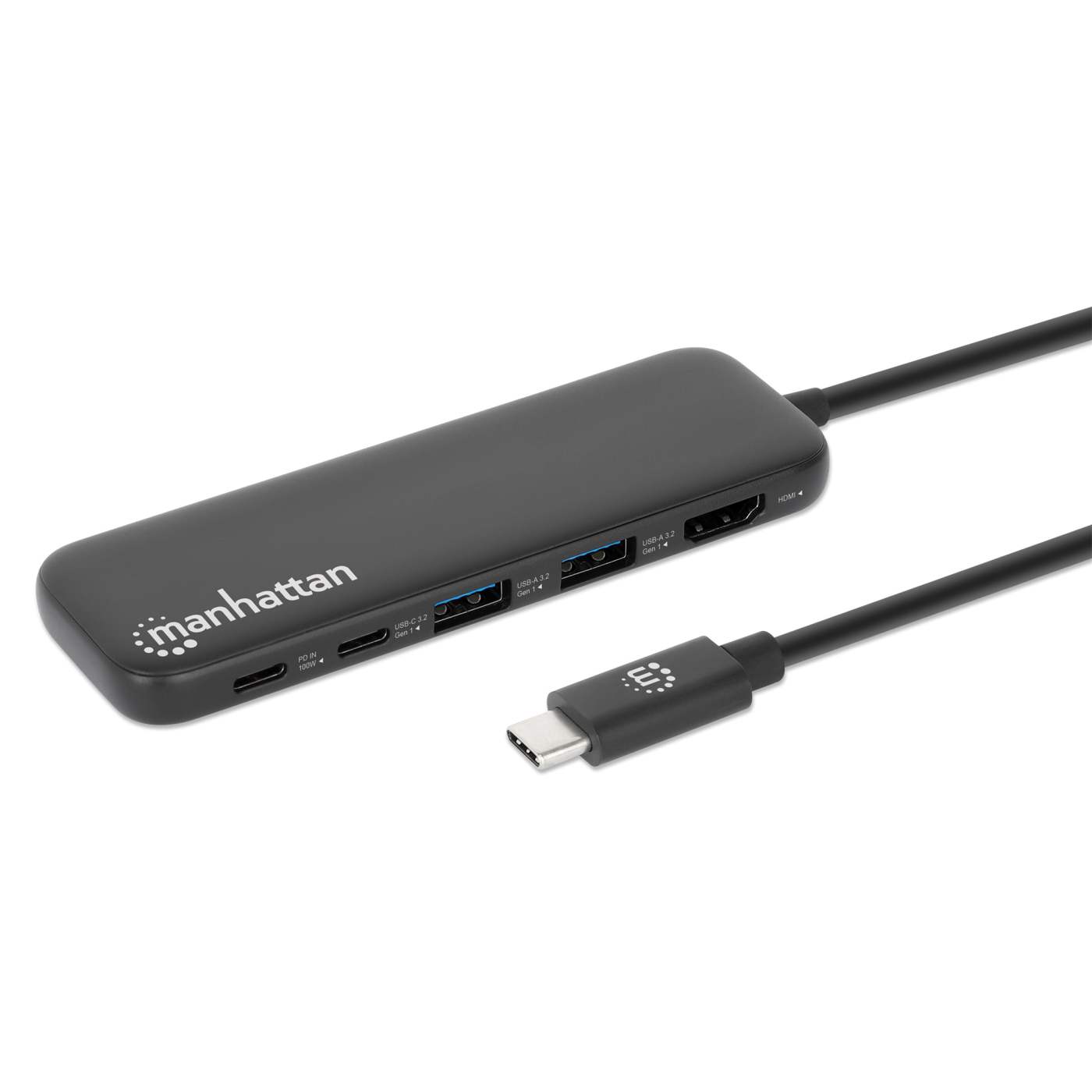

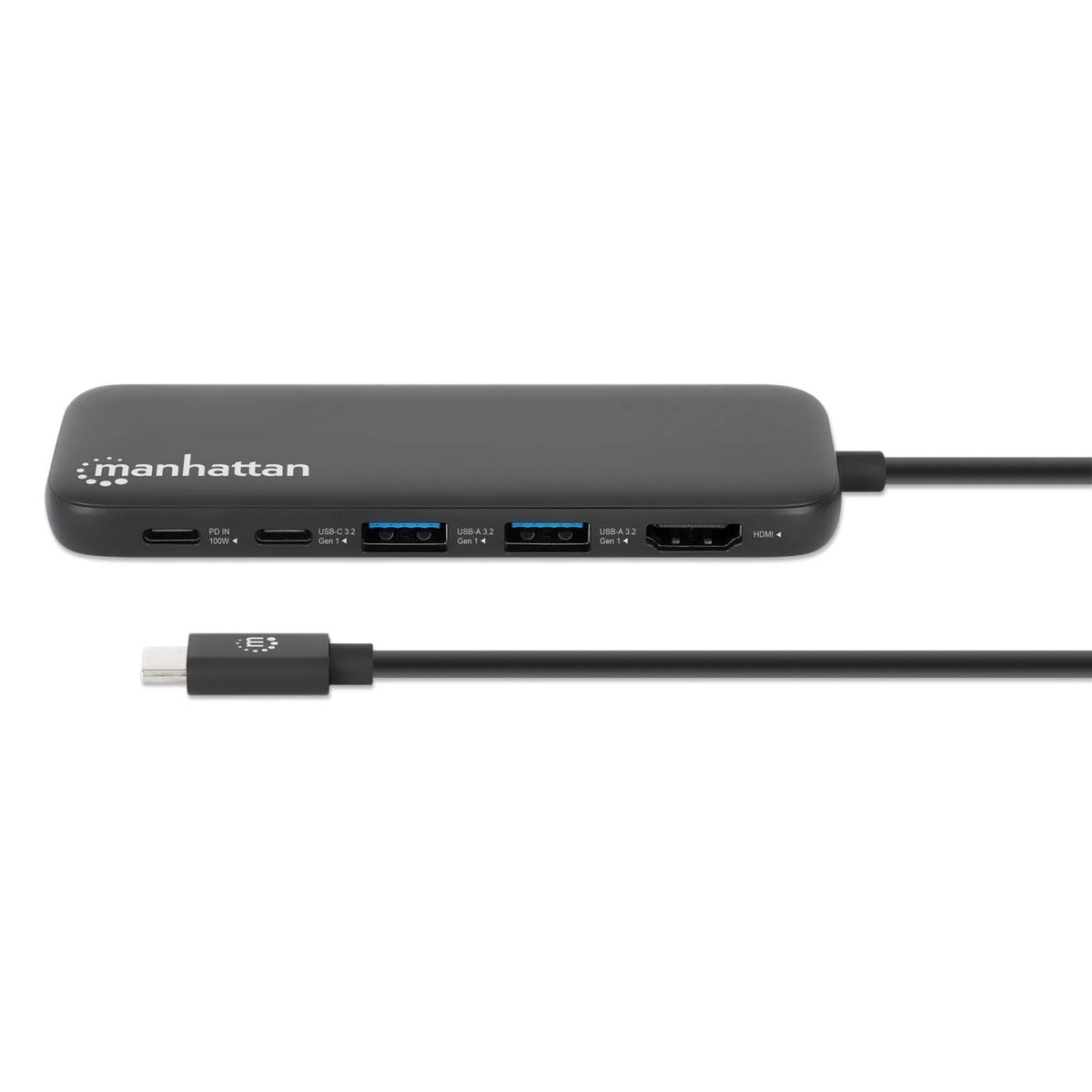

USB-C Docking Station with 100 W PD / 4K HDMI 5-in-1 Multiport USB Hub

USB-C Laptop / MacBook® Docking Station with Power Delivery - connect an HDMI monitor and USB peripherals to your notebook

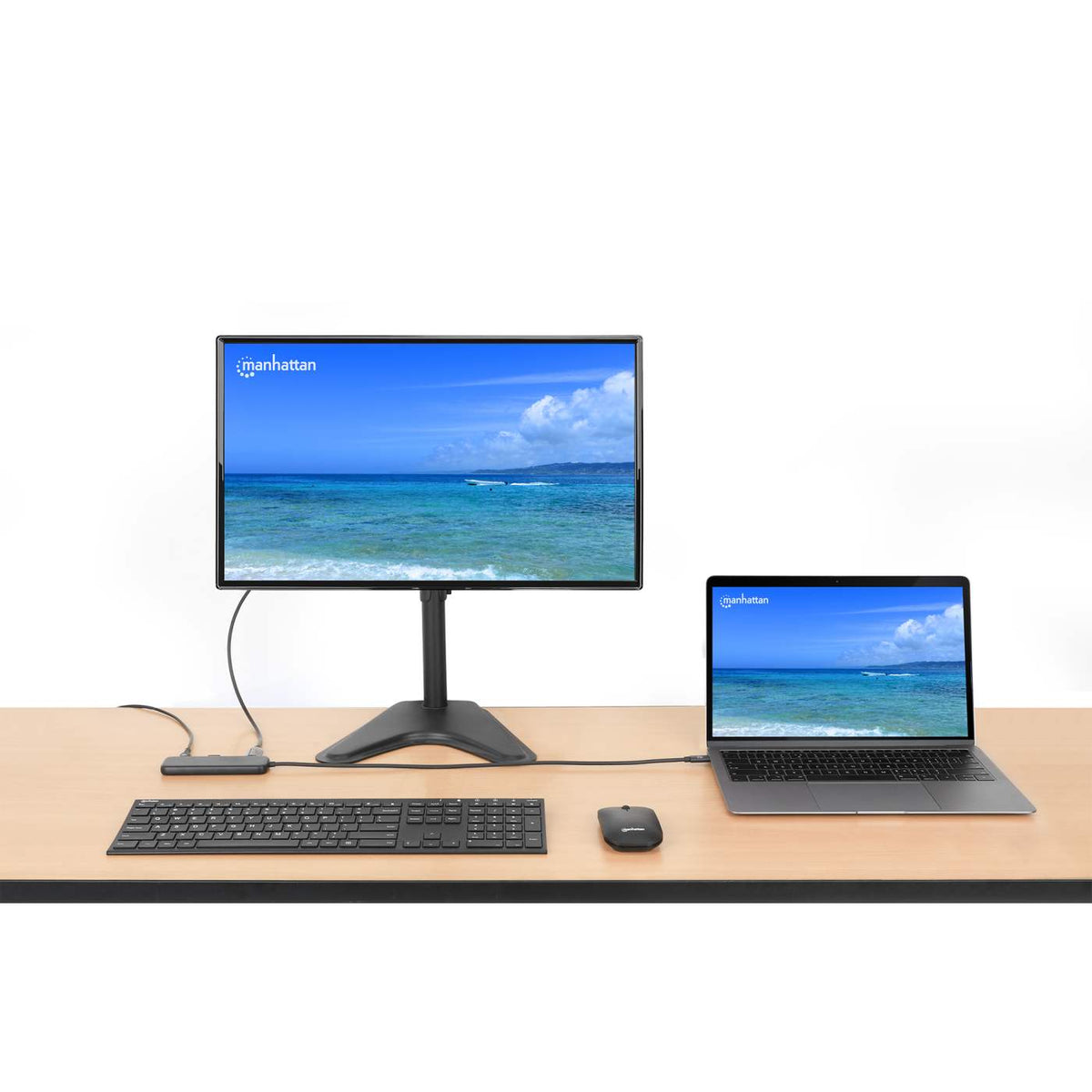

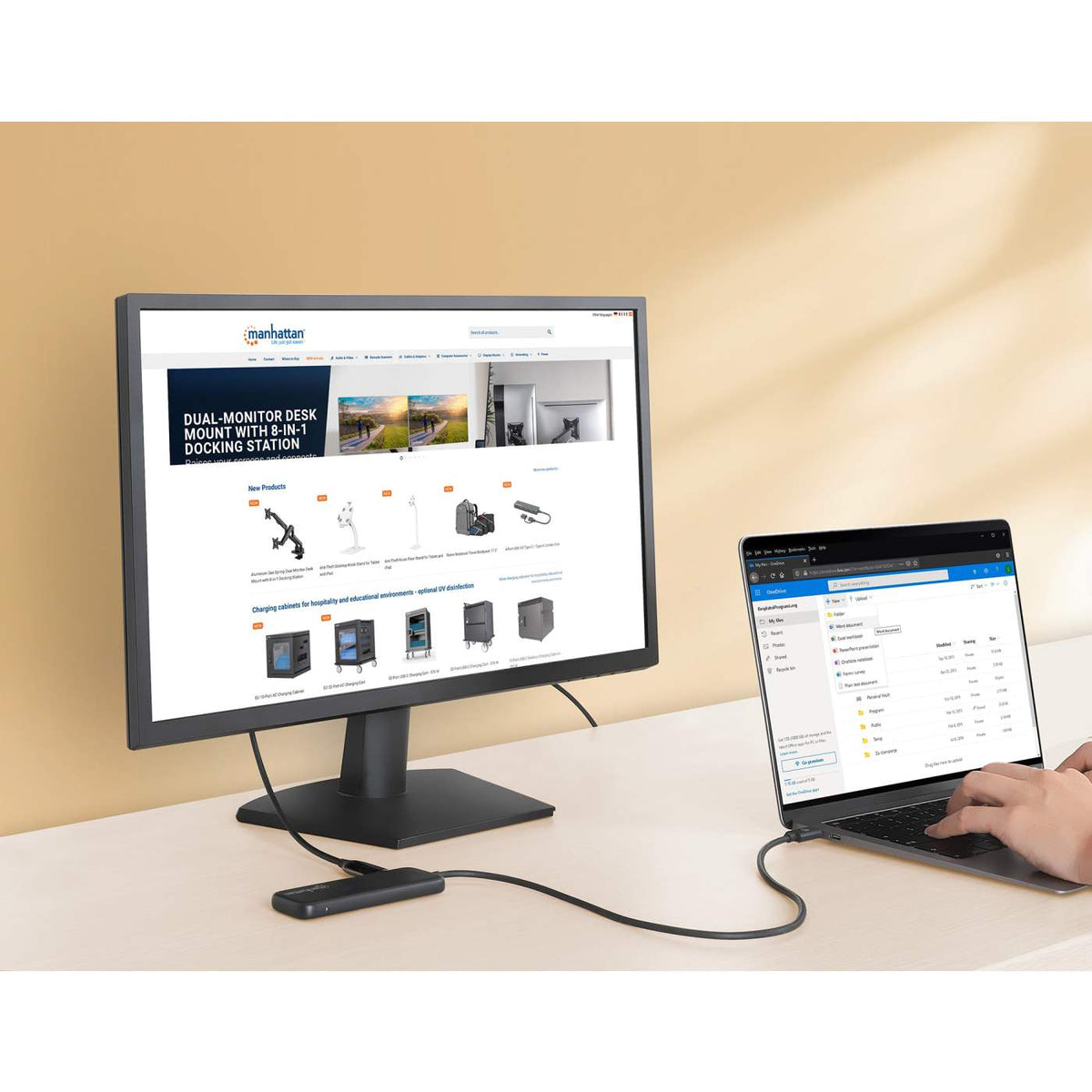

Increase your productivity with this versatile multiport adapter from Manhattan that combines a 4K HDMI connection and a USB hub into one. This USB-C dock establishes a fast, simple and convenient link between newer USB-C-equipped media sources (laptops, PCs, MacBooks, Chromebooks, computers, tablets, etc.) and existing HDMI displays (monitors, TVs and projectors) for 4K30Hz Ultra High Definition (UHD) images.

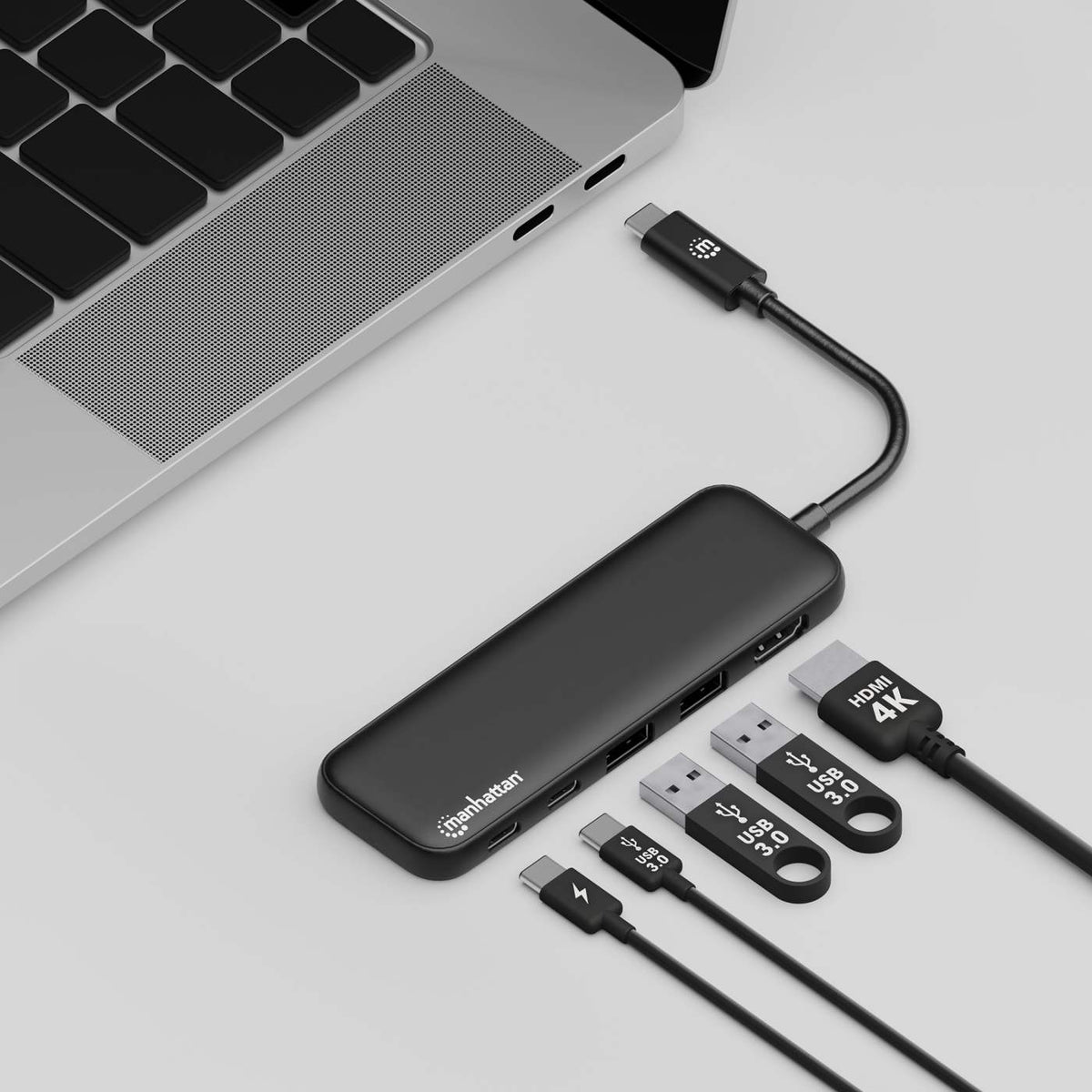

Connections to your peripherals

With three USB data ports (2 x USB-A, 1 x USB-C) and 5 Gbps transfer speeds for mice, keyboards or flash drives, this docking station easily satisfies your connectivity demands.

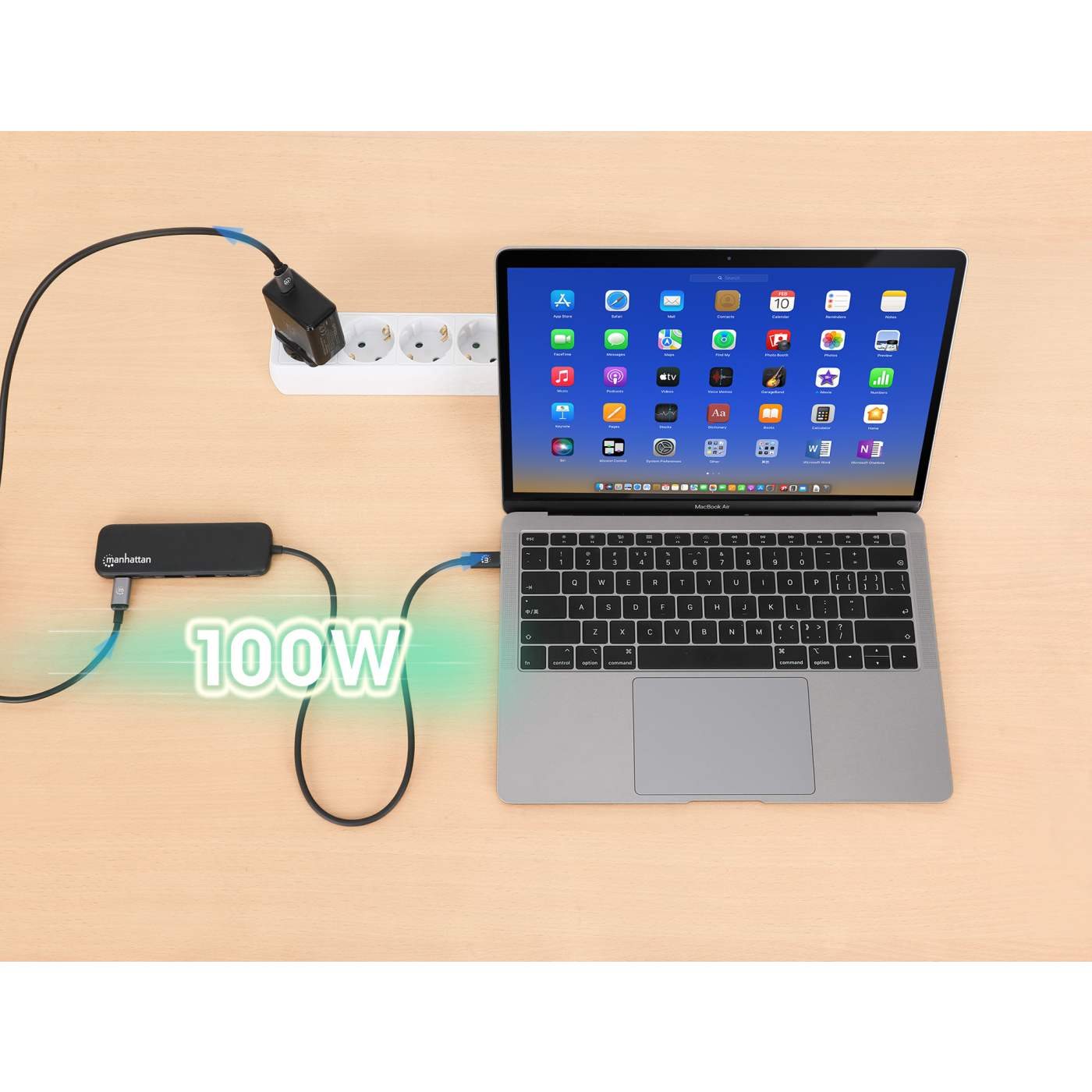

Up to 100 W charging power with USB-C Power Delivery (PD)

The included USB-C PD port lets you charge your notebook with power up to 87 W. Its Power Delivery function provides faster charging than standard chargers, since it determines the power needs of compatible devices and supplies it at the quickest and safest rate.

Take your phone to the big screen

Connect any Android 9 and later smartphone that supports video output over USB-C DP Alt Mode to enjoy your apps and media even more. Watch a video on your monitor or flip through the slides of your presentation, all from your phone.

A multiport adapter that's made to go where you go

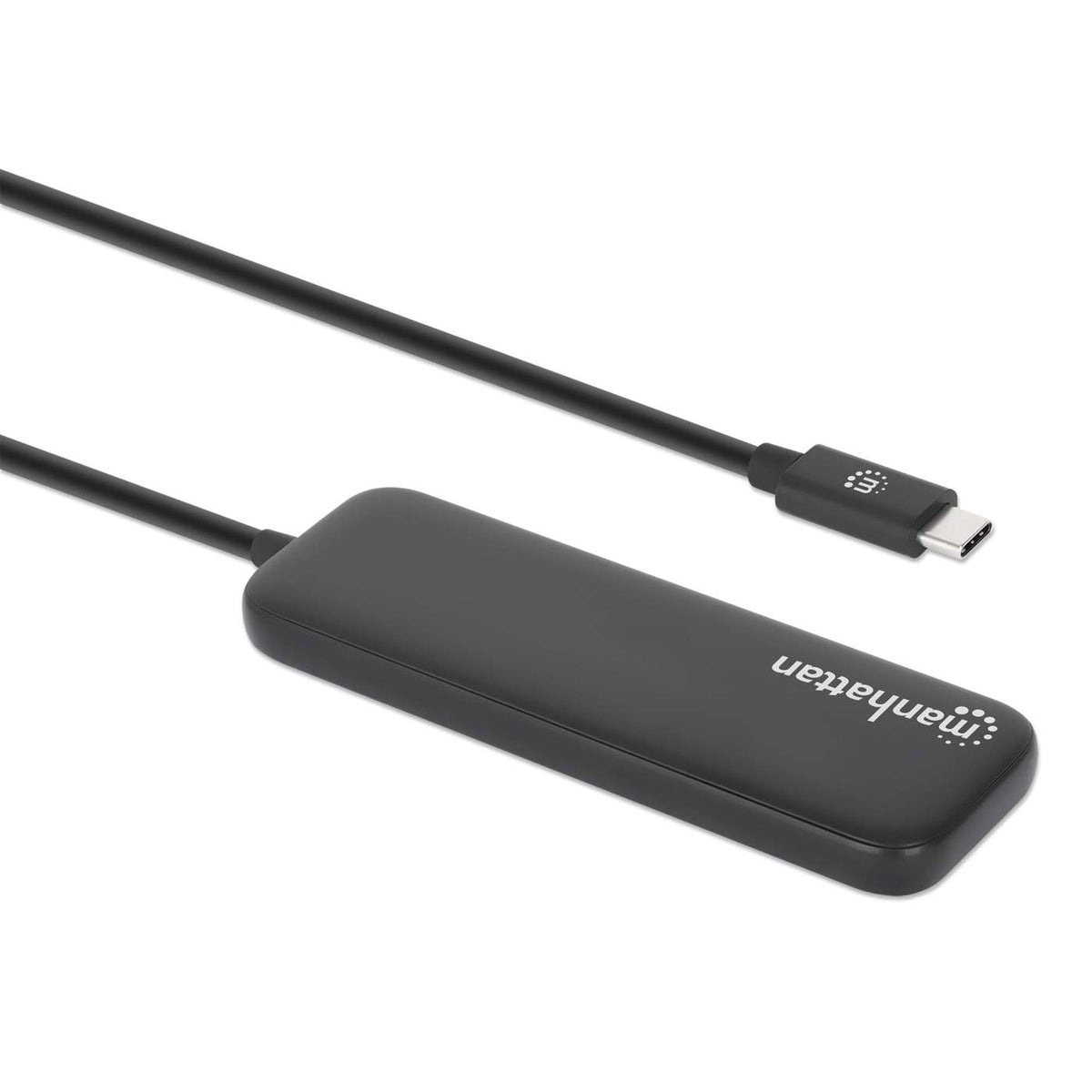

Its sturdy, compact housing makes this multiport adapter the perfect travel companion. A footprint of only 4.8 x 1.61 x 0.39 in. (122 x 41 x 10 mm) is small enough to easily fit in an outer notebook bag pocket.

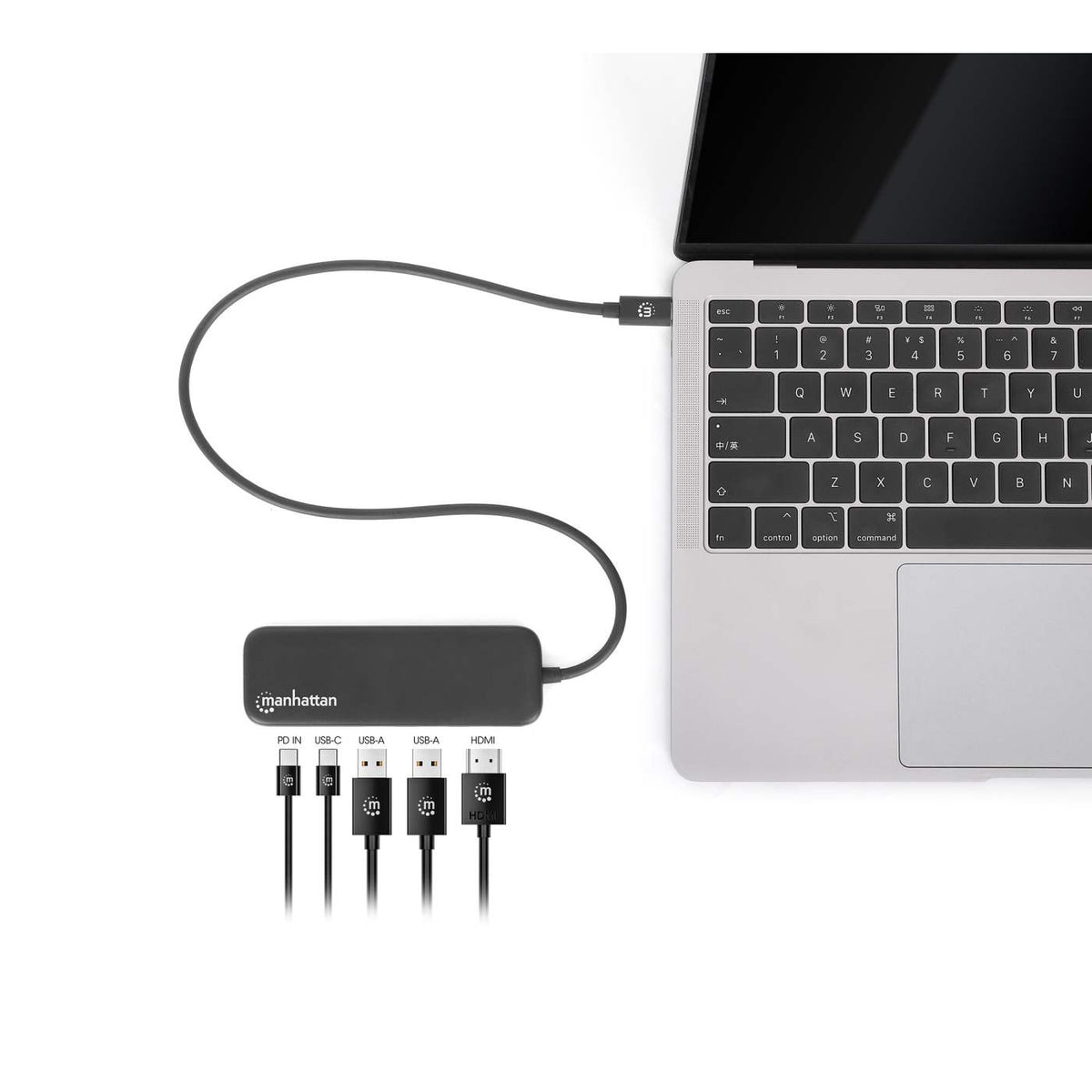

• Connects your laptop to your HDMI monitor and peripherals with an optional charging input
• One HDMI port with resolutions up to Ultra-High-Definition (UHD) 4K@30Hz (3840×2160)
• Charges your laptop with USB Power Delivery (PD) up to 85 W; requires an external PD charger - available from Manhattan
• Two USB 3.2 Gen 1 (formerly USB 3.0) Type-A ports with SuperSpeed transfer rates up to 5 Gbps
• One USB 3.2 Gen 1 Type-C data-only port with transfer rates up to 5 Gbps
• USB-A ports to connect mice, keyboards, flash drives and more or to charge and sync mobile devices
• Compatible with all USB-C DP-Alt-Mode-supported desktops, notebooks and tablets including Apple® MacBook®, Chromebook™, Pixel™ and more
• Compliant with DisplayPort 1.4 Alternate Mode (DP Alt Mode)
• Lets your smartphone work like a desktop PC while also charging it (phone with USB-C DP-Alt-Mode support required)
• Plug-and-play installation; Windows®, macOS®, Chrome OS™ and Android™ compatible
• Supports PD 3.0 Fast Role Swap (FRS) - the connection between the docking station and laptop is not interrupted when the charger is unplugged

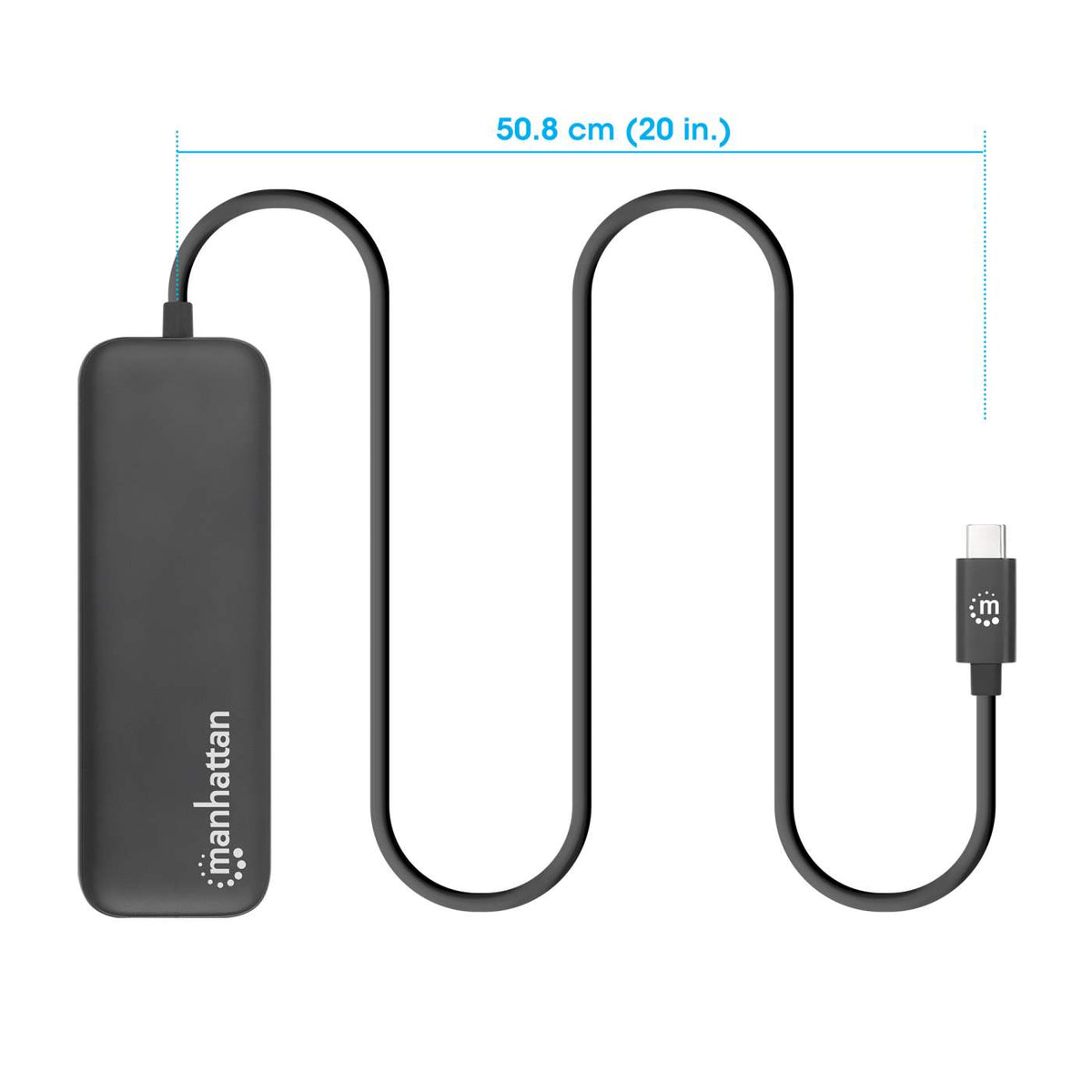

• Extra-long 20 in. (50 cm) built-in cable for easy placement when connected to any laptop port
• Fully HDCP 1.4 compliant, backward compatible
• Three-year warranty

Standards and Certifications

• USB 3.2 Gen 1

• HDMI 1.4

• HDCP 1.4

• CE

• FCC

• RoHS

• REACH

• UKCA

  General

• Max. video resolution: 4K (3840 x 2160 pixels) at 30 Hz

• USB-A ports data transfer speed: 5 Gbps; charging: 2.5 W (5 V / 0.5 A) max.

• USB-C port data transfer speed: 5 Gbps

• Bus-powered operation (except charging functions)

• USB-C PD charging port: 100.0 W input / 85.0 W output max.
  - Voltage/current settings (maximum):
  - 5.0 V / 3.0 A
  - 9.0 V / 3.0 A
  - 15.0 V / 3.0 A
  - 20.0 V / 5.0 A

  Connections

• One USB-C 24-pin, male

• One HDMI 19-pin, female

• Two USB-A 9-pin, female

• One USB-C 24-pin, Power Delivery, female

• One USB-C 24-pin, data only, female

  Physical

• Dimensions (L x W x H): 4.8 x 1.61 x 0.39 in. (122 x 41 x 10 mm)

• Net weight: 0.13 lbs. (60 g)

• Gross weight: 0.2 lbs. (90 g)

• Cable length: 20 in. (50 cm)

• Cable diameter: 34 AWG

• Plastic housing

  Operating Environment

• Operation temperature: 32 - 104°F (0 - 40°C)

• Storage temperature: -40 - 140°F (-40 - 60°C)

• Humidity (noncondensing): 5 - 90% RH

  System Requirements

• Windows 7/8.1/10/11, Chrome OS, macOS or Android

  Package Contents

• USB-C PD 5-in-1 4K Docking Station / Multiport Hub

• Instructions

• Additional SKUs

• EAN: 0766623130721
• UPC: 766623130721



• Physical Specifications

• Product net weight: 0.13 lbs
• Product gross weight: 0.24 kg
• Dimensions: 4.8 (L) x 1.61 (W) x 0.39 (H) [in]
