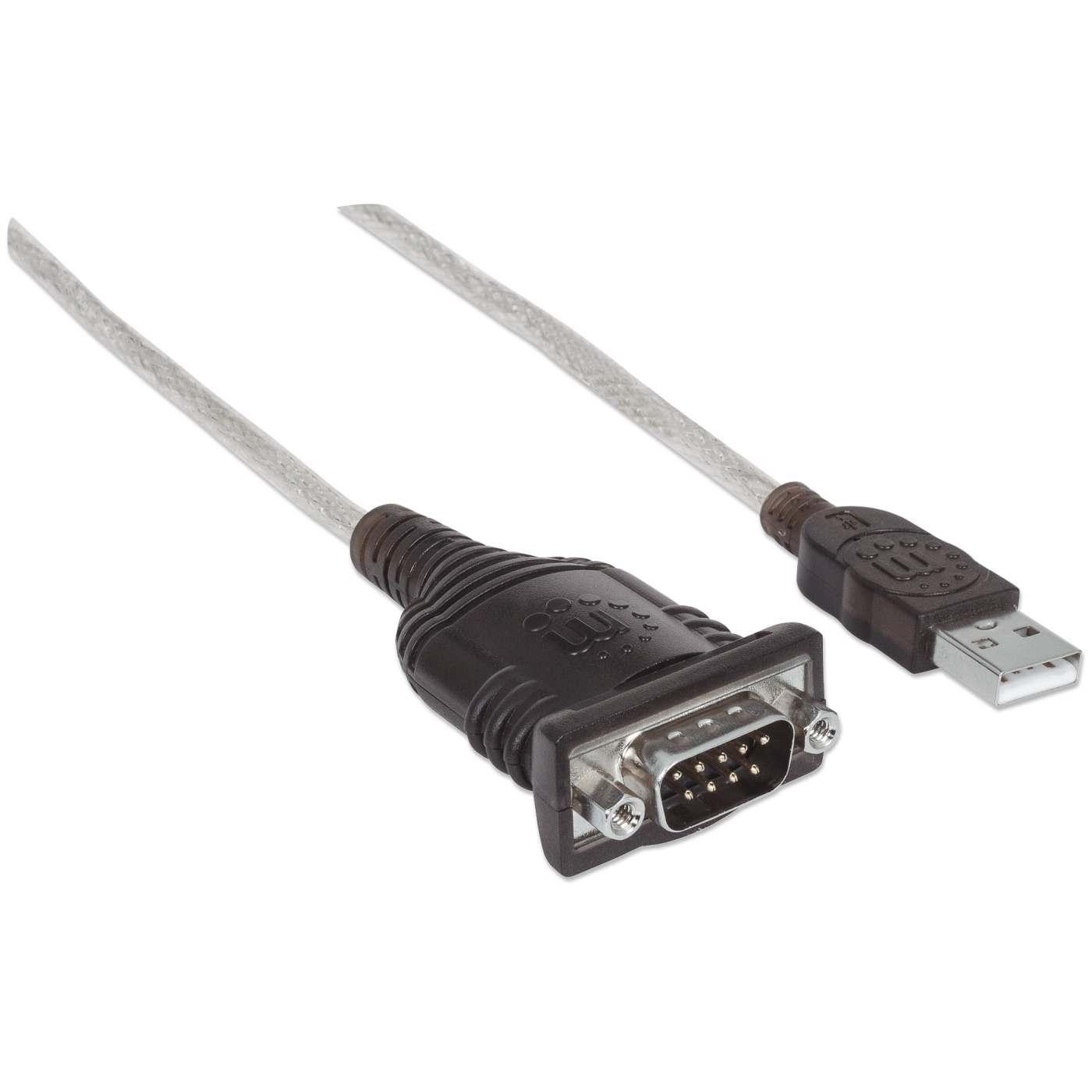

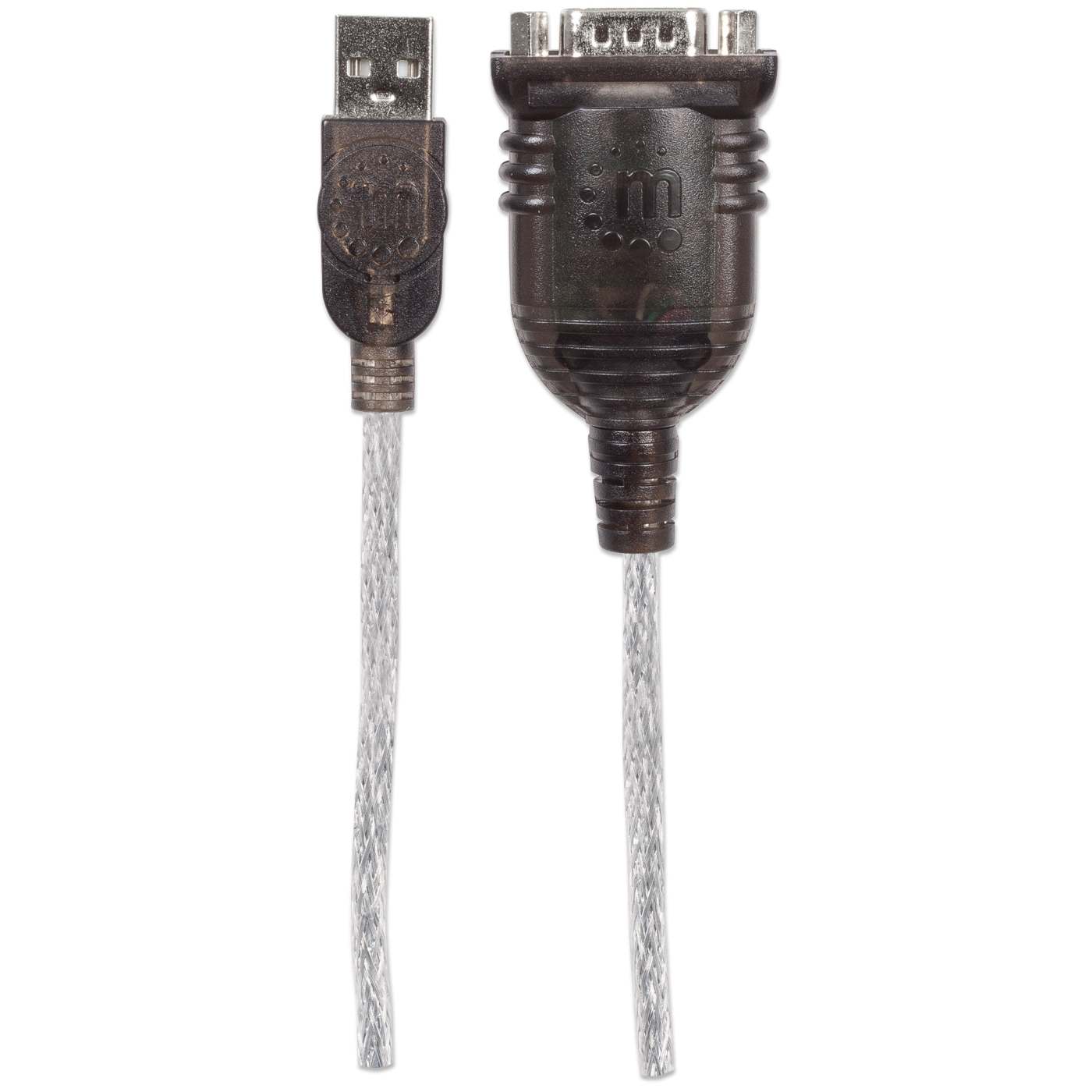

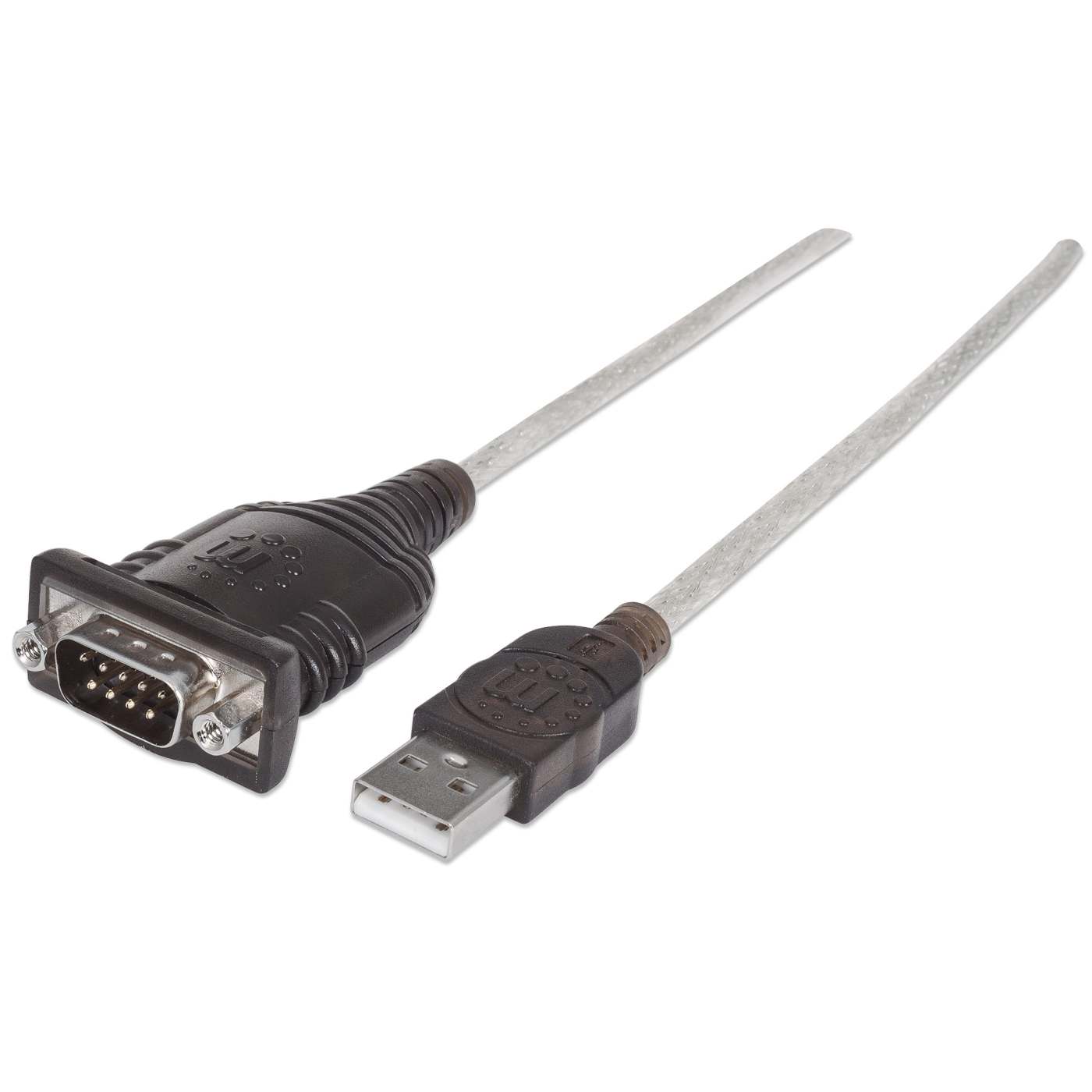

USB to Serial Converter
USB to Serial Converter
Connects One Serial Device to a USB Port, Prolific PL-2303 Chip, 45 cm (18 in.)
Highlights
- Quickly converts a USB port to a Serial/RS232/COM/DB9 port
- The customizable and compatible Prolific PL-2303 chipset makes it the ideal solution for many OSs and platforms
- Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more
[ view high resolution images ]

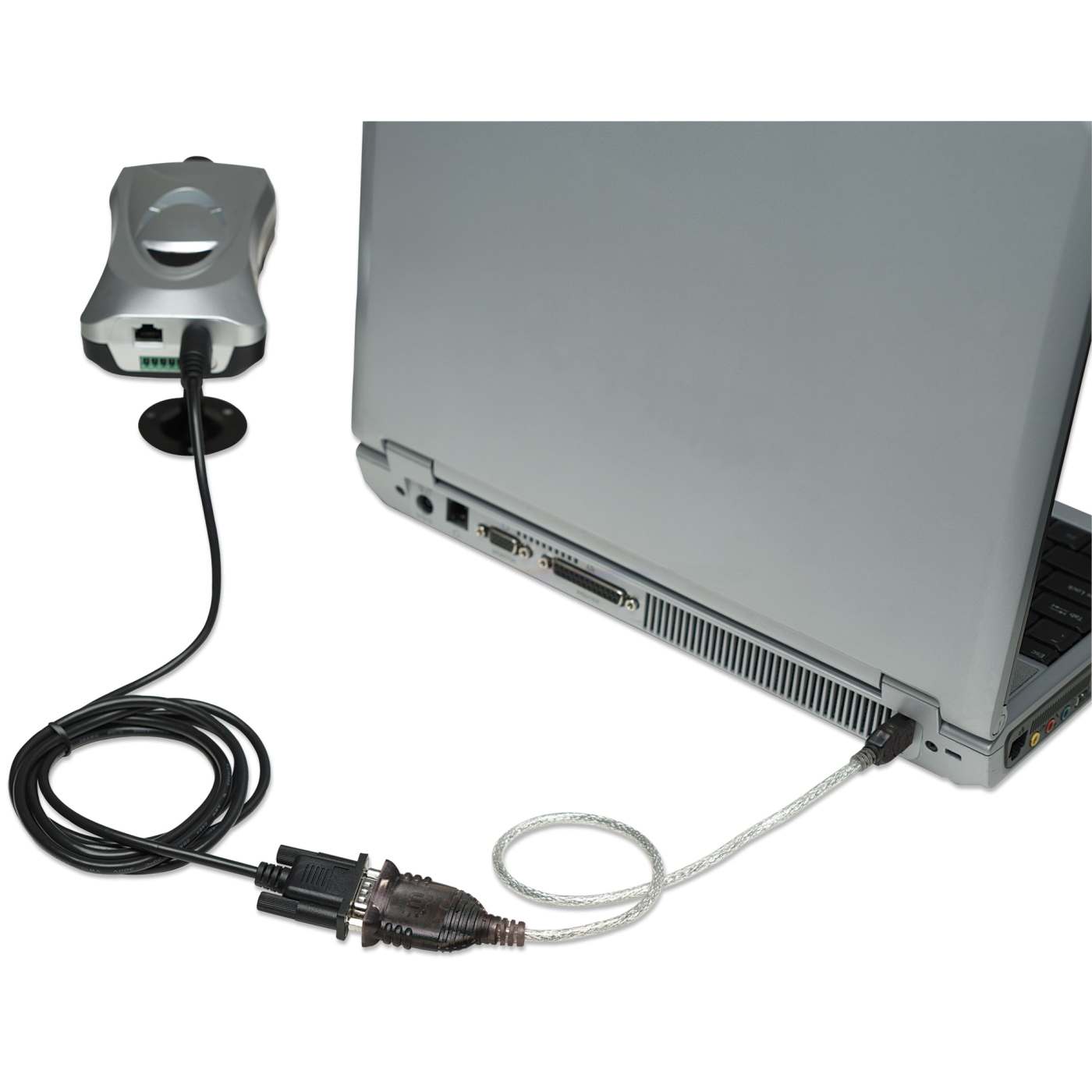

Easily connect serial devices through a USB port
Most modern computers and laptops don't have RS232 (DB9) ports, making the use of legacy peripherals and high-tech devices which connect with COM ports almost impossible. The Manhattan USB to Serial Converter — with its serial RS232 (DB9) port and Prolific PL-2303 chipset — easily expands a single USB port to connect and support serial modems, barcode scanners, digital cameras, card readers, Ham/Amateur Radios, GPS, CNC machines, telescopes, embroidery machines, fuel injection controllers, PDUs, network switches and other devices.
Quality Construction and Easy Installation
Gold-plated contacts and rugged construction combine to offer a reliable connection between the computer and serial peripherals for consistent, trouble-free performance. Windows compatibility with plug-and-play installation and hot-swappability help provide seamless use without inconvenient and frustrating device conflicts.
- Quickly converts a USB port to a Serial/RS232/COM/DB9 port
- The customizable and compatible Prolific PL-2303 chipset makes it the ideal solution for many OSs and platforms
- Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more
- Install as a standard COM/RS-232 port to provide serial connectivity for legacy and high-tech devices
- Chipsets PL-2303HXD and FTDI FT232RL configurations are also available at www.ManhattanProducts.com
- Windows compatible; plug and play; hot-swappable
- Three-Year Warranty
- Standards and Certifications
- CE
- FCC
- USB 1.0
- USB 1.1
- RoHS
- WEEE

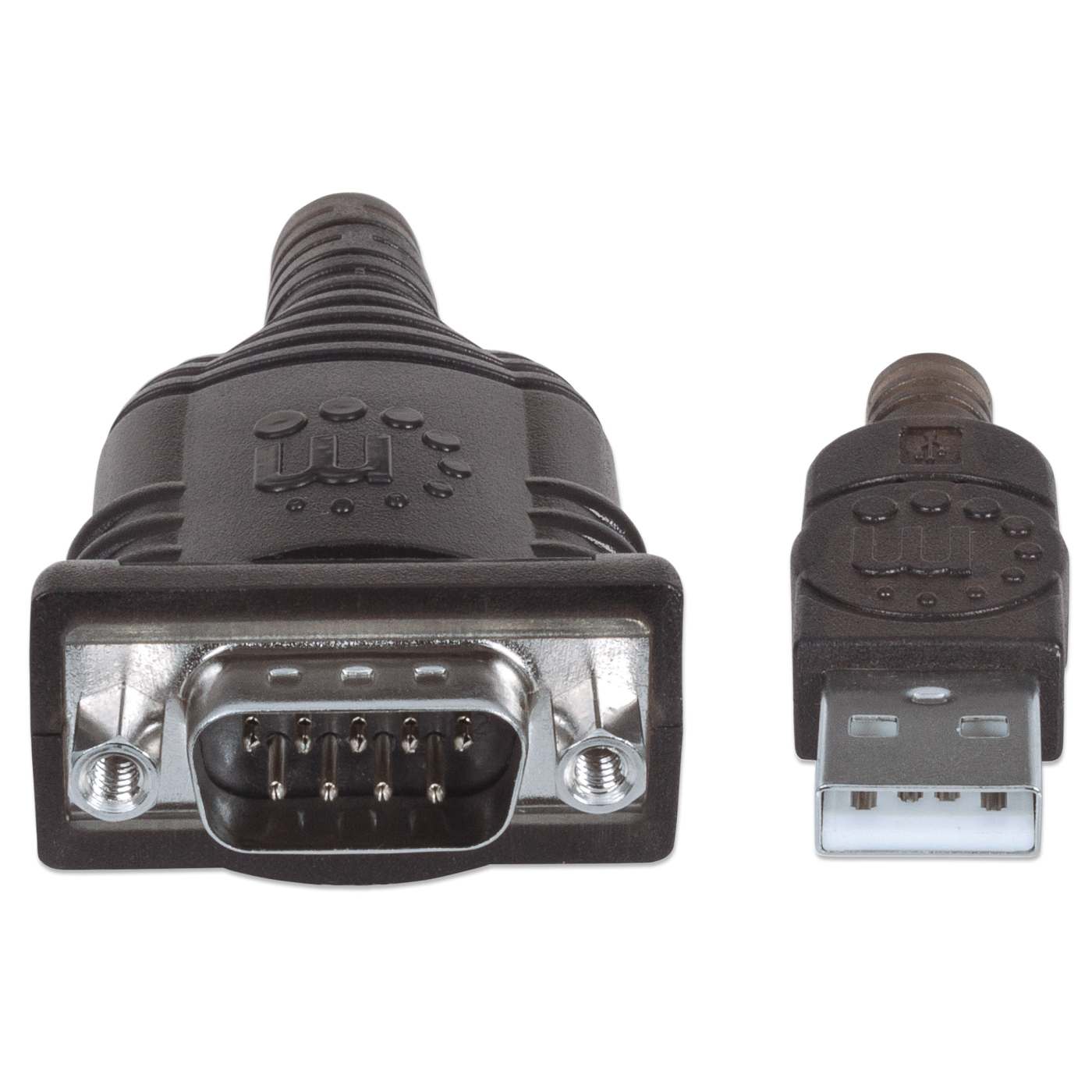

Connections - USB port; type-A male

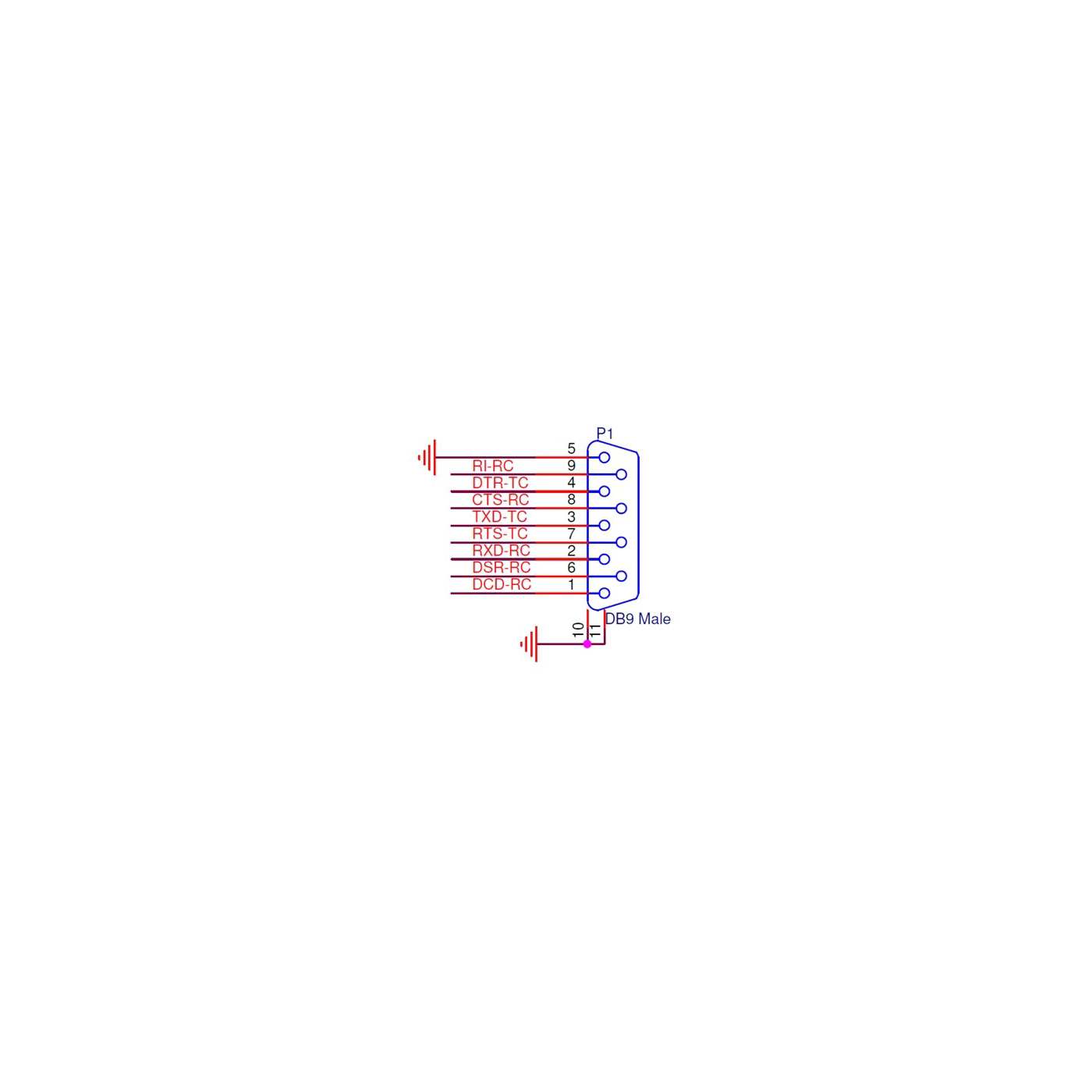

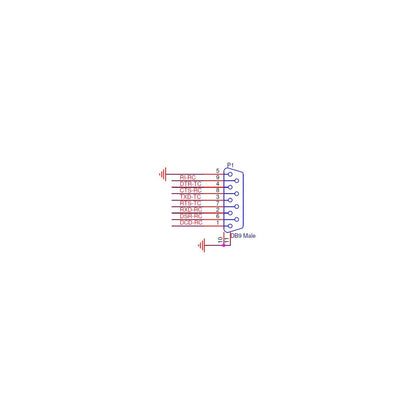

- Serial/COM/RS232/DB9 port; 9-pin male
General - Transfer rate: up to 115 kbps
- Bus powered
- Prolific PL-2303 chipset
Physical - 24 AWG cable gauge
- Cable length: 45 cm (18 in.)
- Net weight: 30 g (1.06 oz.)
- Gross weight: 41 g (1.45 oz.)
System Requirements - Windows XP/Vista/7/8/8.1/10/11 or Linux or Mac 9.x/10.x or above
Package Contents - USB to Serial Converter
- Instructions
Additional SKUs
- EAN: 0766623205153
- UPC: 766623205153
Physical Specifications
- Product net weight: 0.07 lbs
- Product gross weight: 0.09 kg
- Dimensions: 18 in.
Warning
This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.- Driver
- Mac Drivers
Drivers for Mac 8,9, and 10.x » Download - Windows Drivers
Drivers for Windows 2000,XP and Vista » Download - Windows 2000/XP/Server2003 (32-bit) Windows Vista/7/Server2008 (32 & 64-bit)
Note: Use this driver ONLY to fix GPS Device detected as Microsoft Serial Ballpoint Issue. » Download - Drivers
Latest Drivers for
Mac 8.6 and above
Linux
Windows CE
Windows XP, Vista, 7 » Download - Driver (MAC OS X)
(10.6 -> 10.12) » Download - Driver (Linux) » Download
- Driver Installer for Windows
- WDF Driver: v3.8.25.0 (7/12/2018) - Windows 7/8.1/10
- WDM Driver: v3.8.24.0 (7/05/2018) - Windows XP » Download - Driver 1.12.0 for Windows
For Windows 10 (32 & 64-bit), Windows Vista, 7, 8, 8.1 (32 & 64-bit), Windows Server 2008, 2008R2, Server 2012, Server 2012R2 (64-bit), Windows 2000, XP, Server 2003 (32 & 64-bit) » Download - Mac OS X Universal Binary Driver v2.1.0
For Mac OS Big Sur (version 11) - see NOTE below
For Mac OS Catalina (version 10.15) .
For Mac OS High Sierra (version 10.14)
For Mac OS High Sierra (version 10.13)
For Mac OS X Sierra (version 10.12)
For Mac OS X El Capitan (version 10.11)
For Mac OS X Yosemite (version 10.10)
For Mac OS X Mavericks (version 10.9)
For PL2303 H/HX/HXD/EA/RA/SA/TA/TB chip versions
For Prolific USB VID_067B&PID_2303 Only
For PL2303GC, GS, GT, GL, GE , GD, GR chip versions
Includes Driver Installation Manual » Download - Windows 11
Release Date: December 2021 » Download - Utility
- Chipset Check
(identify which chipset the converter uses) » Download
