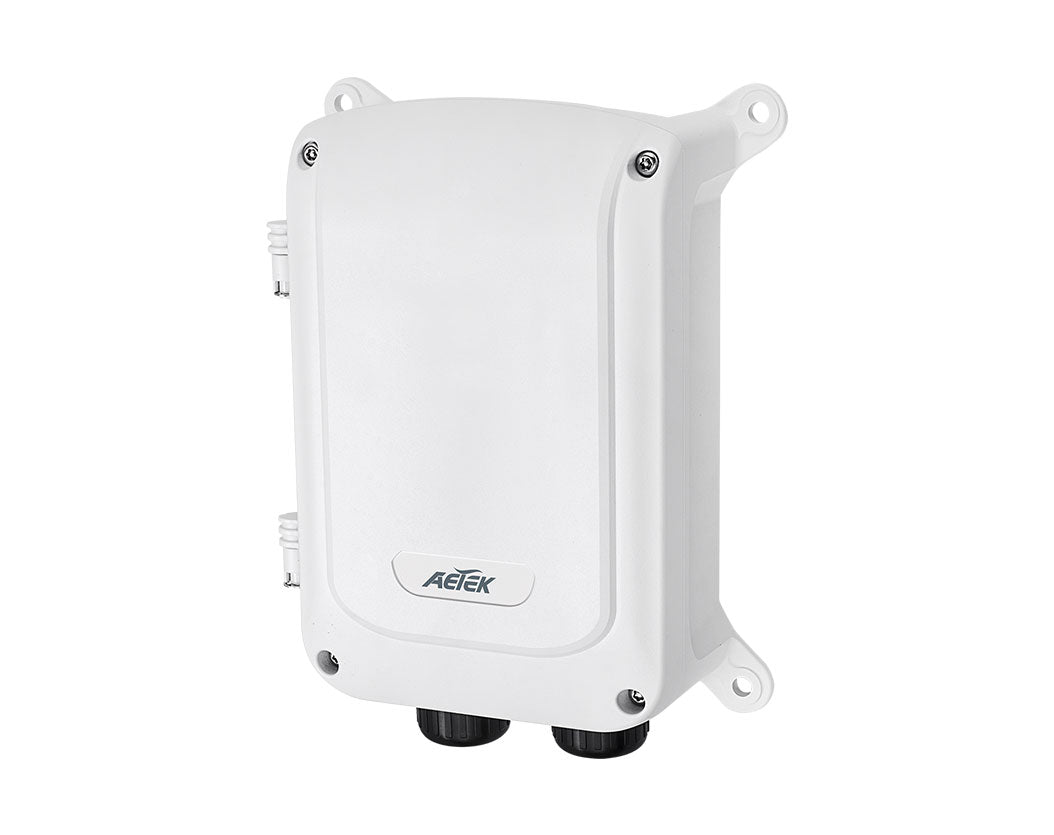

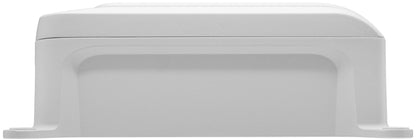

Outdoor 2-Port IP67/IK10 Gigabit PoE++ Switch with 2 SFPs and 12~56VDC Input | 180W

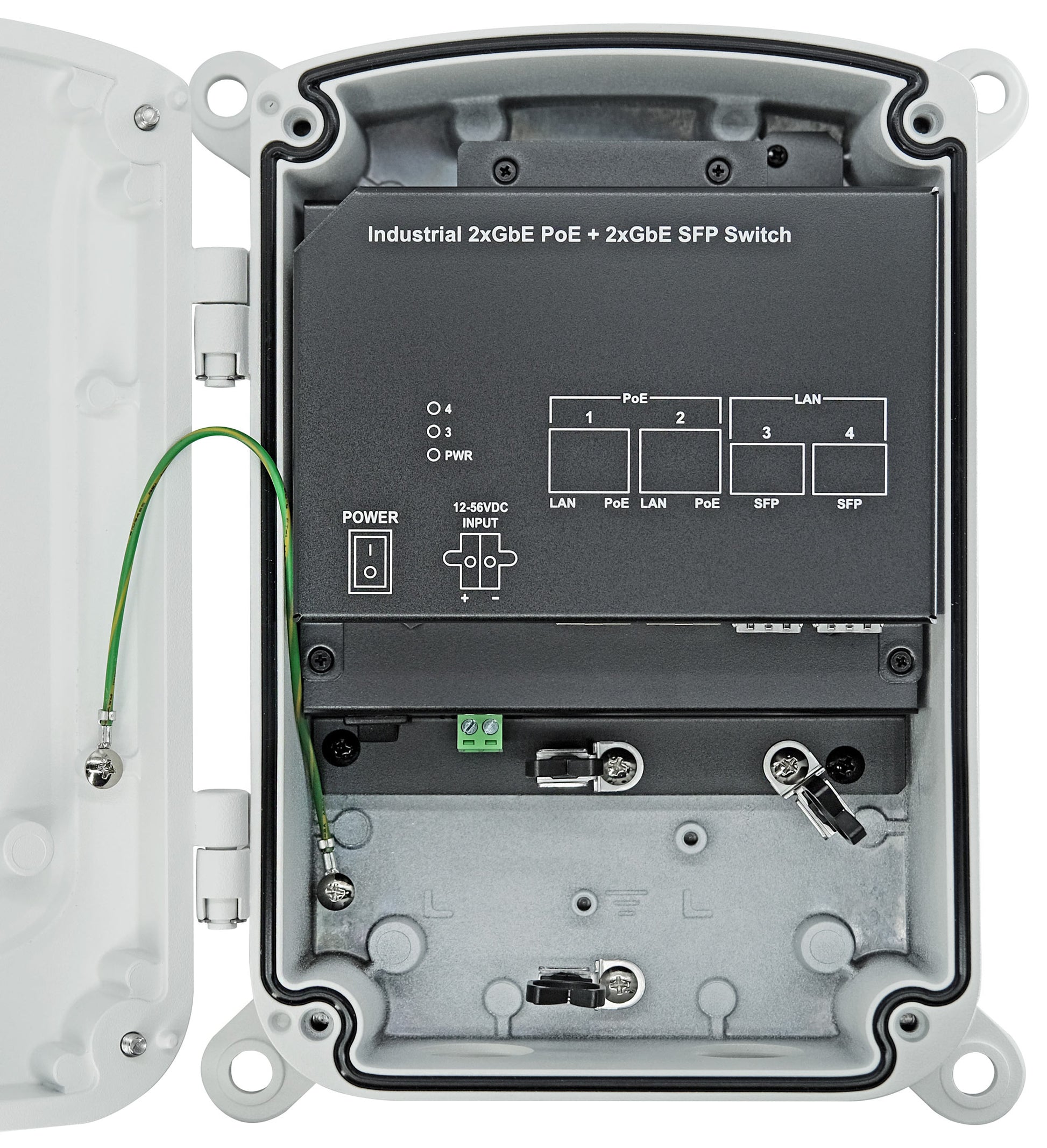

Equipped with 2 Gigabit PoE++ ports and 2 Gigabit SFP ports, H40-022-91-DC is an all-in-one solution that creates a daisy chain networking for the long-range PoE IP surveillance. Robust aluminum casting enclosure endures rated IP67, IK10 and -40°C ~ 65°C (-40°F ~ 149°F) rigid environments.

• Two Gigabit PoE++ ports with 90W each
• Two 1.25G Gigabit SFP ports for daisy-chaining or uplink
• Casting aluminum enclosure rated IP67 and IK10 impact
• Operating temperature between -40°C and 65°C
• Supporting 10/100/1000Mbps data rates
• 6KV PoE surge protection
• Two-year manufacturer warranty

Standards and Certifications
• 802.3af / 802.3at / 802.3bt
• CE, FCC, VCCI, C-Tick Class A
• EN61000-4-5

General
• Number of Network Ports: 4
• Number of PoE Network Ports: 2
• Number of SFP Ports: 2 x 1.25G

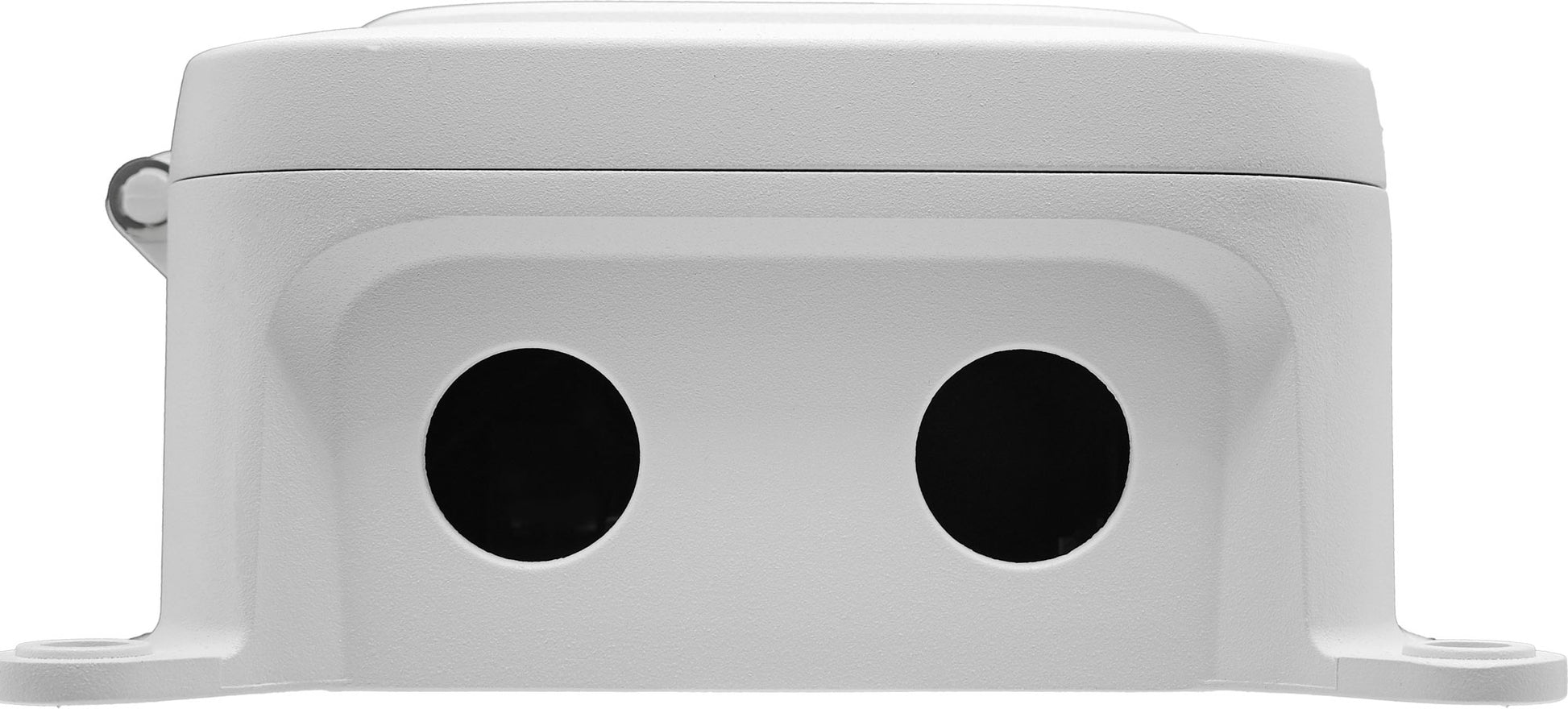

• 2 x M25
• Data transfer rate: 10M/100M/1G
• Mac table: 8K
• Jumbo frames: 9,216 Bytes
• Switching capacity: 8 Gbps
• Forwarding capacity: 11.904Mpps
• Surge protection per PoE Port: 6KV
• Weather rating: IP67
• Vandal proof: IK10
• MTBF (Hours): 293,934
• Operating Altitude: 2,000 m (6,562 ft)

Power
• Input Voltage: 12VDC ~ 56VDC
• Output Voltage Range / port 1~port 2: 54 VDC, PoE IEEE 802.3af (Max. 15.4W) output, PoE+ IEEE802.3at (Max. 30W) output, PoE++ IEEE 802.3bt (Max.60W/90W) output
• PSE Power Pin Assignment: 12(-),36(+),45(+),78(-)
• PoE Output Power Budget: 12VDC: 90W, 24-56VDC: 180W

Mechanical & Environmental:

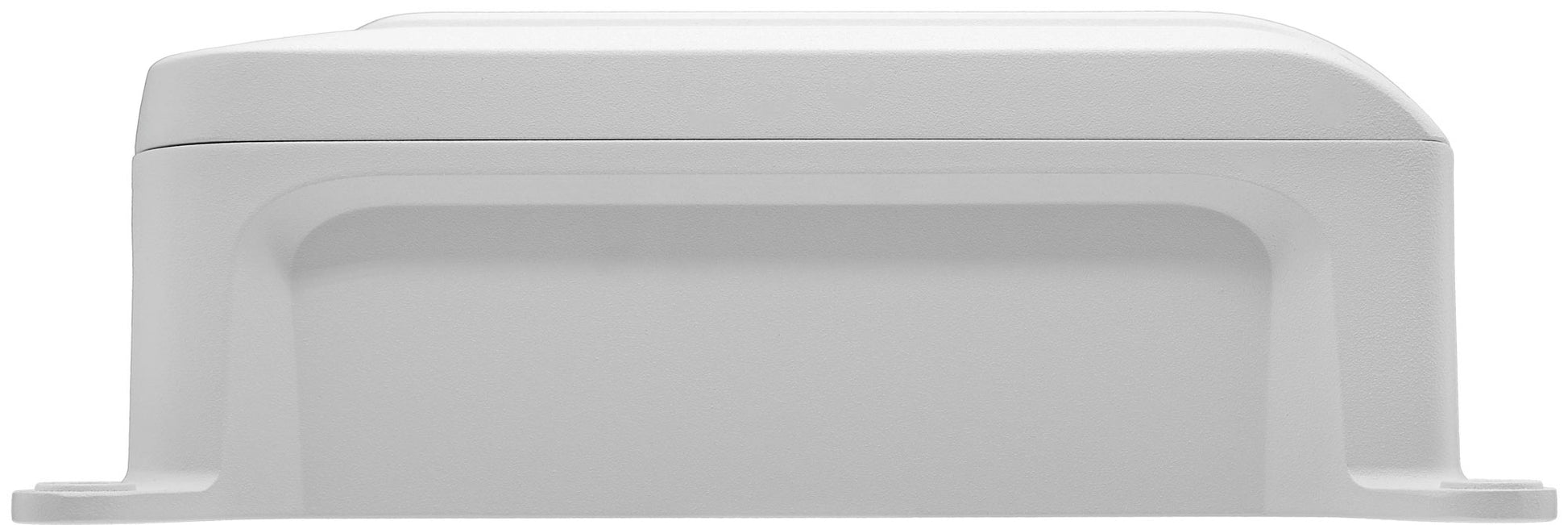

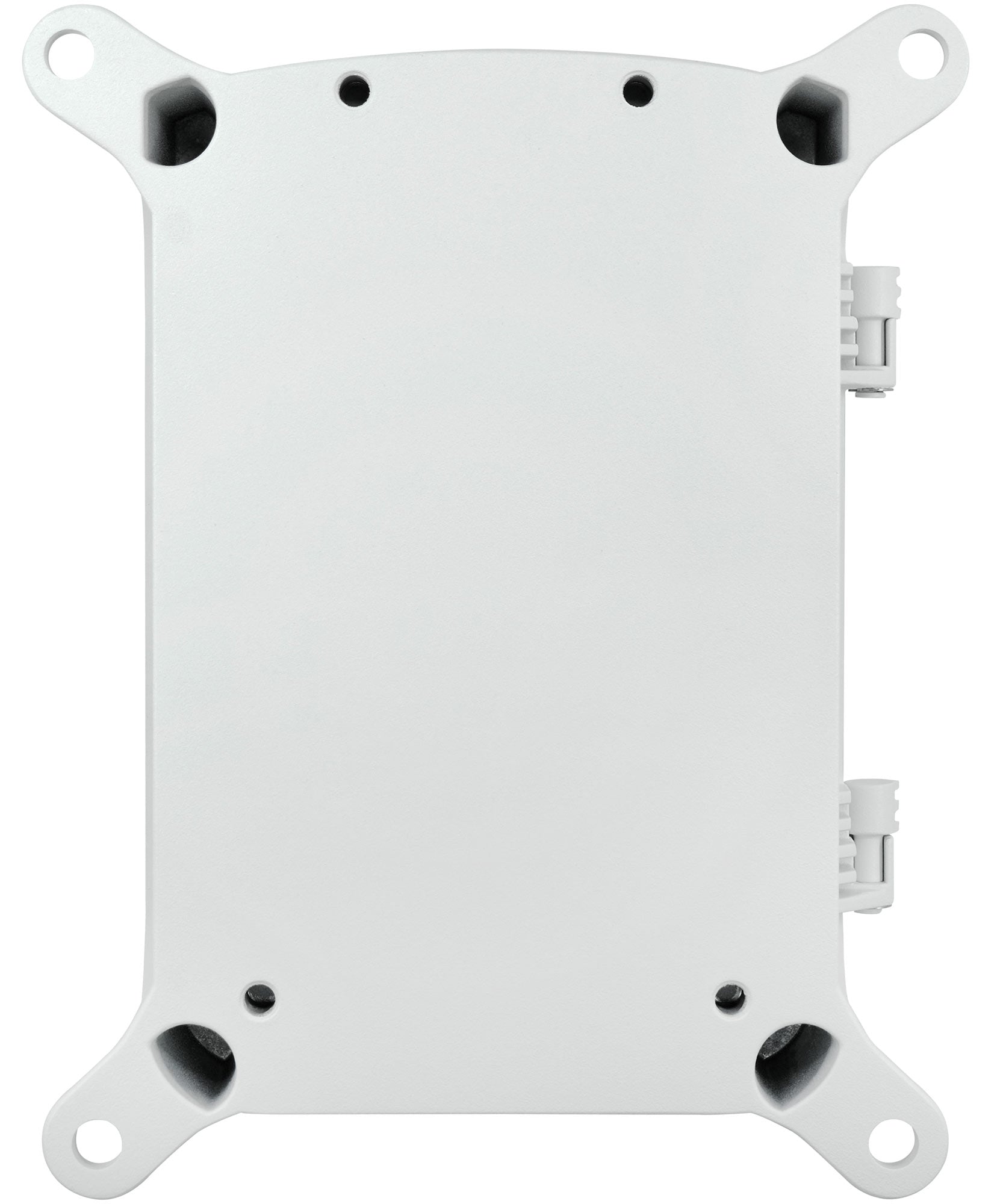

• Dimensions (L x W x H): 255.2 x 199.8 x 95 mm (10 x 7.86 x 3.74 inches)
• Weight: 7.05 lbs
• Operating Temperature: -40°C~ 65°C (-40°F~ 149°F)
• Storage Temperature: -40°C~ 85°C (-40°F~ 185°F)
• Operating Humidity: 5% ~ 95% non-condensing

Datasheet:
• Download PDF

Quick Installation Guide:
• Download PDF

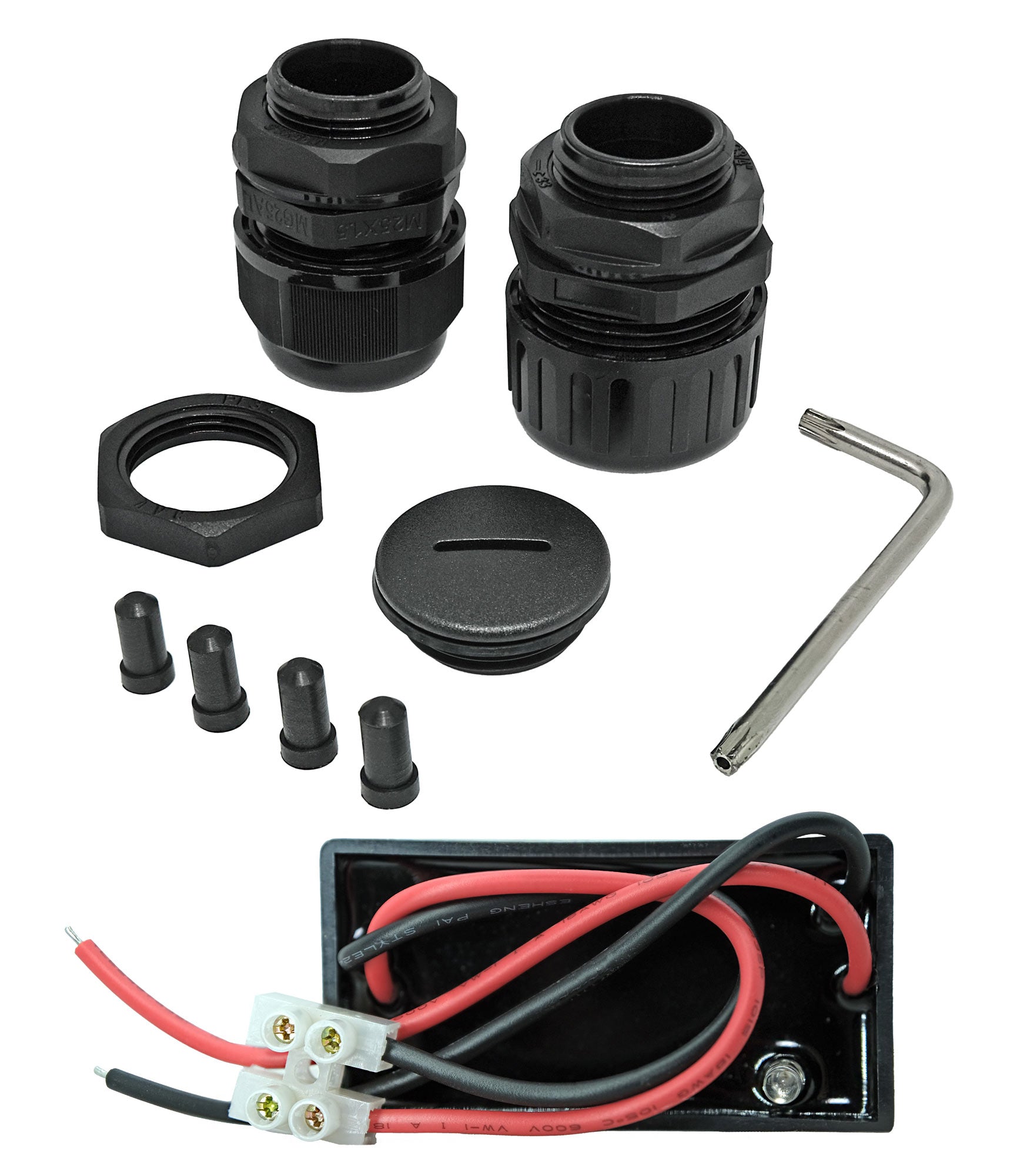

Assemble cable glands guide:
