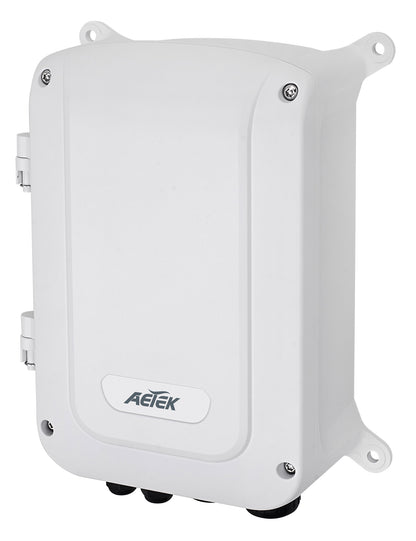

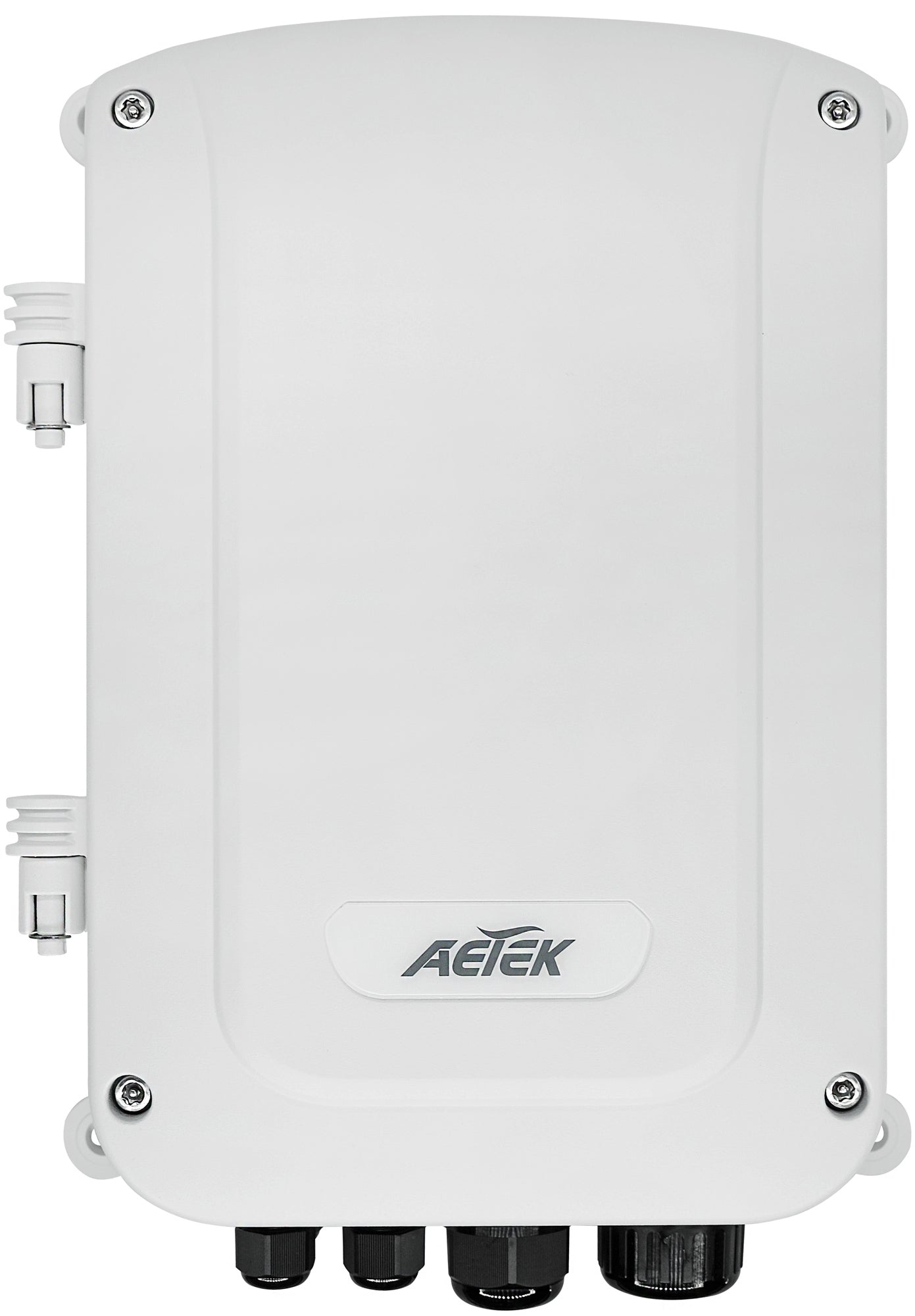

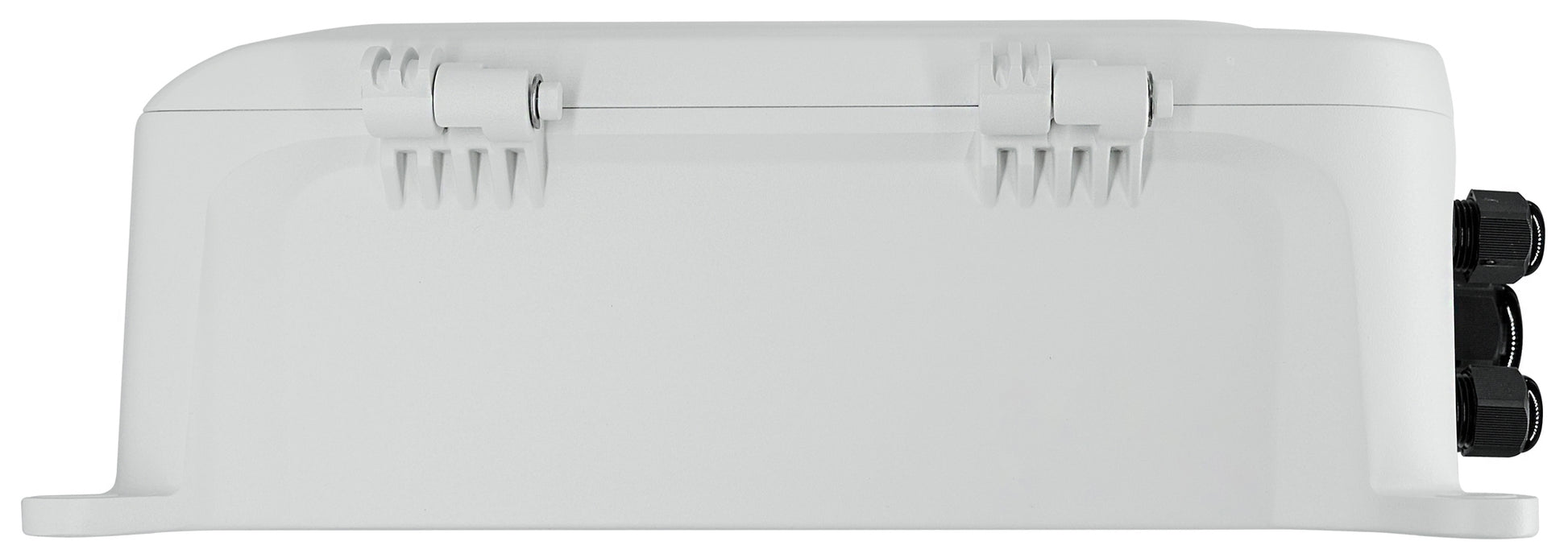

Outdoor IP67/IK10 8-Port PoE+ Switch with 2 SFP Uplink Ports | 250W

The AETEK H40-044-30-150-V3 is a powerful and rugged industrial-grade outdoor PoE switch designed specifically for harsh environments and mission-critical surveillance deployments. With its fanless, IP67-rated enclosure, this switch offers exceptional durability and protection against dust, water, and impact—making it ideal for installation in remote or outdoor locations where standard networking gear would fail.

Equipped with eight 10/100/1000Mbps PoE ports supporting IEEE 802.3at (30W per port), this switch delivers a total PoE budget of 150W, easily powering high-resolution IP cameras, wireless access points, or other PoE-enabled devices. Two additional Gigabit copper uplink ports and two SFP fiber slots provide high-speed, flexible backbone connectivity for seamless integration into larger networks.

Engineered with 6KV surge protection on Ethernet ports and 40KV surge protection on AC input, the H40-044-30-150-V3 ensures reliable uptime even in lightning-prone areas. The robust cast aluminum housing is IK10-rated and supports a wide operating temperature range from -40°C to 65°C, making it an excellent solution for transportation hubs, public safety systems, and smart city infrastructure.

Features:

• 8 × Gigabit PoE ports with 30W IEEE 802.3at output
• 250W total PoE power budget
• 2 × Gigabit copper uplink ports
• 2 × SFP fiber slots for uplink flexibility
• IP67-rated waterproof and dust-proof housing

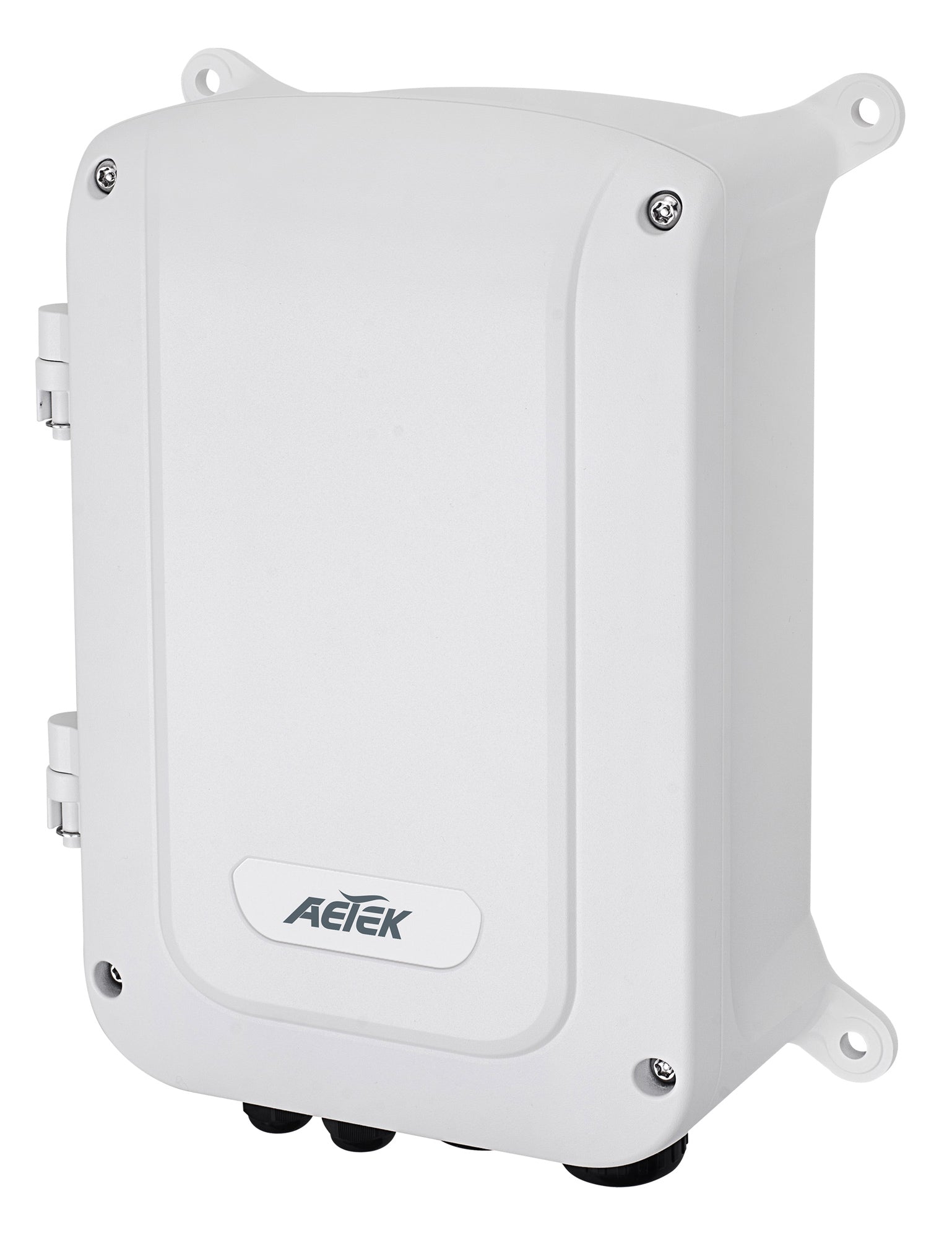

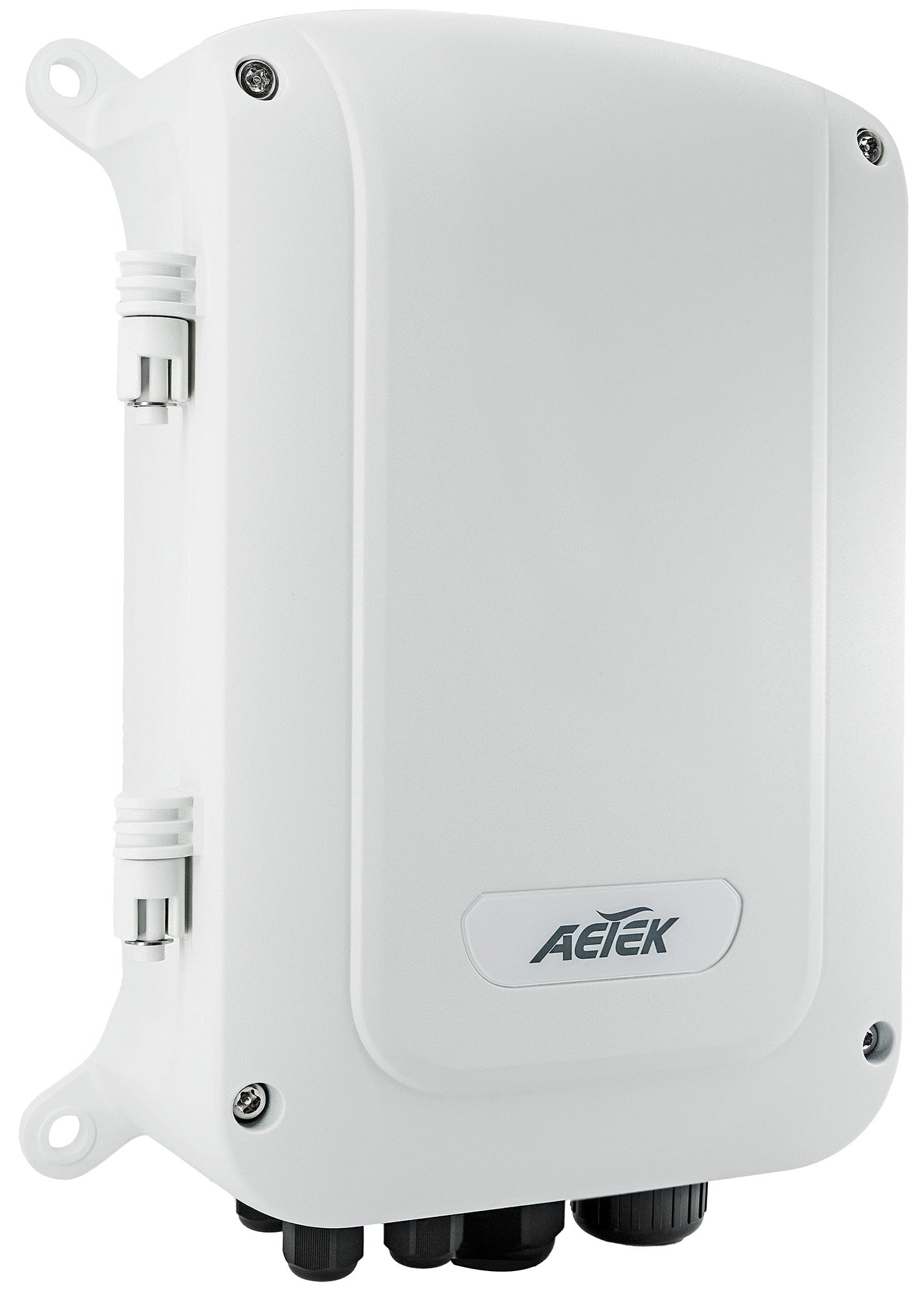

• IK10-rated impact-resistant cast aluminum enclosure
• Wide operating range: -40°C to 65°C
• Built-in 6KV surge protection per Ethernet port
• 40KV surge protection on AC input
• Fanless industrial design for silent operation
• IEEE 802.3az Energy Efficient Ethernet compliant
• Two-year manufacturer warranty

Standards and Certifications

• 802.3af / 802.3at / 802.3bt
• CE, FCC, VCCI, C-Tick Class A
• EN62368-1, EN61000-4-5

General
• Number of Network Ports: 8
• Number of PoE+ Network Ports: 8
• Number of SFP Ports: 2 x 1.25G

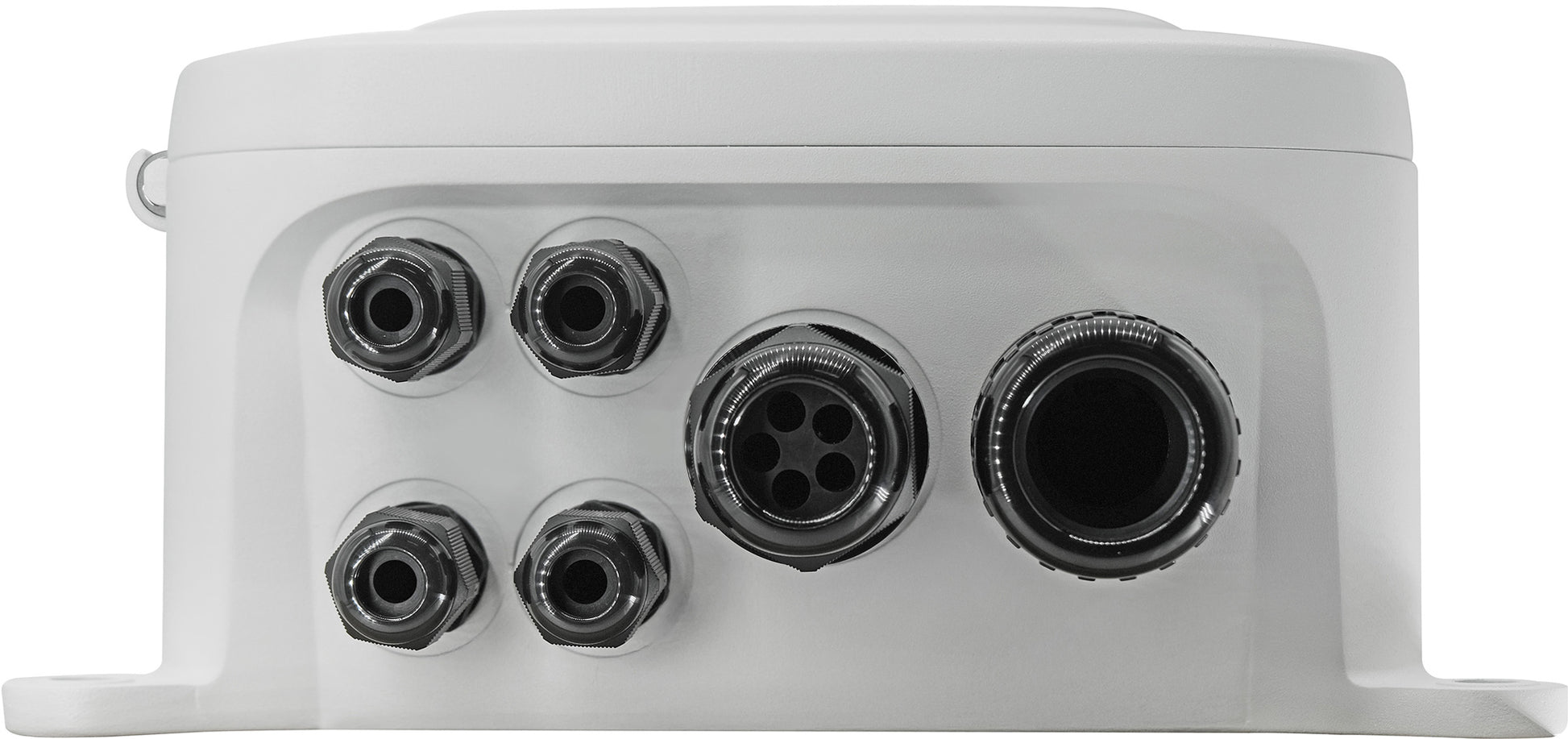

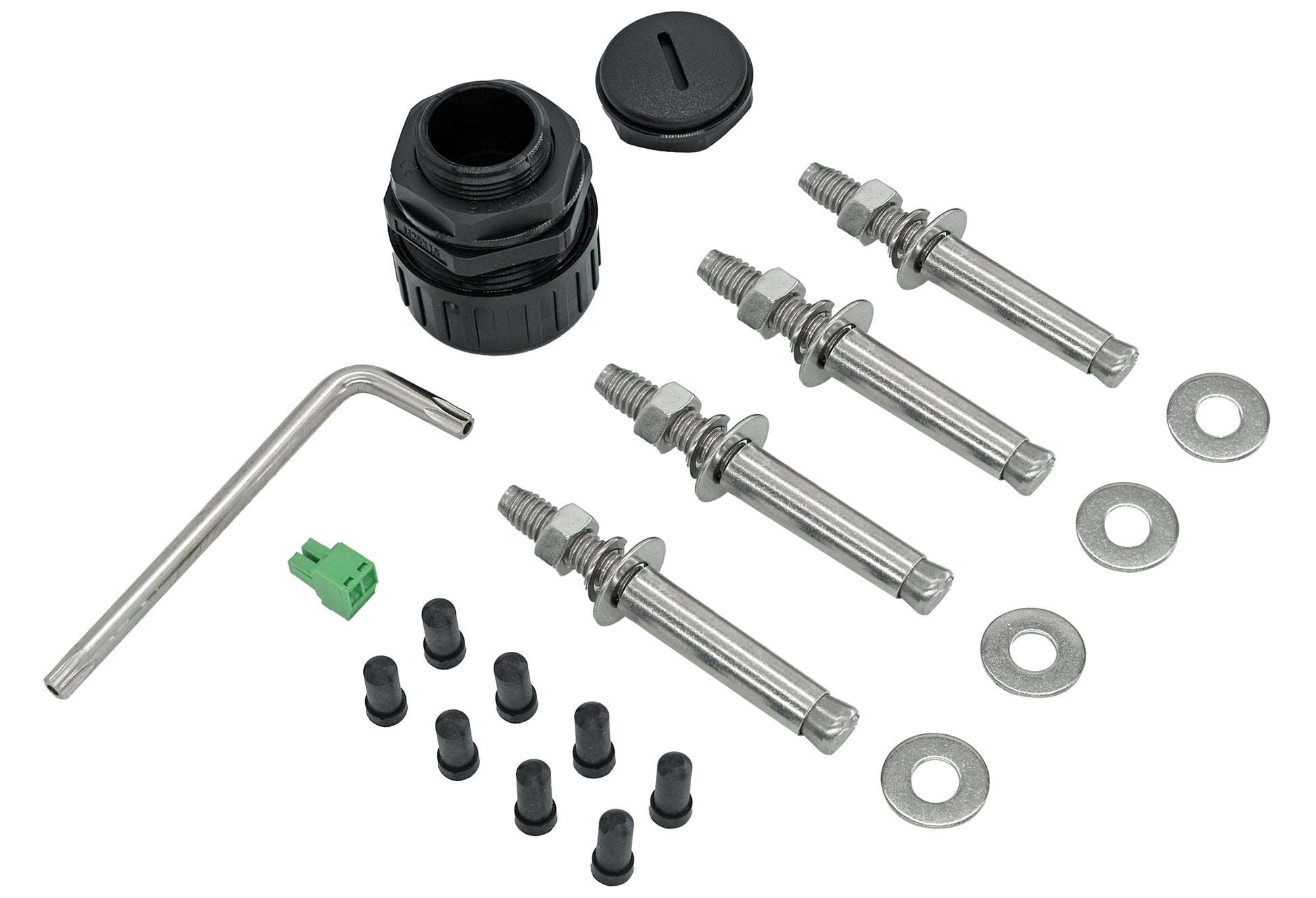

• Connectors: PF ¾, M25 cable gland with 5x5mm holes x1pc, M16 cable gland 1x6.5mm hole x4pc
• Data transfer rate: 10/100/1000 Mbps
• Mac table: 8K
• Jumbo frames: 9,216 Bytes
• Switching capacity: 20 Gbps
• Forwarding capacity: 11.904Mpps
• Weather rating: IP67
• Vandal proof: IK10
• MTBF (Hours): 588,000
• Operating Altitude: 2,000 m (6,562 ft)

Power
• Input Voltage: 100VAC ~ 240VAC, 280VAC for up to 4hr, 300VAC for up to 1min.
• Output Voltage Range / per PoE Port: 54 VDC, PoE IEEE 802.3af (Max. 15.4W) output, PoE+ IEEE802.3at (Max. 30W) output
• Backup Power Input Voltage: 48VDC ~ 56VDC
• PSE Power Pin Assignment: 12(-),36(+)
• System Power Consumption (without PoE): 5W
• PoE Output Power Budget: 250W
• Surge Protection per PoE Port: 6KV
• Surge Protection for AC power: 40KV

Mechanical & Environmental:
• Dimensions (L x W x H): 315.4 x 245.8 x 118 mm (12.42 x 9.68 x 4.65 inches)
• Weight: 9.63 lbs
• Operating Temperature: -40°C~ 65°C (-40°F~ 149°F)
• Storage Temperature: -40°C~ 85°C (-40°F~ 185°F)
• Operating Humidity: 5% ~ 95% non-condensing
