Outdoor IP67/IK10 PoE++ Switch with Adjustable 24V/56VDC Passive PoE and 12V/24VDC Output | 150W

Rugged Outdoor Gigabit PoE Switch for Security Surveillance Installations – Model H42-042-91-150

The H42-042-91-150 is a heavy-duty, outdoor-rated Gigabit PoE switch engineered for professional security surveillance installers. Purpose-built for wireless outdoor IP camera deployments, it supports IEEE802.3bt 90W PoE, making it ideal for powering high-demand devices like PTZ cameras, multi-sensor surveillance cameras, wireless access points, network speakers, and more.

Installer-Friendly Features for Harsh Environments
With IP67 and IK10-rated weather and vandal resistance, this switch is built to thrive in extreme temperatures from -40°C to 65°C. It includes 6KV PoE and 10KV AC power surge protection, ensuring stable performance in lightning-prone or industrial zones.

Flexible PoE Output for Diverse Surveillance Devices
The unit offers adjustable 24VDC/56VDC Passive PoE options, supporting IEEE802.3af/at PoE devices as well as Passive PoE wireless nodes—minimizing extra equipment and simplifying field installations.

DC Power Support for Non-PoE Devices
Built-in DC output ports allow direct connections to non-PoE security hardware such as LTE routers, IR illuminators, and custom sensors, providing complete power flexibility.

Optimized for Outdoor Security Camera Systems
The H42-042-91-150 serves as a reliable, all-in-one power source for integrated surveillance setups, enabling efficient, clutter-free installations across parking lots, perimeter fences, critical infrastructure, and more.

• Two 90W PoE Outputs to support IEEE 802.3bt/at/af PoE devices
• Two Adjustable 24V/56VDC Passive PoE Outputs to support 24V/56VDC Passive PoE Wireless nodes
• 12V/24VDC Output to support non-PoE devices features
• Flexible SFP transceiver port for uplink
• IP67 water and dust resistance rating
• IK10 impact resistance rating
• 6KV PoE surge protection
• Wide range of operating temperature: -40 °C ~ 65 °C (-40 °F ~ 149 °F)
• Support 10/100/1000Mbps data rate
• Two-year manufacturer warranty

Standards and Certifications

• 802.3af / 802.3at / 802.3bt
• CE, FCC, VCCI, C-Tick Class A
• EN62368-1, EN61000-4-5

General
• Number of Network Ports: 6
• Number of PoE++ Network Ports: 2
• Number of Passive PoE Network Ports: 2
• Number of SFP Ports: 2 x 1.25G
• Data transfer rate: 10/100/1000 Mbps
• Mac table: 4K
• Jumbo frames: 9,216 Bytes
• Switching capacity: 12 Gbps
• Forwarding capacity: 11.904Mpps
• Surge protection per PoE Port: 6KV
• Weather rating: IP67
• Vandal proof: IK10
• MTBF (Hours): 84,877
• Operating Altitude: 2,000 m (6,562 ft)

Power
• Input Voltage: 100~240VAC and 48-56VDC Backup Input Power
• Output Power (Port 1-2): PoE IEEE 802.3af (Max. 15.4W), PoE+ IEEE 802.3at (Max. 30W), PoE++ IEEE 802.3bt (Max. 90W)

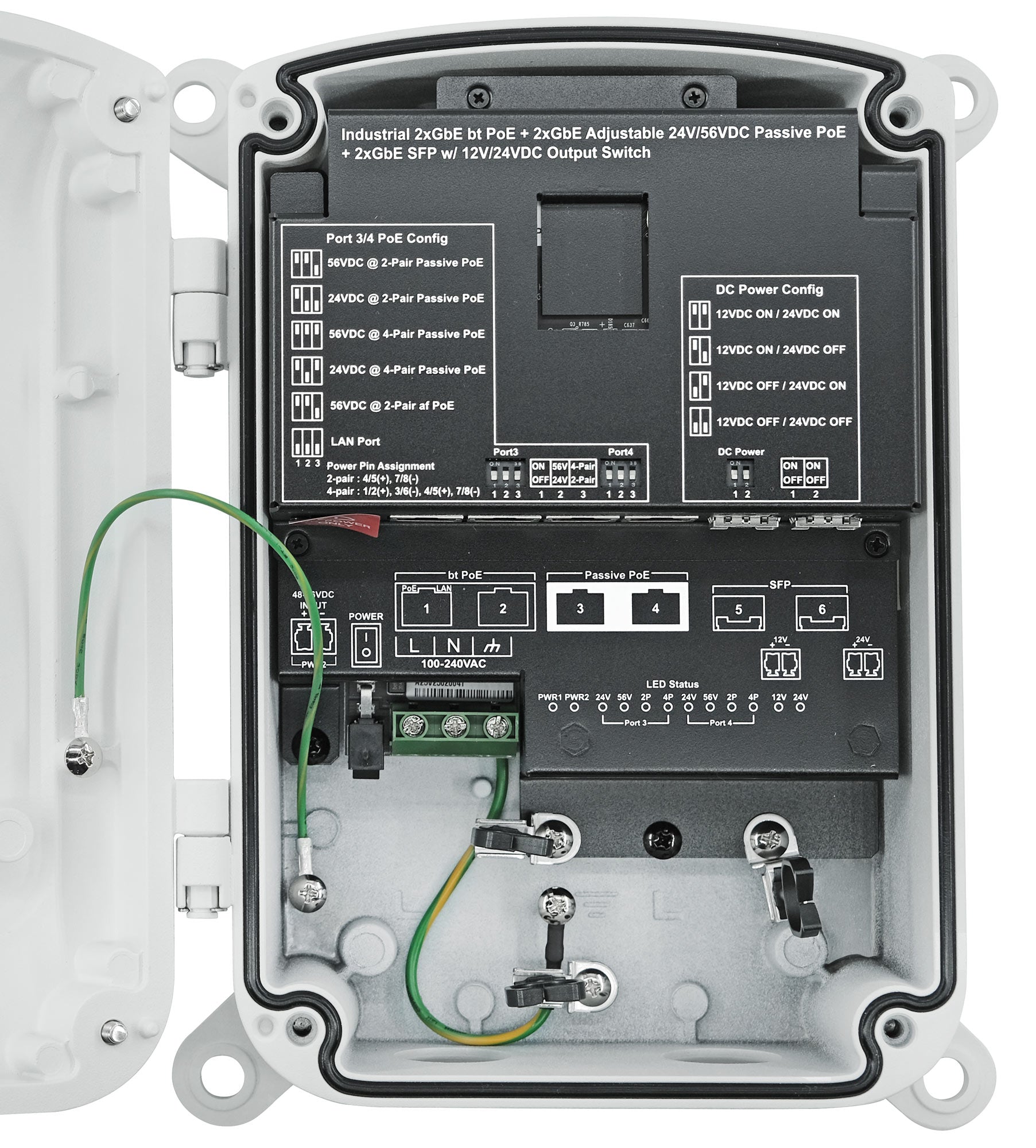

• Output Power (Port 3-4): 24W @ 2-pair 24VDC, 48W @ 4-pair 24VDC, 56W @ 2-pair 56VDC, 90W @ 4-pair 56VDC, 15W @ 2-pair IEEE 802.3af PoE
• Output PoE Power Pin Assignment (Port 1-2): 12(-), 36(+), 45(+), 78(-)
• Output PoE Power Pin Assignment (Port 3-4): 2-pair PoE: 45(+), 78(-), 4-pair PoE: 12(+), 36(-), 45(+), 78(-)
• Output Power per DC Port: 1 x 12VDC@2.5A, 1 x 24VDC@1.25A
• System Power Consumption (without PoE): 5W
• PoE Output Power Budget: 150W
• Surge Protection per PoE Port: 6KV
• Surge Protection for AC power: 10KV

Mechanical & Environmental:
• Dimensions (L x W x H): 255.2 x 199.8 x 95 mm (10 x 7.86 x 3.74 inches)
• Weight: 5.62 lbs
• Operating Temperature: -40°C~ 65°C (-40°F~ 149°F)
• Storage Temperature: -40°C~ 85°C (-40°F~ 185°F)
• Operating Humidity: 5% ~ 95% non-condensing

Datasheet:
• Download PDF

Quick Installation Guide:
• Download PDF

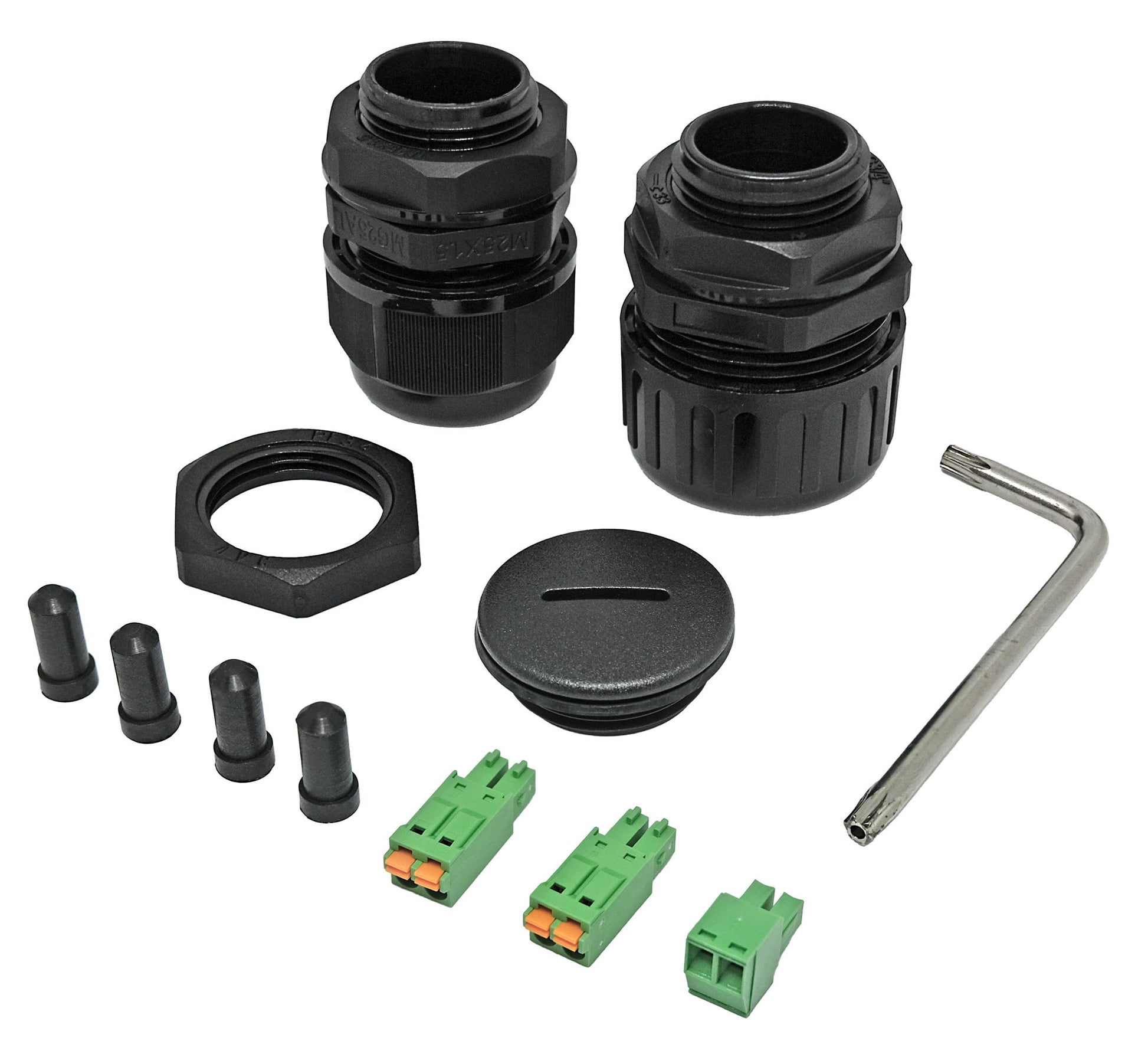

Assemble cable glands guide:
• Download PDF
