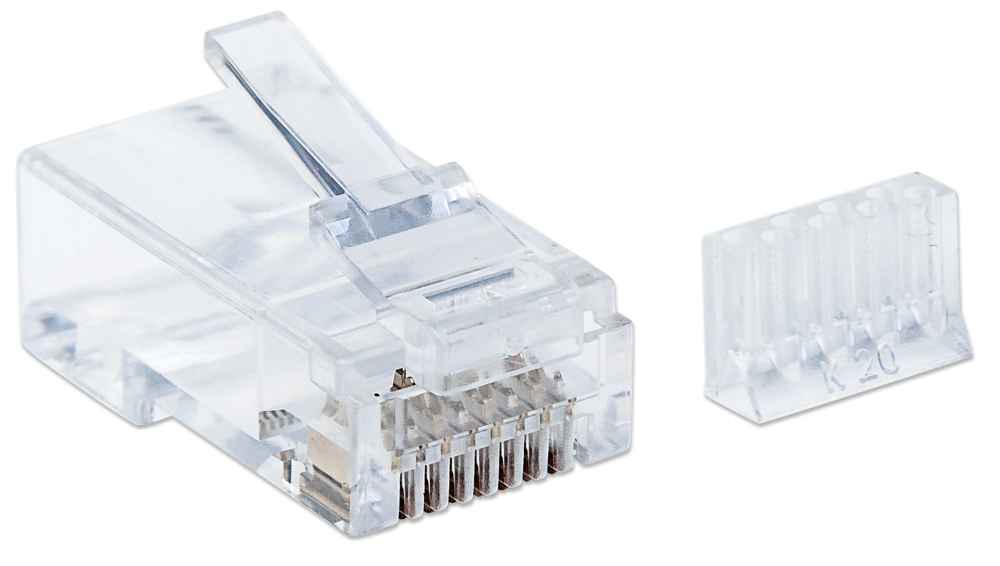

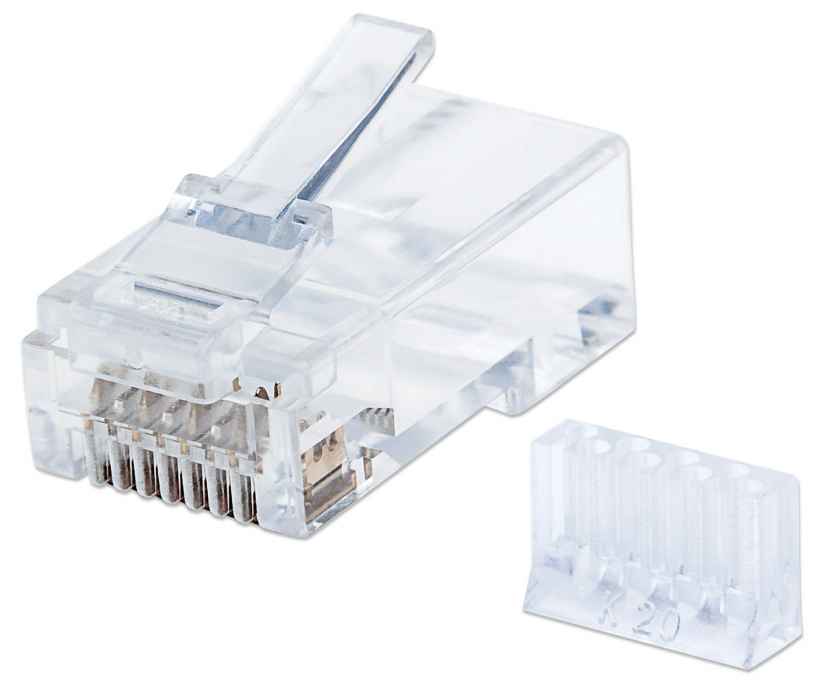

90-Pack Cat6 RJ45 Modular Plugs Pro Line

Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micron gold contacts for our standard plugs or a high-quality 50 micron standard in our Premium and Pro lines.

• 50 µ gold-plated contacts
• Two-prong terminal for stranded wire
• Fits round cable
• For unshielded twisted pair applications
• Standard 8P8C design, compatible with all network RJ45 connections
• Fully compatible with Category 3, 4, 5, 5e and 6 applications
• Lifetime Warranty

Standards
Category 5 (ANSI/TIA/EIA-568-C)
Category 5e (TIA/EIA-568-C)
Category 6 (ANSI/TIA-568-C)

Material
Insulator: polycarbonate rated UL 94V-2
Contacts: phosphor bronze
Contact Plating: 50 micron gold

Package Contents

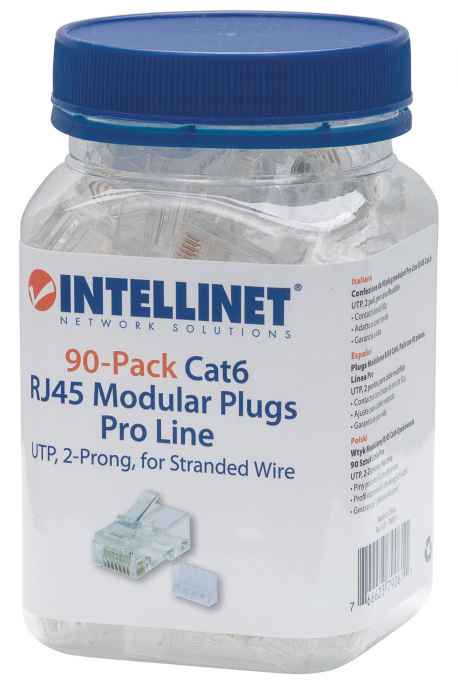

90 Cat6 RJ45 Modular Plugs with liners in jar

Warning

This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• EAN: 0766623790611
• UPC: 766623790611



• Physical Specifications

• Dimensions: 0.85 (L) x 0.45 (W) x 0.32 (H) [in]

• Datasheet
• Datasheet     » Download
