Outdoor Switch Comparison Table
| Feature \ SKU | H40-022-91-DC | H40-044-30-DC | H42-042-91-150 | H40-044-30-150-V3 | H40-082-30-250-V3 | IPS-05G-OD85W | H60-044-90-250 | H60-044-30-150-V2 |
|---|---|---|---|---|---|---|---|---|
| Product Image |  |
 |
 |
 |
|
 |
|
|
| Brand | Aetek | Aetek | Aetek | Aetek | Aetek | Intellinet | Aetek | Aetek |
| Managed | yes | yes | ||||||
| PoE Ports | 2 | 4 | 4 | 4 | 8 | 4 | 4 | 4 |
| PoE Standard | PoE++ | PoE+ | PoE++ | PoE+ | PoE+ | PoE+ | PoE++ | PoE+ |
| PoH/UPoE/Axis High Power | yes | |||||||
| Passive PoE Ports | yes | |||||||
| Uplink Ports | 2 x SFP | 2 x GbE + 2 x SFP | 2 x SFP | 2 x GbE + 2 x SFP | 2 x SFP | 2 x GbE + 2 x SFP | 2 x GbE + 2 x SFP | |
| Input Power | 12~48VDC | 12~48VDC | 100~240VAC | 100~240VAC | 100~240VAC | PoE++ 90 watts | 100~240VAC | 100~240VAC |
| PoE Budget | 12VDC: 90W 24~48VDC: 180W |
12VDC: 90W 24~48VDC: 120W |
150 watts | 150 watts | 250 watts | 85 watts | 250 watts | 150 watts |
| DC Power Output | 1 x 12VDC@2.5A 1 x 24VDC@1.25A | |||||||
| Outdoor IP Rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP65 | IP67 | IP67 |
-
Outdoor Managed IP67/IK10 4-Port PoE++/PoH Switch with 2 RJ45 Gigabit and 2 SFP Uplink Ports | 250W
8 x IEEE 802.3at PoE+ ports, 2 x SFP uplink ports, 6KV PoE surge protection, 250 W PoE Power Budget, IP67-Rated Aluminum HousingSKU: 641283 [H60-044-90-250]Outdoor Managed IP67/IK10 4-Port PoE+ Switch with 2 RJ45 Gigabit and 2 SFP Uplink Ports | 150W
8 x IEEE 802.3at PoE+ ports, 2 x SFP uplink ports, 6KV PoE surge protection, 250 W PoE Power Budget, IP67-Rated Aluminum HousingSKU: 642167 [H60-044-30-150-V2]Outdoor IP67/IK10 8-Port PoE+ Switch with 2 SFP Uplink Ports | 250W
8 x IEEE 802.3at PoE+ ports, 2 x SFP uplink ports, 6KV PoE surge protection, 250 W PoE Power Budget, IP67-Rated Aluminum HousingSKU: 640712 [H40-082-30-250-V3]Outdoor IP67/IK10 4-Port PoE+ Switch with 2 RJ45 and 2 SFP Uplink Ports | 150W
4 x IEEE 802.3at PoE+ ports, 2 x RJ45 ports, 2 x SFP uplink ports, 6KV PoE surge protection, 150W PoE Power Budget , IP67-Rated Aluminum HousingSKU: 640385 [H40-044-30-150-V3]Outdoor 4-Port IP67/IK10 Gigabit PoE+ Switch with 2 SFPs and 2 RJ45 Uplink Ports and 12~56VDC Input | 120W
6KV PoE surge protection, PoE Power Budget up to 150 W, IP67-Rated Aluminum HousingSKU: 641634 [H40-044-30-DC]Outdoor IP67/IK10 PoE++ Switch with Adjustable 24V/56VDC Passive PoE and 12V/24VDC Output | 150W
2 x IEEE 802.3bt PoE ports, 2 x 24V/56VDC Passive PoE ports, 2 x SFP uplink ports, 6KV PoE surge protection, 150 W PoE Power Budget, IP67-Rated Aluminum HousingSKU: 643553 [H42-042-91-150]Outdoor 2-Port IP67/IK10 Gigabit PoE++ Switch with 2 SFPs and 12~56VDC Input | 180W
6KV PoE surge protection, PoE Power Budget up to 180 W, IP67-Rated Aluminum HousingSKU: 641627 [H40-022-91-DC]Retractable Pole Mount Adapter for Aetek Outdoor PoE Switches

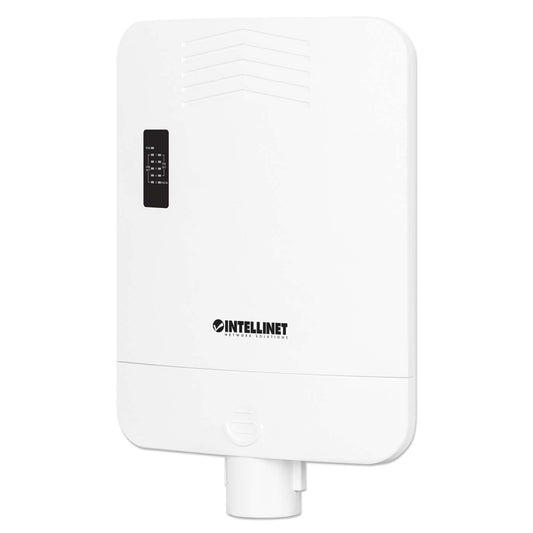

SKU: 641054 [AT-101]Outdoor PoE-Powered 5-Port Gigabit Switch with PoE Passthrough / 4-Port PoE+ Extender
One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 90 W Power Input, Four IEEE 802.3at/af Compliant PSE PoE ports, Rainproof IP65, NEMA 4, for Wall- and Pole-Mounting, Adds up to 100 m (328 ft.) to PoE RangeSKU: 509220 [IPS-05G-OD85W]- Choosing a selection results in a full page refresh.
