Intellinet

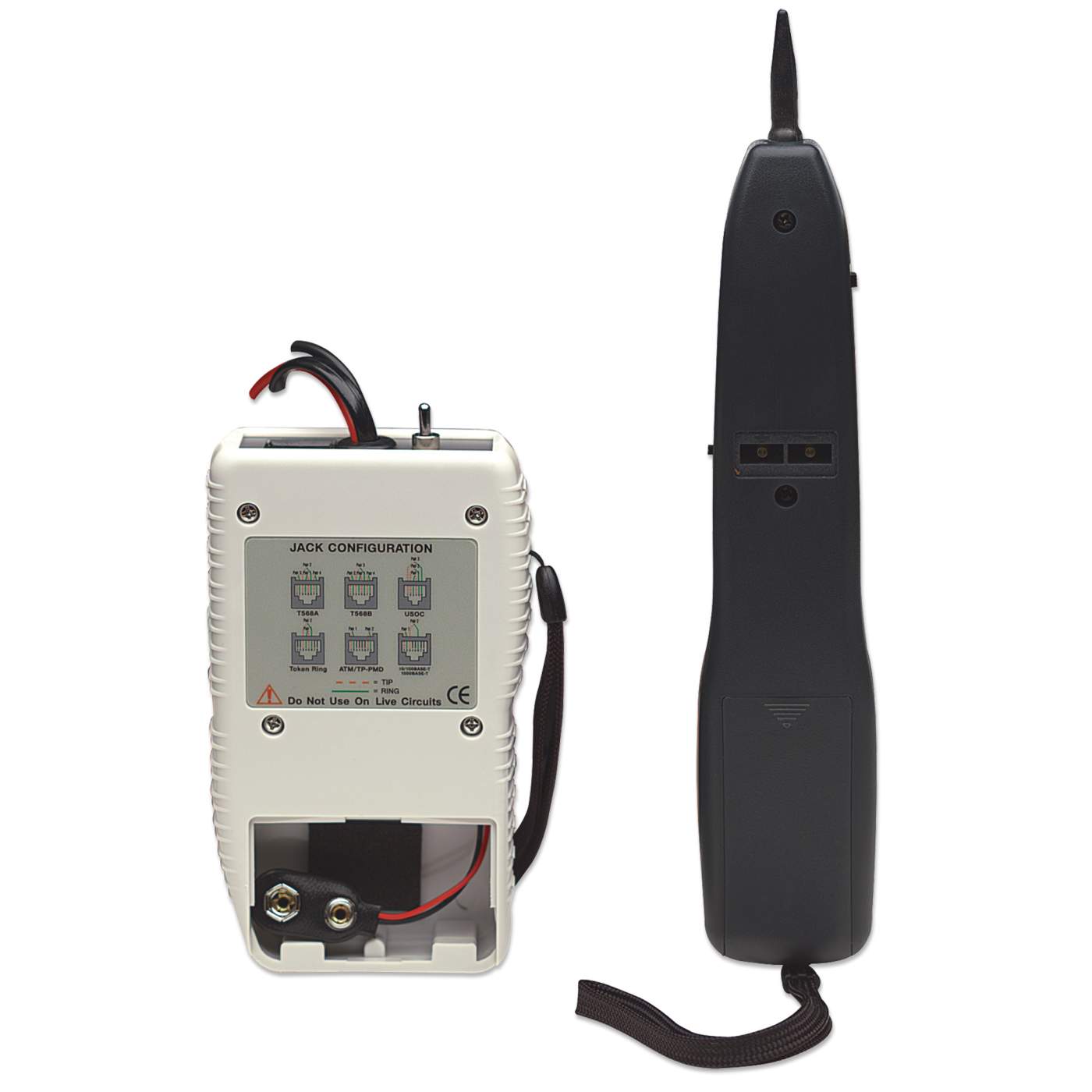

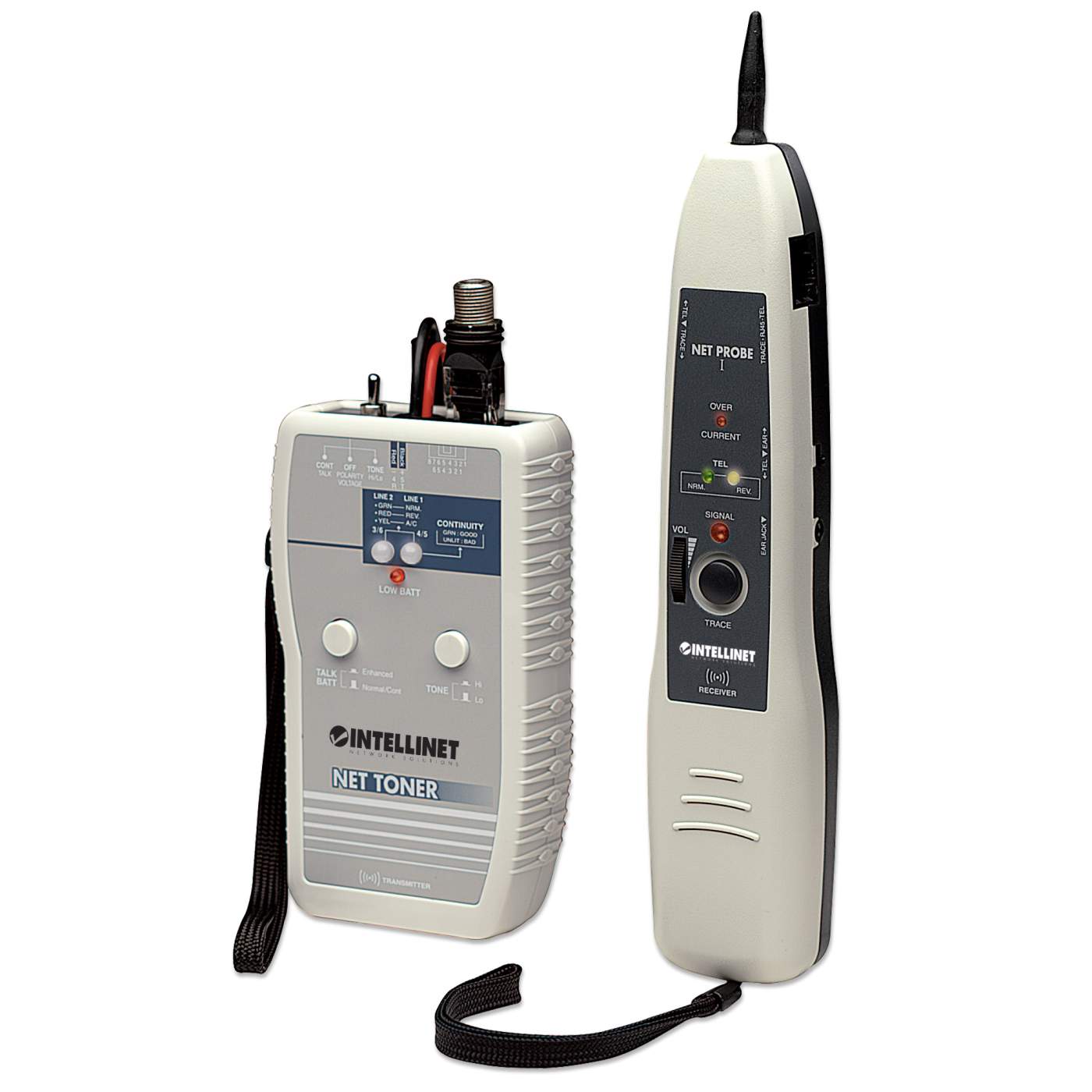

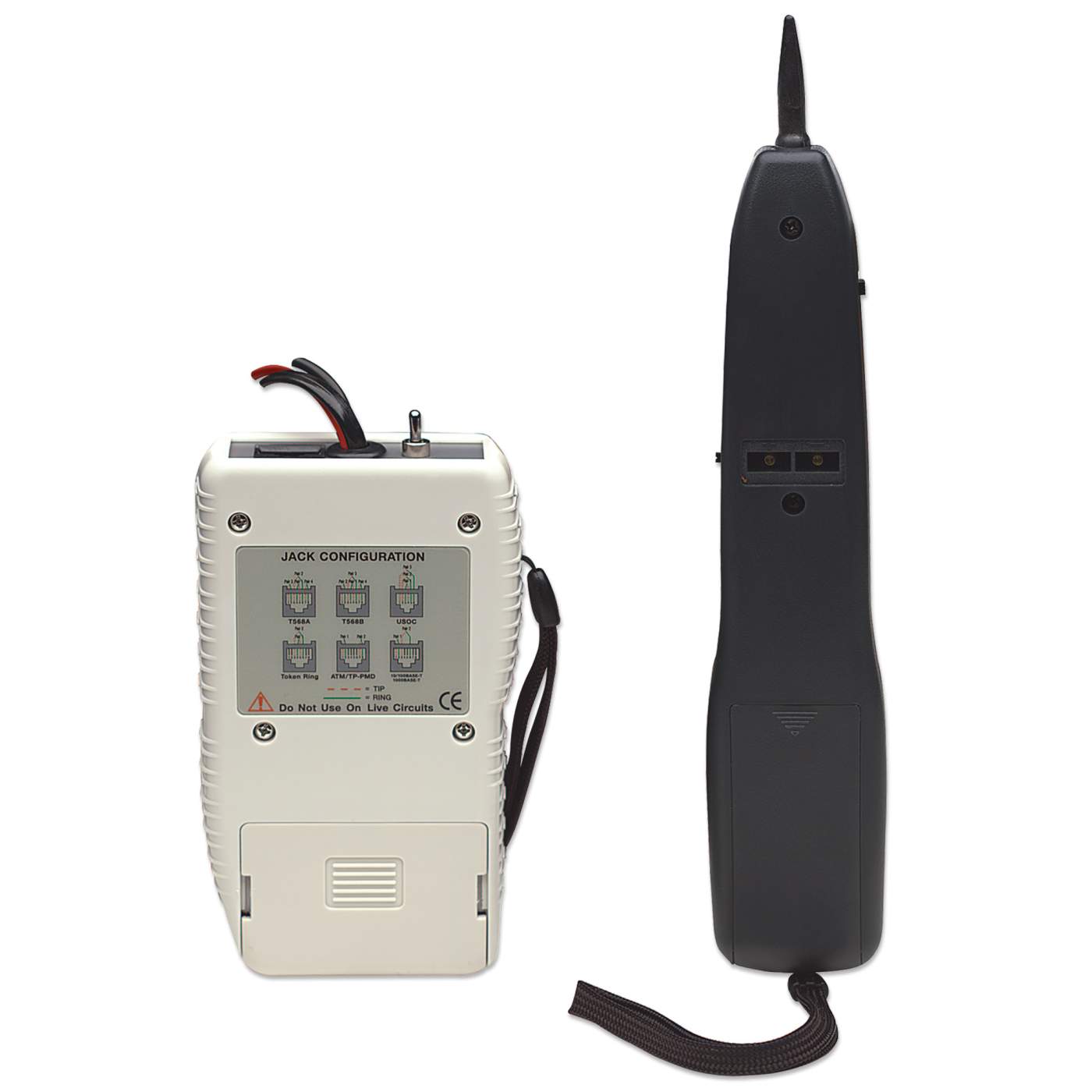

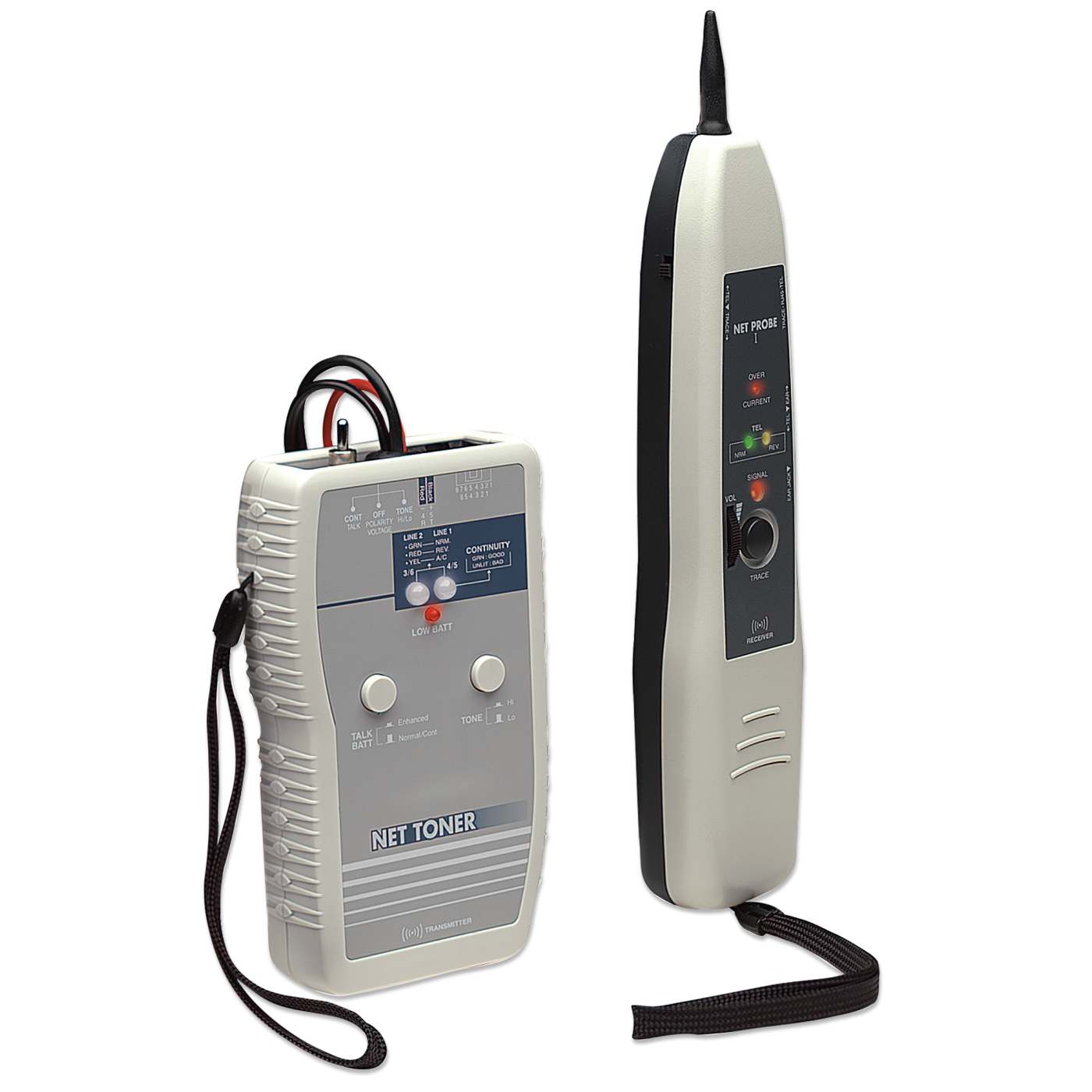

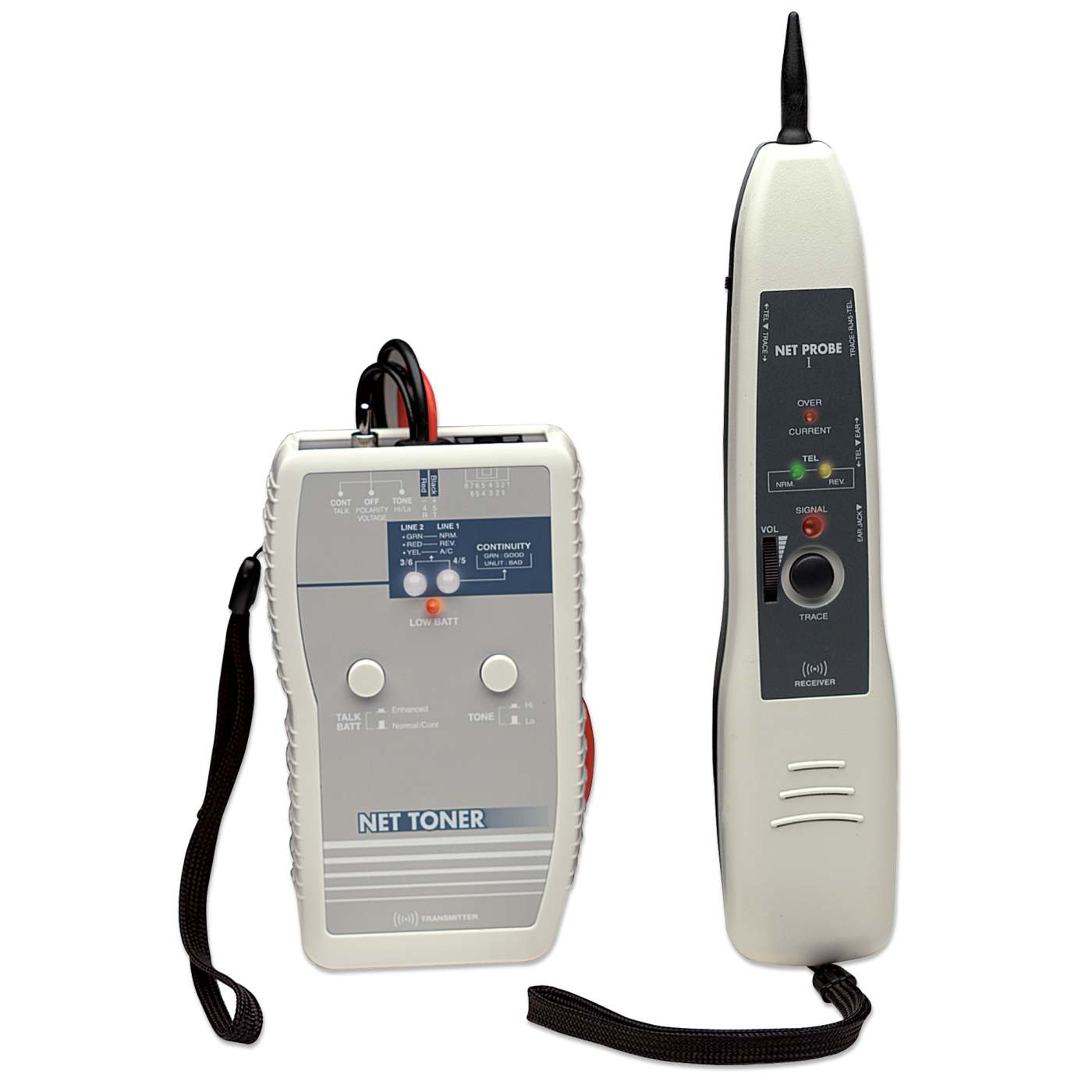

Net Toner and Probe Kit
Net Toner and Probe Kit
Tone Generator, Tests Datacom, Telecom, Security, Video, and Audio Networks
SKU: 515566 ICT-TG1
Highlights
- Tests datacom, telecom, security, video, and audio networks
- Two position switch for single or multi-tone signal
- LEDs for line polarity, continuity and voltage

[ view high resolution images ]
- Tests datacom, telecom, security, video, and audio networks
- Two position switch for single or multi-tone signal
- LEDs for line polarity, continuity and voltage
- Enhanced talk battery mode provides power for voice communications over inactive pairs
- Testing leads and modular cables for individual wire tests or modular jack tests
- Replaceable plastic tip to prevent accidental shorts
- Trace or identify wire or cables in a bundle or group

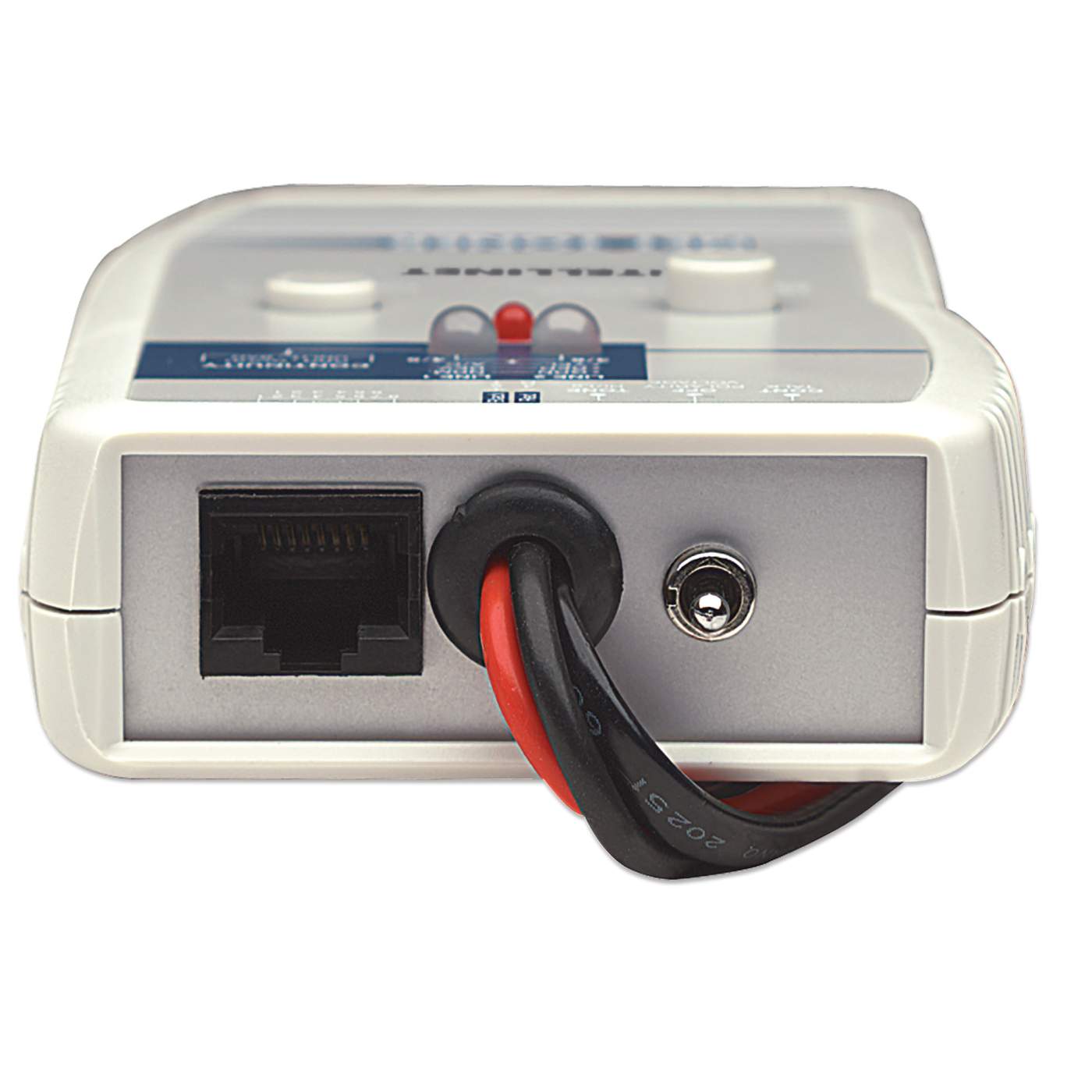

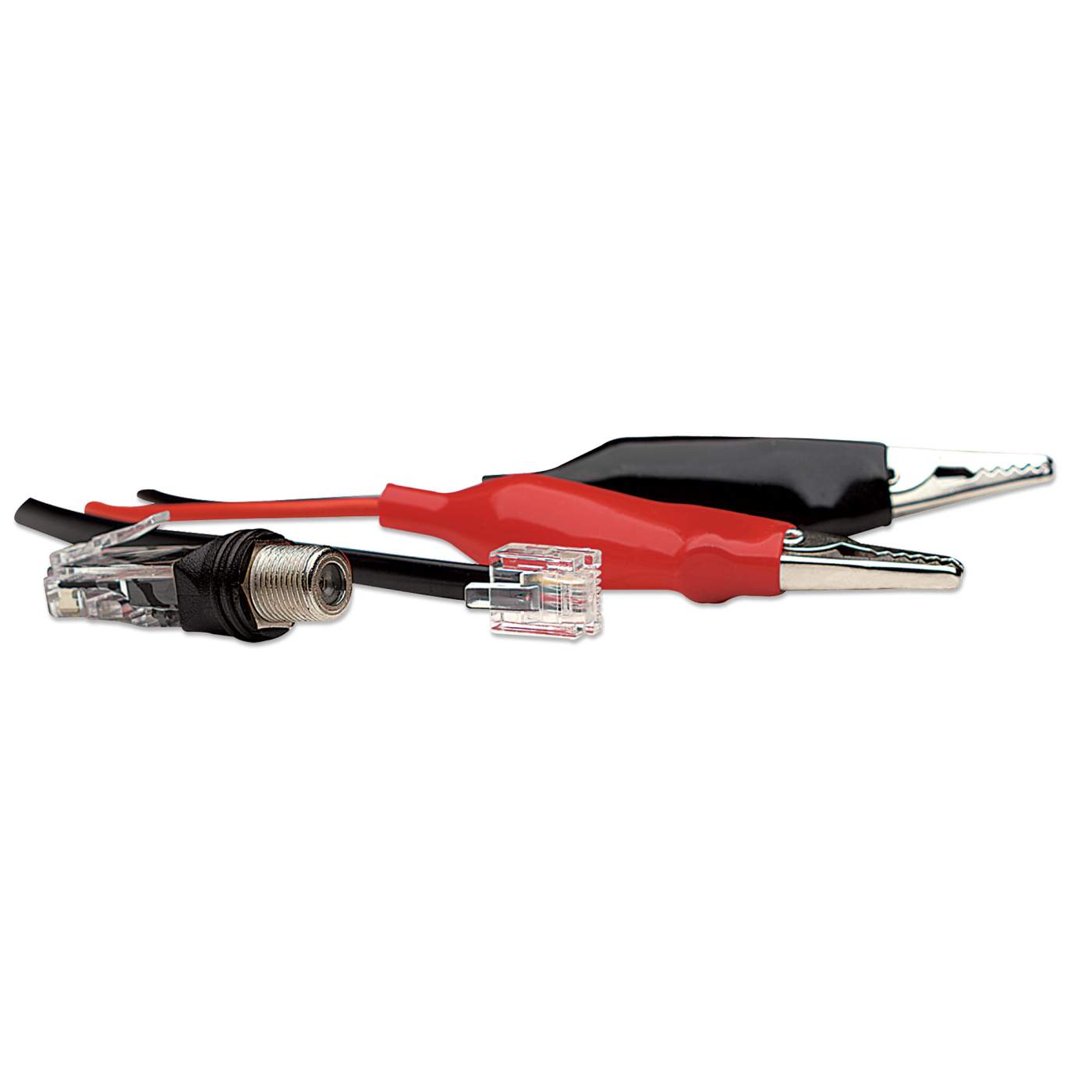

- Alligator clips, RJ45 jack, RJ12 plug, optional F-connector
- Three-year warranty
- Net Toner
- Toner Frequency: High alternating 500-781 Hz ; Low alternating 446-657 Hz
- Talk Battery: 9V into a 600 ohms circuit
- Voltage protection: 50 VDC or 24 VAC
- Battery: 9V DC standard or alkaline
- CE Approved: EN 55022 Class B for ITE and EN 55024
- Size: 125 (L) x 68 (W) x 26 (H) mm (4.9 x 2.7 x 1.2 in.)
- Weight: 120g (.37 lb)

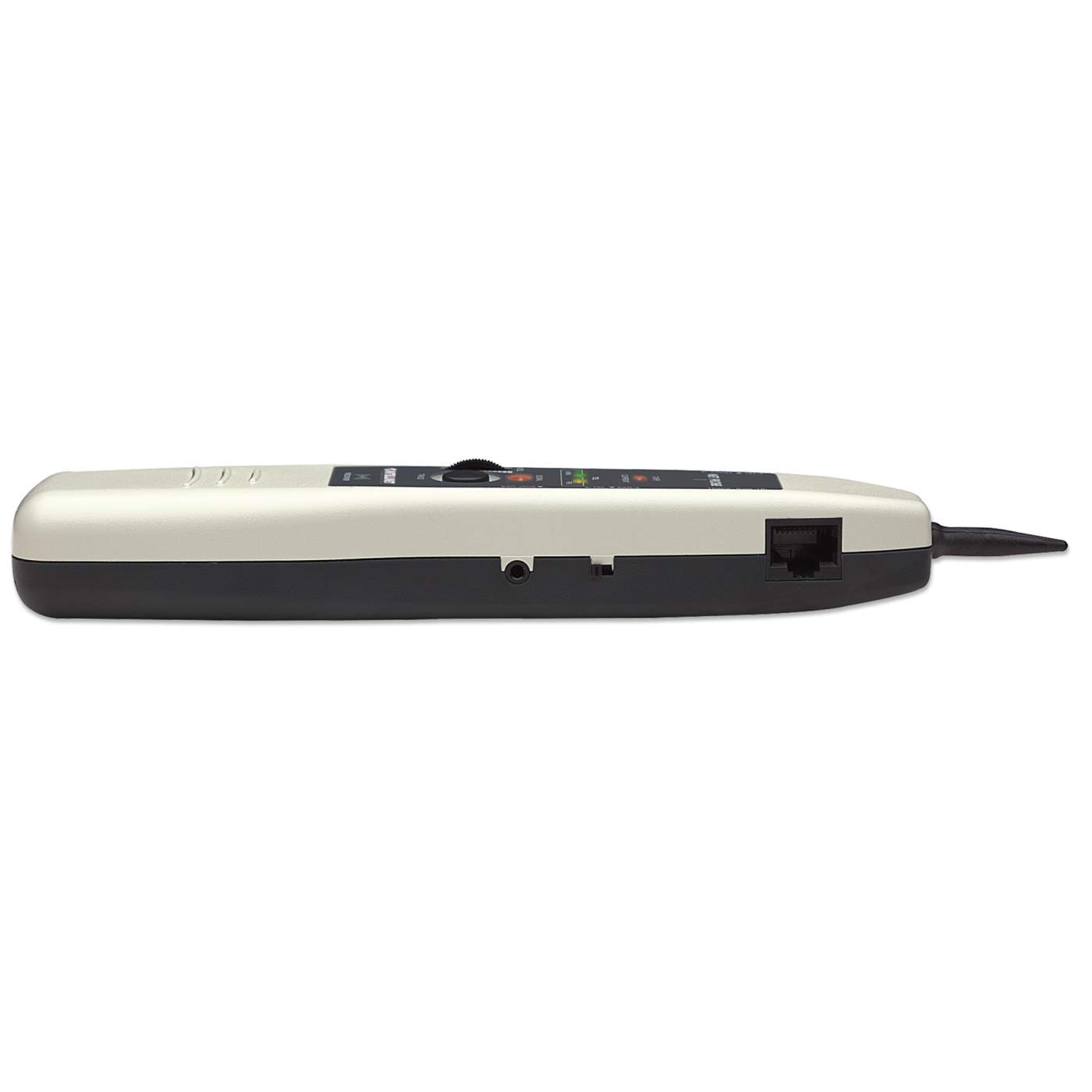

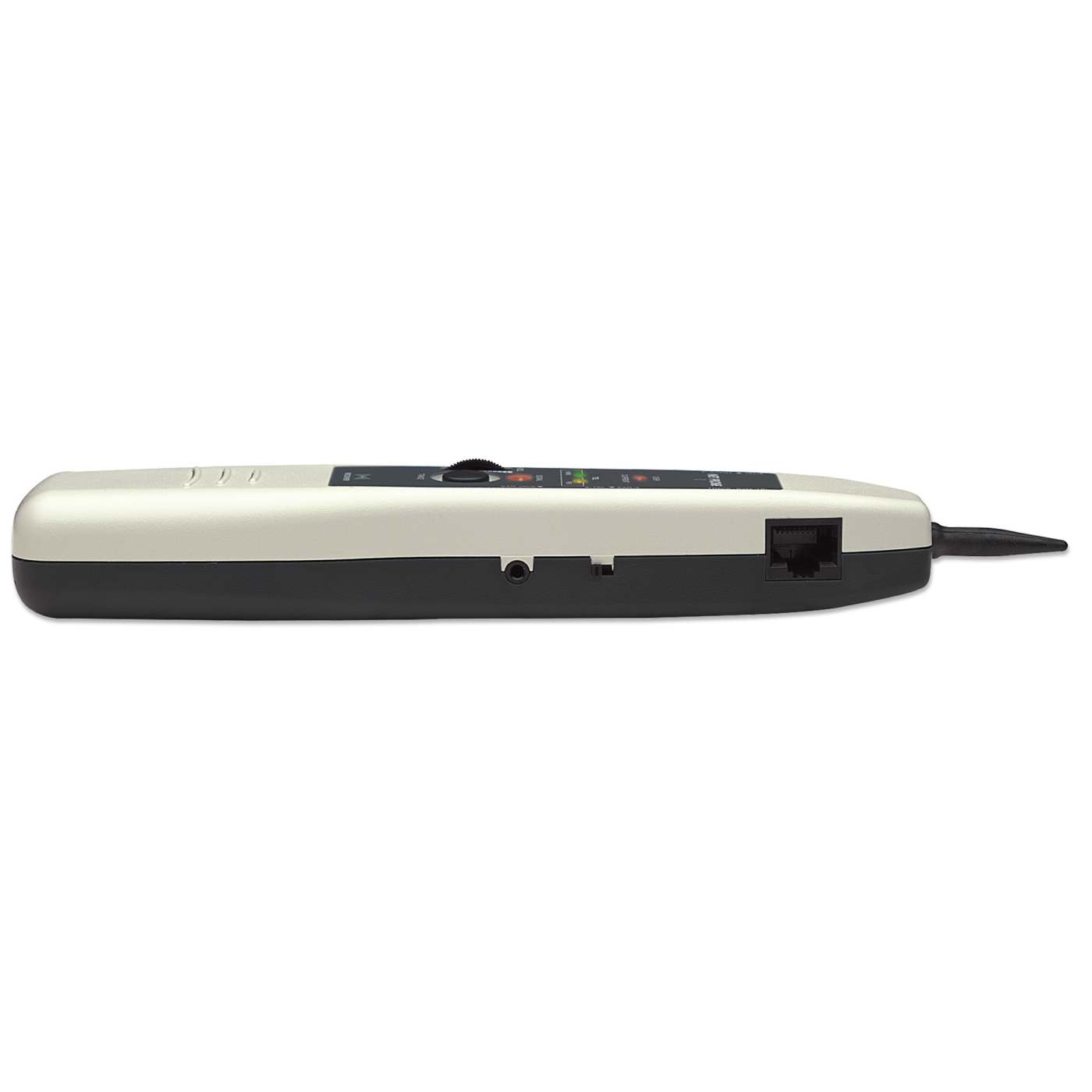

Net Probe - Gain: 30 db
- Tip resistance: 30 ohms (Plastic tip)
- Battery: 9V DC standard or alkaline
- CE Approved: EN 55022 Class B for ITE and EN 55024
- Size: 210 (L) x 40 (W) x 28 (H) mm (8.1 x 1.6 x 1 in.)
- Weight: 140g (.30 lb)
Environmental: - Operating temperature: 0 – 40°C (32 – 104°F)

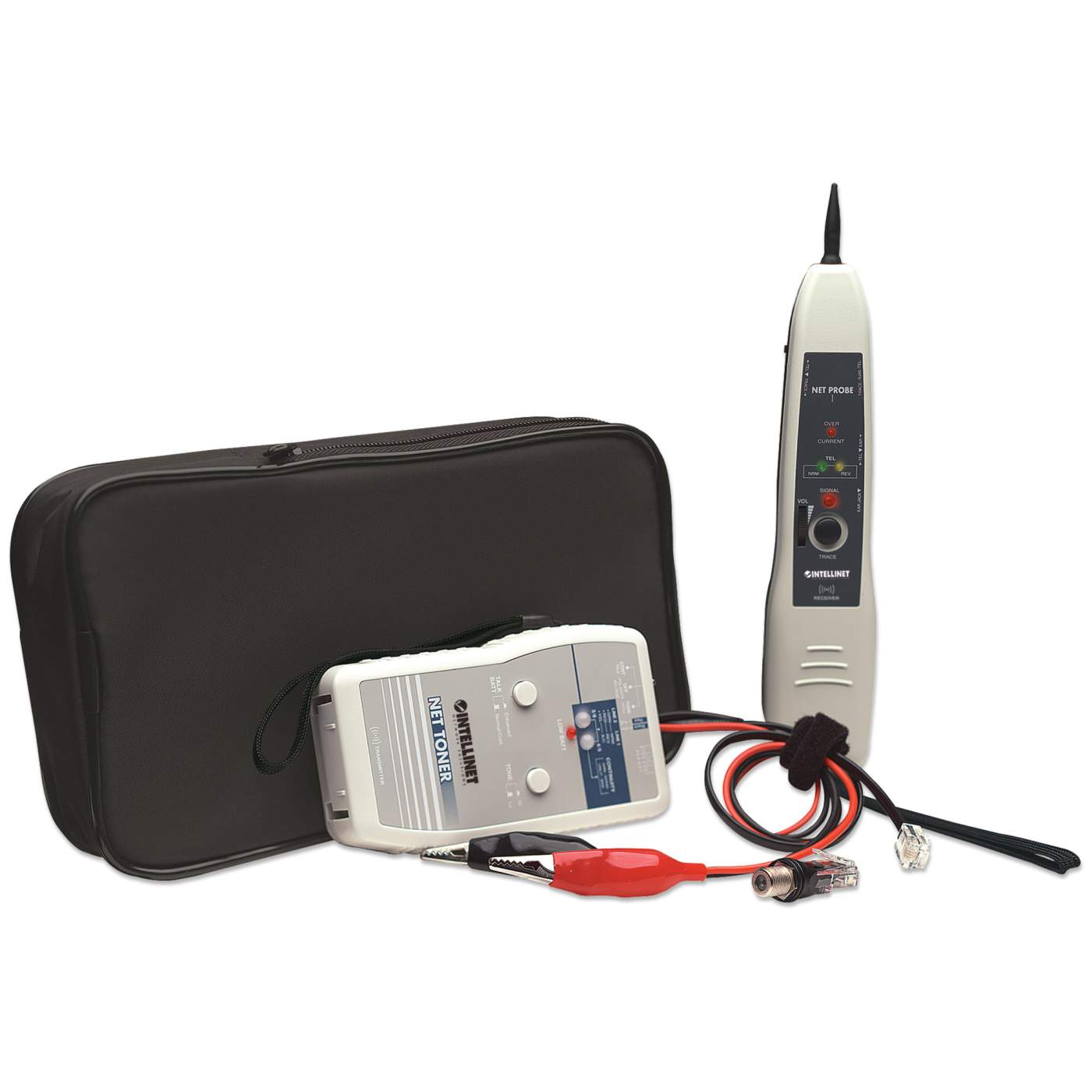

Package Contents - Net Probe
- Net Toner w/ Alligator clips and RJ12 connector
- Female F-connector to RJ45 adapter
- Carrying pouch
- User Manual
Additional SKUs
- Alphanumeric Model#: ICT-TG1
- EAN: 0766623515566
- UPC: 766623515566
Physical Specifications
- Product net weight: 1.06 lbs
- Product gross weight: 0 kg
Warning
This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
