1080p 2-Port HDMI Splitter

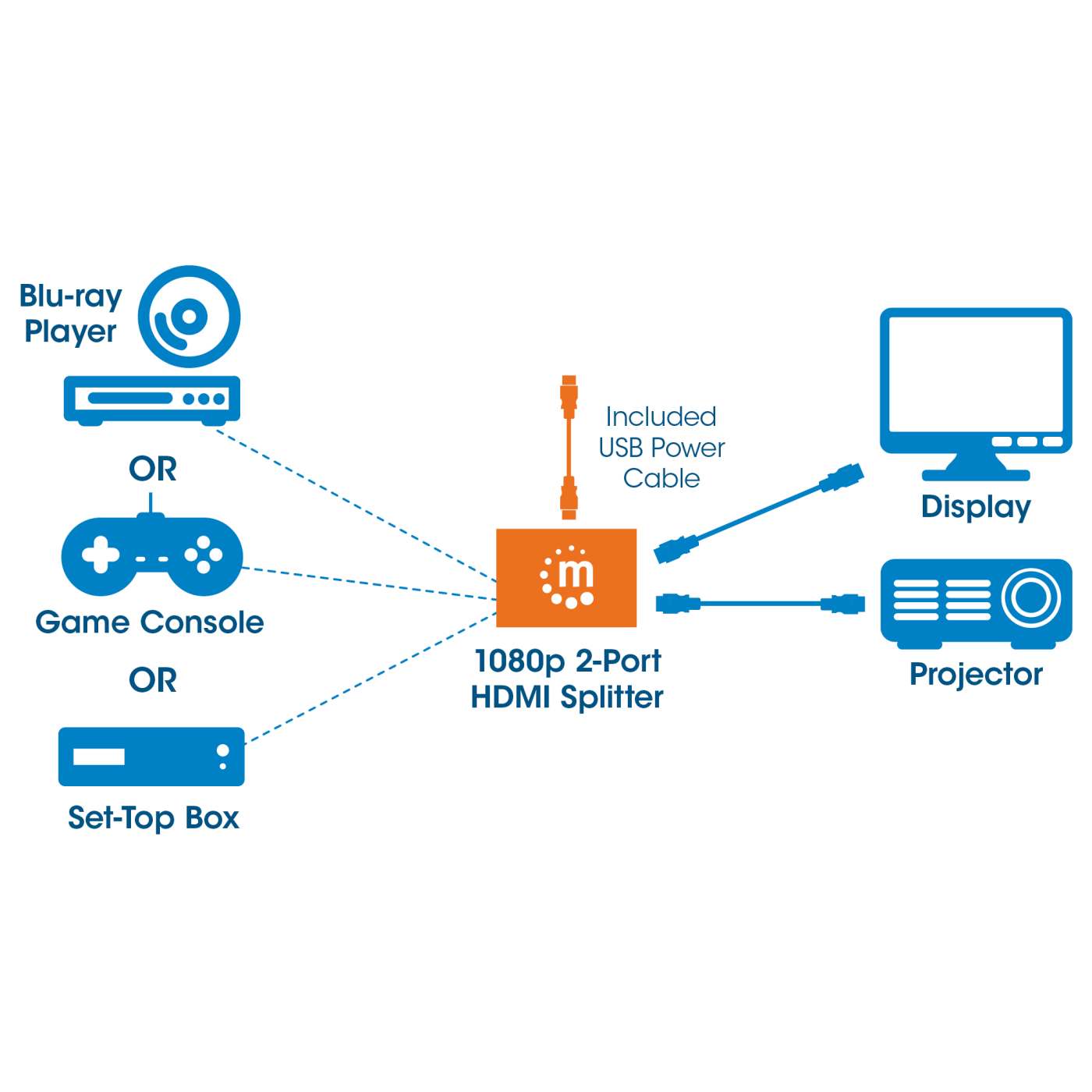

Easily distribute a single HDMI signal to multiple displays.The Manhattan 1080p 2-Port HDMI Splitter sends HDMI signals from a single Blu-ray player, satellite receiver, digital recorder, set-top box, game console or other HDMI source to two HDMI displays. Flexible Solution for Many A/V ApplicationsIdeal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan 1080p 2-Port HDMI Splitter features a built-in booster for added signal strength. It’s also a good choice for splitting and distributing a synchronous signal to multiple HDMI displays when source equipment is remotely stored in a secured room or cabinet. Users can cascade multiple units up to three levels and output HDMI video/audio to additional displays in widely distributed applications.Quality Construction and Easy InstallationFull compliance with HDMI, HDCP 1.0, 1.1 and 1.2 as well as DVI 1.0 ensures that the Manhattan 1080p 2-Port HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the USB power cable, and this affordable HDMI solution is complete — no complicated settings or software or hardware configurations necessary.

• Displays video from one HDMI source on two HD displays
• Delivers a sharp, clear signal from Blu-ray players, set-top boxes, satellite receivers and more
• Cascadable up to three levels to expand signal distribution to more displays
• HDCP compliant
• Supports LPCM, DTS@ Digital, DTS-HD Master Audio and Dolby TrueHD audio
• Supports 1080p HD resolution, 3D video and Deep Color
• Supports the video amplifier bandwidth up to 2.25 Gbps
• Plug-and-play installation; no special setup or remote
• Gold-plated contacts for corrosion-free connections
• Three-year warranty

Standards and Certifications

• HDCP 1.0 / 1.1 / 1.2

• DVI 1.0

• CE

• FCC

• RoHS2

  General

• Source-to-splitter range: up to 15 m (49 ft.)

• Splitter-to-display range: up to 15 m (49 ft.)

• Power: 5 W; USB cable, 0.7 m (2.3 ft.)

  Connections

• One HDMI female, 19-pin (input)

• Two HDMI female, 19-pin (output)

• One USB Mini-B female, 5-pin (input)

  Signal Input/Output

• Input video signal: 0.5 – 1.0 V p-p

• Input DDC signal: 5 V p-p (TTL)

• Maximum single-link range: 2.25 Gbps, 1920x1200, 1080p

• Output video: HDMI 1.3b, HDCP 1.0 / 1.1 / 1.2, DVI 1.0

• Frequency: 2.25 Gbps / 225 MHz

  Video Resolutions

• DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p

  Physical

• LED indicators: power and port connection

• On/off switch

• Dimensions: 60 x 54 x 20 mm (2.4 x 2.1 x 0.8 in.)

• Weight: 0.04 g (0.08 lb.)

• Housing: plastic

  Operating Environment

• Operation Temperature: 0 – 70°C (32 – 158°F)

• Storage Temperature: -10 – 80°C (14 – 176°F)

• Operation Humidity (noncondensing): 10 – 85%

• Storage Humidity (noncondensing): 5 – 90%

  Package Contents

• 1080p 2-Port HDMI Splitter

• USB power cable

• Quick Instruction Guide

• Additional SKUs

• EAN: 0766623207652
• UPC: 766623207652



• Physical Specifications

• Product net weight: 0.09 lbs
• Product gross weight: 0.17 kg
• Dimensions: 2.36 (L) x 2.13 (W) x 0.79 (H) [in]
