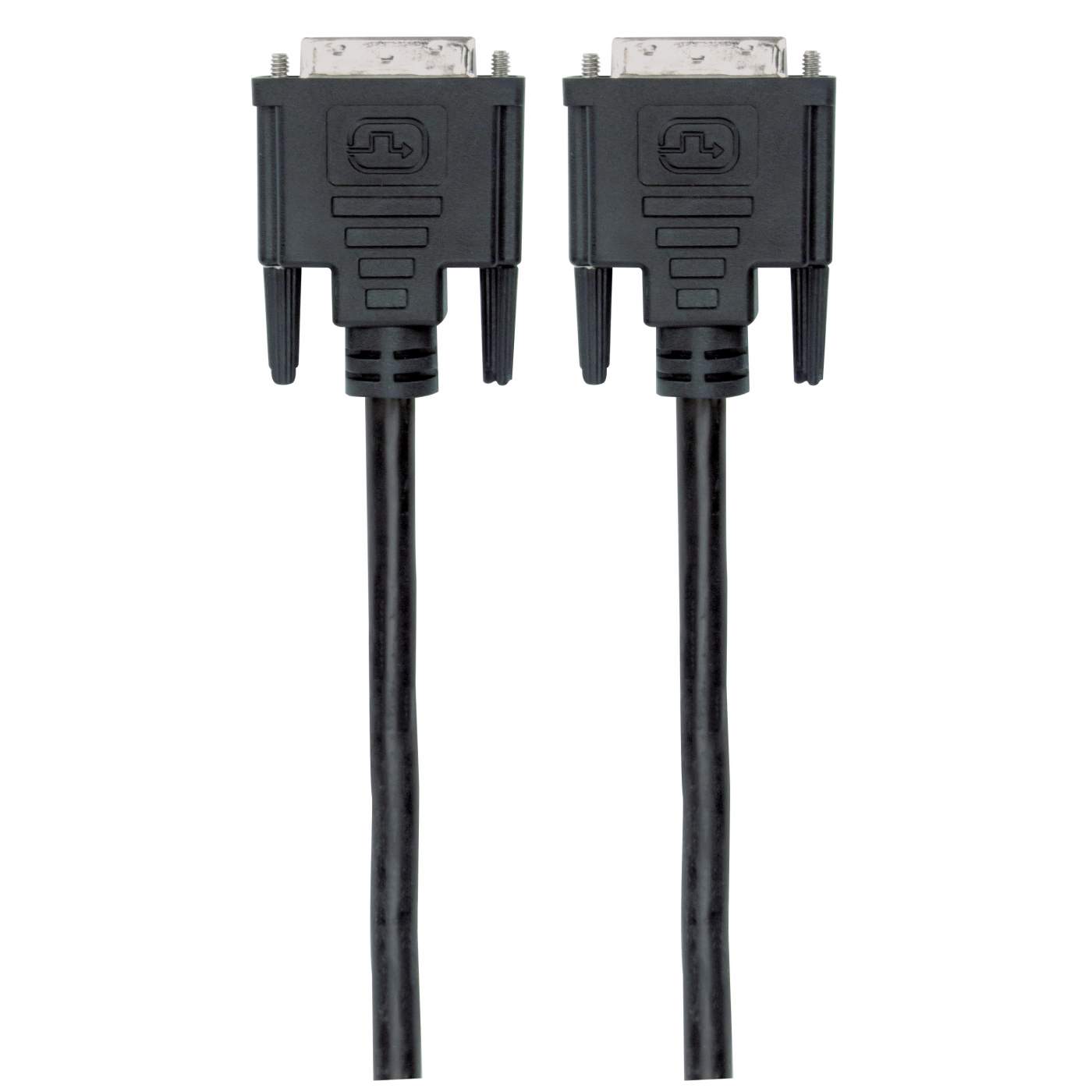

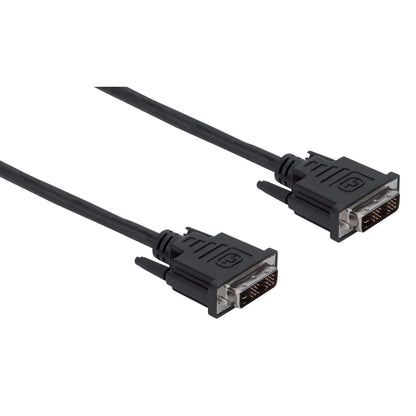

DVI-D Digital Video Cable
DVI-D Digital Video Cable
DVI-D Male to DVI-D Male, Single Link, 1.8 m (6 ft.), Black
Highlights
- DVI-Digital single-link male to DVI-Digital single-link male
- Supports existing HD (720p, 1080i and 1080p@60Hz), enhanced (480p) and standard (NTSC or PAL) video formats
- Connects any DVI-equipped computer to a DVI monitor or TV and vice versa
[ view high resolution images ]
Superior connections for quality digital video performance
The Manhattan DVI-D Digital Video Cable delivers the brightest, most accurate colors and sharpest detail when connecting a high-definition television, LCD or plasma display, digital satellite receiver, DVD player, digital projector or other DVI- or HDMI-equipped display device. The Manhattan DVI-D Digital Video Cable is engineered and constructed of quality materials to deliver a dependable transmission in digital video applications. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.
- DVI-Digital single-link male to DVI-Digital single-link male
- Supports existing HD (720p, 1080i and 1080p@60Hz), enhanced (480p) and standard (NTSC or PAL) video formats
- Connects any DVI-equipped computer to a DVI monitor or TV and vice versa
- Fully shielded — ideal for any size monitor or TV
- Compatible with DVI-I and DVI-D interfaces
- Lifetime warranty
- Standards and Certifications
- Meets or exceeds existing DVI-D standards
- Compatible with DVI-I and DVI-D interfaces
- UL
- ISO
- RU
- CE

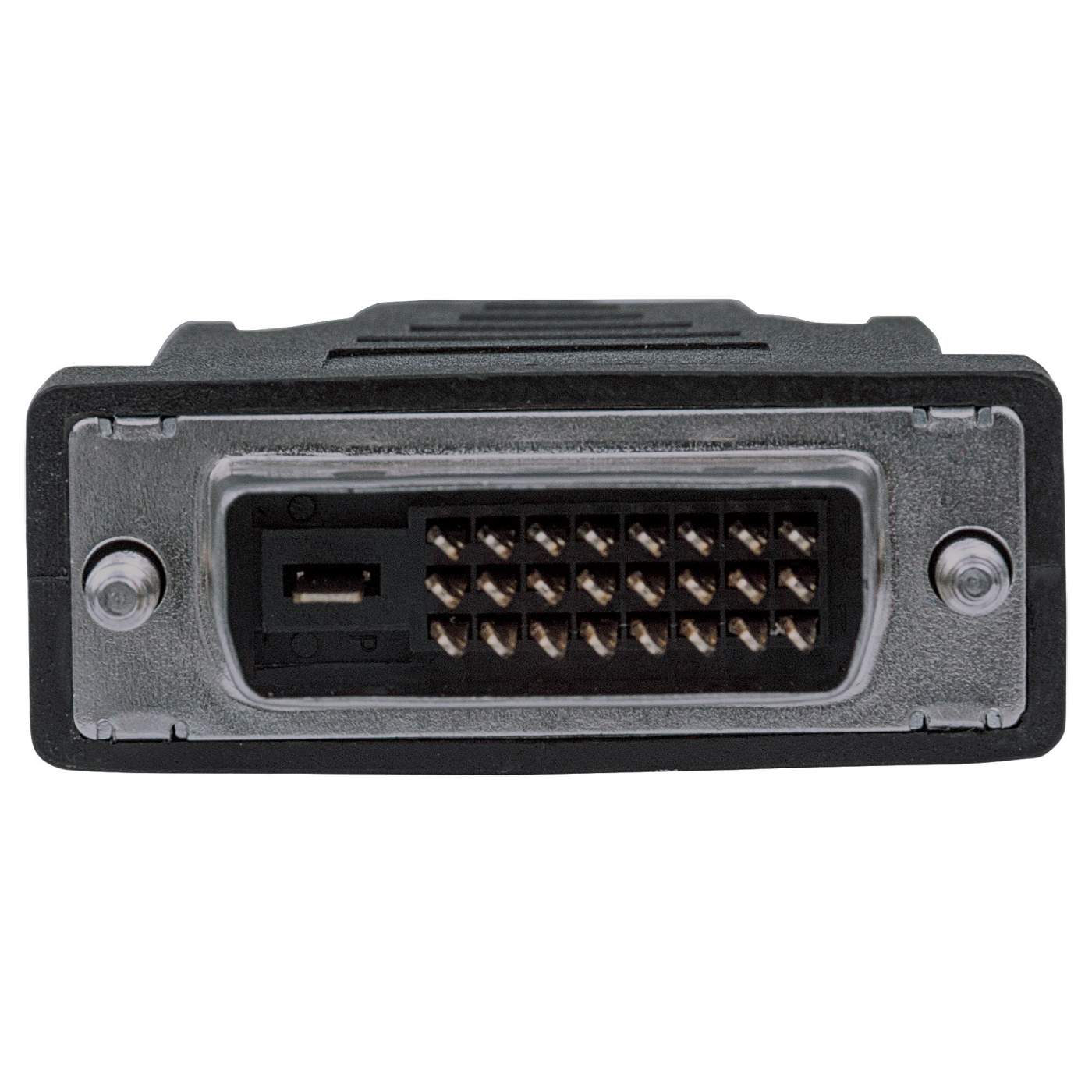

Contacts - Two DVI-D 18+1-pin male
- Molded PVC boot
- Shielded
- 28 AWG connectors
Cable - Shielded
- Length: 1.8 m (6 ft)
- Current rating: 0.5 A DC
- Withstanding voltage: 300 V DC
- Insulation resistance: 10 MOhms
- Conductive resistance: 2 Ohms
- Thermal plastic casing
Operating Environment - Operation Temperature: 0 – 40°C (32 – 104°F)
- Storage Temperature: -10 – 60°C (14 – 140°F)
- Humidity (noncondensing): 5 – 90%
Package Contents - DVI-D Digital Video Cable
Additional SKUs
- EAN: 0766623355322
- UPC: 766623355322
Physical Specifications
- Product net weight: 0.4 lbs
- Product gross weight: 0 kg
- Dimensions: 5.9 (L) x 0.1 (W) x 0 (H) [ft]
- Datasheet
- Datasheet » Download
