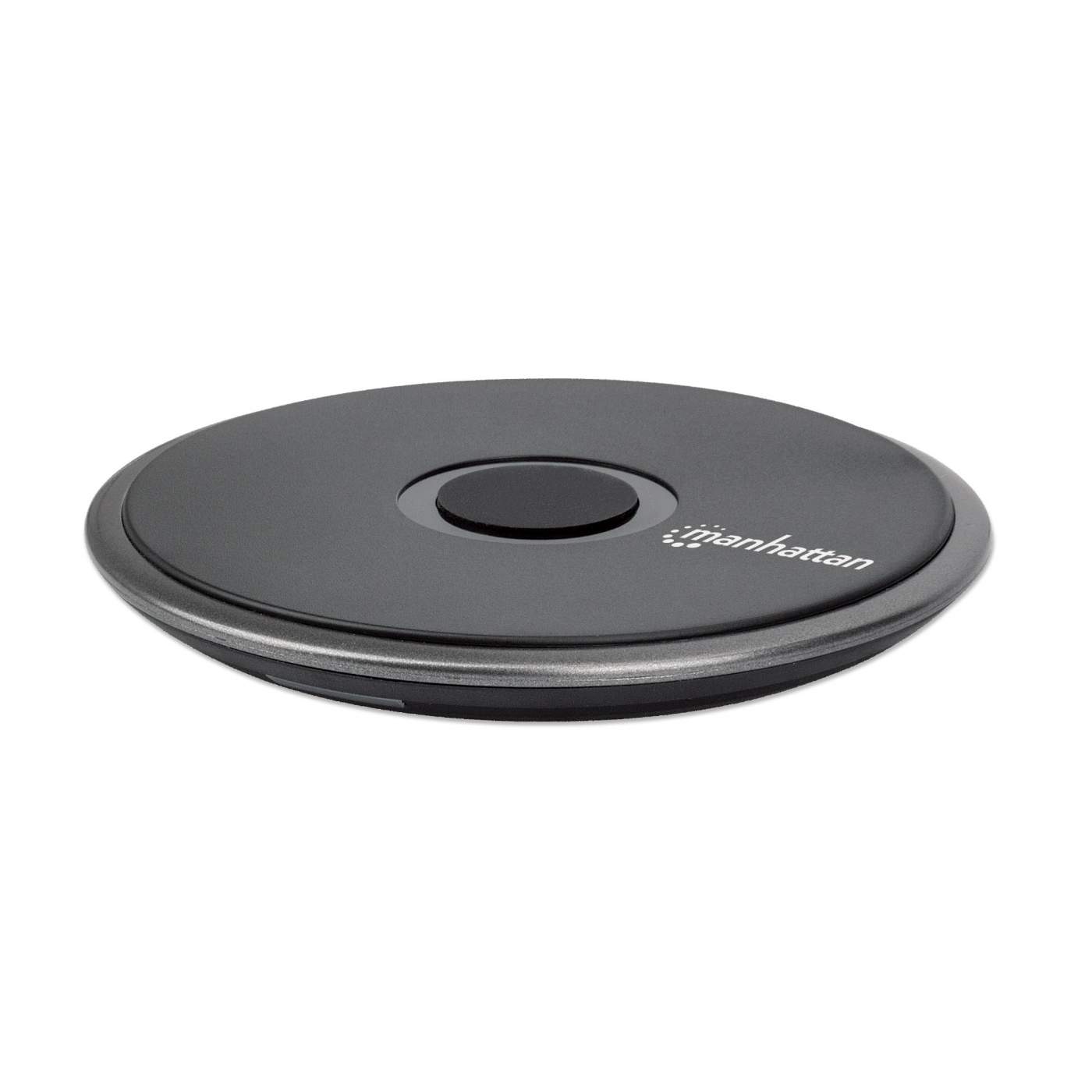

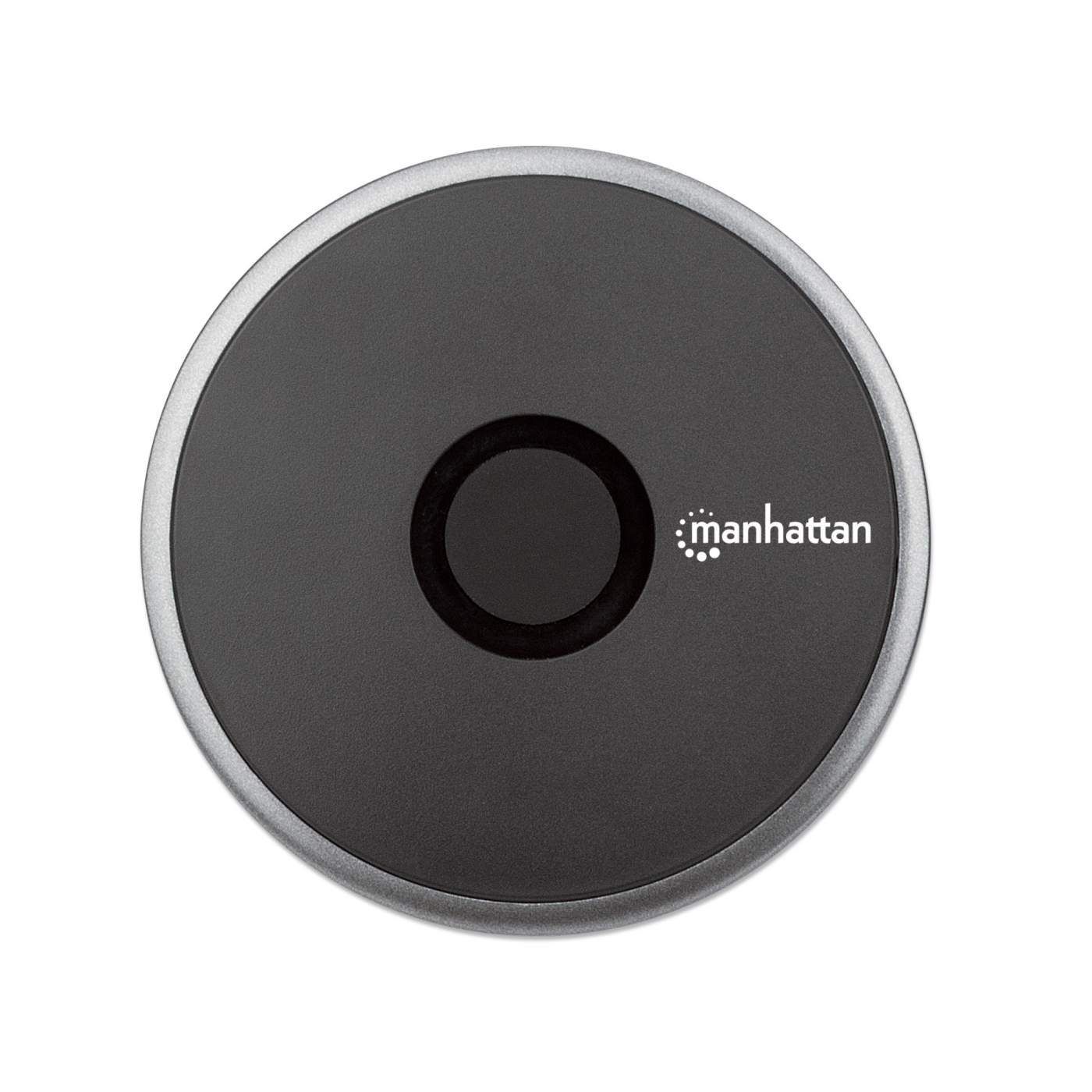

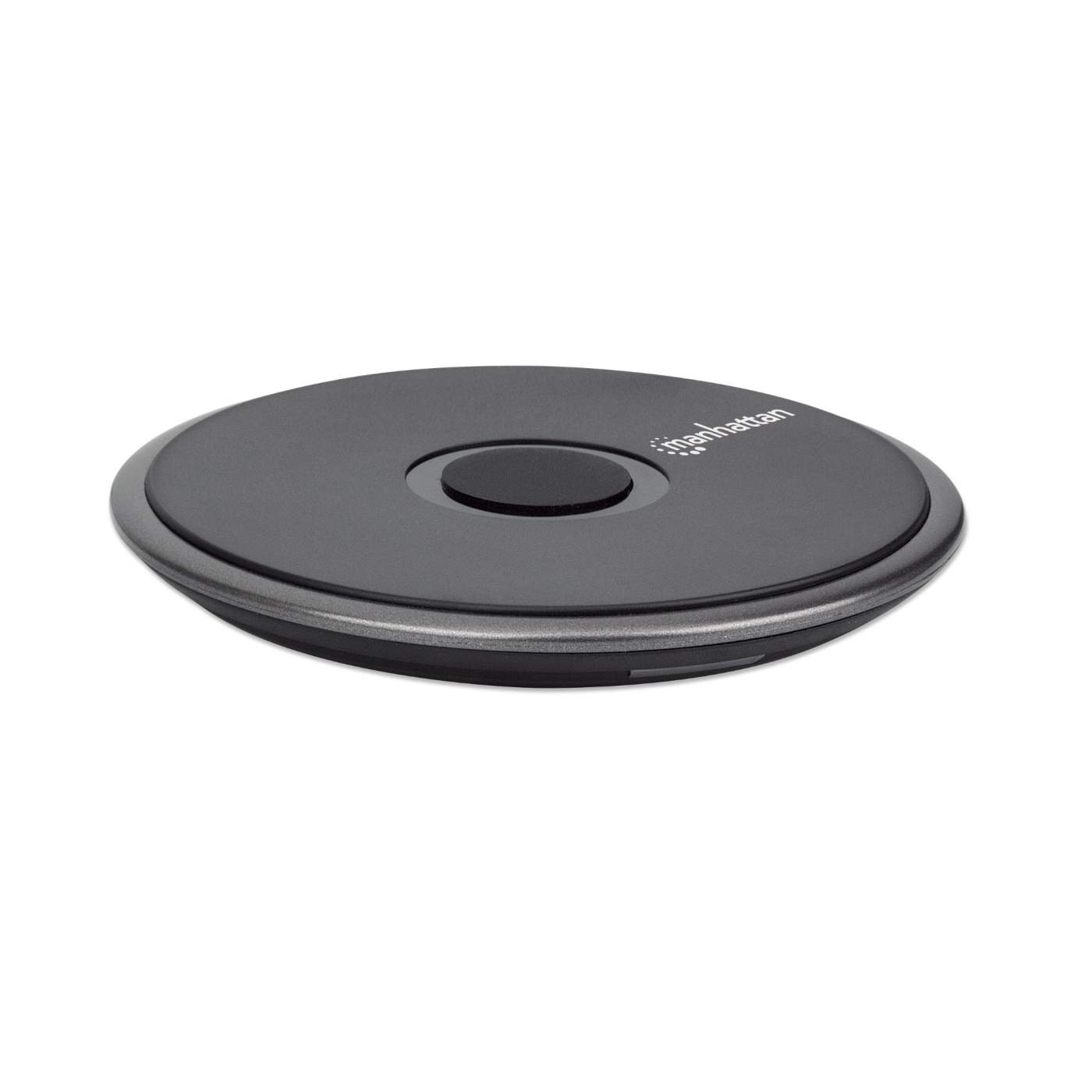

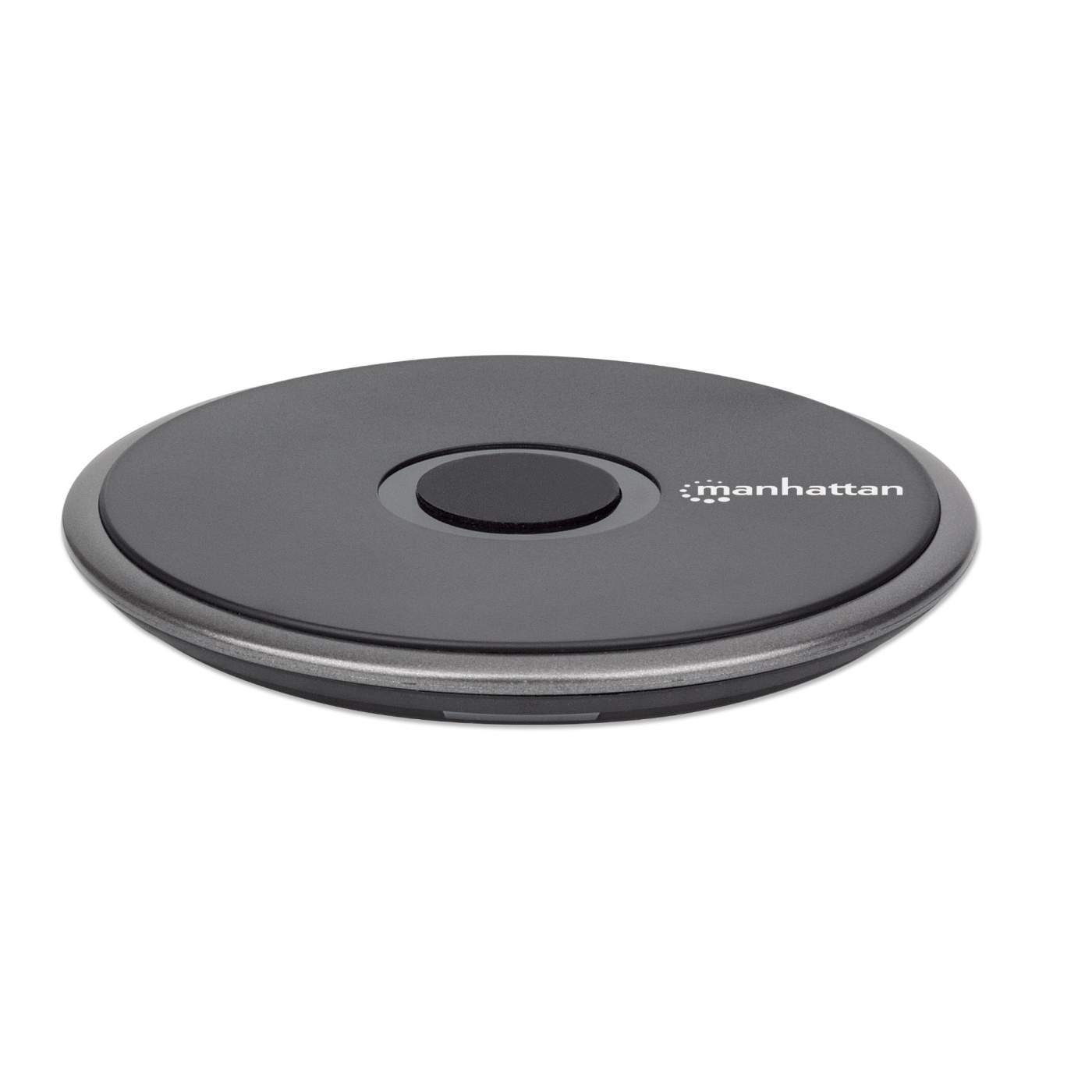

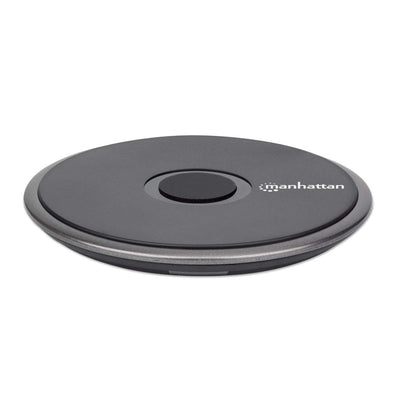

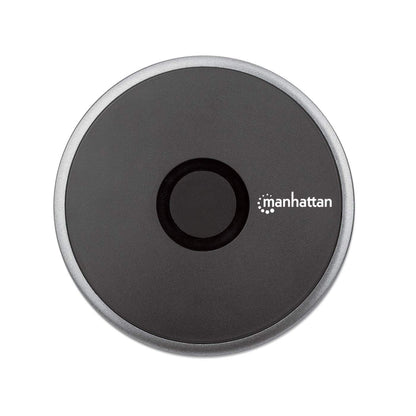

Fast-Wireless Charging Pad - 10 W

Simple, Fast Phone Charging with the Manhattan Wireless Charging Pad

Charging your phone is even simpler with the Manhattan Wireless Charging Pad - 10 W. Whether your phone has wireless charging built-in or your phone case supports wireless charging, a quality wireless charger from Manhattan makes it easy to get power back into your phone fast. With a dedicated charging pad, there's no need to find the right cable or worry about slower charging from a low-amp wall charger every time your phone needs power. Once you set it on the charger, your phone gets the fastest charge it can handle — from 10 W, 7.5 W or 5 W. Plus, as long as it isn't made of metal and is less than 5 mm (0.2 in.) thick, your phone case won't interfere with charging, so it stays protected even while it's on the pad. The Manhattan Wireless Charging Pad - 10 W truly offers a no-hassle way to charge up your phone fast.

• Qi™-certified to ensure a safe charge for you and your devices
• Wirelessly fast-charges compatible devices - phones, cases, earbuds, smartwatches and more - with power up to 10 W
• Built-in safety technology that shuts off power output when metal is detected to prevent interference or device damage

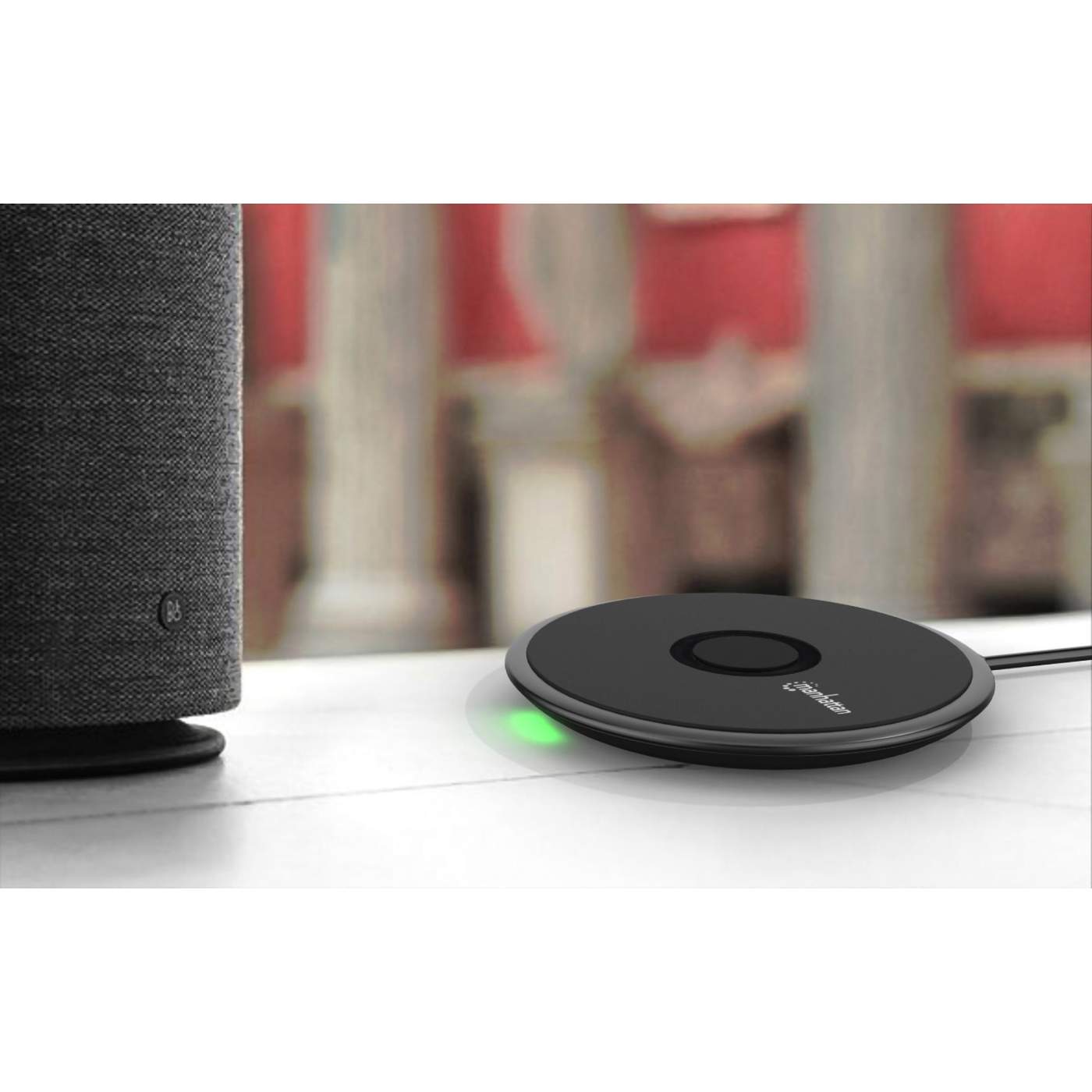

• LED indicators for easy status monitoring
• Overload, overcurrent and overheating protection
• Effective wireless charging through phone cases up to 5 mm thick*

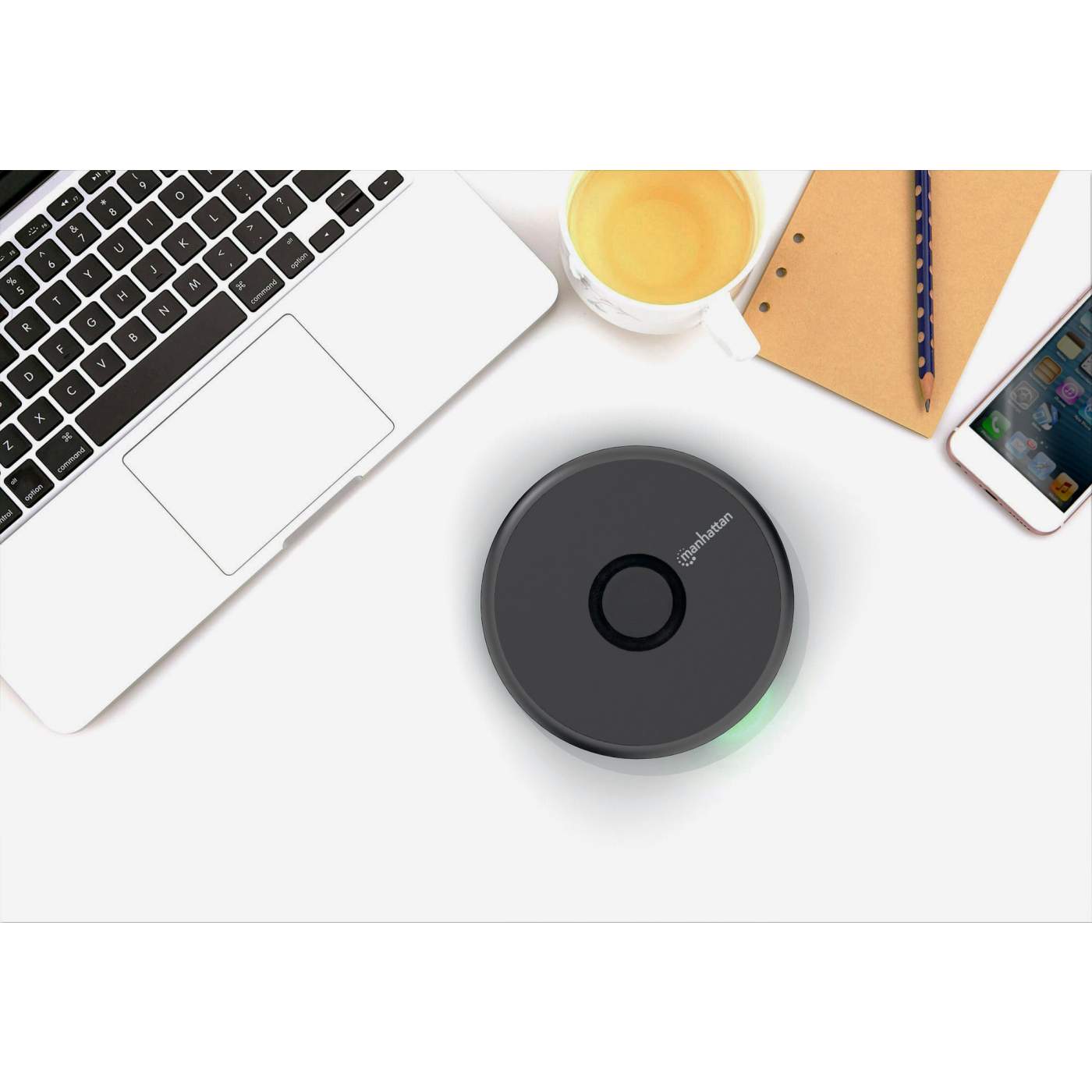

• Compact, portable and stylish design for easy travel
• *External metallic accessories (such as credit cards, magnets, grips, and phone cases) will interfere with the charging technology
• Three-year warranty

Standards and Certifications

• Qi™

• CE

• RoHS

• FCC

• WEEE

  General

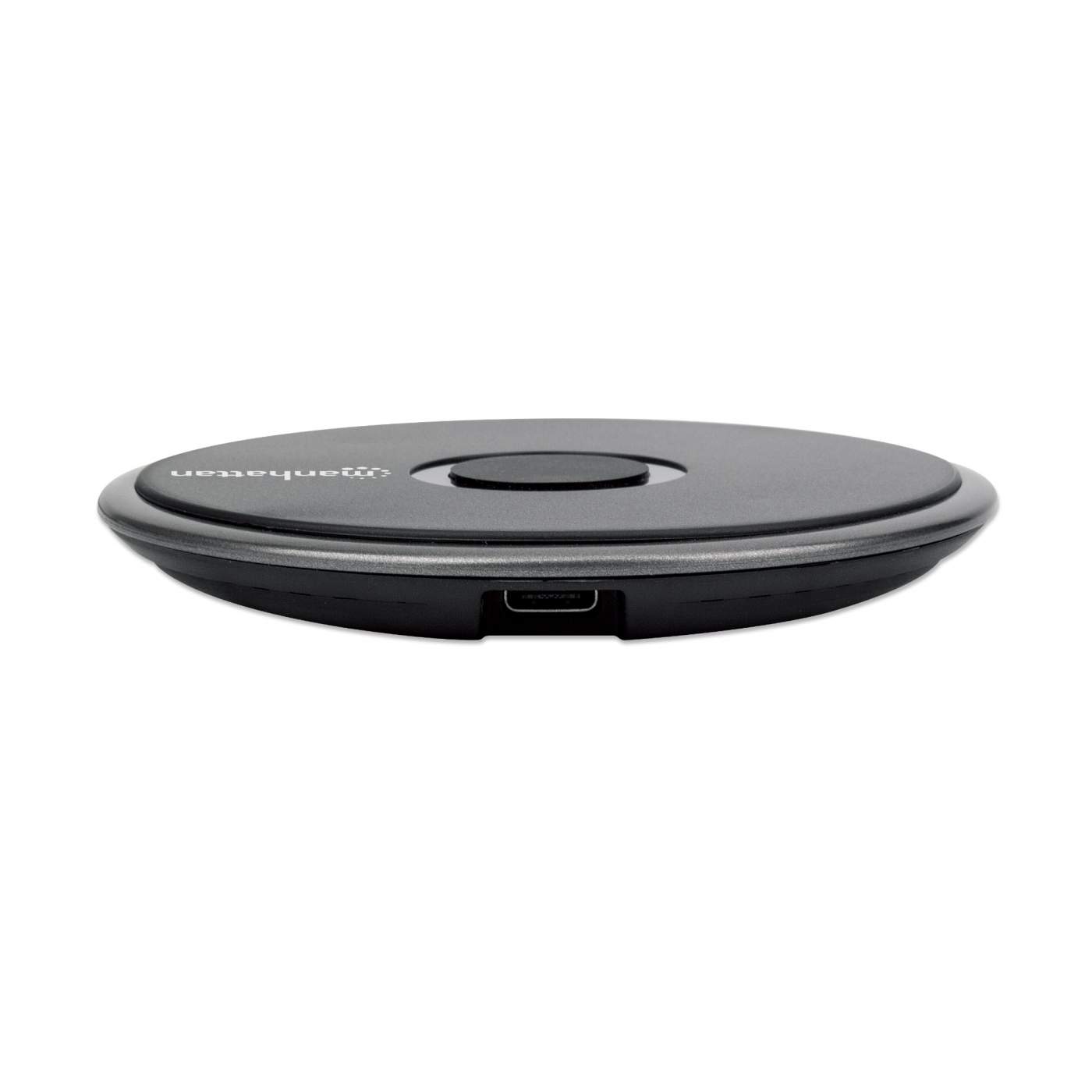

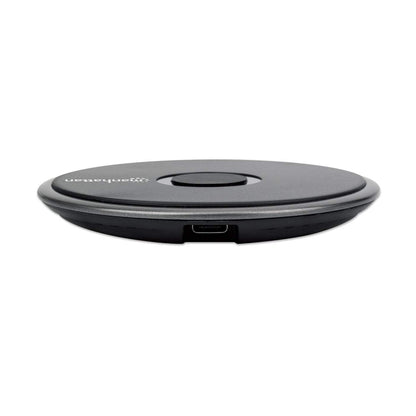

• USB-C input: DC 5 V / 2 A – 9 V / 2 A

• Wireless power output:
  - Input at 5 V / 2 A: 5 W
  - Input at 9 V / 2 A: up to 10 W

• Wattage settings (maximum):
  - 5 W / 7.5 W / 10 W

• Charging distance: ≤ 10 mm

• Charging efficiency: ≤ 80%

  Protection Characteristics

• Short circuit (SCP) with auto-recovery mode

• Overvoltage (OVP) with auto-recovery mode

• Overcurrent (OCP) — current limit: 150% (max)

• Over-temperature (OTP)

  Physical

• Dimensions: 90 x 90 x 10.6 mm (3.54 x 3.54 x 0.42 in.)

• Weight: 0.059 kg (2.08 oz.)

• Housing: ABS + PC

  Operating Environment

• Operation Temperature: 0 – 30°C (32 – 86°F)

• Storage Temperature: -20 – 65°C (-4 – 149°F)

• Humidity (noncondensing): 10 – 90%

  Compatibility

• 10 W Fast Charge Mode:
  - Samsung Galaxy S7 / S7 Edge / S8 / S8+ / S9 / S9+ / S10 or above
  - Samsung Note 8 / 9 / 10 or above

• 7.5 W Mode:
  - Apple iPhone 8 / 8 Plus / X / XR / XS / XS Max or above

• 5 W mode:
  - All other Qi™-enabled devices

  System requirements

• Up to 10 W output:
  - Quick Charge 2.0 / 3.0 charger
  - Power Delivery 18 W charger

• 5 W:
  - 5 V / 2 A charger

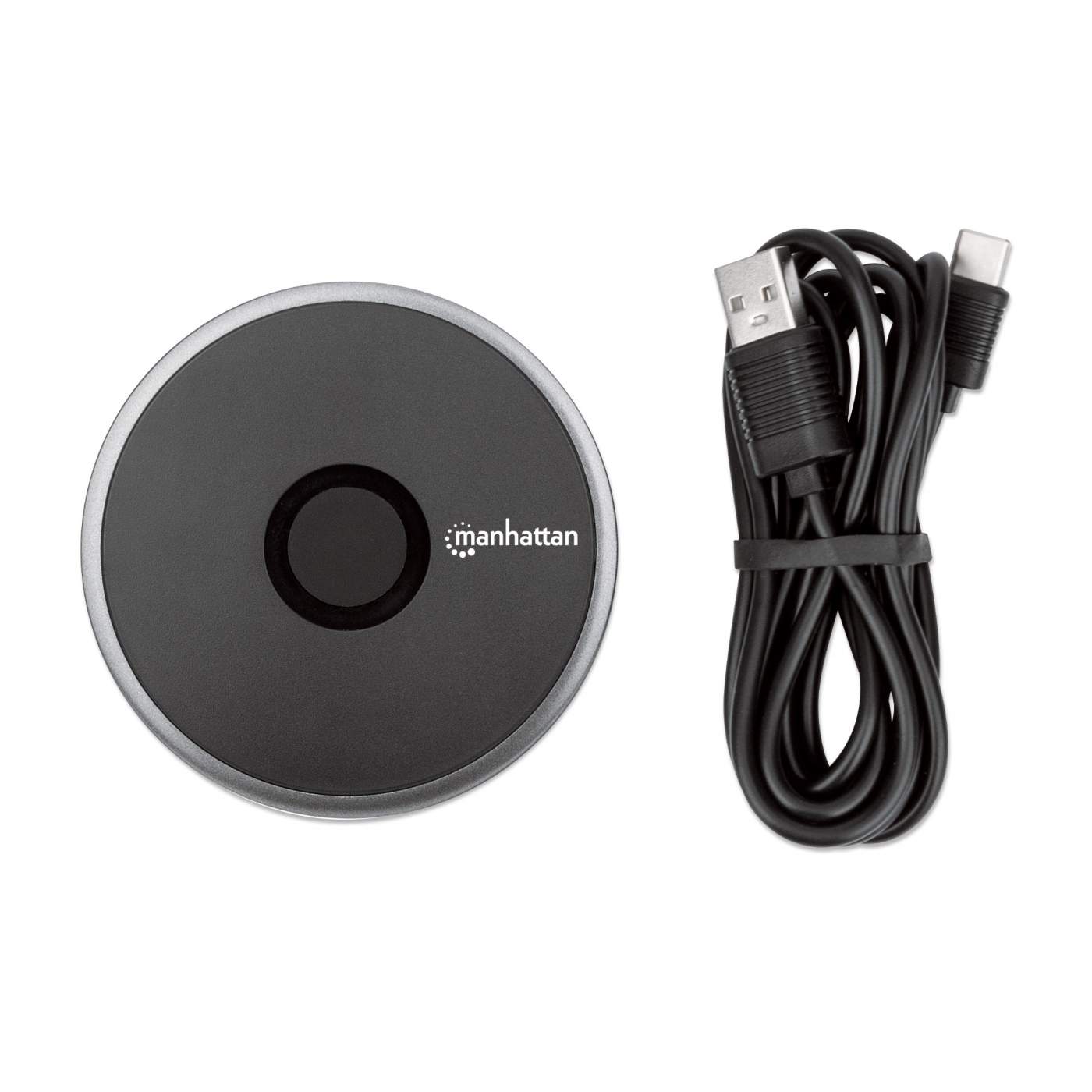

  Package Contents

• Wireless Charging Pad - 10 W

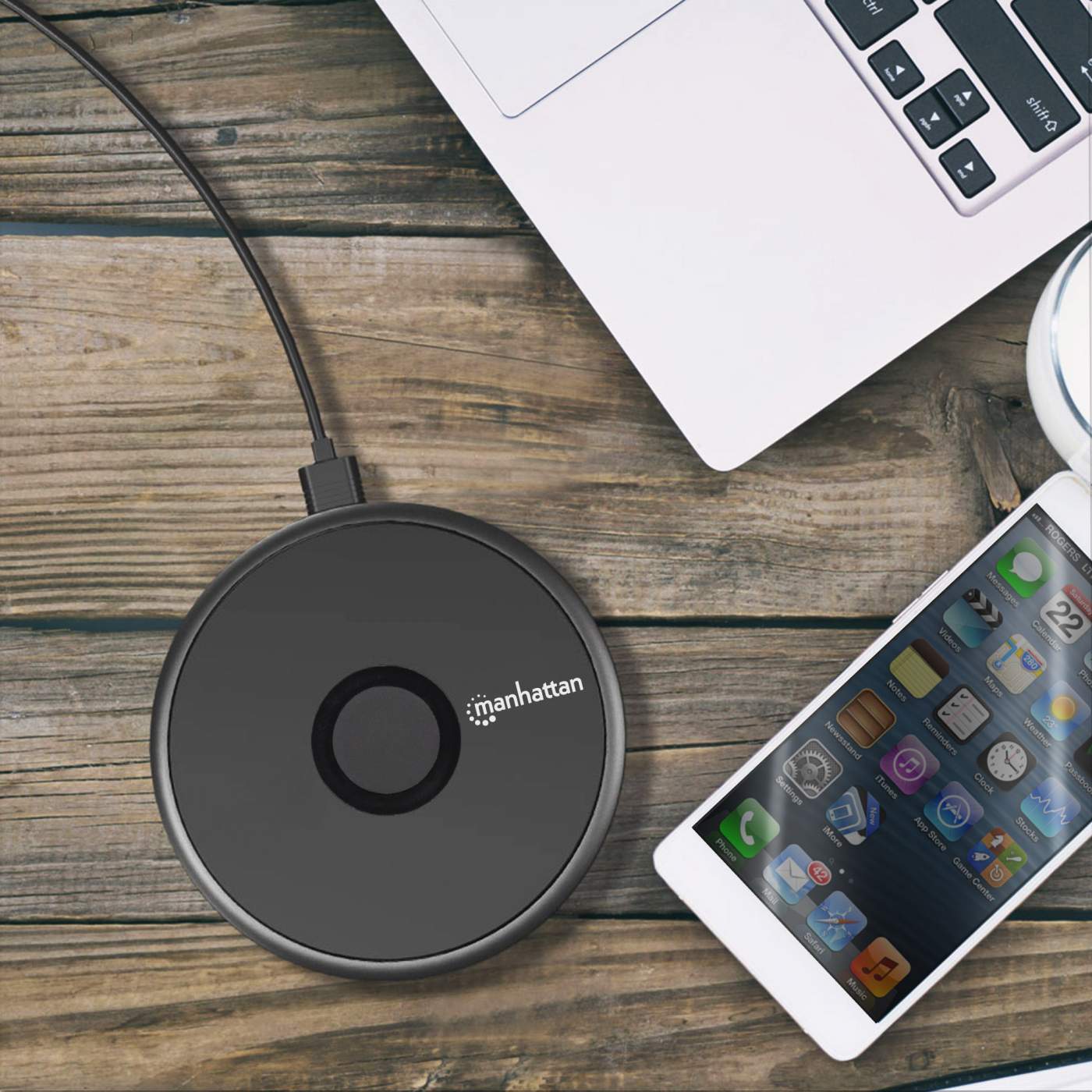

• 1.5 m (5 ft.) USB-C power cable

• Quick Instruction Guide

Warning

This product can expose you to chemicals including , which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• EAN: 0766623102186
• UPC: 766623102186



• Physical Specifications

• Product net weight: 0.13 lbs
• Product gross weight: 0.31 kg
• Dimensions: 3.54 (L) x 3.54 (W) x 0.42 (H) [in]
