Flat High Speed HDMI Cable with Ethernet

High Speed Cables deliver high-definition performance with no tangles.HDMI has become the standard digital connection, delivering the highest-quality audio and video signal over a single cable. With a flat, tangle-resistant design, gold-plated contacts and a sturdy yet flexible PVC jacket, Manhattan Flat High Speed HDMI Cables are designed and carefully constructed to meet the evolving needs of the high-definition marketplace. Manhattan High Speed HDMI Cables provide the highest resolution possible at 4K x 2K, an audio return channel and a bandwidth of 18 Gbps at 600 MHz. These high-quality cables provide high-definition video and multichannel, digital audio with increased performance characteristics and greater accuracy. Expanded features include Internet connectivity for home entertainment devices using a single HDMI connection. Plus, this cable's unique design makes it easy to roll up or out without worrying about snags and tangles.

• Tangle and snag resistant cable design; allowing for easy cable management
• Supports HDMI Ethernet Channel, Audio Return Channel, 3D Video, 4K@60Hz Display and Deep Color
• 4K, UHD resolution supports video resolution 4 times 1080p; up to 1080p resolution in 3D and Deep Color
• ARC-allows TV's audio to transmit through your audio system; no need for additional audio cable
• High-speed Ethernet, bi-directional networking at up to 100 Mbps
• Up to 18 Gbps at 600 MHz bandwidth
• Compliant with High Speed HDMI with Ethernet specifications
• Double shielded to reduce EMI and other interference sources
• Compatible with any HDMI device, such as Blu-ray, game consoles, stereos, PCs and more
• Lifetime Warranty

Standards and Certifications:

• UL 20276

• ISO 9002

  General:

• Bandwidth: 18 Gbps at 600 MHz

• HEC support

• Meets or exceeds existing HDMI standards

• Length: 0.5 m (1.5 ft.)

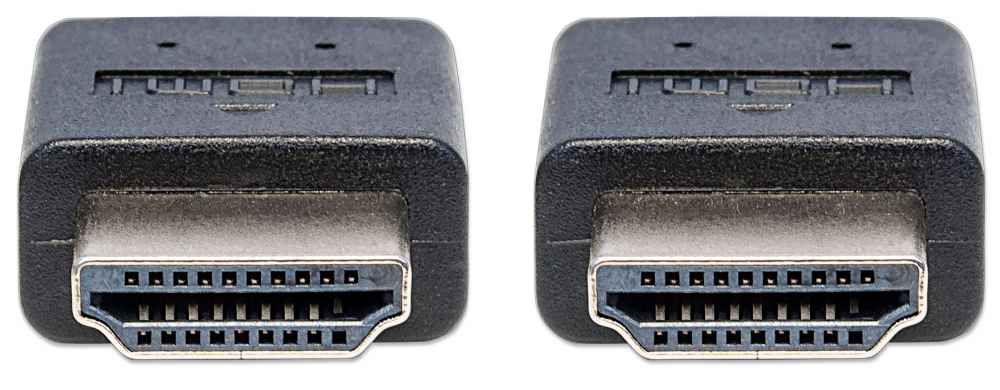

  Connectors:

• (2) HDMI 19-pin male

• Gold-plated contacts

• Molded PVC boot

• Built-in strain relief

  Cable:

• 30 AWG cable

• Double shielded

• Current rating: 0.5 A DC

• Withstanding voltage: 300 V DC

• Insulation resistance: 5 MOhms

• Conductive resistance: 5 Ohms

• Thermal plastic casing

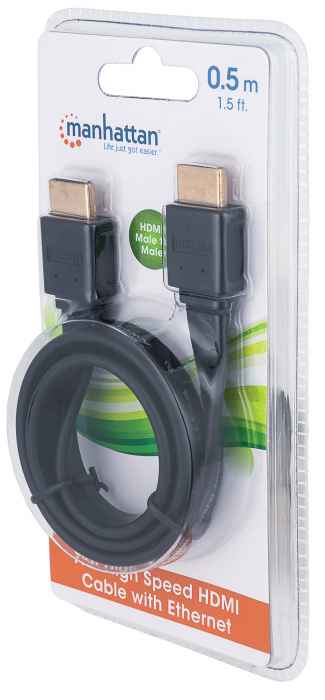

  Package Contents:

• Flat High Speed HDMI Cable with Ethernet Channel

Warning

This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• EAN: 0766623394390
• UPC: 766623394390



• Physical Specifications

• Product net weight: 0.17 lbs
• Dimensions: 1.6 ft

• Datasheet
• Datasheet     » Download
