Full-Motion TV Wall Mount with Post-Leveling Adjustment, for 37" to 70"
Full-Motion TV Wall Mount with Post-Leveling Adjustment, for 37" to 70"
Holds One 37" to 70" TV up to 35 kg (77 lbs.), Adjustment Options for Tilt, Swivel and Post-installation Leveling, Black
Highlights
- Supports one flat or curved 37" to 70" TV up to 35 kg (77 lbs.)
- Optimized views with +3 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment
- Holds TV 63 to 358 mm (2.5 to 14.1 in.) from wall
[ view high resolution images ]
Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space
This strong full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and provides optimized views with +3 to -15° tilt and +/-60° swivel adjustment. It fits flat and curved LCD, OLED or plasma TVs up to 70" and weighing up to 35 kg (77lbs.) with VESA compliance up to 600x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classrooms, conference rooms, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.
- Supports one flat or curved 37" to 70" TV up to 35 kg (77 lbs.)
- Optimized views with +3 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment
- Holds TV 63 to 358 mm (2.5 to 14.1 in.) from wall
- Heavy-duty steel construction with powder coating
- Includes attachable bubble level
- Built-in cable management to minimize clutter
- Easy installation; ideal for home, office and commercial applications
- Meets VESA standards from 100x100 to 600x400 (e.g., 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x300, 600x400)
- Lifetime warranty
- General
- Designed for most 37" to 70" flat and curved screens
- Weight capacity: 35 kg (77 lbs.)
- Tilt: +3 to -15°
- Swivel: +/-60°
- Post-installation leveling adjustment: +/-3°

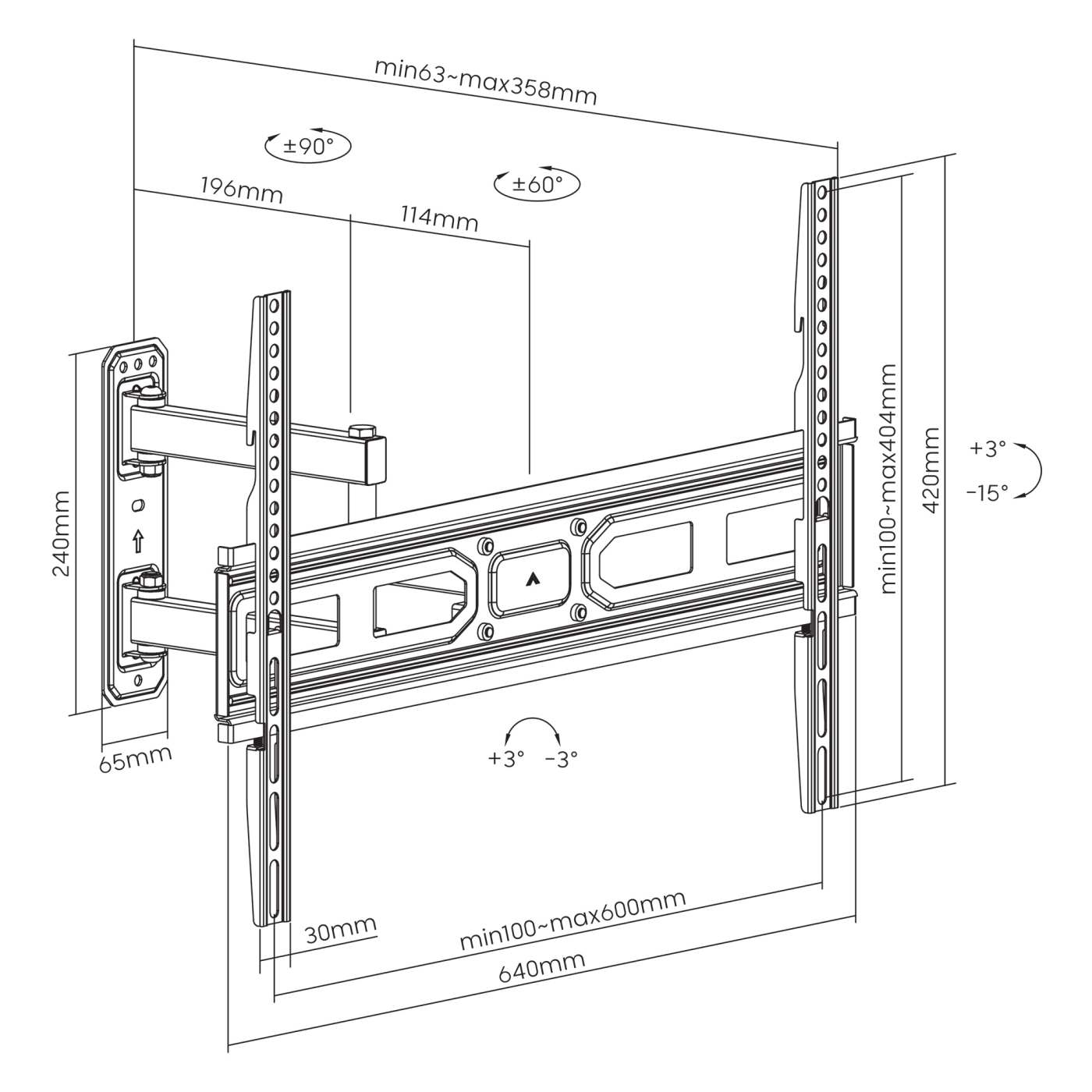

- Dimensions (L x W x H): 358 x 640 x 420 mm (14.09 x 25.2 x 16.54 in.)
- Wall profile: 63 to 358 mm (2.5 to 14.1 in.)
- Net weight: 2.52 kg (5.56 lbs.)
- Gross weight: 3.02 kg (6.67 lbs.)
- Material: steel
- VESA standards: 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 600x200, 400x400, 600x300, 600x400
Package Contents - Full-Motion TV Wall Mount with Post-Leveling Adjustment
- Attachable bubble level
- Installation hardware with instructions
Additional SKUs
- EAN: 0766623462426
- UPC: 766623462426
Physical Specifications
- Product net weight: 6.06 lbs
- Product gross weight: 6.66 kg
- Dimensions: 14.09 (L) x 25.2 (W) x 16.54 (H) [in.]
