HDMI Adapter
HDMI Adapter
HDMI A Female to A Male, left 90° Angle
Highlights
- Connects an HDMI cable to HDMI cable or display
- Supports 4K resolution
- Convenient 90° left angle allows for easy connection in the most inconvenient places; e.g., tight corners, difficult ports
[ view high resolution images ]
Easily connect around difficult corners or misplaced ports.The Manhattan HDMI Adapter is ideal for navigating around difficult corners or connecting to even the most inaccessible device ports. This HDMI Adapter allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz.
- Connects an HDMI cable to HDMI cable or display
- Supports 4K resolution
- Convenient 90° left angle allows for easy connection in the most inconvenient places; e.g., tight corners, difficult ports
- Gold-plated contacts for best performance
- Intended for use with Manhattan HDMI cables
- Lifetime Warranty
- Standards and Certifications
- RoHS2
- ISO 9002
General: - Bandwidth: 10.2 Gbps
- 340 MHz
- Meets or exceeds existing HDMI standards
- Length: 4 cm (1.6 in.)
Connectors - HDMI A female, 19-pin gold-plated contacts
- HDMI A male, 19-pin gold-plated contacts
Electrical - Current rating: 0.5 ADC
- Withstanding voltage: 300 VDC
- Insulation resistance: 5 MΩ
- Conductive resistance: 2 Ω
General - Length (overall): 42 x 29 x 12 mm (1.7 x 1.1 x 0.5 in.)
- Weight: 10 g (0.35 oz.)
- Molded PVC

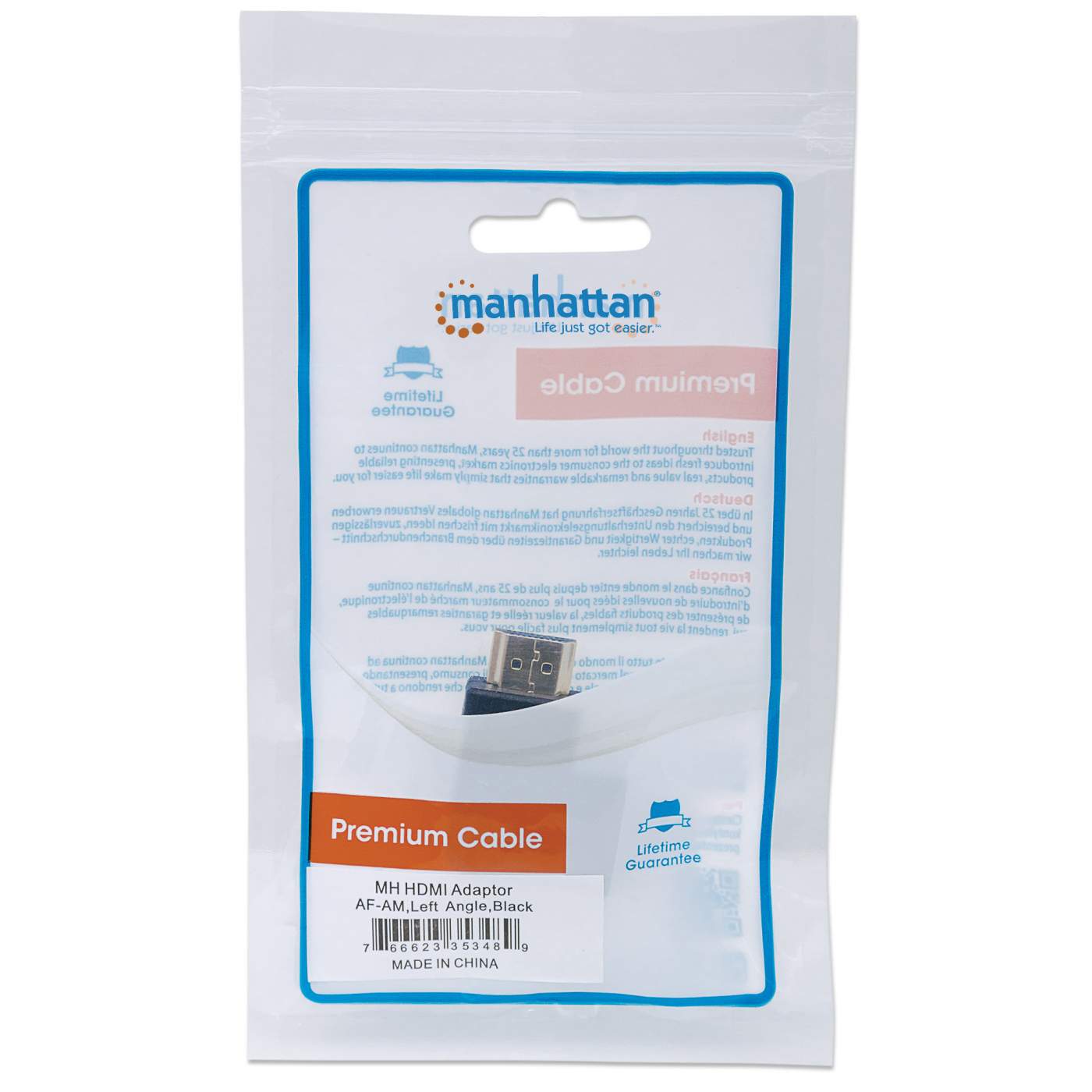

Package Contents - HDMI Adapter, A to A
Additional SKUs
- EAN: 0766623353489
- UPC: 766623353489
Physical Specifications
- Product net weight: 0.02 lbs
- Dimensions: 1.65 (L) x 1.14 (W) x 0.47 (H) [in]
Warning
This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.- Datasheet
- Datasheet » Download
