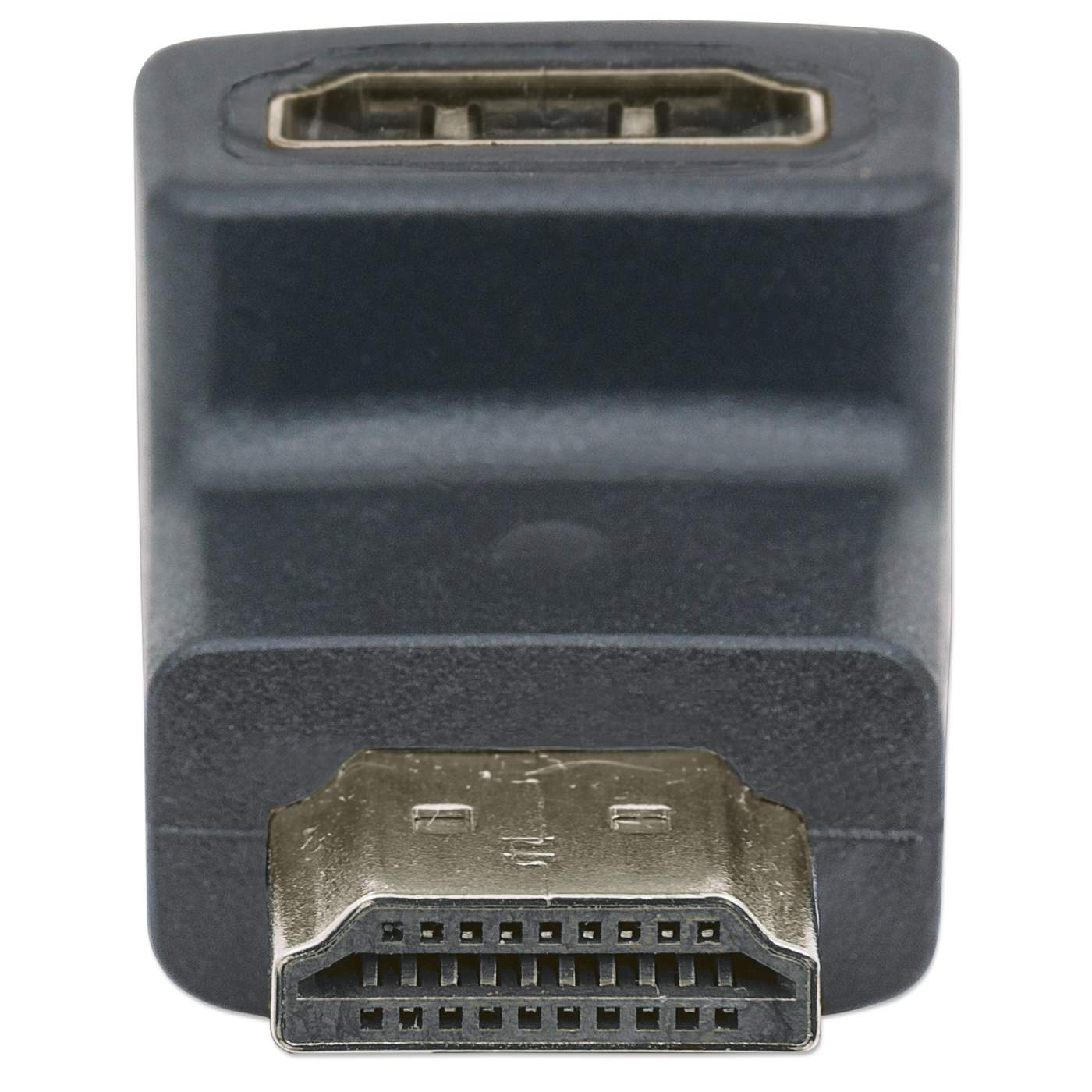

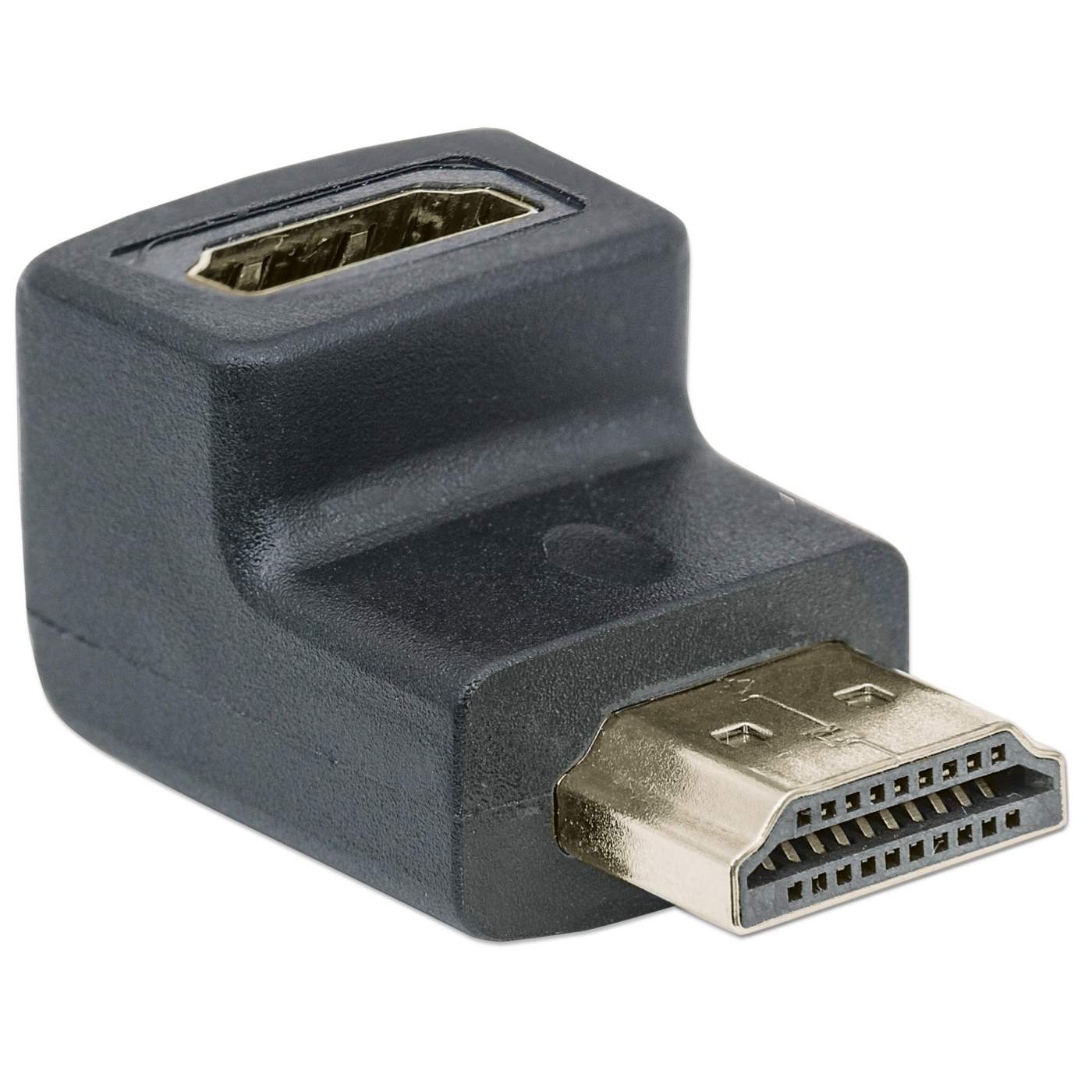

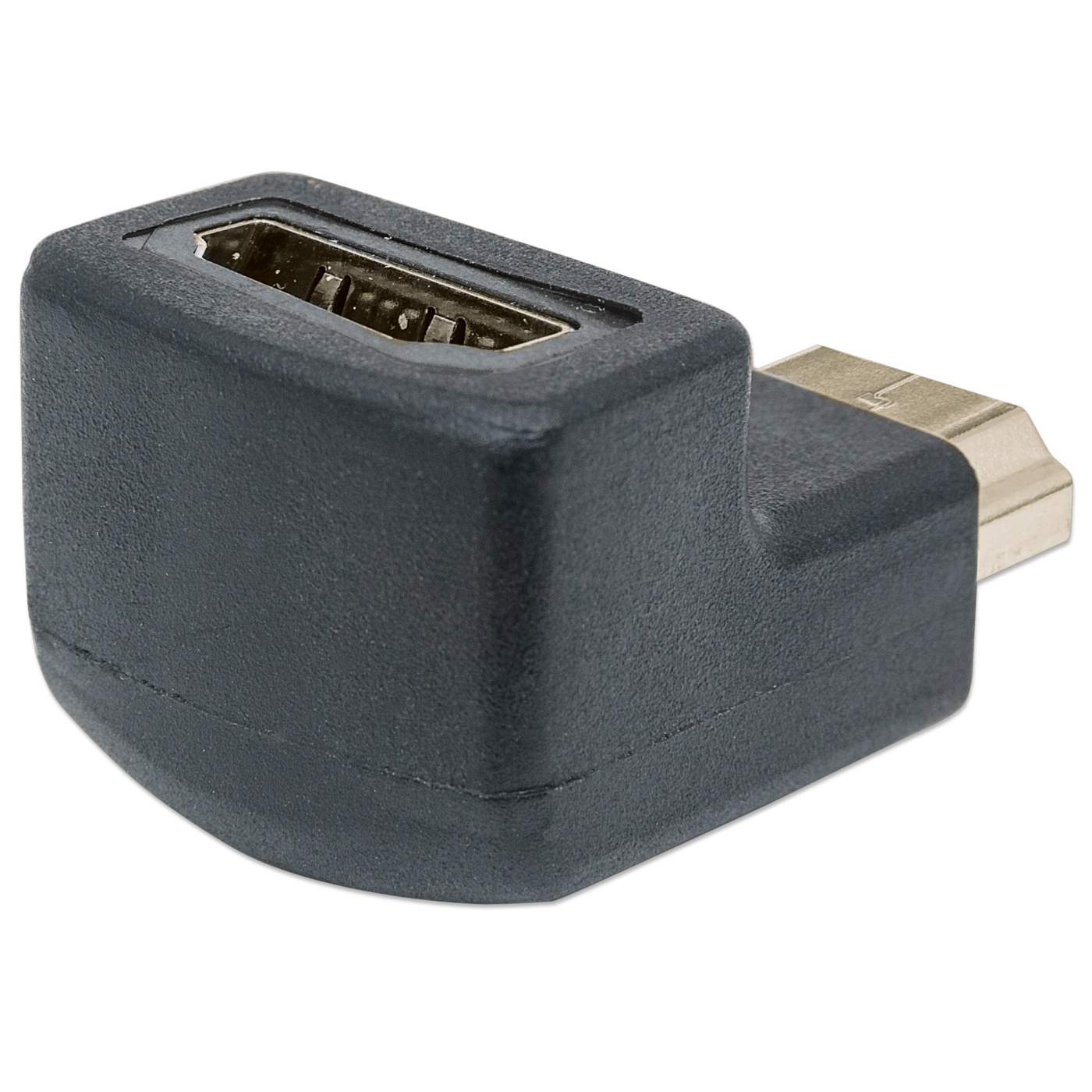

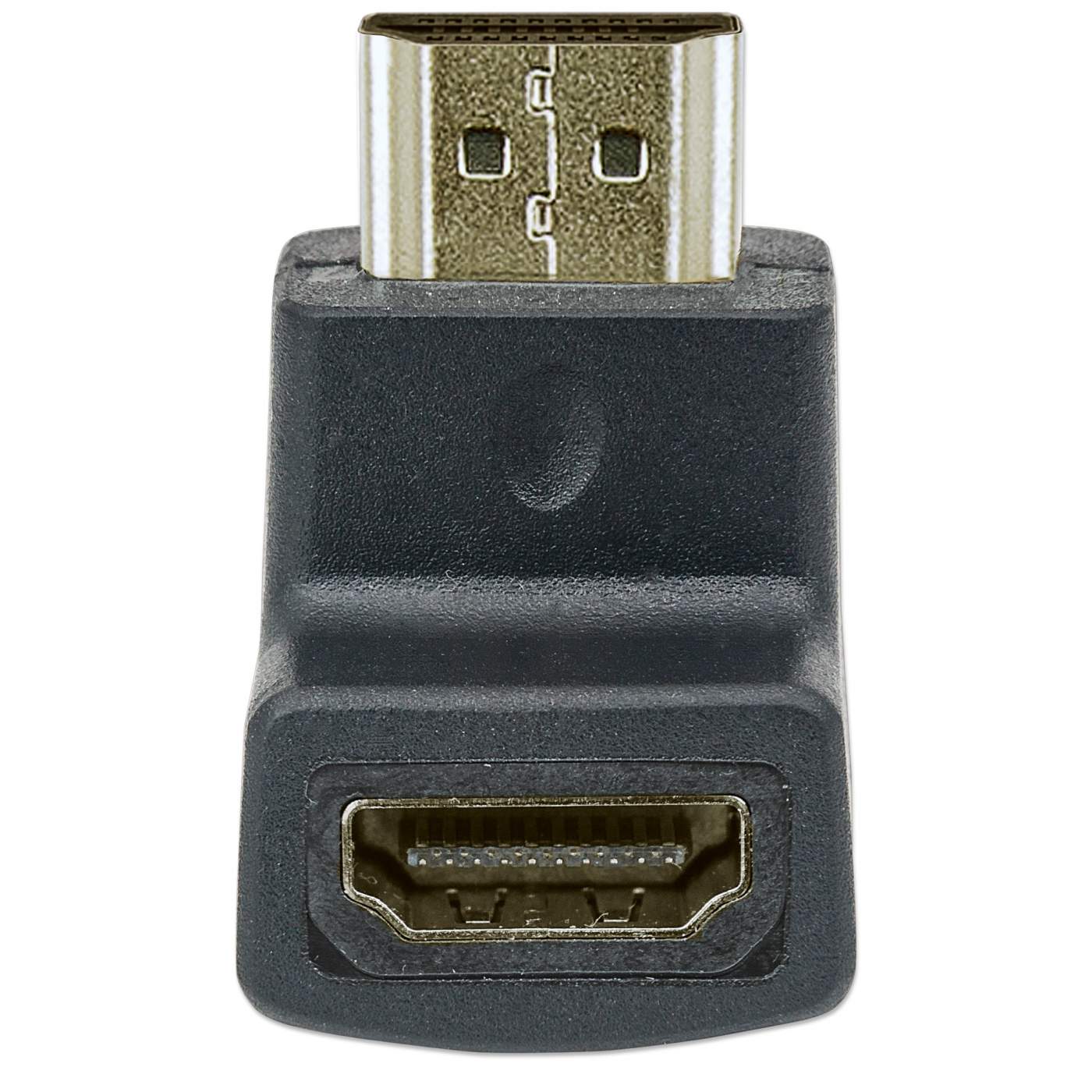

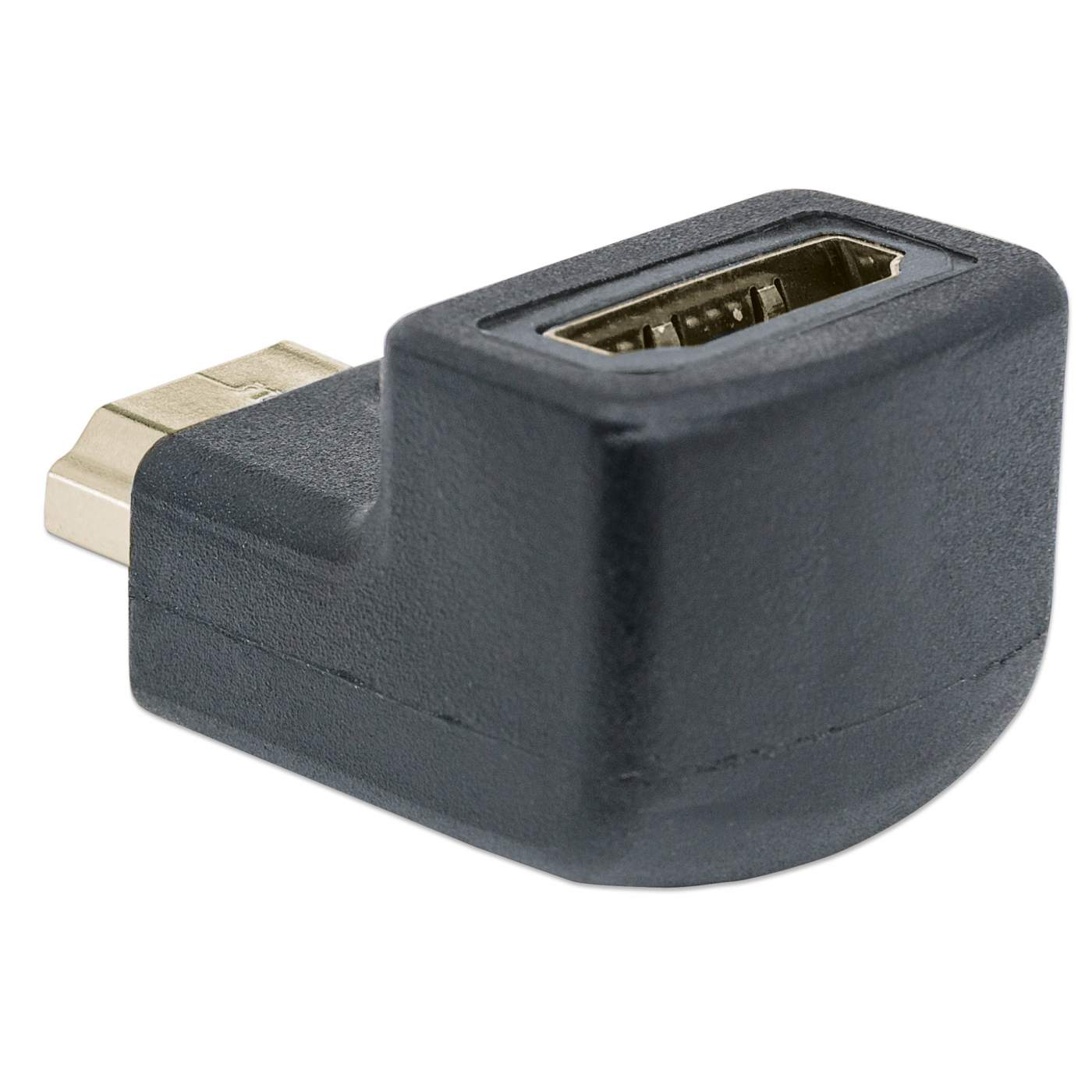

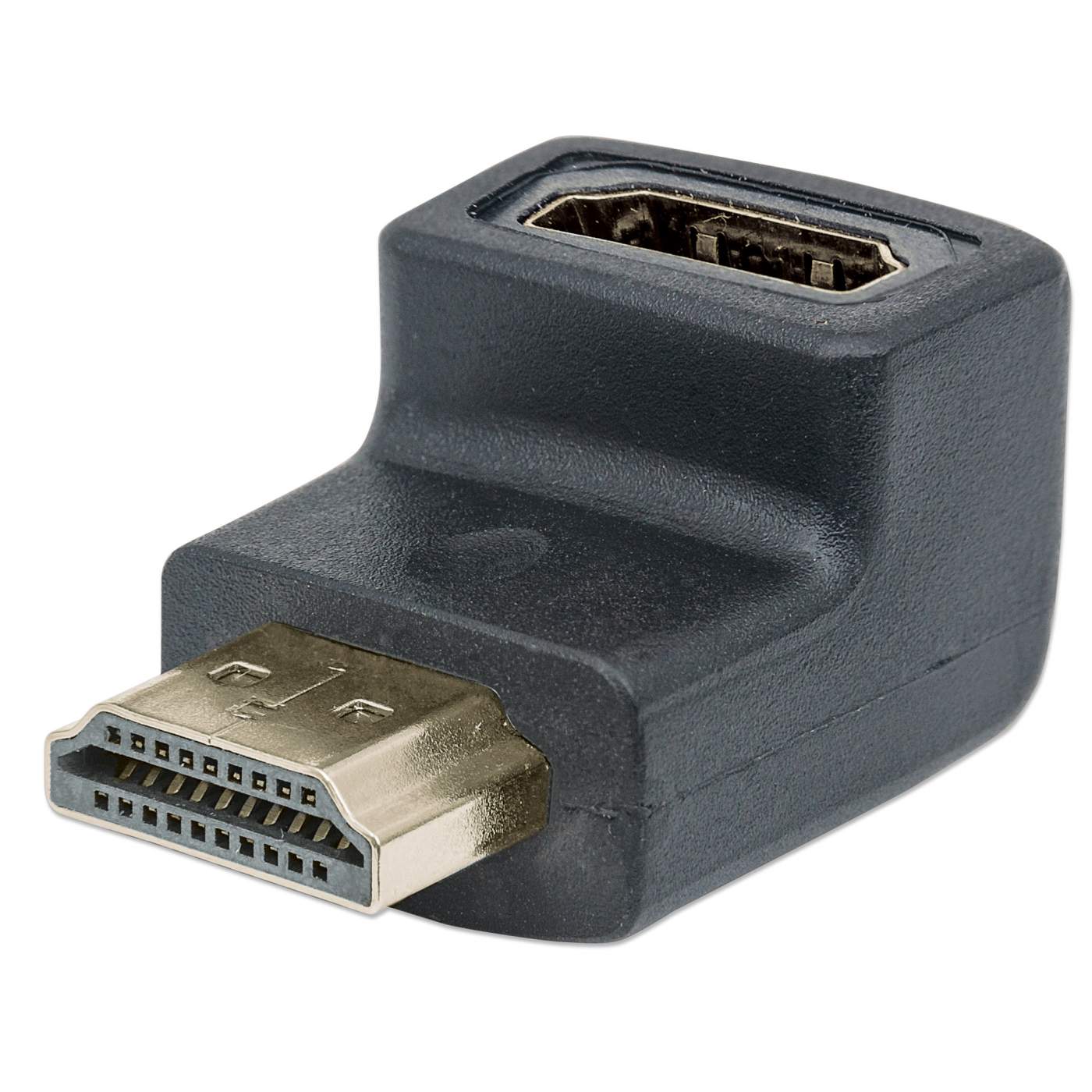

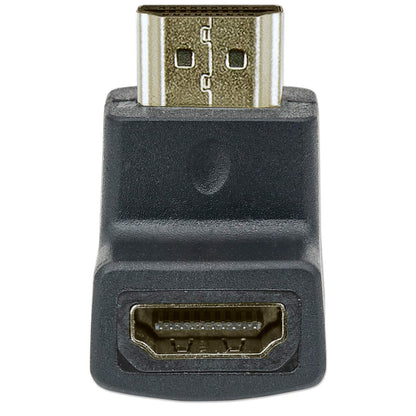

HDMI Adapter

Easily connect around difficult corners or to hard-to-reach ports.
The Manhattan HDMI Adapter is ideal for navigating around difficult corners or connecting to even the most inaccessible device ports. This HDMI Adapter allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz.

• Connects an HDMI cable to another HDMI cable or display
• Supports 4K@60Hz resolution
• Convenient 90° upward angle allows for easy connection in the most inconvenient places; e.g., tight corners, difficult ports
• Gold-plated contacts for best performance
• Intended for use with Manhattan HDMI cables
• Lifetime Warranty

Standards and Certifications

• RoHS2

• ISO 9002

  General:

• Bandwidth: 10.2 Gbps

• 340 MHz

• Meets or exceeds existing HDMI standards

• Length: 4 cm (1.6 in.)

  Connectors

• HDMI A female, 19-pin gold-plated contacts

• HDMI A male, 19-pin gold-plated contacts

  Electrical

• Current rating: 0.5 ADC

• Withstanding voltage: 300 VDC

• Insulation resistance: 5 MΩ

• Conductive resistance: 2 Ω

  General

• Length (overall): 36 x 23 x 20 mm (1.4 x 0.9 x 0.8 in.)

• Weight: 10 g (0.35 oz.)

• Molded PVC

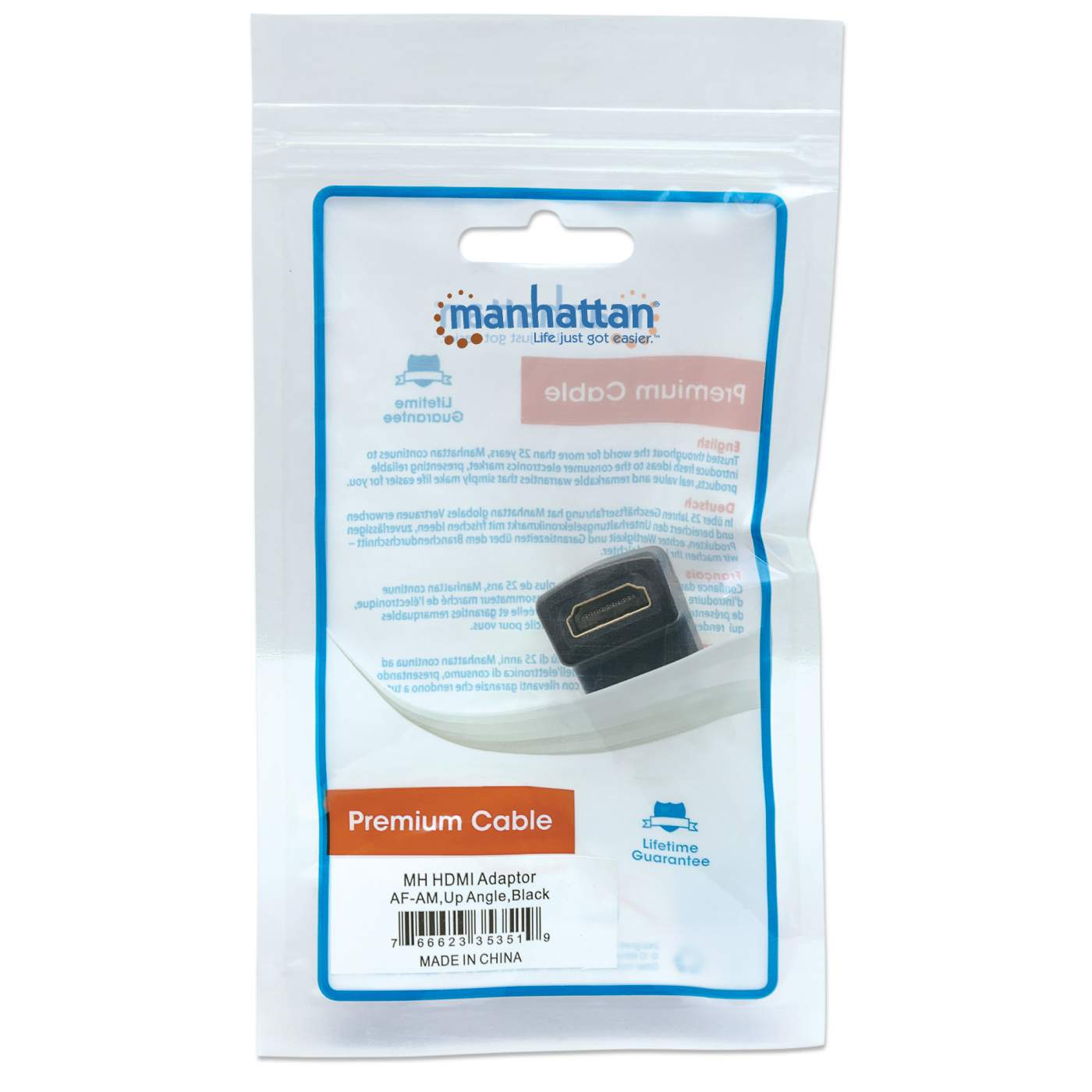

  Package Contents

• HDMI Adapter, A to A

Warning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• EAN: 0766623353519
• UPC: 766623353519



• Physical Specifications

• Product net weight: 0.02 lbs
• Product gross weight: 0.04 kg
• Dimensions: 1.42 (L) x 0.89 (W) x 0.77 (H) [in]

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download
