HDMI to DVI-D Cable
HDMI to DVI-D Cable

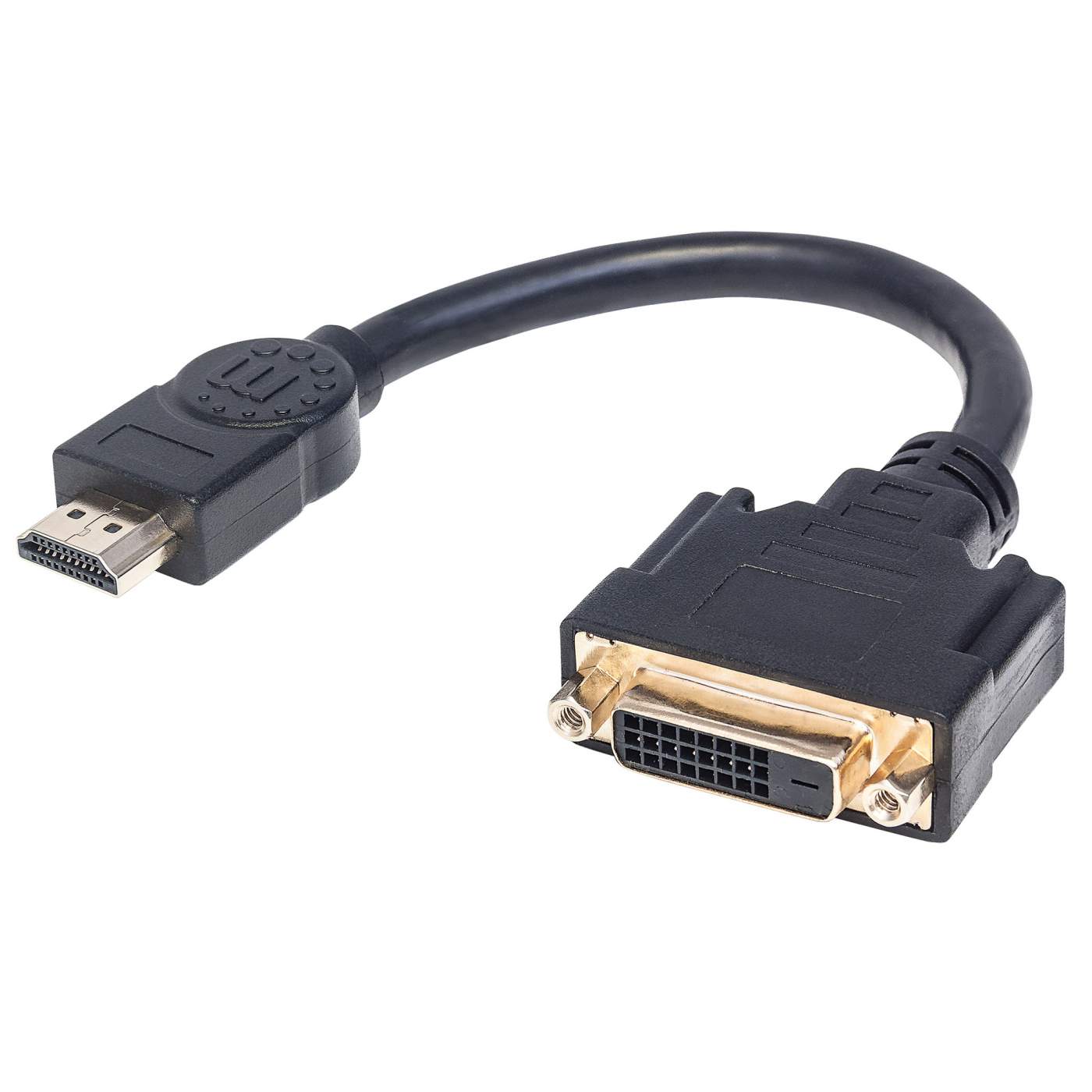

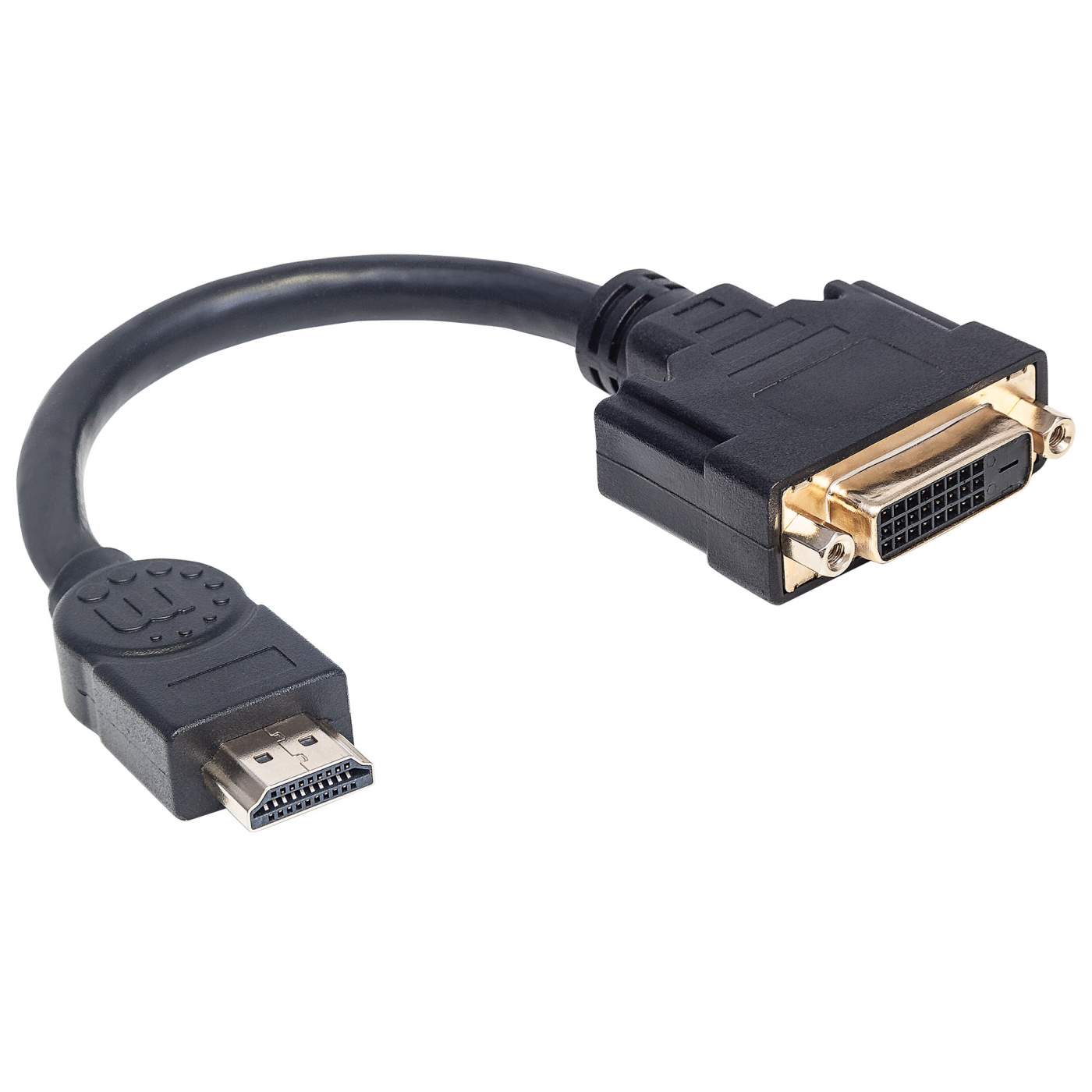

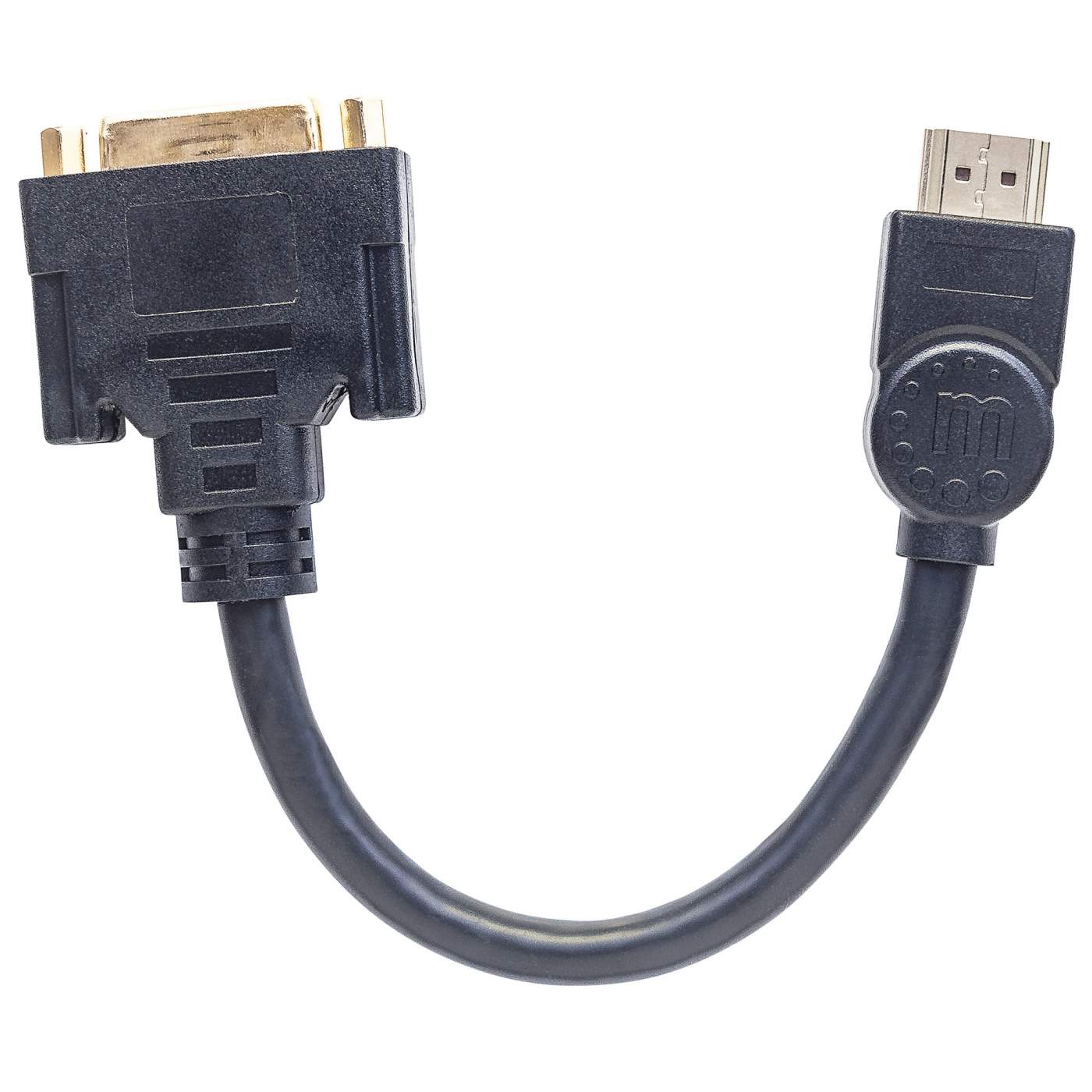

HDMI Male to DVI-D 24+1 Female, Dual Link, 20 cm (8 in.), Black
Highlights
- HDMI 19-pin male to DVI-D 24+1 female; gold-plated connections
- Connects HDMI video source and DVI-D display
- Fully shielded to reduce EMI and other interference sources
[ view high resolution images ]
Superior connections for quality digital video performance
Manhattan HDMI to DVI Cables deliver the brightest, most accurate colors and sharpest detail when connecting high-definition televisions, LCD and plasma displays, digital satellite receivers, DVD players, digital projectors and other DVI- or HDMI-equipped display devices. Manhattan HDMI to DVI Cables are engineered and constructed of quality materials to deliver dependable transmissions in digital video applications. Full-foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.
- HDMI 19-pin male to DVI-D 24+1 female; gold-plated connections
- Connects HDMI video source and DVI-D display
- Fully shielded to reduce EMI and other interference sources
- Supports existing HD (720p, 1080i and 1080p@60Hz), enhanced (480p) and standard (NTSC or PAL) video formats
- Molded PVC boot
- Lifetime warranty
- Standards and Certifications
- Meets or exceeds existing HDMI and DVI-D standards
- Compatible with DVI-D dual link devices
- UL
- ISO

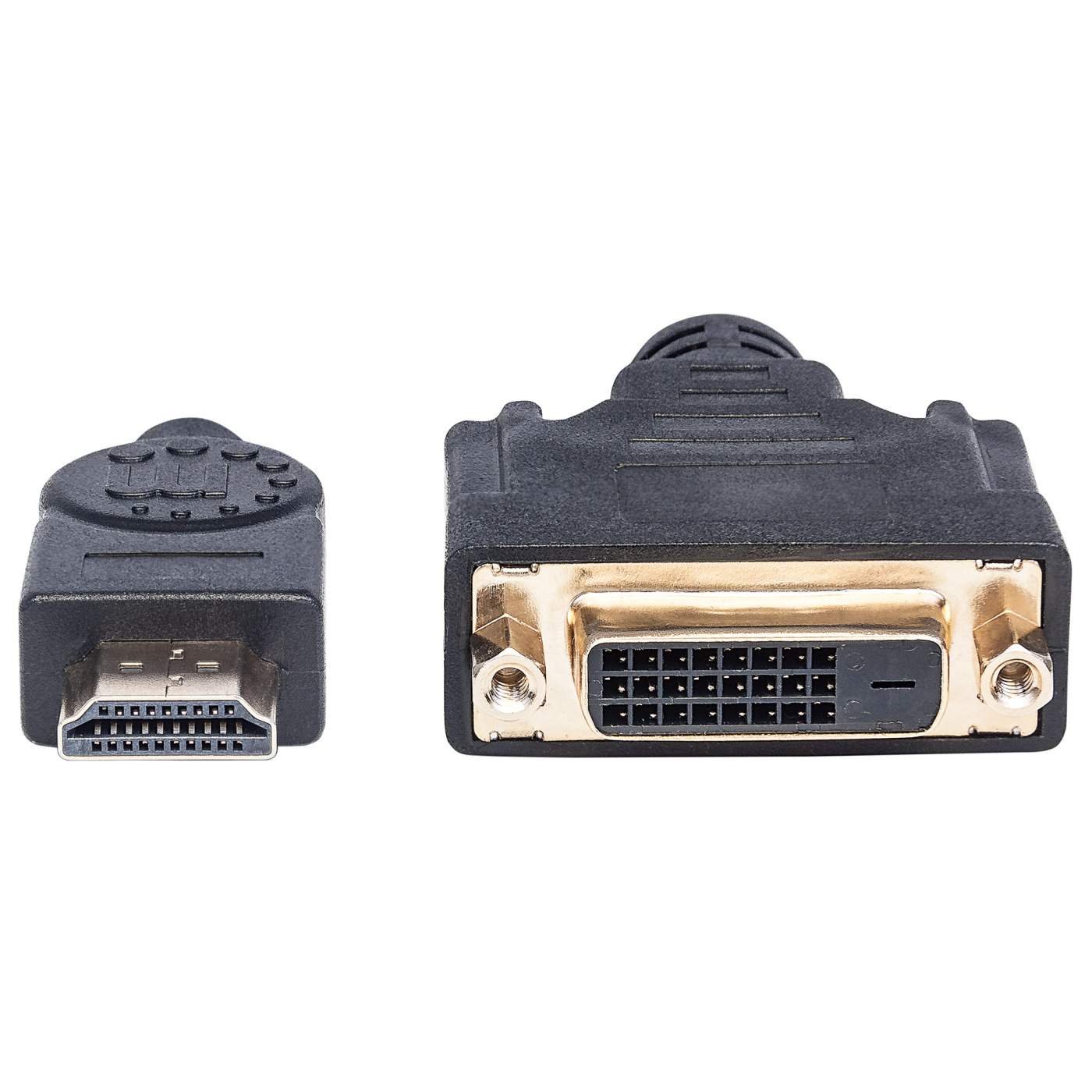

Connections - One HDMI 19-pin male
- One DVI-D 24+1-pin female
- Molded PVC boot
- Shielded
- 28 AWG connectors
Cable - Shielded
- Length: 20 cm (8 in)
- Current rating: 0.5 A DC
- Withstanding voltage: 300 V DC
- Insulation resistance: 10 MOhms
- Conductive resistance: 1 Ohm
- Thermal plastic casing
Operating Environment - Operation Temperature: 0 – 40°C (32 – 104°F)
- Storage Temperature: -20 – 60°C (-4 – 140°F)
- Humidity (noncondensing): 5 – 90%
Package Contents - HDMI to DVI-D Cable
Additional SKUs
- EAN: 0766623354592
- UPC: 766623354592
Physical Specifications
- Product net weight: 0.18 lbs
- Product gross weight: 0 kg
- Dimensions: 7.87 in
Warning
This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.- Datasheet
- Datasheet » Download
