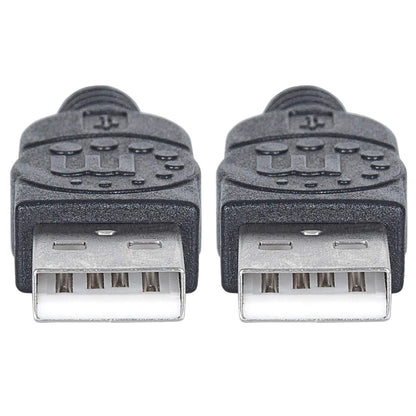

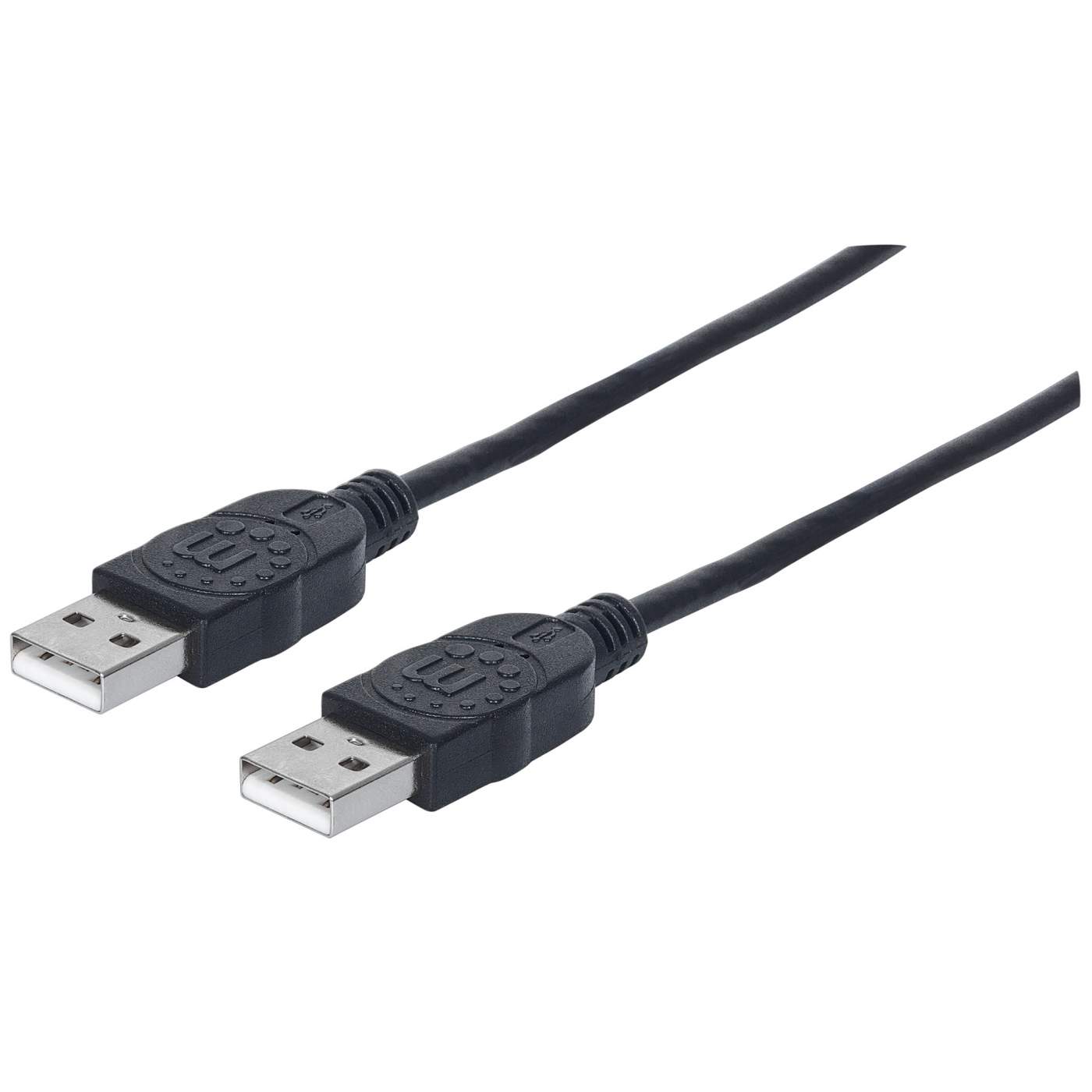

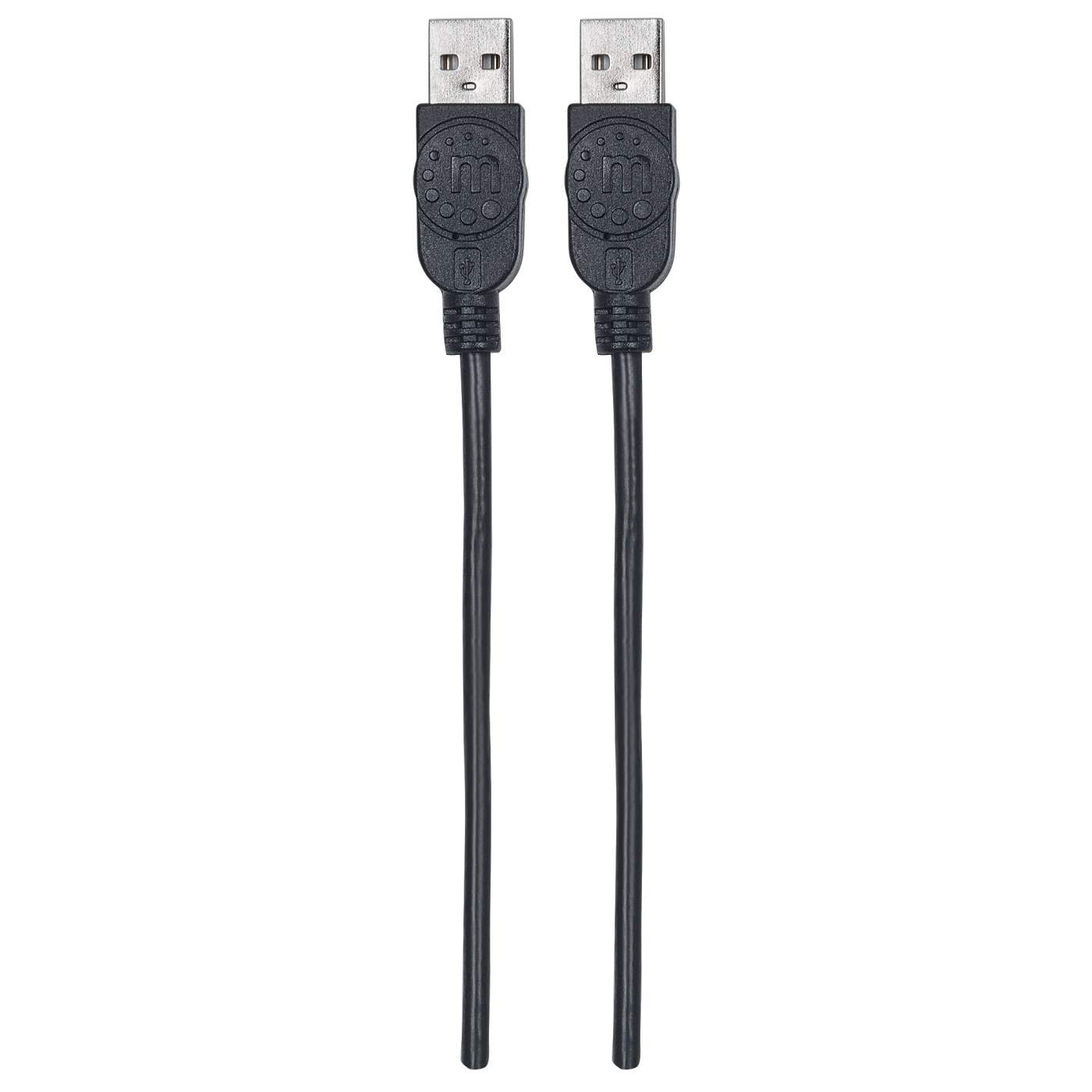

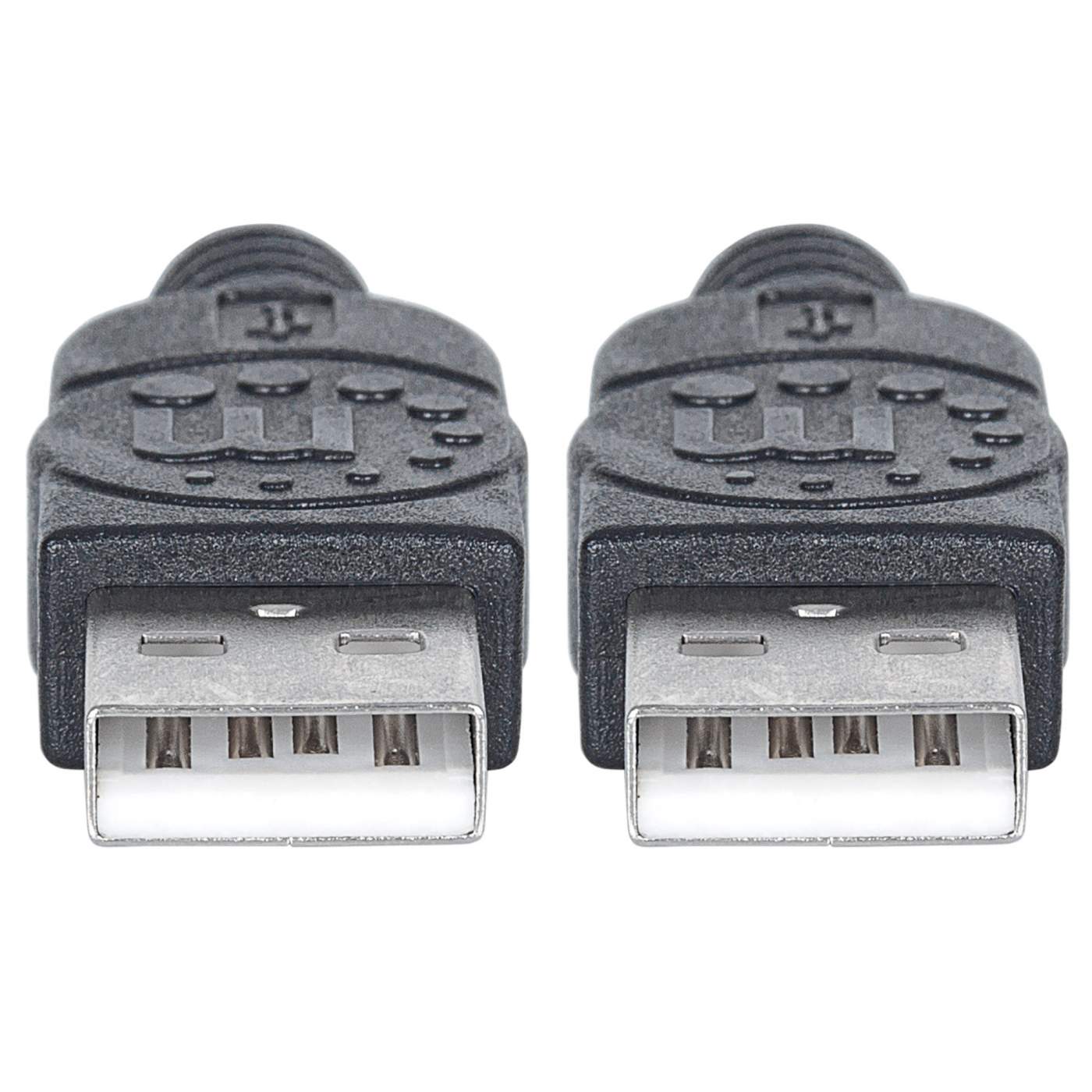

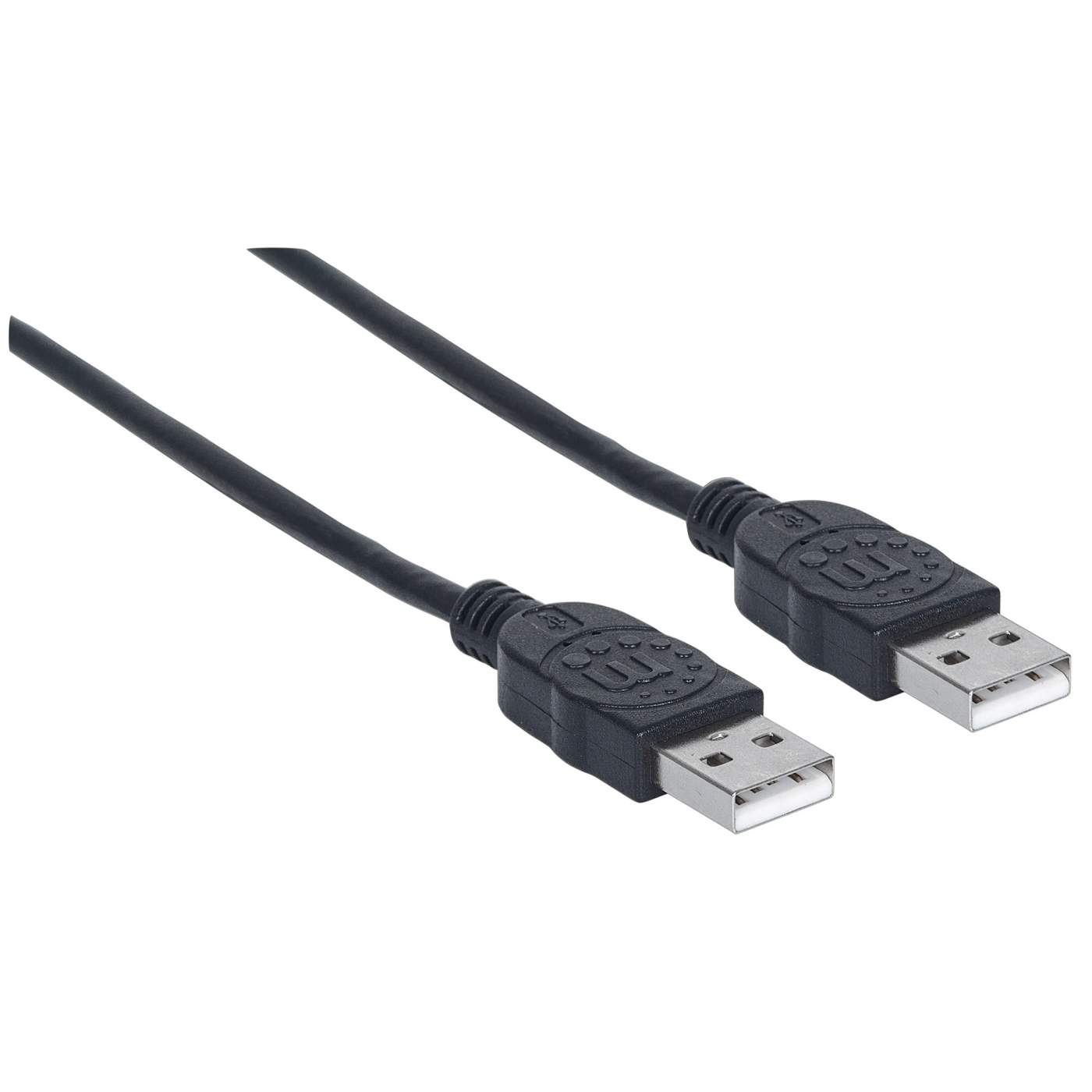

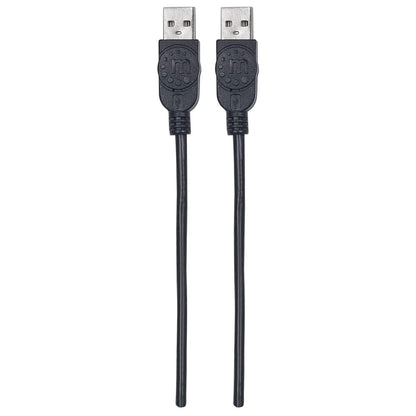

Hi-Speed USB A Device Cable

Connect with confidence

Manhattan Hi-Speed USB Device Cables easily connect USB peripherals and accessories with desktop and notebook computers. They're ideal for use with many USB external enclosures, hubs and other hot-swap, Plug and Play devices. Manhattan Hi-Speed USB Device Cables support data transfer rates up to 480 Mbps on Windows and Mac systems for fast, reliable data transmissions. Gold-plated contacts and fully molded boots with strain relief help provide dependable connections, maximum conductivity and minimal data loss.

• USB 2.0 Type-A male to Type-A male
• Connects a USB device to a USB hub or computer
• Supports speeds of up to 480 Mbps
• Ideal replacement or spare cable for synchronization and charging
• Lifetime Warranty

Standards and Certifications

• UL 2725

  Connectors

• Two USB 2.0 Type-A male

• Gold-plated contacts

• Molded PVC boot with strain relief

  Cable

• Shielded

• Current rating: 0.5 ADC

• Withstanding voltage: 300 VDC

• Insulation resistance: 5 MΩ

• Conductive resistance: 5 Ω

• Thermal plastic casing

• 28 AWG

  Physical

• 0.5 m (1.5 ft.)

• Weight: 24 g (0.9 oz.)

  Operating Environment

• Operation Temperature: 0 - 50°C (32 - 122°F)

• Storage Temperature: -25 - 85°C (-13 - 185°F)

• Humidity (noncondensing): 0 - 96%

  Package Contents

• Hi-Speed USB Device Cable

• Additional SKUs

• EAN: 0766623353885
• UPC: 766623353885



• Physical Specifications

• Product net weight: 0.2 lbs
• Product gross weight: 0.04 kg
• Dimensions: 1.6 ft
